VJA300R-GNUVZ (2021)
Toyota Land Cruiser
(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67781D - COVER, FRONT DOOR TRIM, UPPER RH | ||||
| 67781-60500 |
GRJ300,VJA300 |
1 | ||
| 67782 - COVER, FRONT DOOR TRIM, UPPER LH | ||||
| 67782-60530 |
GRJ300,VJA300 |
1 | ||
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-76011 |
VJA300..RHD |
1 | ||
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-76011 |
VJA300..RHD |
1 | ||
| 69031 - COVER SET, DOOR LOCK, RH | ||||
| 69031-76010 |
GRJ300,VJA300 |
1 | ||
| 69032 - COVER SET, DOOR LOCK, LH | ||||
| 69032-76010 |
GRJ300,VJA300 |
1 | ||
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-30010 |
GRJ300,VJA300 |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-30010 |
GRJ300,VJA300 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-52460 |
VJA300..RHD |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-52460 |
VJA300..RHD |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-60130 |
GRJ300,VJA300 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-60080 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-33140C0 |
VJA300..Z BLACK,TRIM2#,3#,4# |
1 | ||
| 69205-33140C0 |
GRJ300,VJA300..V BLACK,TRIM2#,4# |
1 | ||
| 69205-15010C1 |
GRJ300,VJA300..A,G BLACK,TRIM2#,4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GRJ300,VJA300 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-33150C0 |
VJA300..Z BLACK,TRIM2#,3#,4# |
1 | ||
| 69206-33150C0 |
GRJ300,VJA300..V BLACK,TRIM2#,4# |
1 | ||
| 69206-15010C1 |
GRJ300,VJA300..A,G BLACK,TRIM2#,4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-60330A0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040 |
1 | ||
| 69210-60330A1 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070 |
1 | ||
| 69210-60330C0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202 |
1 | ||
| 69210-60330A1 |
VJA300..RHD..Z WHITE PEARL CS.,070 |
1 | ||
| 69210-60330C1 |
VJA300..RHD..Z ATTITUDE BLACK MC.,218 |
1 | ||
| 69210-60330B1 |
VJA300..RHD..Z GRAY ME.,1G3 |
1 | ||
| 69210-60330B1 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3 |
1 | ||
| 69210-60330A0 |
VJA300..RHD..Z SUPER WHITE 2,040 |
1 | ||
| 69210-60330B0 |
VJA300..RHD..Z SILVER ME.,1F7 |
1 | ||
| 69210-60330C0 |
VJA300..RHD..Z BLACK,202 |
1 | ||
| 69210-60330D0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3 |
1 | ||
| 69210-60330B0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7 |
1 | ||
| 69210-60330D0 |
VJA300..RHD..Z DK. RED M.M.,3Q3 |
1 | ||
| 69210-60330A2 |
VJA300..RHD..Z PRECIOUS WHITE PEARL,090 |
1 | ||
| 69210-60330E0 |
VJA300..RHD..Z AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-60330C1 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218 |
1 | ||
| 69210-60330J0 |
VJA300..RHD..Z DK. BLUE MC.,8X8 |
1 | ||
| 69210-60330J0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8 |
1 | ||
| 69210-60390A1 |
VJA300..RHD..(A,V) WHITE PEARL CS.,070 |
1 | ||
| 69210-60390B1 |
VJA300..RHD..(A,V) GRAY ME.,1G3 |
1 | ||
| 69210-60390B0 |
VJA300..RHD..(A,V) SILVER ME.,1F7 |
1 | ||
| 69210-60390A0 |
VJA300..RHD..(A,V) SUPER WHITE 2,040 |
1 | ||
| 69210-60390C0 |
VJA300..RHD..(A,V) BLACK,202 |
1 | ||
| 69210-60330E0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-60390E0 |
VJA300..RHD..(A,V) AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-60390D0 |
VJA300..RHD..(A,V) DK. RED M.M.,3Q3 |
1 | ||
| 69210-60390C1 |
VJA300..RHD..(A,V) ATTITUDE BLACK MC.,218 |
1 | ||
| 69210-60390J0 |
VJA300..RHD..(A,V) DK. BLUE MC.,8X8 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-30140 |
GRJ300,VJA300 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-60350A2 |
VJA300..RHD..Z PRECIOUS WHITE PEARL,090 |
1 | ||
| 69210-60350A1 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070 |
1 | ||
| 69210-60350A0 |
VJA300..RHD..Z SUPER WHITE 2,040 |
1 | ||
| 69210-60350B0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7 |
1 | ||
| 69210-60350A1 |
VJA300..RHD..Z WHITE PEARL CS.,070 |
1 | ||
| 69210-60350B1 |
VJA300..RHD..Z GRAY ME.,1G3 |
1 | ||
| 69210-60350B0 |
VJA300..RHD..Z SILVER ME.,1F7 |
1 | ||
| 69210-60350A0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040 |
1 | ||
| 69210-60350C0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202 |
1 | ||
| 69210-60350C1 |
VJA300..RHD..Z ATTITUDE BLACK MC.,218 |
1 | ||
| 69210-60350D0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3 |
1 | ||
| 69210-60350C1 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218 |
1 | ||
| 69210-60350E0 |
VJA300..RHD..Z AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-60350B1 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3 |
1 | ||
| 69210-60350E0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-60350J0 |
VJA300..RHD..Z DK. BLUE MC.,8X8 |
1 | ||
| 69210-60350J0 |
VJA300..RHD..V DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8 |
1 | ||
| 69210-60350C0 |
VJA300..RHD..Z BLACK,202 |
1 | ||
| 69210-60350D0 |
VJA300..RHD..Z DK. RED M.M.,3Q3 |
1 | ||
| 69210-60400B1 |
VJA300..RHD..(A,V) GRAY ME.,1G3 |
1 | ||
| 69210-60400J0 |
VJA300..RHD..(A,V) DK. BLUE MC.,8X8 |
1 | ||
| 69210-60400C0 |
VJA300..RHD..(A,V) BLACK,202 |
1 | ||
| 69210-60400A0 |
VJA300..RHD..(A,V) SUPER WHITE 2,040 |
1 | ||
| 69210-60400C1 |
VJA300..RHD..(A,V) ATTITUDE BLACK MC.,218 |
1 | ||
| 69210-60400E0 |
VJA300..RHD..(A,V) AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-60400B0 |
VJA300..RHD..(A,V) SILVER ME.,1F7 |
1 | ||
| 69210-60400D0 |
VJA300..RHD..(A,V) DK. RED M.M.,3Q3 |
1 | ||
| 69210-60400A1 |
VJA300..RHD..(A,V) WHITE PEARL CS.,070 |
1 | ||
| 69237A - NUT, FRONT DOOR HANDLE | ||||
| 69237-62010 |
GRJ300,VJA300 |
2 | ||
| 69239C - BUSH, FRONT DOOR HANDLE | ||||
| 69239-47010 |
GRJ300,VJA300 |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-60070 |
GRJ300,VJA300 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60050 |
GRJ300,VJA300 |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
GRJ300,VJA300 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
GRJ300,VJA300 |
1 | ||
| 69296 - SCREW, DOOR INSIDE HANDLE | ||||
| 69296-30010 |
GRJ300,VJA300 |
2 | ||
| 69296C - SCREW, DOOR INSIDE HANDLE | ||||
| 90148-50003 |
GRJ300,VJA300..GCC,GEN |
2 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-60080 |
GRJ300,VJA300 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-60080 |
GRJ300,VJA300 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GRJ300,VJA300 |
2 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GRJ300,VJA300 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-60030 |
GRJ300,VJA300 |
2 | ||
| 69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE | ||||
| 69710-60060 |
GRJ300,VJA300 |
1 | ||
| 69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE | ||||
| 69710-60060 |
GRJ300,VJA300 |
1 | ||
| 69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK | ||||
| 69750-60070 |
GRJ300,VJA300 |
1 | ||
| 69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK | ||||
| 69750-60070 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 69296-47010 | ||||
| 90148-60092 | ||||
| 90148-80066 | ||||
| 90189-05183 | ||||
| 93567-55020 | ||||

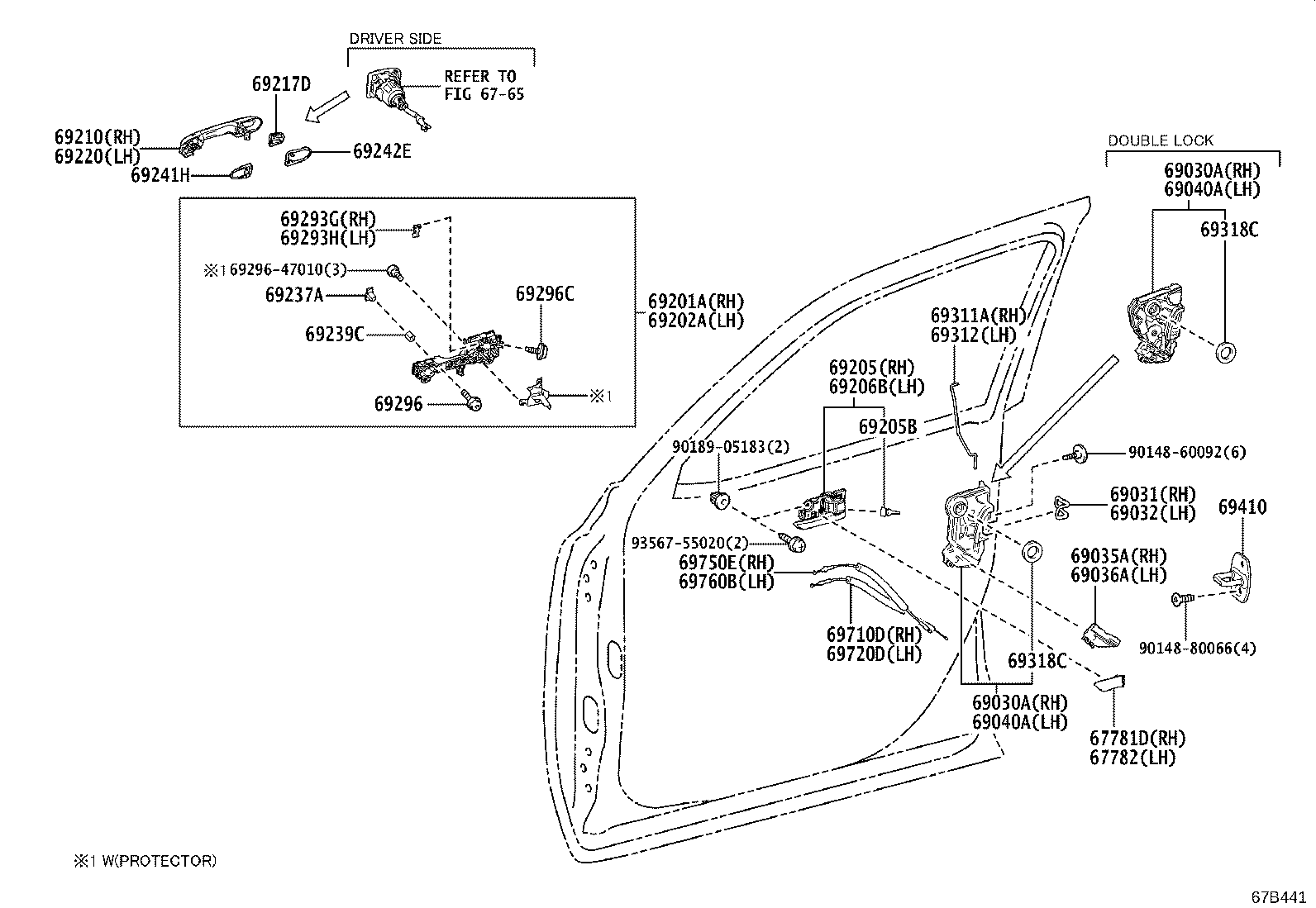

| Linked diagrams | ||||
| 6765 | ||||
