VJA300R-GNUVZ (2021)
Toyota Land Cruiser

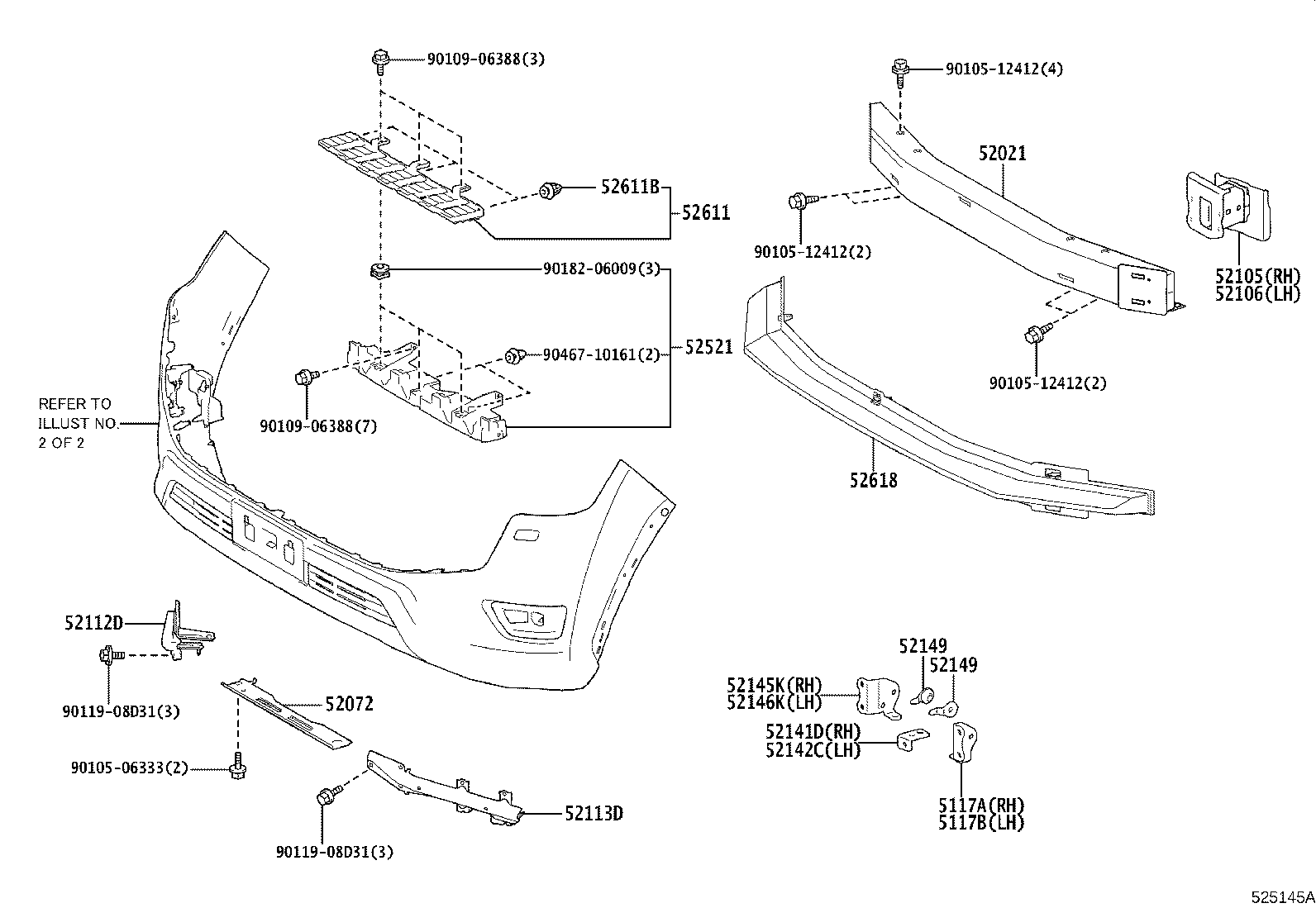

ILLUST NO. 1 OF 2(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 5117A - REINFORCEMENT, EXTENSION WINCH SUPPORT, RH | ||||
| 5117A-60020 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 5117A-60020 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 5117B - REINFORCEMENT, EXTENSION WINCH SUPPORT, LH | ||||
| 5117B-60020 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 5117B-60020 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-60280 |
GRJ300,VJA300 |
1 | ||
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52081-60020 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 52081-60020 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52082-60020 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52082-60020 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 38395-60010 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 38395-60010 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 38396-60010 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 38396-60010 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52145K - GUSSET, WINCH SUPPORT, RH | ||||
| 52145-60180 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 52145-60180 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52146K - GUSSET, WINCH SUPPORT, LH | ||||
| 52146-60130 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 52146-60130 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52149 - BRACKET, FRONT BUMPER, INNER | ||||
| 52149-60140 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
4 | ||
| 52149-60140 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
4 | ||
| 52149 - BRACKET, FRONT BUMPER, INNER | ||||
| 52149-60140 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
4 | ||
| 52149-60140 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
4 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-60220 |
GRJ300,VJA300 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-60160 |
GRJ300,VJA300 |
1 | ||
| 52611B - CLIP, FRONT BUMPER ENERGY ABSORBER | ||||
| 90467-09232 |
GRJ300,VJA300 |
3 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-60020 |
GRJ300,VJA300..A,G,V |
1 | ||
| 52618-60030 |
VJA300..Z |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90105-12412 | ||||
| 90109-06388 | ||||
| 90119-08D31 | ||||
| 90182-06009 | ||||
| 90467-10161 | ||||

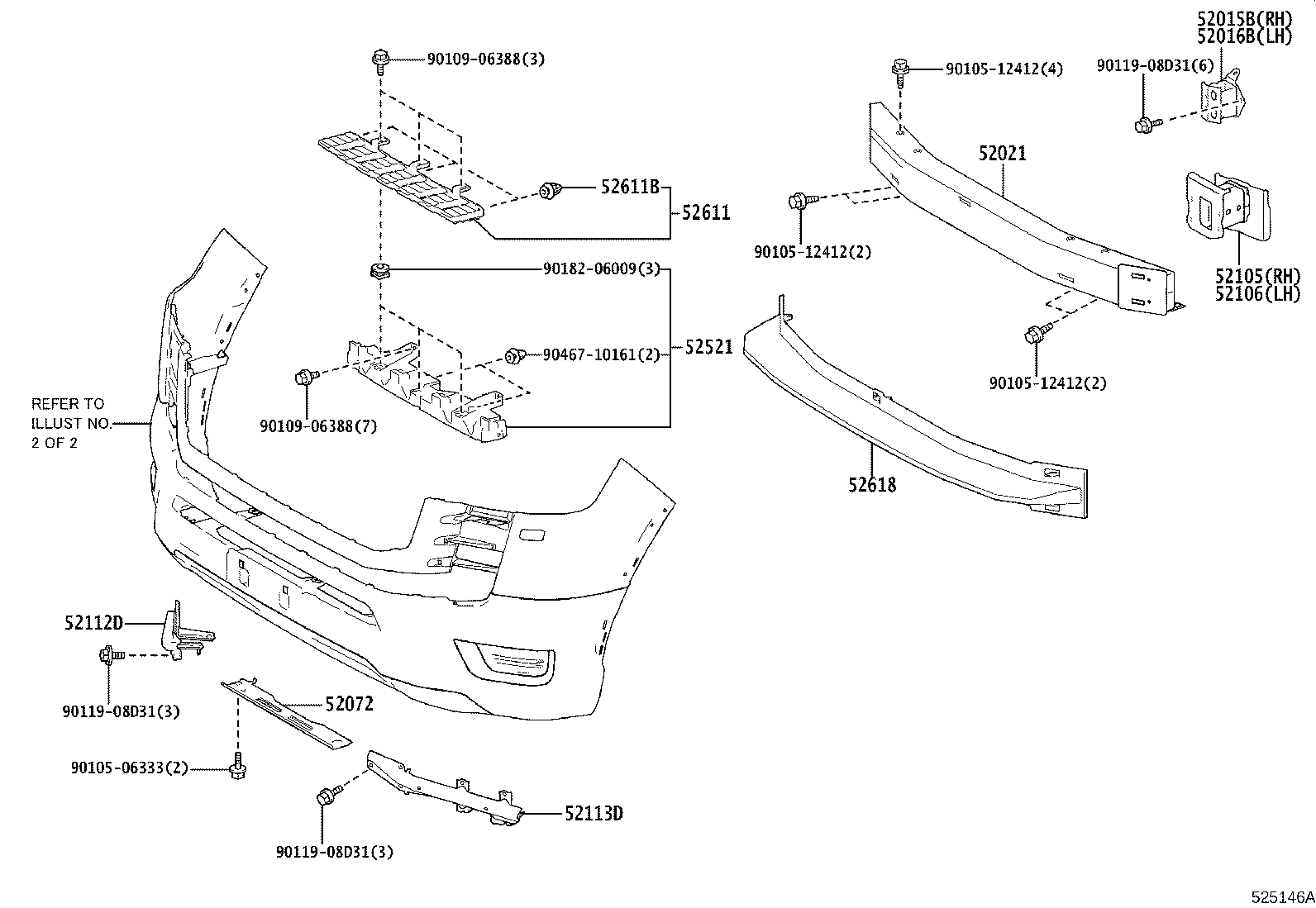

ILLUST NO. 1 OF 2(2104- )
AERO BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-60280 |
GRJ300,VJA300 |
1 | ||
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52081-60020 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 52081-60020 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52082-60020 |
VJA300..RHD BULL-BAR & TOWING WC PACKAGE(DOP) |
1 | ||
| 52082-60020 |
VJA300..RHD BULL-BAR PACKAGE(DOP) |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-60220 |
GRJ300,VJA300 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-60160 |
GRJ300,VJA300 |
1 | ||
| 52611B - CLIP, FRONT BUMPER ENERGY ABSORBER | ||||
| 90467-09232 |
GRJ300,VJA300 |
3 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-60020 |
GRJ300,VJA300..A,G,V |
1 | ||
| 52618-60030 |
VJA300..Z |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90105-12412 | ||||
| 90109-06388 | ||||
| 90119-08D31 | ||||
| 90182-06009 | ||||
| 90467-10161 | ||||

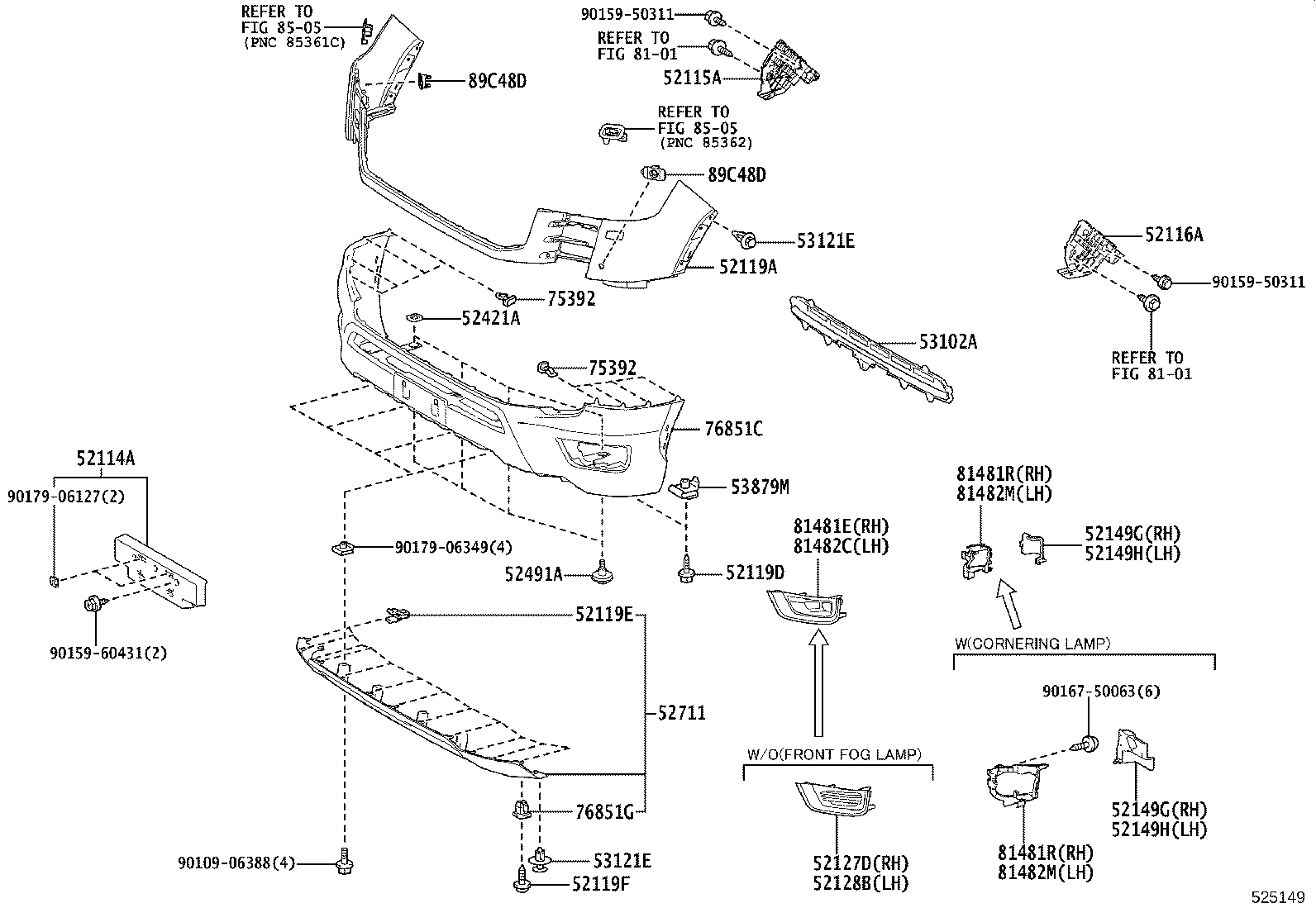

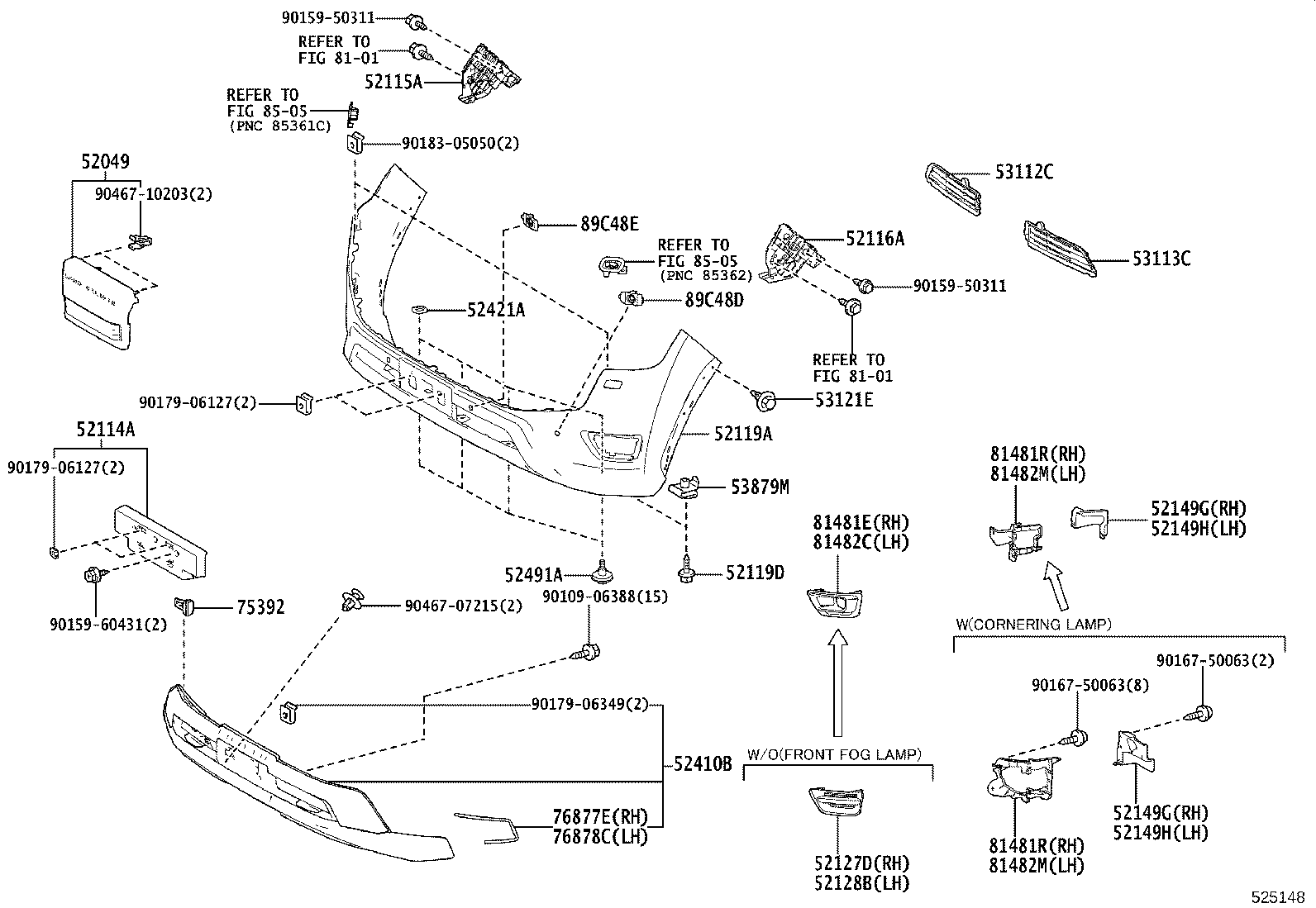

ILLUST NO. 2 OF 2(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-60360 |
VJA300..V..GEN LICENSE PLATE BRACKET-WITH(FOR EUROPE) |
1 | ||
| 52114-60490 |
VJA300..7S..Z LICENSE PLATE BRACKET-WITH(WITH(AERO BUMPER), EXCEPT EUROPE) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-60280 |
GRJ300,VJA300 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-60280 |
GRJ300,VJA300 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-6C919 |
GRJ300,VJA300..7S..(A,G) PAINT REQ. |
1 | ||
| 52119-6C921 |
GRJ300,VJA300..7S..A PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-6C920 |
GRJ300..A,G;VJA300..7S..A PAINT REQ.,PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52119-6C922 |
GRJ300,VJA300..V..(GCC,GEN) PAINT REQ. |
1 | ||
| 52119-6C920 |
GRJ300..A,G;VJA300..7S..A PAINT REQ.,FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52119-6C921 |
GRJ300,VJA300..7S..A PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52119-6C922 |
GRJ300,VJA300..7S..A PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52119-6C922 |
GRJ300,VJA300..7S..A PAINT REQ.,HEADLAMP CLEANER-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52119-6C926 |
VJA300..V..GEN PAINT REQ.,LICENSE PLATE BRACKET-WITH(FOR EUROPE) |
1 | ||
| 52119-6C932 |
VJA300..Z PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60217 |
VJA300..Z |
4 | ||
| 90159-60217 |
GRJ300,VJA300..A,G,V |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-60250 |
GRJ300,VJA300..7S..(A,G) NO PAINT REQ. |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-60250 |
GRJ300,VJA300..7S..(A,G) |
1 | ||
| 52149G - BRACKET, FRONT BUMPER, INNER RH | ||||
| 52149-60150 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52149-60150 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60150 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60150 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52149-60150 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52149-60190 |
VJA300..Z |
1 | ||
| 52149G - BRACKET, FRONT BUMPER, INNER RH | ||||
| 52149-60150 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52149-60150 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60150 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60150 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52149-60150 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52149-60190 |
VJA300..Z |
1 | ||
| 52149H - BRACKET, FRONT BUMPER, INNER LH | ||||
| 52149-60160 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52149-60160 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52149-60200 |
VJA300..Z |
1 | ||
| 52149-60160 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52149-60160 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60160 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149H - BRACKET, FRONT BUMPER, INNER LH | ||||
| 52149-60160 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52149-60160 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52149-60200 |
VJA300..Z |
1 | ||
| 52149-60160 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52149-60160 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60160 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60191 |
GRJ300,VJA300 |
4 | ||
| 52491A - BOLT, BUMPER PAD | ||||
| 52491-60010 |
GRJ300,VJA300 |
4 | ||
| 53112C - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-60350 |
GRJ300,VJA300..A,G,V NO PAINT REQ. |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-60140 |
GRJ300,VJA300..A,G,V NO PAINT REQ. |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90467-07215 |
VJA300..Z |
4 | ||
| 90467-07215 |
GRJ300,VJA300..A,G,V |
2 | ||
| 53879M - RETAINER, FRONT FENDER LINER | ||||
| 90467-05138 |
VJA300..Z |
4 | ||
| 90467-05138 |
GRJ300,VJA300..A,G,V |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
VJA300..Z |
8 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-60170 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52030-60170 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52030-60170 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52030-60170 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52030-60170 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52030-60200 |
VJA300..7S..Z |
1 | ||
| 81481R - BRACKET, FOG LAMP, RH | ||||
| 81481-60120 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 81481-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81481-60150 |
VJA300..Z |
1 | ||
| 81481-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 81481-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81481-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81481R - BRACKET, FOG LAMP, RH | ||||
| 81481-60120 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 81481-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81481-60150 |
VJA300..Z |
1 | ||
| 81481-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 81481-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81481-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52040-60170 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52040-60170 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52040-60170 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52040-60170 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52040-60170 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52040-60200 |
VJA300..7S..Z |
1 | ||
| 81482M - BRACKET, FOG LAMP, LH | ||||
| 81482-60120 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 81482-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81482-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81482-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 81482-60150 |
VJA300..Z |
1 | ||
| 81482M - BRACKET, FOG LAMP, LH | ||||
| 81482-60120 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 81482-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81482-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81482-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 81482-60150 |
VJA300..Z |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-K0230 |
VJA300..A;GRJ300..A,G PARKING SUPPORT BRAKE-WITHOUT |
2 | ||
| 89348-K0230 |
GRJ300,VJA300..V,Z |
2 | ||
| 89C48E - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-K0230 |
GRJ300,VJA300..V |
2 | ||
| 89348-K0230 |
VJA300..A;GRJ300..A,G PARKING SUPPORT BRAKE-WITHOUT |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| 90183-05050 | ||||
| 90467-07215 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 8101 | ||||
| 8505 | ||||
ILLUST NO. 2 OF 2(2104- )
AERO BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-60360 |
VJA300..V..GEN LICENSE PLATE BRACKET-WITH(FOR EUROPE) |
1 | ||
| 52114-60490 |
VJA300..7S..Z LICENSE PLATE BRACKET-WITH(WITH(AERO BUMPER), EXCEPT EUROPE) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-60280 |
GRJ300,VJA300 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-60280 |
GRJ300,VJA300 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-6C919 |
GRJ300,VJA300..7S..(A,G) PAINT REQ. |
1 | ||
| 52119-6C921 |
GRJ300,VJA300..7S..A PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-6C920 |
GRJ300..A,G;VJA300..7S..A PAINT REQ.,PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52119-6C922 |
GRJ300,VJA300..V..(GCC,GEN) PAINT REQ. |
1 | ||
| 52119-6C920 |
GRJ300..A,G;VJA300..7S..A PAINT REQ.,FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52119-6C921 |
GRJ300,VJA300..7S..A PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52119-6C922 |
GRJ300,VJA300..7S..A PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52119-6C922 |
GRJ300,VJA300..7S..A PAINT REQ.,HEADLAMP CLEANER-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52119-6C926 |
VJA300..V..GEN PAINT REQ.,LICENSE PLATE BRACKET-WITH(FOR EUROPE) |
1 | ||
| 52119-6C932 |
VJA300..Z PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60217 |
VJA300..Z |
4 | ||
| 90159-60217 |
GRJ300,VJA300..A,G,V |
2 | ||
| 52119E - SCREW, NO.2 | ||||
| 90467-12080 |
VJA300..Z |
12 | ||
| 52119F - SCREW, NO.3 | ||||
| 90159-60477 |
VJA300..Z |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-60250 |
GRJ300,VJA300..7S..(A,G) NO PAINT REQ. |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-60250 |
GRJ300,VJA300..7S..(A,G) |
1 | ||
| 52149G - BRACKET, FRONT BUMPER, INNER RH | ||||
| 52149-60150 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52149-60150 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60150 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60150 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52149-60150 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52149-60190 |
VJA300..Z |
1 | ||
| 52149G - BRACKET, FRONT BUMPER, INNER RH | ||||
| 52149-60150 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52149-60150 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60150 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60150 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52149-60150 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52149-60190 |
VJA300..Z |
1 | ||
| 52149H - BRACKET, FRONT BUMPER, INNER LH | ||||
| 52149-60160 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52149-60160 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52149-60200 |
VJA300..Z |
1 | ||
| 52149-60160 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52149-60160 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60160 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149H - BRACKET, FRONT BUMPER, INNER LH | ||||
| 52149-60160 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52149-60160 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52149-60200 |
VJA300..Z |
1 | ||
| 52149-60160 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52149-60160 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52149-60160 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60191 |
GRJ300,VJA300 |
4 | ||
| 52491A - BOLT, BUMPER PAD | ||||
| 52491-60010 |
GRJ300,VJA300 |
4 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-60120A0 |
VJA300..Z SUPER WHITE 2,040 |
1 | ||
| 52711-60120A1 |
VJA300..Z WHITE PEARL CS.,070 |
1 | ||
| 52711-60120A2 |
VJA300..Z PRECIOUS WHITE PEARL,090 |
1 | ||
| 52711-60120B0 |
VJA300..Z SILVER ME.,1F7 |
1 | ||
| 52711-60120B1 |
VJA300..Z GRAY ME.,1G3 |
1 | ||
| 52711-60120C0 |
VJA300..Z BLACK,202 |
1 | ||
| 52711-60120C1 |
VJA300..Z ATTITUDE BLACK MC.,218 |
1 | ||
| 52711-60120D0 |
VJA300..Z DK. RED M.M.,3Q3 |
1 | ||
| 52711-60120E0 |
VJA300..Z AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52711-60120J0 |
VJA300..Z DK. BLUE MC.,8X8 |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-60020 |
VJA300..7S..Z PLATED |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90467-07215 |
VJA300..Z |
4 | ||
| 90467-07215 |
GRJ300,VJA300..A,G,V |
2 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90467-07215 |
VJA300..Z |
4 | ||
| 90467-07215 |
GRJ300,VJA300..A,G,V |
2 | ||
| 53879M - RETAINER, FRONT FENDER LINER | ||||
| 90467-05138 |
VJA300..Z |
4 | ||
| 90467-05138 |
GRJ300,VJA300..A,G,V |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
VJA300..Z |
8 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
VJA300..Z |
8 | ||
| 76851C - FRONT SPOILER | ||||
| 76851-60900 |
VJA300..7S..Z |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
VJA300..Z |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-60170 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52030-60170 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52030-60170 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52030-60170 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52030-60170 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52030-60200 |
VJA300..7S..Z |
1 | ||
| 81481R - BRACKET, FOG LAMP, RH | ||||
| 81481-60120 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 81481-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81481-60150 |
VJA300..Z |
1 | ||
| 81481-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 81481-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81481-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81481R - BRACKET, FOG LAMP, RH | ||||
| 81481-60120 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 81481-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81481-60150 |
VJA300..Z |
1 | ||
| 81481-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 81481-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81481-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52040-60170 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 52040-60170 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52040-60170 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52040-60170 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 52040-60170 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 52040-60200 |
VJA300..7S..Z |
1 | ||
| 81482M - BRACKET, FOG LAMP, LH | ||||
| 81482-60120 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 81482-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81482-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81482-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 81482-60150 |
VJA300..Z |
1 | ||
| 81482M - BRACKET, FOG LAMP, LH | ||||
| 81482-60120 |
VJA300..A..EUR;GRJ300,VJA300..V |
1 | ||
| 81482-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482-60120 |
GRJ300,VJA300..7S..A HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81482-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH&PARKING SUPPORT BRAKE-WITHOUT |
1 | ||
| 81482-60120 |
GRJ300..A,G;VJA300..7S..A FRONT FOG LAMP-WITH |
1 | ||
| 81482-60150 |
VJA300..Z |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-K0230 |
VJA300..A;GRJ300..A,G PARKING SUPPORT BRAKE-WITHOUT |
2 | ||
| 89348-K0230 |
GRJ300,VJA300..V,Z |
2 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-K0230 |
VJA300..A;GRJ300..A,G PARKING SUPPORT BRAKE-WITHOUT |
2 | ||
| 89348-K0230 |
GRJ300,VJA300..V,Z |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8101 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
