VJA300R-GNUVZ (2021)
Toyota Land Cruiser

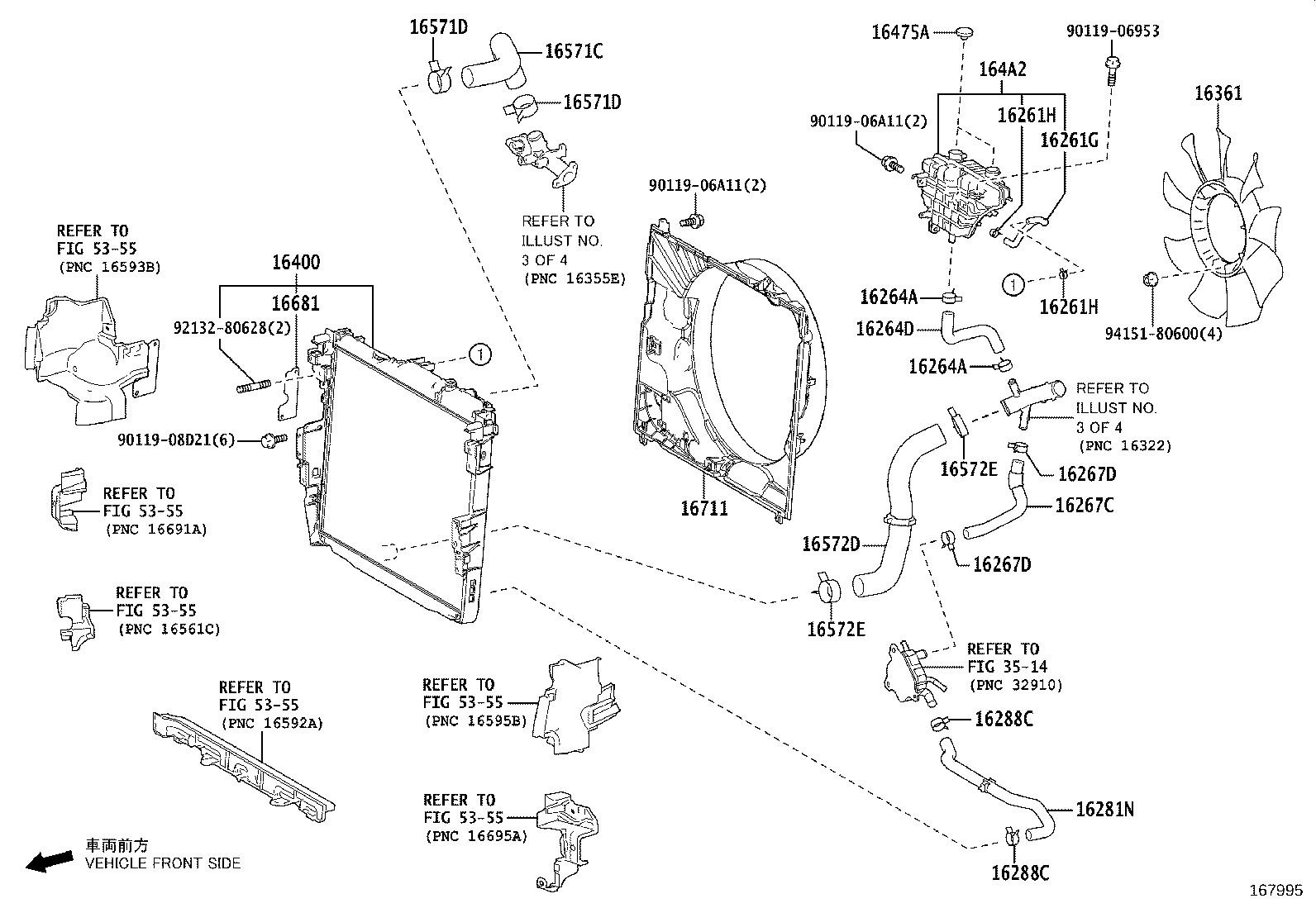

ILLUST NO. 1 OF 4(2104- )V35AFTS
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-70160 |
V35AFTS..VJA300 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-51901 |
V35AFTS..VJA300 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-51901 |
V35AFTS..VJA300 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-70170 |
V35AFTS..VJA300 |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-70150 |
V35AFTS..VJA300 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16281N - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-70110 |
V35AFTS..VJA300 |
1 | ||
| 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16361 - FAN | ||||
| 16361-70090 |
V35AFTS..VJA300 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70731 |
V35AFTS..VJA300 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
V35AFTS..VJA300 |
2 | ||
| 164A2 - TANK, RESERVE SEALED W/O CAP | ||||
| 164A2-70020 |
V35AFTS..VJA300 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-70430 |
V35AFTS..VJA300 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
V35AFTS..VJA300 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
V35AFTS..VJA300 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-70360 |
V35AFTS..VJA300 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
V35AFTS..VJA300 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
V35AFTS..VJA300 |
2 | ||
| 16681 - PLATE, RADIATOR UPPER AIR GUIDE | ||||
| 16681-70010 |
V35AFTS..VJA300 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-70281 |
V35AFTS..VJA300 |
1 | ||
| Common parts | ||||
| 90119-06953 | ||||
| 90119-06A11 | ||||
| 90119-08D21 | ||||
| 92132-80628 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 3514 | ||||
| 5355 | ||||

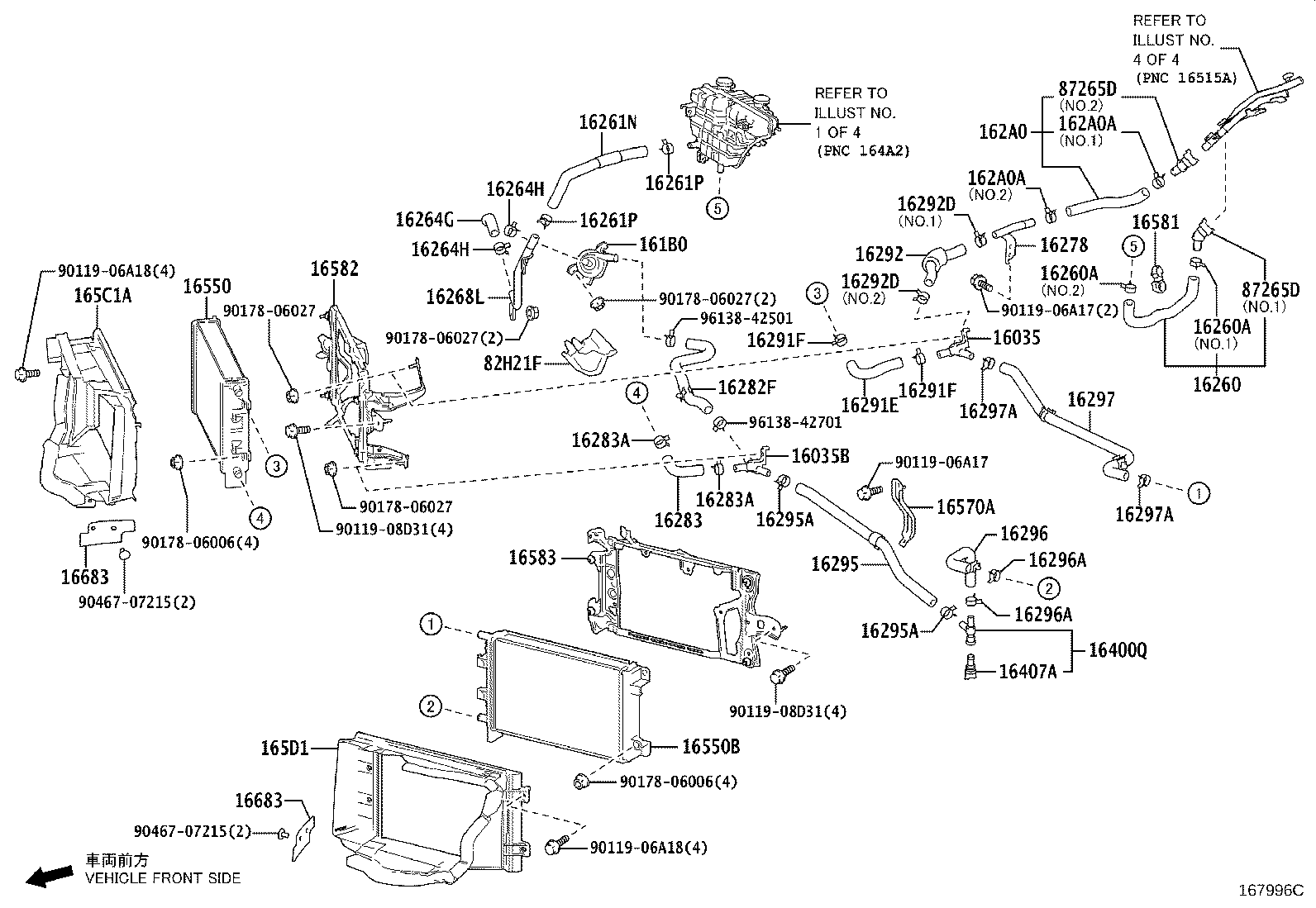

ILLUST NO. 2 OF 4(2104- )V35AFTS
INTERCOOLER COOLING PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16035 - JOINT, WATER HOSE | ||||
| 16035-70010 |
V35AFTS..VJA300 |
1 | ||
| 16035B - JOINT SUB-ASSY, WATER BY-PASS, FRONT | ||||
| 16035-70020 |
V35AFTS..VJA300 |
1 | ||
| 161B0 - PUMP ASSY, ELECTRIC WATER | ||||
| 161B0-70020 |
V35AFTS..VJA300 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-70050 |
V35AFTS..VJA300 |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-42701 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-42701 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-70170 |
V35AFTS..VJA300 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-70160 |
V35AFTS..VJA300 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-41901 |
V35AFTS..VJA300 |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-41901 |
V35AFTS..VJA300 |
2 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-70090 |
V35AFTS..VJA300 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-70130 |
V35AFTS..VJA300 |
1 | ||
| 16282F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-70041 |
V35AFTS..VJA300 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-70081 |
V35AFTS..VJA300 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16291E - JOINT,WATER HOSE, NO.1 | ||||
| 16291-70010 |
V35AFTS..VJA300 |
1 | ||
| 16291F - CLIP(FOR WATER HOSE JOINT NO.1) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16291F - CLIP(FOR WATER HOSE JOINT NO.1) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16292 - JOINT, WATER HOSE, NO.2 | ||||
| 16292-70020 |
V35AFTS..VJA300 |
1 | ||
| 16292D - CLIP(FOR WATER HOSE JOINT NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 96138-42701 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 16292D - CLIP(FOR WATER HOSE JOINT NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 96138-42701 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-70051 |
V35AFTS..VJA300 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-70060 |
V35AFTS..VJA300 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-70030 |
V35AFTS..VJA300 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 162A0 - HOSE ASSY, WATER BY-PASS, NO.4 | ||||
| 162A0-70010 |
V35AFTS..VJA300 |
1 | ||
| 162A0A - CLIP(FOR WATER BY-PASS HOSE ASSY NO.4) | ||||
| 96138-42701 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 96138-42501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 162A0A - CLIP(FOR WATER BY-PASS HOSE ASSY NO.4) | ||||
| 96138-42701 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 96138-42501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 16400Q - COCK ASSY, DRAIN | ||||
| 90910-09134 |
V35AFTS..VJA300 |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-64010 |
V35AFTS..VJA300 |
1 | ||
| 16550 - RADIATOR ASSY, INTERCOOLER COOLING | ||||
| 16550-70020 |
V35AFTS..VJA300 |
1 | ||
| 16550B - RADIATOR ASSY, INTERCOOLER COOLING, NO.2 | ||||
| 16550-70030 |
V35AFTS..VJA300 |
1 | ||
| 16570A - BRACKET ASSY, WATER HOSE CLAMP | ||||
| 16570-70010 |
V35AFTS..VJA300 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-70020 |
V35AFTS..VJA300 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-70021 |
V35AFTS..VJA300 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-70020 |
V35AFTS..VJA300 |
1 | ||
| 165C1A - DUCT, SUB-RADIATOR, RH NO.1 | ||||
| 165C1-70050 |
V35AFTS..VJA300..Z |
1 | ||
| 165C1-70020 |
V35AFTS..VJA300..A,G,V |
1 | ||
| 165D1 - DUCT, SUB-RADIATOR, LH NO.1 | ||||
| 165D1-70010 |
V35AFTS..VJA300..A,G,V |
1 | ||
| 165D1-70030 |
V35AFTS..VJA300..Z |
1 | ||
| 16683 - PLATE, RADIATOR LOWER AIR GUIDE | ||||
| 16683-70010 |
V35AFTS..VJA300 |
2 | ||
| 16683 - PLATE, RADIATOR LOWER AIR GUIDE | ||||
| 16683-70010 |
V35AFTS..VJA300 |
2 | ||
| 82H21F - COVER, CONNECTOR | ||||
| 82821-60A40 |
VJA300 |
1 | ||
| 87265D - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-60220 |
VJA300 NO.1,NO.2 |
1 | ||
| 87265D - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-60220 |
VJA300 NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 90119-06A17 | ||||
| 90119-06A18 | ||||
| 90119-08D31 | ||||
| 90178-06006 | ||||
| 90178-06027 | ||||
| 90467-07215 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||

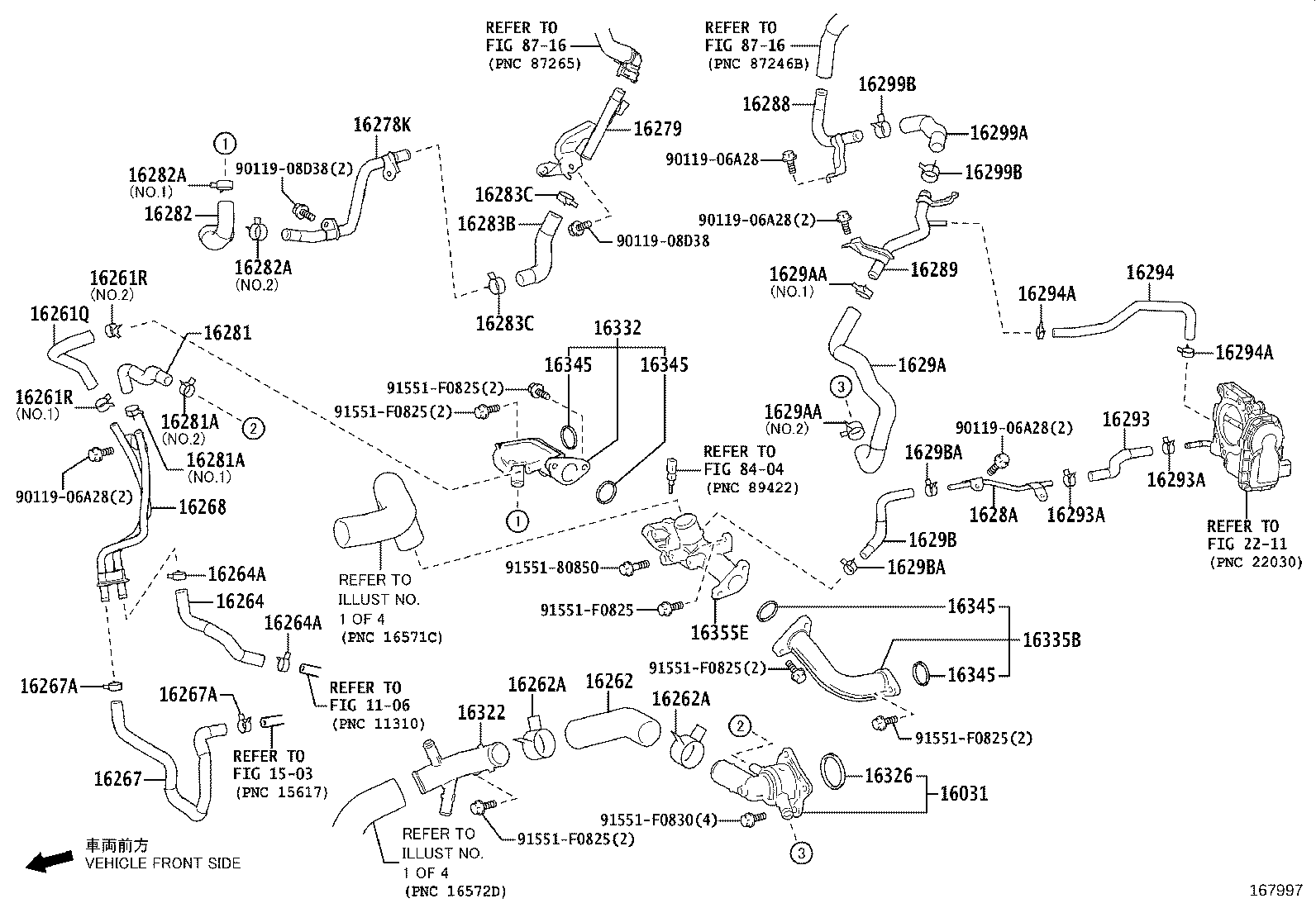

ILLUST NO. 3 OF 4(2104- )V35AFTS
ENGINE SIDE(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-70010 |
V35AFTS..VJA300 |
1 | ||
| 16261Q - HOSE, WATER BY-PASS | ||||
| 16261-70150 |
V35AFTS..VJA300 |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42101 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-41901 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42101 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-41901 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-70050 |
V35AFTS..VJA300 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-44801 |
V35AFTS..VJA300 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-44801 |
V35AFTS..VJA300 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-70180 |
V35AFTS..VJA300 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-70140 |
V35AFTS..VJA300 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-41901 |
V35AFTS..VJA300 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-41901 |
V35AFTS..VJA300 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-70080 |
V35AFTS..VJA300 |
1 | ||
| 16278K - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-70120 |
V35AFTS..VJA300 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-70100 |
V35AFTS..VJA300 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-70100 |
V35AFTS..VJA300 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-42101 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-41901 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-42101 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-41901 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-70030 |
V35AFTS..VJA300 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-42701 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-42501 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 16283-70070 |
V35AFTS..VJA300 |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-70030 |
V35AFTS..VJA300 |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-70010 |
V35AFTS..VJA300 |
1 | ||
| 1628A - PIPE, WATER BY-PASS, NO.6 | ||||
| 1628A-70010 |
V35AFTS..VJA300 |
1 | ||
| 16293 - HOSE, WATER BY-PASS, NO.10 | ||||
| 16293-70040 |
V35AFTS..VJA300 |
1 | ||
| 16293A - CLIP(FOR WATER BY-PASS HOSE NO.10) | ||||
| 96138-41501 |
V35AFTS..VJA300 |
2 | ||
| 16293A - CLIP(FOR WATER BY-PASS HOSE NO.10) | ||||
| 96138-41501 |
V35AFTS..VJA300 |
2 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16294-70020 |
V35AFTS..VJA300 |
1 | ||
| 16294A - CLIP(FOR WATER BY-PASS HOSE NO.11) | ||||
| 96138-41501 |
V35AFTS..VJA300 |
2 | ||
| 16294A - CLIP(FOR WATER BY-PASS HOSE NO.11) | ||||
| 96138-41501 |
V35AFTS..VJA300 |
2 | ||
| 16299A - HOSE, WATER BY-PASS, NO.13 | ||||
| 16295-70040 |
V35AFTS..VJA300 |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 1629A - HOSE, WATER BY-PASS, NO.14 | ||||
| 16296-70050 |
V35AFTS..VJA300 |
1 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96138-42701 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-42501 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96138-42701 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-42501 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 1629B - HOSE, WATER BY-PASS, NO.15 | ||||
| 16297-70020 |
V35AFTS..VJA300 |
1 | ||
| 1629BA - CLIP(FOR WATER BY-PASS HOSE NO.15) | ||||
| 96138-41501 |
V35AFTS..VJA300 |
2 | ||
| 1629BA - CLIP(FOR WATER BY-PASS HOSE NO.15) | ||||
| 96138-41501 |
V35AFTS..VJA300 |
2 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-70030 |
V35AFTS..VJA300 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-70020 |
V35AFTS..VJA300 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-70020 |
V35AFTS..VJA300 |
1 | ||
| 16335B - PIPE, WATER OUTLET, NO.2 | ||||
| 16335-70020 |
V35AFTS..VJA300 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-70020 |
V35AFTS..VJA300 |
4 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-70020 |
V35AFTS..VJA300 |
4 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-70020 |
V35AFTS..VJA300 |
4 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-70020 |
V35AFTS..VJA300 |
4 | ||
| 16355E - JOINT, WATER BY-PASS(FOR WATER OUTLET PIPE) | ||||
| 16355-70070 |
V35AFTS..VJA300 |
1 | ||
| Common parts | ||||
| 90119-06A28 | ||||
| 90119-08D38 | ||||
| 91551-80850 | ||||
| 91551-F0825 | ||||
| 91551-F0830 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1503 | ||||
| 2211 | ||||
| 8404 | ||||
| 8716 | ||||

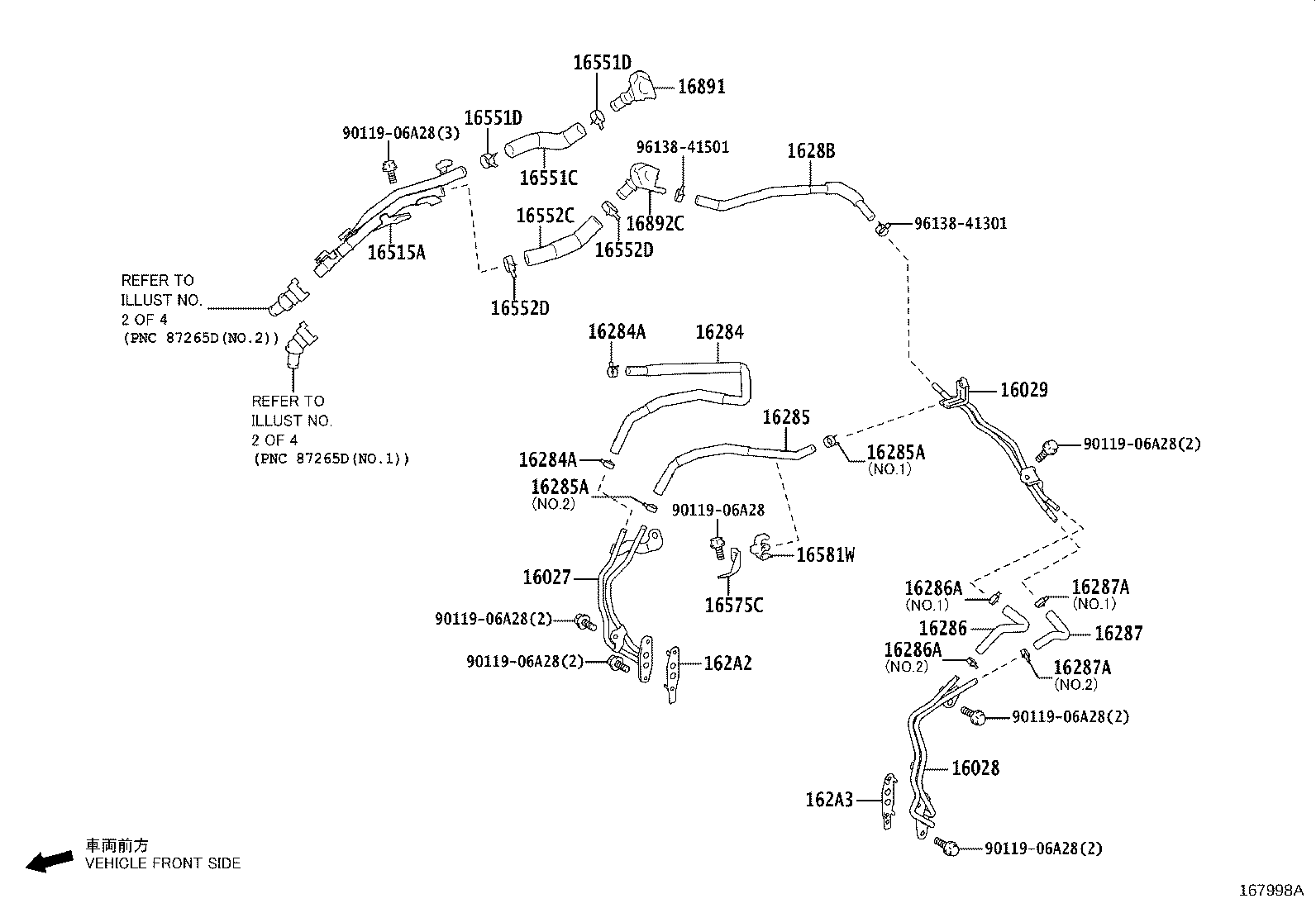

ILLUST NO. 4 OF 4(2104- )V35AFTS
ENGINE SIDE(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-70020 |
V35AFTS..VJA300 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-70020 |
V35AFTS..VJA300 |
1 | ||
| 16029 - PIPE SUB-ASSY, TURBO WATER, NO.3 | ||||
| 16029-70010 |
V35AFTS..VJA300 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-70020 |
V35AFTS..VJA300 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96138-41501 |
V35AFTS..VJA300 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96138-41501 |
V35AFTS..VJA300 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-70020 |
V35AFTS..VJA300 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96138-41301 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 96138-41501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96138-41301 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 96138-41501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-70030 |
V35AFTS..VJA300 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96138-41501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-41301 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96138-41501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-41301 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-70030 |
V35AFTS..VJA300 |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96138-41501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-41301 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96138-41501 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 96138-41301 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 1628B - HOSE, TURBO WATER, NO.5 | ||||
| 1628B-70010 |
V35AFTS..VJA300 |
1 | ||
| 162A2 - GASKET, TURBO WATER PIPE, RH | ||||
| 162A2-70010 |
V35AFTS..VJA300 |
1 | ||
| 162A3 - GASKET, TURBO WATER PIPE, LH | ||||
| 162A3-70010 |
V35AFTS..VJA300 |
1 | ||
| 16515A - PIPE, INTERCOOLER COOLING WATER, NO.1 | ||||
| 16515-70010 |
V35AFTS..VJA300 |
1 | ||
| 16551C - HOSE, INTERCOOLER COOLING WATER, NO.1 | ||||
| 16551-70040 |
V35AFTS..VJA300 |
1 | ||
| 16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16552C - HOSE, INTERCOOLER COOLING WATER, NO.2 | ||||
| 16552-70050 |
V35AFTS..VJA300 |
1 | ||
| 16552D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16552D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) | ||||
| 96138-42501 |
V35AFTS..VJA300 |
2 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-70010 |
V35AFTS..VJA300 |
1 | ||
| 16581W - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-70070 |
V35AFTS..VJA300 |
1 | ||
| 16891 - CONNECTOR, TURBO WATER, NO.1 | ||||
| 16891-70020 |
V35AFTS..VJA300 |
1 | ||
| 16892C - CONNECTOR, TURBO WATER, NO.2 | ||||
| 16892-70020 |
V35AFTS..VJA300 |
1 | ||
| Common parts | ||||
| 90119-06A28 | ||||
| 96138-41301 | ||||
| 96138-41501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
