VJA300R-GNUVZ (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )V35AFTS

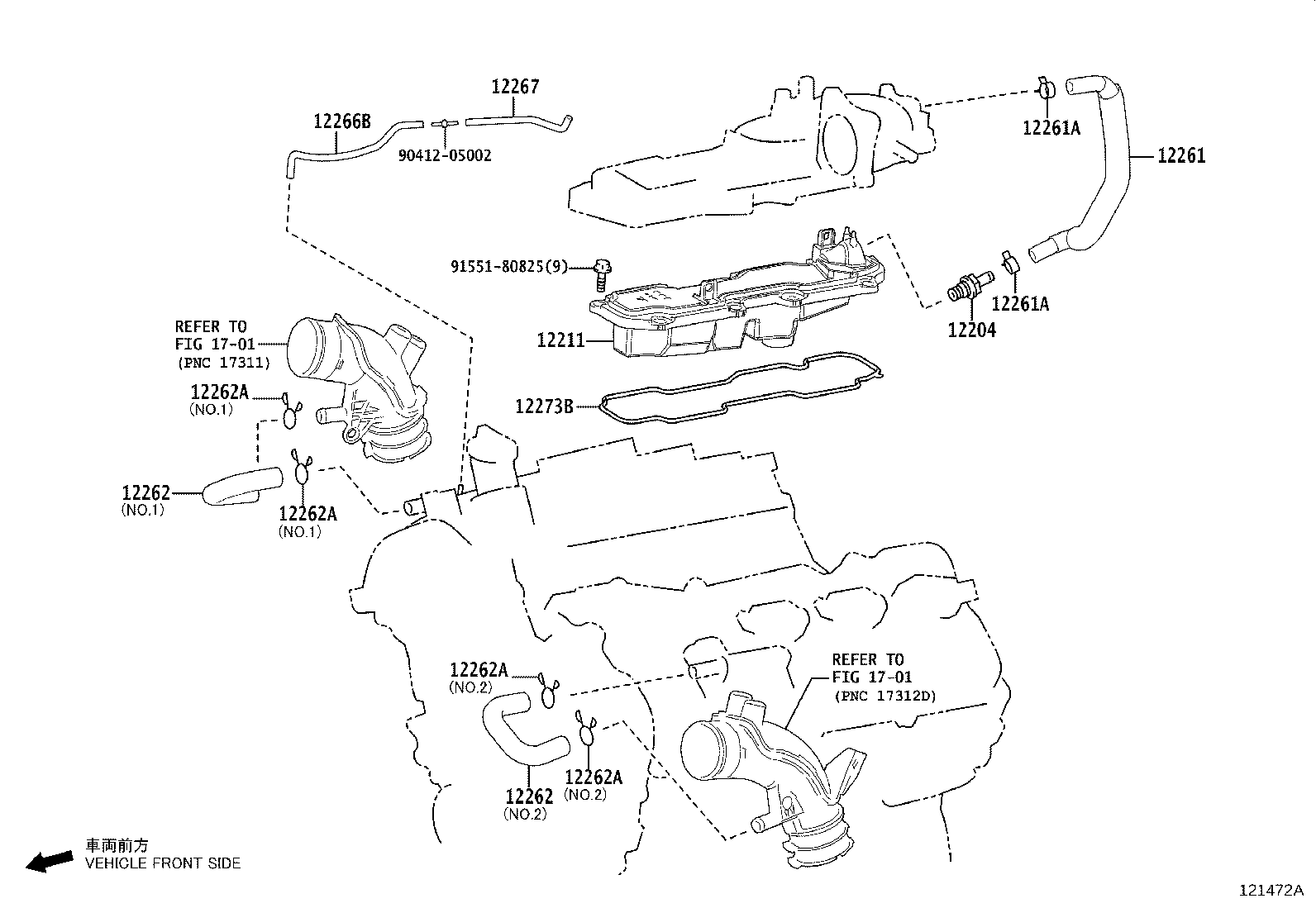

Click highlighted areas on diagram

diagram 12204 12211 12261 12261A 12261A 12262 12262 12262A 12262A 12262A 12262A 12266B 12267 12273B 1701 1701 9041205002 9155180825
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-70030

V35AFTS..VJA300

 1
12211 - CASE, VENTILATION, NO.1
12211-0W010

V35AFTS..VJA300

 1
12261 - HOSE, VENTILATION
12261-70130

V35AFTS..VJA300

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90466-16004

V35AFTS..VJA300

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90466-16004

V35AFTS..VJA300

 2
12262 - HOSE, VENTILATION, NO.2
12262-70090

V35AFTS..VJA300

NO.1,NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-70090

V35AFTS..VJA300

NO.1,NO.2

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21152

V35AFTS..VJA300

NO.1

 2
90467-21004

V35AFTS..VJA300

NO.2

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21152

V35AFTS..VJA300

NO.1

 2
90467-21004

V35AFTS..VJA300

NO.2

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21152

V35AFTS..VJA300

NO.1

 2
90467-21004

V35AFTS..VJA300

NO.2

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21152

V35AFTS..VJA300

NO.1

 2
90467-21004

V35AFTS..VJA300

NO.2

 2
12266B - HOSE, VENTILATION PRESSURE SENSOR, NO.1
12266-70010

V35AFTS..VJA300

 1
12267 - HOSE, VENTILATION PRESSURE SENSOR, NO.2
12267-70010

V35AFTS..VJA300

 1
12273B - GASKET, OIL SEPARATOR
12273-70010

V35AFTS..VJA300

 1
Common parts
90412-05002
91551-80825
Linked diagrams
1701
