VJA300R-GNUVZ (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

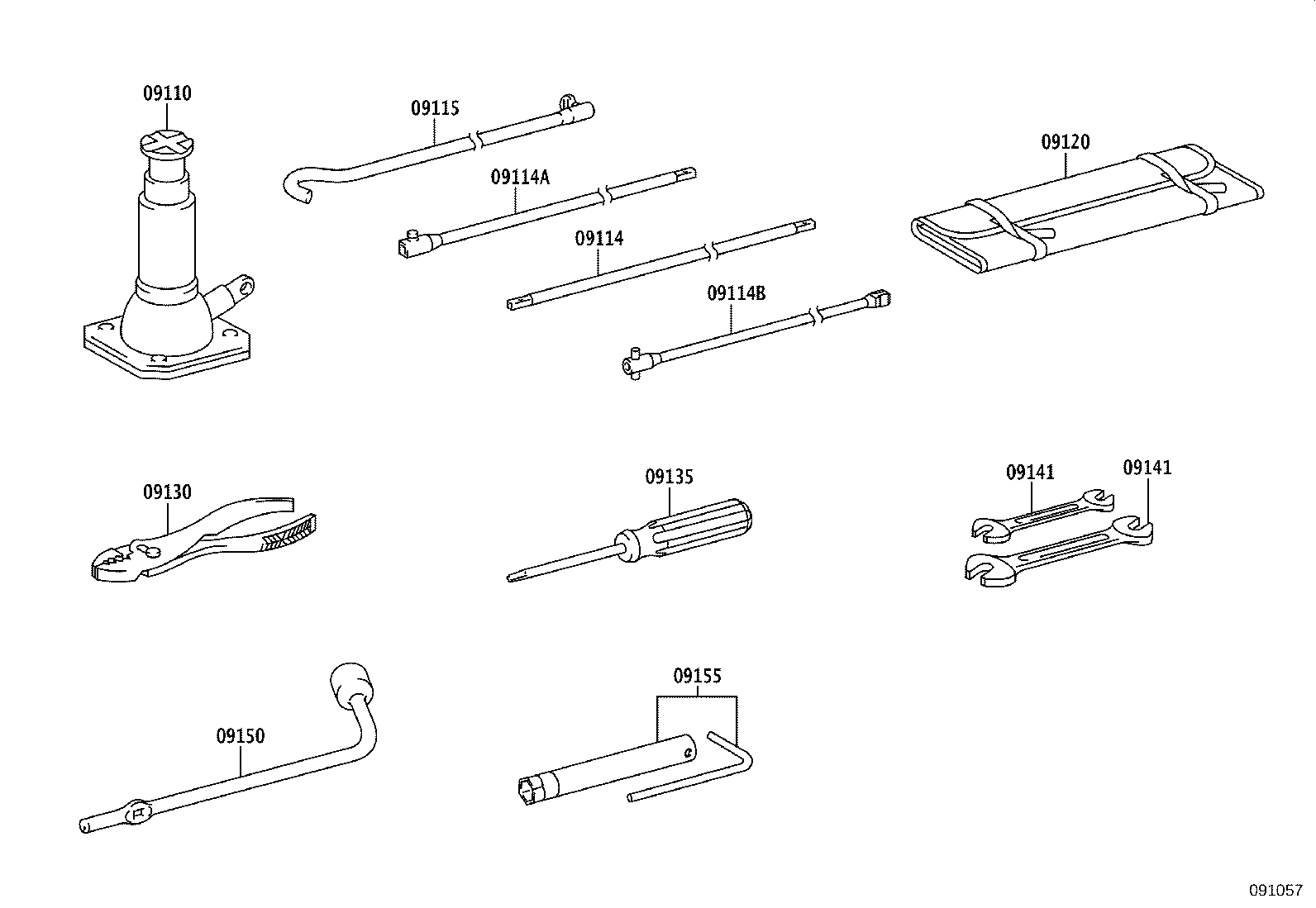

Click highlighted areas on diagram

diagram 09110 09114 09114A 09114B 09115 09120 09130 09135 09141 09141 09150 09155
Part # Description Qty Price
09110 - JACK ASSY
09111-60150

GRJ300,VJA300

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-35040

GRJ300,VJA300

 1
09114A - EXTENSION SUB-ASSY, JACK HANDLE, NO.2
09114-60070

GRJ300,VJA300

 2
09114B - EXTENSION SUB-ASSY, JACK HANDLE, NO.3
09114-60090

GRJ300,VJA300

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-35110

GRJ300,VJA300

 1
09120 - BAG, TOOL
09120-60250

GRJ300,VJA300

 1
09130 - PLIERS
99913-11500

GRJ300,VJA300

 1
09135 - DRIVER, SCREW
99915-10700

GRJ300,VJA300

 1
09141 - SPANNER
99914-11214

GRJ300,VJA300

12 X 14

 1
99914-10810

GRJ300,VJA300

8 X 10

 1
09141 - SPANNER
99914-11214

GRJ300,VJA300

12 X 14

 1
99914-10810

GRJ300,VJA300

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-26040

GRJ300,VJA300

 1
09155 - WRENCH, SPARK PLUG
09155-70040

VJA300

 1
