VJA300R-GNUAZ (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )RHD

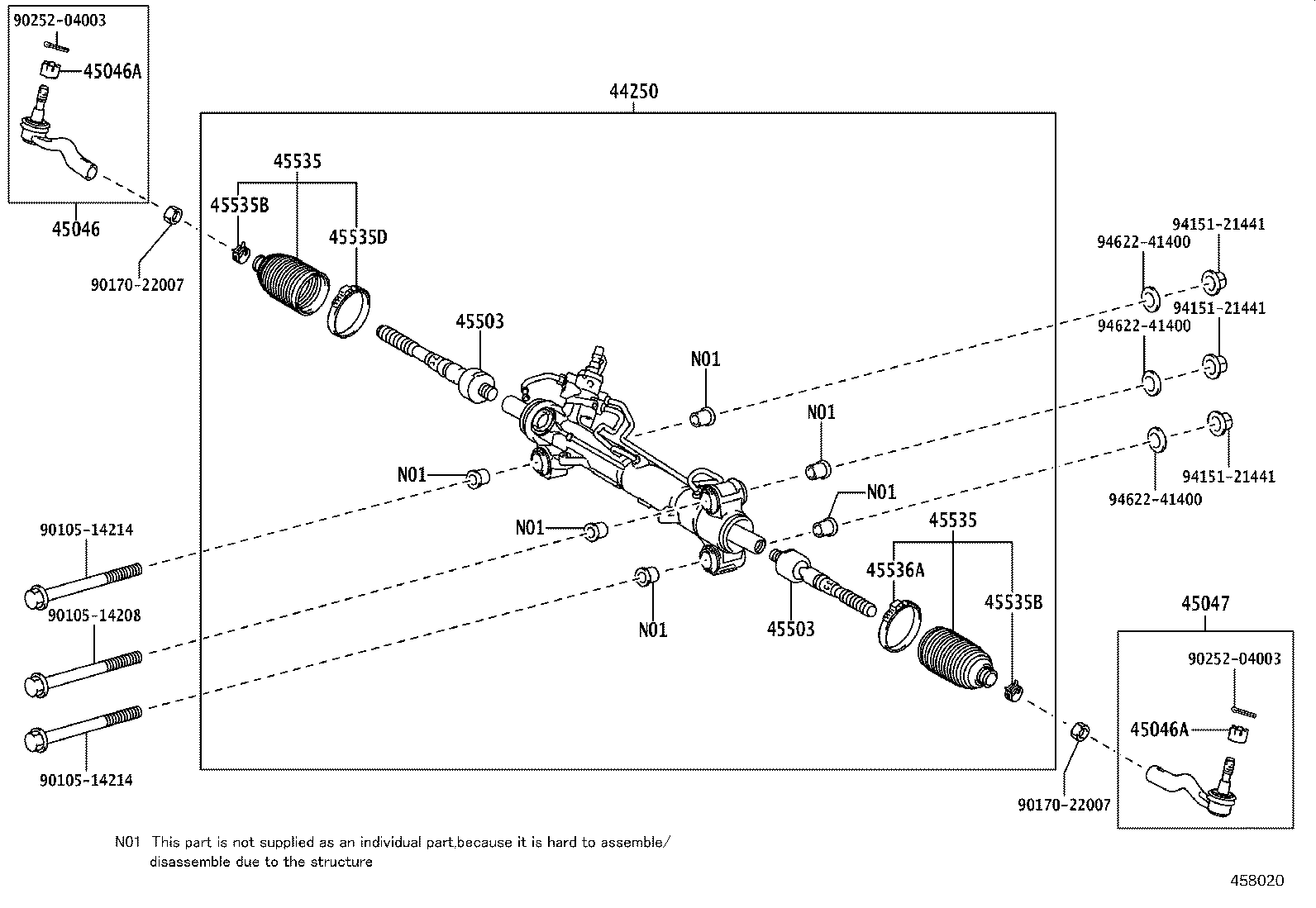

Click highlighted areas on diagram

diagram 44250 45046 45046A 45046A 45047 45503 45503 45535 45535 45535B 45535B 45535D 45536A 9010514208 9010514214 9010514214 9017022007 9017022007 9025204003 9025204003 9415121441 9415121441 9415121441 9462241400 9462241400 9462241400
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-60280

VJA300..A..GEN

 1
44250-60300

VJA300..RHD..(V,Z)

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-69255

GRJ300,VJA300

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16011

GRJ300,VJA300

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16011

GRJ300,VJA300

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-69255

GRJ300,VJA300

 1
45503 - END SUB-ASSY, STEERING RACK
45503-60050

GRJ300,VJA300

 2
45503 - END SUB-ASSY, STEERING RACK
45503-60050

GRJ300,VJA300

 2
45535 - BOOT, STEERING RACK, NO.1
45535-69035

GRJ300,VJA300

 2
45535 - BOOT, STEERING RACK, NO.1
45535-69035

GRJ300,VJA300

 2
45535B - CLIP(FOR STEERING RACK BOOT)
96133-42600

GRJ300,VJA300

 2
45535B - CLIP(FOR STEERING RACK BOOT)
96133-42600

GRJ300,VJA300

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-81008

GRJ300,VJA300

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-81008

GRJ300,VJA300

 1
Common parts
90105-14208
90105-14214
90170-22007
90252-04003
94151-21441
94622-41400
