Toyota Land cruiser VJA300 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
EU
LAND CRUISER
VJA300L-GNUZZV (2021)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

VJA300L-GNUZZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999

Engine V35AFTS

Transmission 10FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

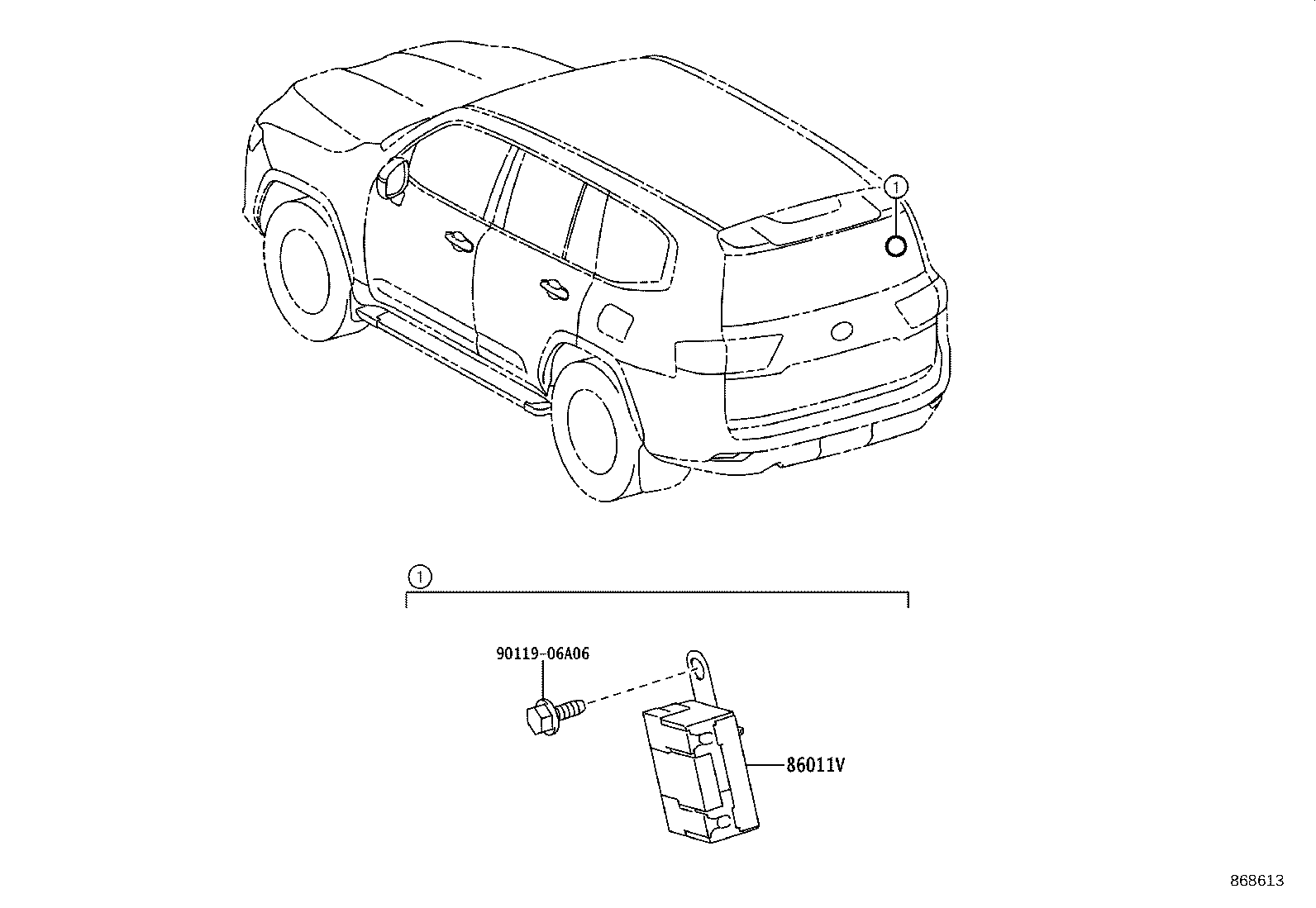

ILLUST NO. 3 OF 3(2104- )

Click highlighted areas on diagram

CONDENSER

Part #	Description	Period	Qty
86011V - CONDENSER, RADIO SETTING
90980-04204	GRJ300,VJA300	04/2021 - 12/2999	1
Common parts
90119-06A06

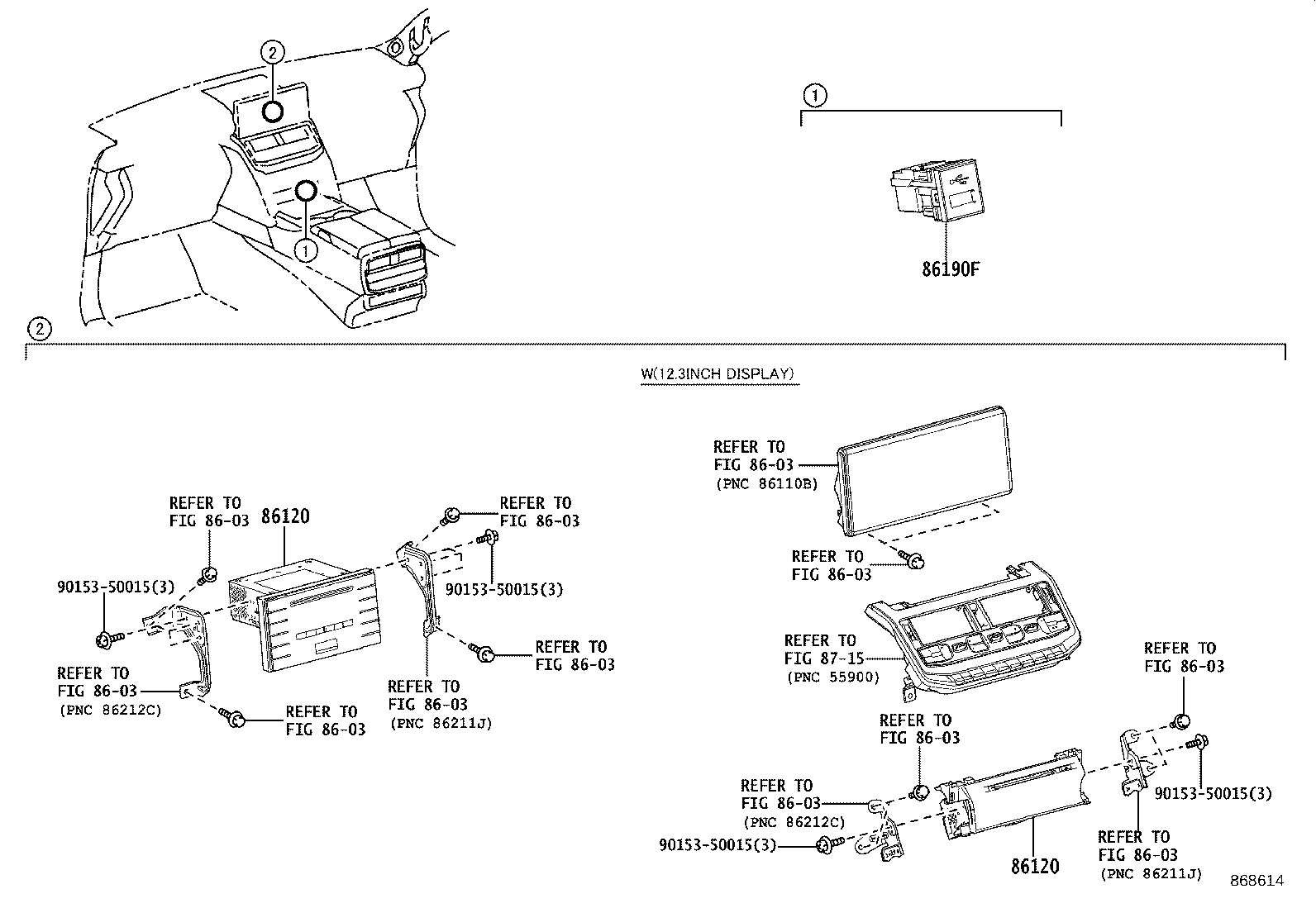

ILLUST NO. 1 OF 3(2104- )

Click highlighted areas on diagram

RECEIVER & USB JACK

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,QATAR, BAHRAIN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,KUWAIT SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV& NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,YEMEN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,SAUDI ARABIA SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,JORDAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV& NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,LEBANON SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,IRAQ SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV &NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60P60	VJA300..V..GCC PIONEER,EGYPT SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,UAE SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,UAE SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,SAUDI ARABIA SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,MM REGION(MID EAST R2)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,MM REGION(MID EAST R2)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET& COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,OMAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV &NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60S30	GRJ300..A,V;VJA300..A..GCC;VJA300..V..(GCC,GEN) DENSO TEN	04/2021 - 12/2999	1
86120-60S30	GRJ300,VJA300..A..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 2SPEAKER	04/2021 - 12/2999	1
86120-60S30	GRJ300,VJA300..A..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..(A,Z);GRJ300,VJA300..(G,Z)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..V..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	GRJ300,VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-*DA(WITH/DVD) & 7INCH DISPLAY & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..V..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86120-60S30	GRJ300..V;VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86120-60T20	VJA300..Z..GCC PIONEER,WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(MAP DATA & NAVIGATION)	04/2021 - 12/2999	1
86120-60T20	GRJ300,VJA300..V..GCC PIONEER,AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(MAP DATA & NAVIGATION)	04/2021 - 12/2999	1
86120-60T40	VJA300..V..GCC PIONEER,SAUDI ARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60T30	VJA300..A..GCC PIONEER,UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60T40	VJA300..Z..GCC PIONEER,UAE SPEC&WITHOUT(PACKAGE OPTION 4)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60T30	GRJ300,VJA300..V..GCC PIONEER,UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&EMV& NAVIGATION SYSTEM-WITH & WITHOUT(MAP DATA & NAVIGATION)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60T40	GRJ300,VJA300..V..GCC PIONEER,UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60T40	VJA300..Z..GCC PIONEER,SAUDI ARABIA SPEC&WITHOUT(PACKAGE OPTION 4)	04/2021 - 12/2999	1
86120-60T20	VJA300..A..GCC PIONEER,AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86120-60U10	VJA300..V..GCC PIONEER,EGYPT SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U10	VJA300..Z..GCC PIONEER,EGYPT SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60T30	VJA300..Z..GCC PIONEER,UAE SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(MAP DATA & NAVIGATION)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60U50	GRJ300,VJA300..LHD..V..(GCC,GEN) PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60U50	VJA300..Z..GCC PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86120-60U50	GRJ300,VJA300..LHD..V..(GCC,GEN) PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U70	VJA300..Z..GCC PANASONIC,MM REGION(AFRICA R5)	04/2021 - 12/2999	1
86120-60U70	GRJ300,VJA300..LHD..V..(GCC,GEN) PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U50	VJA300..V..GCC PANASONIC,NIGERIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV &NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U70	VJA300..V..GCC PANASONIC,NIGERIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U70	GRJ300,VJA300..LHD..V..(GCC,GEN) PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120 - RECEIVER ASSY, RADIO
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,QATAR, BAHRAIN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,KUWAIT SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV& NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,YEMEN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,SAUDI ARABIA SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,JORDAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV& NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,LEBANON SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,IRAQ SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV &NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60P60	VJA300..V..GCC PIONEER,EGYPT SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,UAE SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,UAE SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,SAUDI ARABIA SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,MM REGION(MID EAST R2)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,MM REGION(MID EAST R2)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	VJA300..Z..GCC PIONEER,WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET& COVER) & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT	04/2021 - 12/2999	1
86120-60P60	GRJ300,VJA300..V..GCC PIONEER,OMAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV &NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60S30	GRJ300..A,V;VJA300..A..GCC;VJA300..V..(GCC,GEN) DENSO TEN	04/2021 - 12/2999	1
86120-60S30	GRJ300,VJA300..A..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 2SPEAKER	04/2021 - 12/2999	1
86120-60S30	GRJ300,VJA300..A..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..(A,Z);GRJ300,VJA300..(G,Z)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..V..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	GRJ300,VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-*DA(WITH/DVD) & 7INCH DISPLAY & 6SPEAKER	04/2021 - 12/2999	1
86120-60S30	VJA300..RHD..V;GRJ300,VJA300..V..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86120-60S30	GRJ300..V;VJA300..(A,V)..GCC DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86120-60T20	VJA300..Z..GCC PIONEER,WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(MAP DATA & NAVIGATION)	04/2021 - 12/2999	1
86120-60T20	GRJ300,VJA300..V..GCC PIONEER,AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(MAP DATA & NAVIGATION)	04/2021 - 12/2999	1
86120-60T40	VJA300..V..GCC PIONEER,SAUDI ARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60T30	VJA300..A..GCC PIONEER,UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60T40	VJA300..Z..GCC PIONEER,UAE SPEC&WITHOUT(PACKAGE OPTION 4)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60T30	GRJ300,VJA300..V..GCC PIONEER,UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&EMV& NAVIGATION SYSTEM-WITH & WITHOUT(MAP DATA & NAVIGATION)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60T40	GRJ300,VJA300..V..GCC PIONEER,UAE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60T40	VJA300..Z..GCC PIONEER,SAUDI ARABIA SPEC&WITHOUT(PACKAGE OPTION 4)	04/2021 - 12/2999	1
86120-60T20	VJA300..A..GCC PIONEER,AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86120-60U10	VJA300..V..GCC PIONEER,EGYPT SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U10	VJA300..Z..GCC PIONEER,EGYPT SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60T30	VJA300..Z..GCC PIONEER,UAE SPEC&WITHOUT(PACKAGE OPTION 4)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(MAP DATA & NAVIGATION)&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))	04/2021 - 12/2999	1
86120-60U50	GRJ300,VJA300..LHD..V..(GCC,GEN) PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86120-60U50	VJA300..Z..GCC PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86120-60U50	GRJ300,VJA300..LHD..V..(GCC,GEN) PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U70	VJA300..Z..GCC PANASONIC,MM REGION(AFRICA R5)	04/2021 - 12/2999	1
86120-60U70	GRJ300,VJA300..LHD..V..(GCC,GEN) PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U50	VJA300..V..GCC PANASONIC,NIGERIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&EMV &NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U70	VJA300..V..GCC PANASONIC,NIGERIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITHOUT(NAVIGATION(OUT OF AREA))	04/2021 - 12/2999	1
86120-60U70	GRJ300,VJA300..LHD..V..(GCC,GEN) PANASONIC,MM REGION(AFRICA R5)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&EMV & NAVIGATION SYSTEM-WITH & WITH(MAP DATE)	04/2021 - 12/2999	1
86190F - ADAPTER ASSY, STEREO JACK
86190-52070	GRJ300,VJA300..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86190-52070	VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86190-52070	VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86190-52070	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86190-52070	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86190-52070	GRJ300..V;VJA300..LHD..(A,V)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86190-52070	VJA300..7S..Z	04/2021 - 12/2999	1
86190-52070	GRJ300,VJA300..(A,V)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-*DA(WITH/DVD) & 7INCH DISPLAY & 6SPEAKER	04/2021 - 12/2999	1
86190-52070	GRJ300;VJA300..LHD..(A,V) AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER	04/2021 - 12/2999	1
Common parts
90153-50015
Linked diagrams
8603
8715

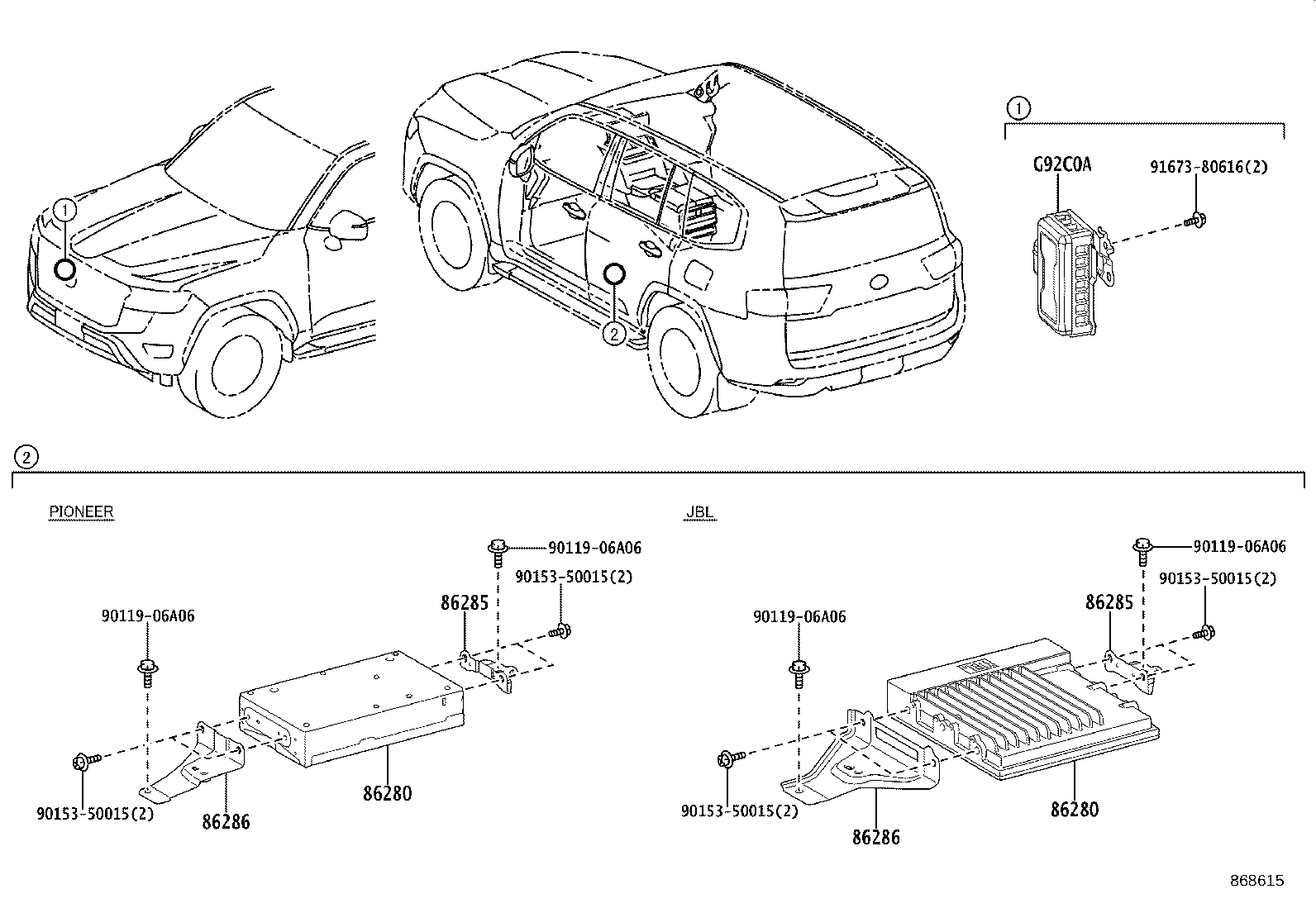

ILLUST NO. 2 OF 3(2104- )

Click highlighted areas on diagram

AMPLIFIER

Part #	Description	Period	Qty
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-60670	VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86280-60670	VJA300..7S..Z	04/2021 - 12/2999	1
86280-60680	GRJ300,VJA300..(V,Z)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86280-60670	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86280-60670	VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86280-60670	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86280-60670	GRJ300..V;VJA300..LHD..(A,V)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-60670	VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86280-60670	VJA300..7S..Z	04/2021 - 12/2999	1
86280-60680	GRJ300,VJA300..(V,Z)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86280-60670	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86280-60670	VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86280-60670	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86280-60670	GRJ300..V;VJA300..LHD..(A,V)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-60250	VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86285-60250	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86285-60250	GRJ300..V;VJA300..LHD..(A,V)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86285-60250	VJA300..7S..Z	04/2021 - 12/2999	1
86285-60250	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86285-60250	VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86285-60260	GRJ300,VJA300..(V,Z)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-60250	VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86285-60250	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86285-60250	GRJ300..V;VJA300..LHD..(A,V)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86285-60250	VJA300..7S..Z	04/2021 - 12/2999	1
86285-60250	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86285-60250	VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86285-60260	GRJ300,VJA300..(V,Z)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-60170	VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86286-60170	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86286-60170	VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86286-60170	VJA300..7S..Z	04/2021 - 12/2999	1
86286-60170	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86286-60170	GRJ300..V;VJA300..LHD..(A,V)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86286-60180	GRJ300,VJA300..(V,Z)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-60170	VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86286-60170	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
86286-60170	VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
86286-60170	VJA300..7S..Z	04/2021 - 12/2999	1
86286-60170	VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER	04/2021 - 12/2999	1
86286-60170	GRJ300..V;VJA300..LHD..(A,V)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)	04/2021 - 12/2999	1
86286-60180	GRJ300,VJA300..(V,Z)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER	04/2021 - 12/2999	1
G92C0A - CONVERTER ASSY, ECO-RUN VEHICLE
G92C0-60010	VJA300..A..GCC SAUDI ARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER	04/2021 - 12/2999	1
G92C0-60010	VJA300..A..GCC SAUDI ARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 2SPEAKER	04/2021 - 12/2999	1
G92C0-60010	VJA300..Z..GCC SAUDI ARABIA SPEC	04/2021 - 12/2999	1
G92C0-60010	VJA300..(A,V)..GCC SAUDI ARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
G92C0-60010	VJA300..(A,V)..GCC SAUDI ARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER	04/2021 - 12/2999	1
G92C0-60010	VJA300..V..GCC SAUDI ARABIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)	04/2021 - 12/2999	1
Common parts
90119-06A06
90153-50015
91673-80616

VJA300L-GNUZZV (2021)

ILLUST NO. 3 OF 3(2104- )

ILLUST NO. 1 OF 3(2104- )

ILLUST NO. 2 OF 3(2104- )

Part Price Details
