Toyota Land cruiser VJA300 BACK DOOR LOCK & HINGE

VJA300L-GNUZZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999

Engine V35AFTS

Transmission 10FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

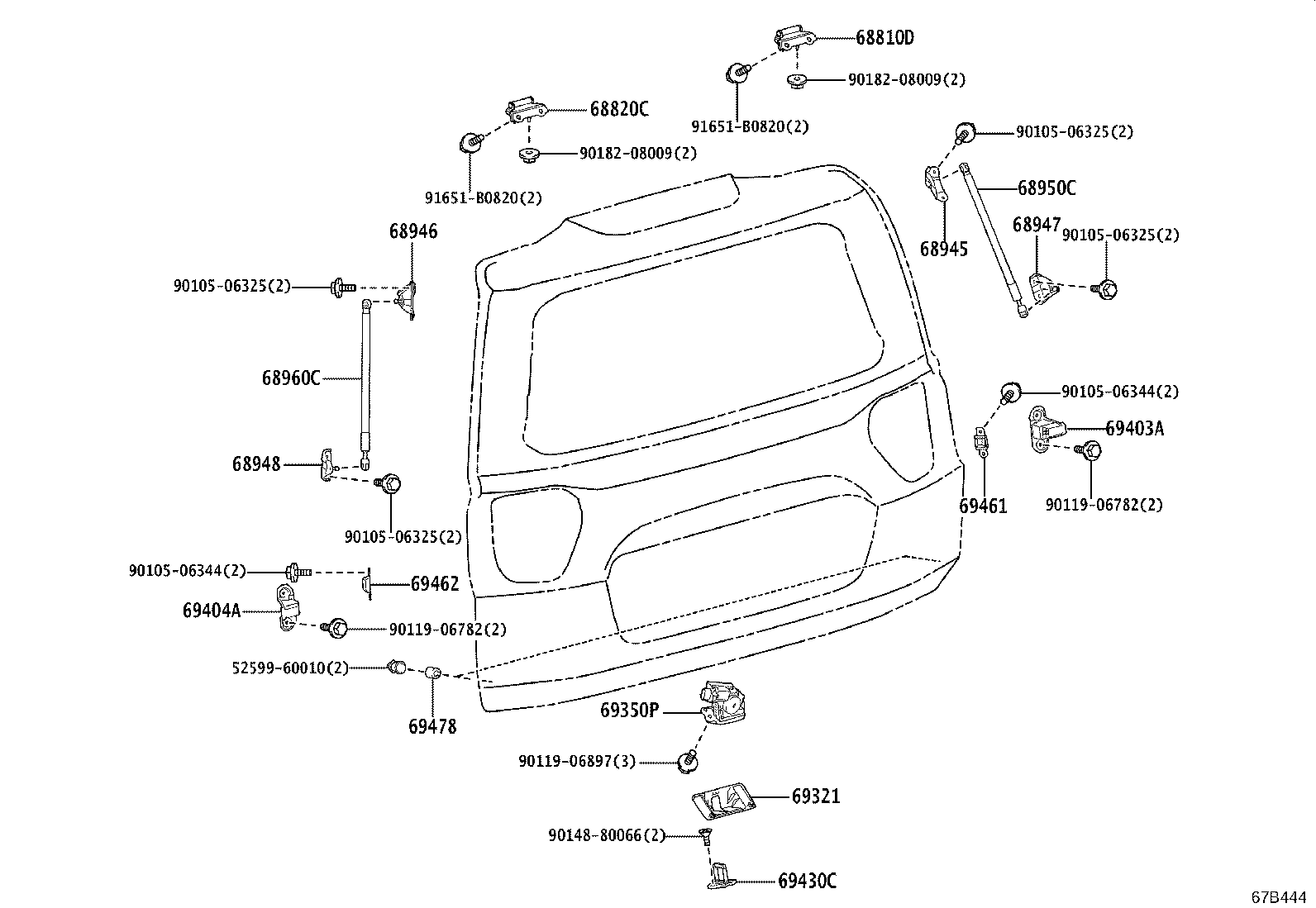

ILLUST NO. 1 OF 2(2104- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
68810D - HINGE ASSY, BACK DOOR, RH
68810-60080	GRJ300,VJA300 PAD T=2.0	04/2021 - 12/2999	1
68810-60070	GRJ300,VJA300 PAD T=1.0	04/2021 - 12/2999	1
68810-60060	GRJ300,VJA300 PAD T=1.5	04/2021 - 12/2999	1
68820C - HINGE ASSY, BACK DOOR, LH
68810-60070	GRJ300,VJA300 PAD T=1.0	04/2021 - 12/2999	1
68810-60080	GRJ300,VJA300 PAD T=2.0	04/2021 - 12/2999	1
68810-60060	GRJ300,VJA300 PAD T=1.5	04/2021 - 12/2999	1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-60040	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68945-60050	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68945-60050	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-60030	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68946-60040	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68946-60040	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-60020	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68947-60010	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68947-60020	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-60030	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68948-60040	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68948-60040	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68950C - STAY ASSY, BACK DOOR, RH
68950-0W730	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68960C - STAY SET, BACK DOOR, LH
68960-0W730	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
69321 - COVER, BACK DOOR LOCK
69321-60040	GRJ300,VJA300	04/2021 - 12/2999	1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-42080	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
69350-42080	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
69350-42090	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
67293-60080	GRJ300,VJA300	04/2021 - 12/2999	1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
67294-60020	GRJ300,VJA300	04/2021 - 12/2999	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-48030	GRJ300,VJA300	04/2021 - 12/2999	1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
67281-60050	GRJ300,VJA300	04/2021 - 12/2999	1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
67282-60020	GRJ300,VJA300	04/2021 - 12/2999	1
69478 - CUSHION, BACK DOOR LOWER STOPPER
69478-60040	GRJ300,VJA300	04/2021 - 12/2999	2
Common parts
52599-60010
90105-06325
90105-06344
90119-06782
90119-06897
90148-80066
90182-08009
91651-B0820

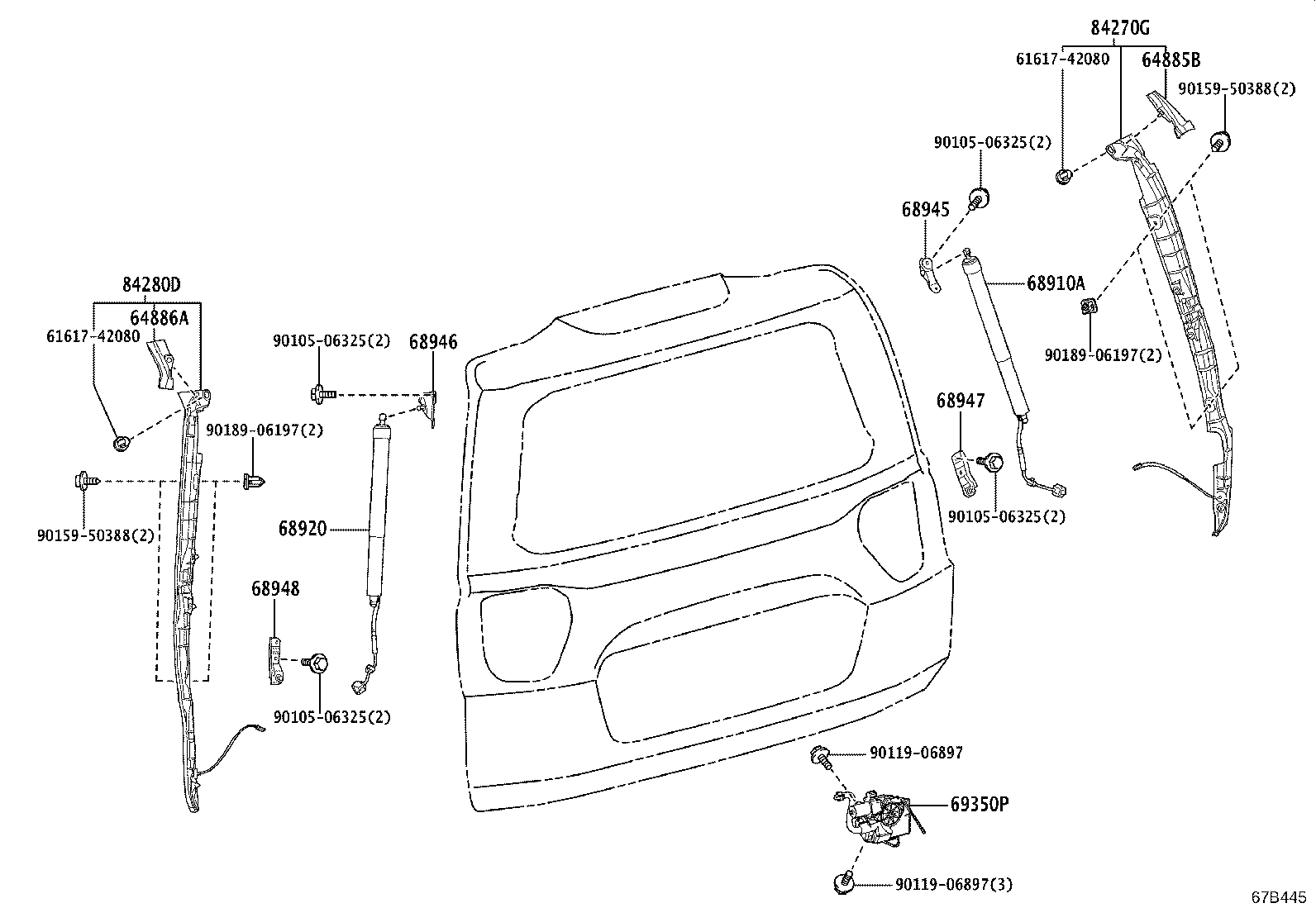

ILLUST NO. 2 OF 2(2104- )

Click highlighted areas on diagram

W(POWER BACK DOOR)

Part #	Description	Period	Qty
64885B - CHANNEL, BACK WINDOW GLASS, RH
64885-60080	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
64885-60080	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
64886A - CHANNEL, BACK WINDOW GLASS, LH
64886-60080	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
64886-60080	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68910A - UNIT ASSY SET, POWER BACK DOOR, RH
68910-60110	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68910-60110	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68920 - UNIT ASSY SET, POWER BACK DOOR, LH
68920-60010	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68920-60010	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-60040	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68945-60050	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68945-60050	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-60030	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68946-60040	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68946-60040	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-60020	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
68947-60010	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68947-60020	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-60030	VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN)	04/2021 - 12/2999	1
68948-60040	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
68948-60040	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
84270G - SENSOR ASSY, POWER BACK DOOR, RH
84270-60110	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
84270-60110	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
84280D - SENSOR ASSY, POWER BACK DOOR, LH
84280-60060	GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR)	04/2021 - 12/2999	1
84280-60060	VJA300..Z;VJA300..V..EUR	04/2021 - 12/2999	1
Common parts
61617-42080
90105-06325
90159-50388
90189-06197

VJA300L-GNUZZV (2021)

ILLUST NO. 1 OF 2(2104- )

ILLUST NO. 2 OF 2(2104- )
