VJA300L-GNUZZV (2021)
Toyota Land Cruiser

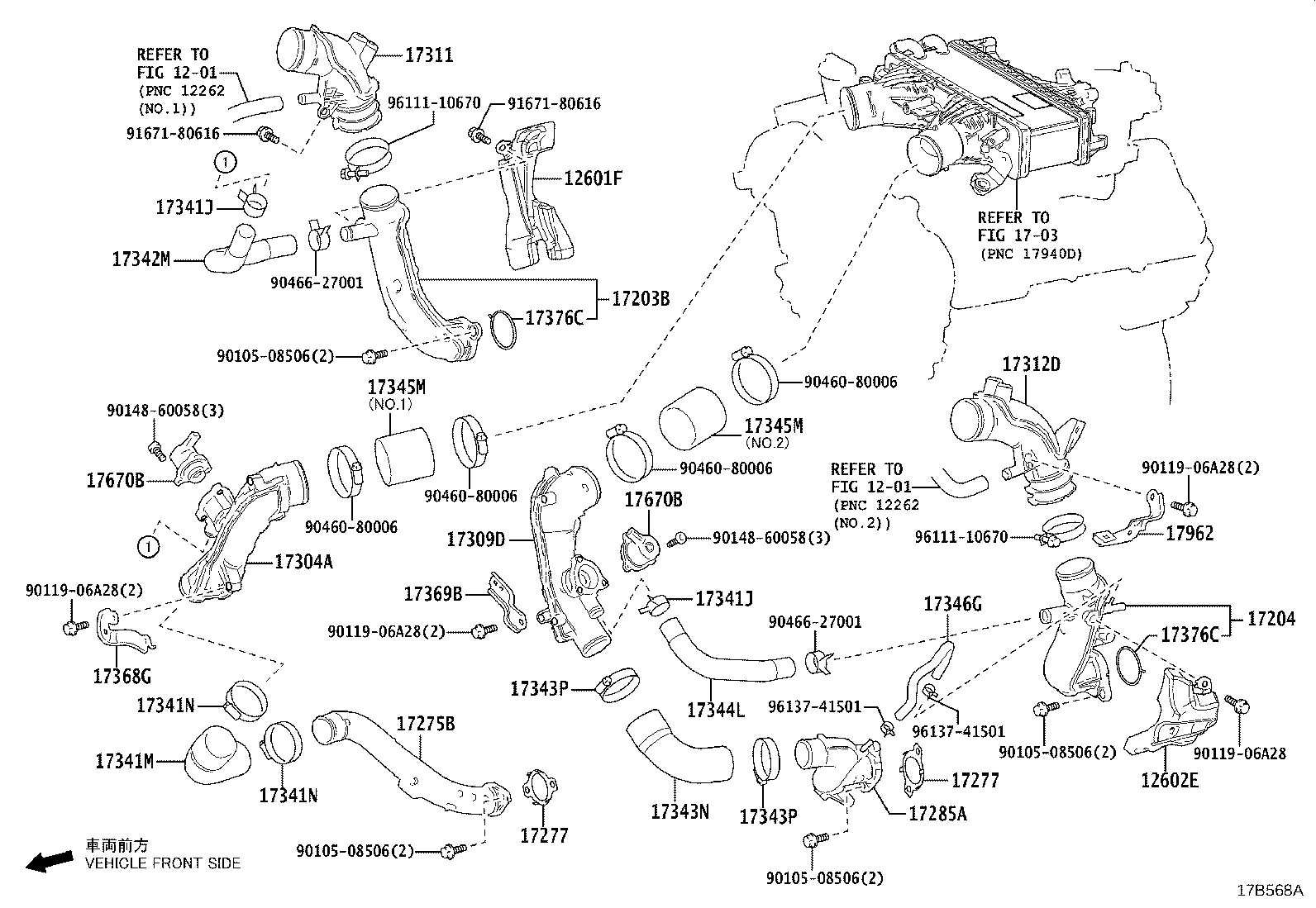

ILLUST NO. 1 OF 4(2104- )V35AFTS
AIR TUBE,AIR INLET DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12601F - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-70010 |
V35AFTS..VJA300 |
1 | ||
| 12602E - COVER SUB-ASSY, ENGINE, NO.2 | ||||
| 12602-70020 |
V35AFTS..VJA300 |
1 | ||
| 17203B - ELBOW SUB-ASSY, COMPRESSOR INLET | ||||
| 17203-70010 |
V35AFTS..VJA300 |
1 | ||
| 17204 - ELBOW SUB-ASSY, COMPRESSOR INLET, NO.2 | ||||
| 17204-70010 |
V35AFTS..VJA300 |
1 | ||
| 17275B - ELBOW, COMPRESSOR OUTLET, NO.1 | ||||
| 17275-70020 |
V35AFTS..VJA300 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-70010 |
V35AFTS..VJA300 |
2 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-70010 |
V35AFTS..VJA300 |
2 | ||
| 17285A - ELBOW, COMPRESSOR OUTLET, NO.2 | ||||
| 17285-70020 |
V35AFTS..VJA300 |
1 | ||
| 17304A - TUBE SUB-ASSY, AIR, RH | ||||
| 17304-70020 |
V35AFTS..VJA300 |
1 | ||
| 17309D - TUBE SUB-ASSY, AIR, LH | ||||
| 17309-70020 |
V35AFTS..VJA300 |
1 | ||
| 17311 - DUCT, AIR INLET, NO.1 | ||||
| 17311-70030 |
V35AFTS..VJA300 |
1 | ||
| 17312D - DUCT, AIR INLET, NO.2 | ||||
| 17312-70030 |
V35AFTS..VJA300 |
1 | ||
| 17341J - CLAMP, HOSE | ||||
| 90466-27001 |
V35AFTS..VJA300 |
2 | ||
| 17341J - CLAMP, HOSE | ||||
| 90466-27001 |
V35AFTS..VJA300 |
2 | ||
| 17341M - HOSE, AIR, NO.1 | ||||
| 17341-70290 |
V35AFTS..VJA300 |
1 | ||
| 17341N - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
V35AFTS..VJA300 |
2 | ||
| 17341N - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
V35AFTS..VJA300 |
2 | ||
| 17342M - HOSE, AIR, NO.2 | ||||
| 17342-70160 |
V35AFTS..VJA300 |
1 | ||
| 17343N - HOSE, AIR, NO.3 | ||||
| 17343-70140 |
V35AFTS..VJA300 |
1 | ||
| 17343P - CLAMP OR CLIP(FOR AIR HOSE, NO.3) | ||||
| 90460-65012 |
V35AFTS..VJA300 |
2 | ||
| 17343P - CLAMP OR CLIP(FOR AIR HOSE, NO.3) | ||||
| 90460-65012 |
V35AFTS..VJA300 |
2 | ||
| 17344L - HOSE, AIR, NO.4 | ||||
| 17344-70090 |
V35AFTS..VJA300 |
1 | ||
| 17345M - HOSE, AIR, NO.5 | ||||
| 17345-70040 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 17345M - HOSE, AIR, NO.5 | ||||
| 17345-70040 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 17346G - HOSE, AIR, NO.6 | ||||
| 17346-70040 |
V35AFTS..VJA300 |
1 | ||
| 17368G - SUPPORT, AIR TUBE, NO.1 | ||||
| 17368-70020 |
V35AFTS..VJA300 |
1 | ||
| 17369B - SUPPORT, AIR TUBE, NO.2 | ||||
| 17369-70030 |
V35AFTS..VJA300 |
1 | ||
| 17376C - GASKET, AIR TUBE | ||||
| 17376-70010 |
V35AFTS..VJA300 |
2 | ||
| 17376C - GASKET, AIR TUBE | ||||
| 17376-70010 |
V35AFTS..VJA300 |
2 | ||
| 17670B - VALVE ASSY, AIR BY-PASS | ||||
| 17670-0W020 |
V35AFTS..VJA300 |
2 | ||
| 17670B - VALVE ASSY, AIR BY-PASS | ||||
| 17670-0W020 |
V35AFTS..VJA300 |
2 | ||
| 17962 - BRACKET, COOL AIR INLET | ||||
| 17962-70010 |
V35AFTS..VJA300 |
1 | ||
| Common parts | ||||
| 90105-08506 | ||||
| 90119-06A28 | ||||
| 90148-60058 | ||||
| 90460-80006 | ||||
| 90466-27001 | ||||
| 91671-80616 | ||||
| 96111-10670 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||

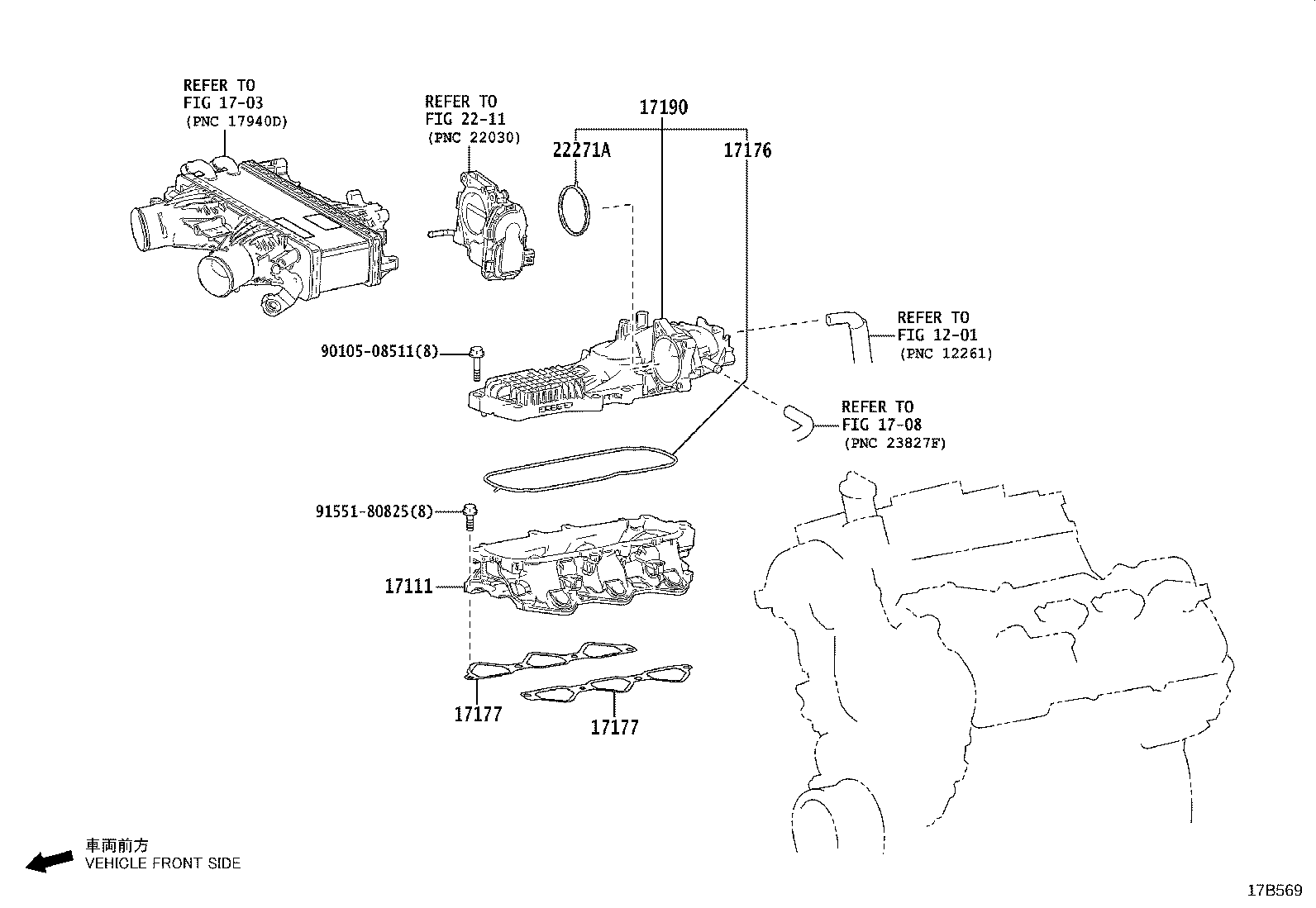

ILLUST NO. 2 OF 4(2104- )V35AFTS
MANIFOLD,INTAKE AIR SURGE TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-0W010 |
V35AFTS..VJA300 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-70040 |
V35AFTS..VJA300 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-70070 |
V35AFTS..VJA300 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-70070 |
V35AFTS..VJA300 |
2 | ||
| 17190 - TANK ASSY, INTAKE AIR SURGE | ||||
| 17190-70050 |
V35AFTS..VJA300 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-70070 |
V35AFTS..VJA300 |
1 | ||
| Common parts | ||||
| 90105-08511 | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||
| 1708 | ||||
| 2211 | ||||

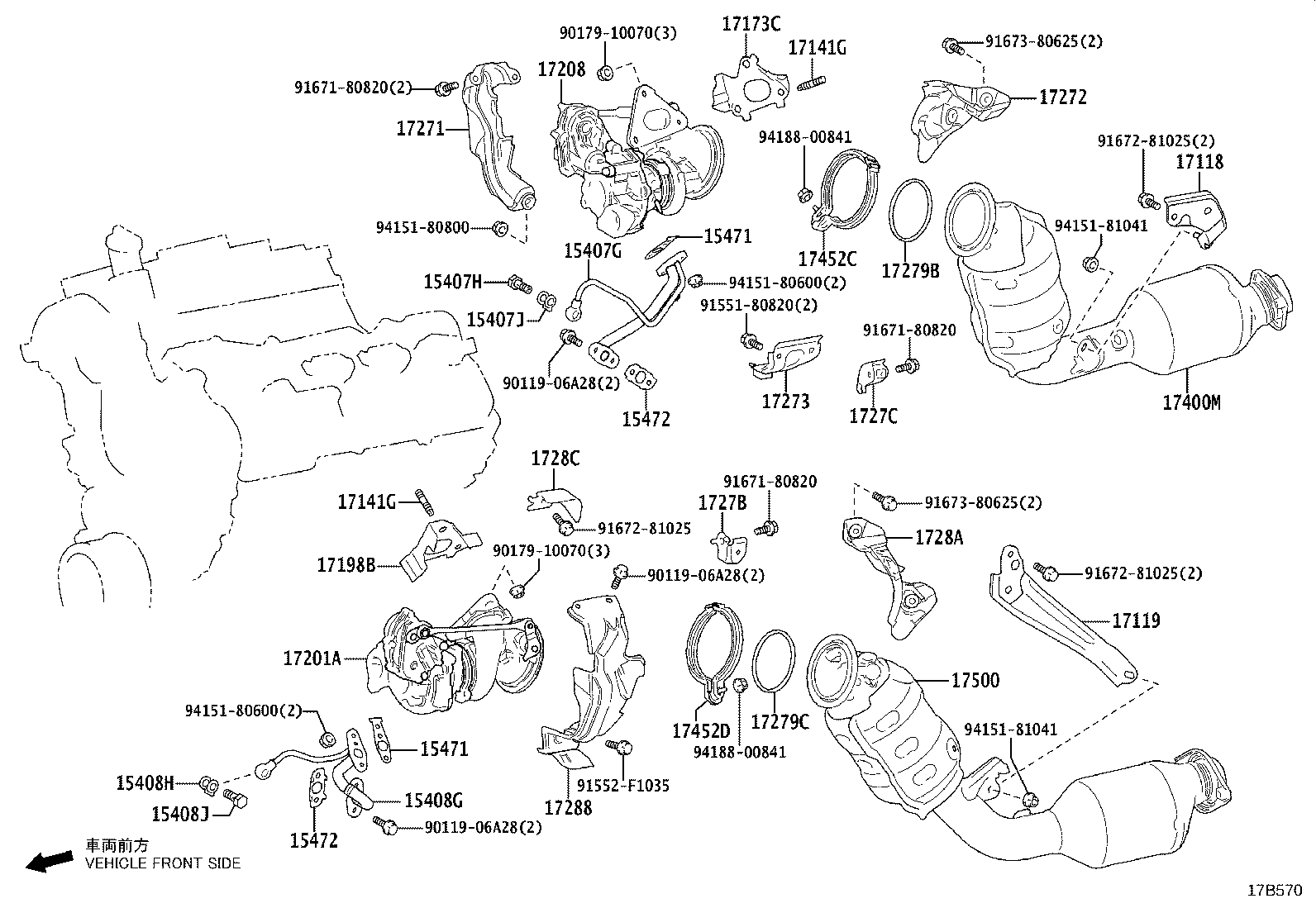

ILLUST NO. 3 OF 4(2104- )V35AFTS
CONVERTER,TURBOCHARGER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407G - PIPE SUB-ASSY, TURBO OIL INLET, RH | ||||
| 15407-70020 |
V35AFTS..VJA300 |
1 | ||
| 15407H - BOLT, UNION(FOR TURBO OIL INLET PIPE RH) | ||||
| 90401-12097 |
V35AFTS..VJA300 |
1 | ||
| 15407J - GASKET(FOR TURBO OIL INLET PIPE RH) | ||||
| 90430-12037 |
V35AFTS..VJA300 |
1 | ||
| 15408G - PIPE SUB-ASSY, TURBO OIL INLET, LH | ||||
| 15408-70020 |
V35AFTS..VJA300 |
1 | ||
| 15408H - GASKET(FOR TURBO OIL INLET PIPE LH) | ||||
| 90430-12037 |
V35AFTS..VJA300 |
1 | ||
| 15408J - BOLT, UNION(FOR TURBO OIL INLET PIPE LH) | ||||
| 90401-12097 |
V35AFTS..VJA300 |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-70010 |
V35AFTS..VJA300 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-70010 |
V35AFTS..VJA300 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-70010 |
V35AFTS..VJA300 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-70010 |
V35AFTS..VJA300 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-70220 |
V35AFTS..VJA300 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17119-70070 |
V35AFTS..VJA300 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90126-10045 |
V35AFTS..VJA300 |
6 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90126-10045 |
V35AFTS..VJA300 |
6 | ||
| 17173C - GASKET(FOR TURBOCHARGER SUB-ASSY NO.2) | ||||
| 17173-70070 |
V35AFTS..VJA300 |
1 | ||
| 17198B - GASKET(FOR TURBOCHARGER SUB-ASSY NO.1) | ||||
| 17198-70070 |
V35AFTS..VJA300 |
1 | ||
| 17201A - TURBOCHARGER SUB-ASSY, NO.1 | ||||
| 17201-70070 |
V35AFTS..VJA300 |
1 | ||
| 17208 - TURBOCHARGER SUB-ASSY, NO.2 | ||||
| 17208-70070 |
V35AFTS..VJA300 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-70040 |
V35AFTS..VJA300 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-70040 |
V35AFTS..VJA300 |
1 | ||
| 17273 - STAY, TURBO INSULATOR, NO.1 | ||||
| 17273-70011 |
V35AFTS..VJA300 |
1 | ||
| 17279B - GASKET, TURBINE OUTLET ELBOW, RH | ||||
| 17279-0W040 |
V35AFTS..VJA300 |
1 | ||
| 17279C - GASKET, TURBINE OUTLET ELBOW, LH | ||||
| 17279-0W040 |
V35AFTS..VJA300 |
1 | ||
| 1727B - STAY, TURBO INSULATOR, NO.2 | ||||
| 1727B-70020 |
V35AFTS..VJA300 |
1 | ||
| 1727C - STAY, TURBO INSULATOR, NO.3 | ||||
| 1727C-70020 |
V35AFTS..VJA300 |
1 | ||
| 17288 - INSULATOR, TURBO, NO.3 | ||||
| 17288-70050 |
V35AFTS..VJA300 |
1 | ||
| 1728A - INSULATOR, TURBO, NO.4 | ||||
| 1728A-70030 |
V35AFTS..VJA300 |
1 | ||
| 1728C - INSULATOR, TURBO, NO.6 | ||||
| 1728C-70020 |
V35AFTS..VJA300 |
1 | ||
| 17400M - CONVERTER ASSY, W/CATALYST, RH | ||||
| 17400-70090 |
V35AFTS..VJA300..G;V35AFTS..VJA300..EUR |
1 | ||
| 17400-70070 |
V35AFTS..VJA300..(A,V,Z)..(GCC,GEN) |
1 | ||
| 17400-70060 |
V35AFTS..VJA300..RHD..Z;V35AFTS..VJA300..V..GCC EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD) FOR LG FUEL |
1 | ||
| 17400-70060 |
V35AFTS..VJA300..(A,V,Z)..GCC EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17400-70090 |
V35AFTS..VJA300..(A,V,Z)..GCC EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 17400-70060 |
V35AFTS..VJA300..(A,V,Z)..GCC EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD) SAUDI ARABIA SPEC |
1 | ||
| 17452C - CLAMP, EXHAUST PIPE, RH | ||||
| 17452-70010 |
V35AFTS..VJA300 |
1 | ||
| 17452D - CLAMP, EXHAUST PIPE, LH | ||||
| 17452-70010 |
V35AFTS..VJA300 |
1 | ||
| 17500 - CONVERTER ASSY, W/CATALYST, LH | ||||
| 17500-70060 |
V35AFTS..VJA300..RHD..Z;V35AFTS..VJA300..V..GCC EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD) FOR LG FUEL |
1 | ||
| 17500-70090 |
V35AFTS..VJA300..(A,V,Z)..GCC EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 17500-70070 |
V35AFTS..VJA300..(A,V,Z)..(GCC,GEN) |
1 | ||
| 17500-70060 |
V35AFTS..VJA300..(A,V,Z)..GCC EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17500-70060 |
V35AFTS..VJA300..(A,V,Z)..GCC EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD) SAUDI ARABIA SPEC |
1 | ||
| 17500-70090 |
V35AFTS..VJA300..G;V35AFTS..VJA300..EUR |
1 | ||
| Common parts | ||||
| 90119-06A28 | ||||
| 90179-10070 | ||||
| 91551-80820 | ||||
| 91552-F1035 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| 91673-80625 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94151-81041 | ||||
| 94188-00841 | ||||

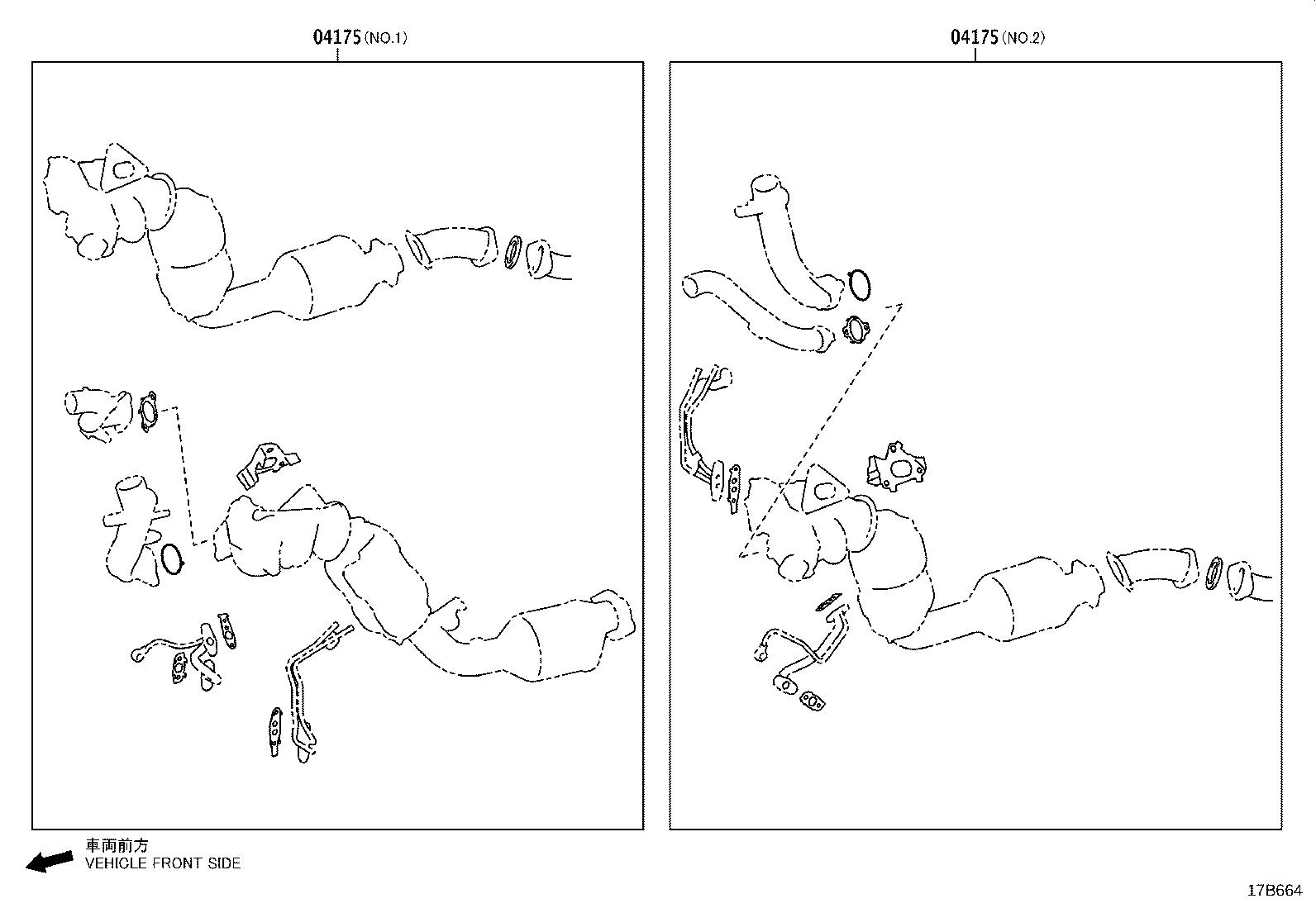

ILLUST NO. 4 OF 4(2104- )V35AFTS
TURBOCHARGER GASKET KIT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-70080 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 04175-70070 |
V35AFTS..VJA300 NO.1 |
1 | ||
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-70080 |
V35AFTS..VJA300 NO.2 |
1 | ||
| 04175-70070 |
V35AFTS..VJA300 NO.1 |
1 | ||
