VJA300L-GNUZZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )V35AFTS

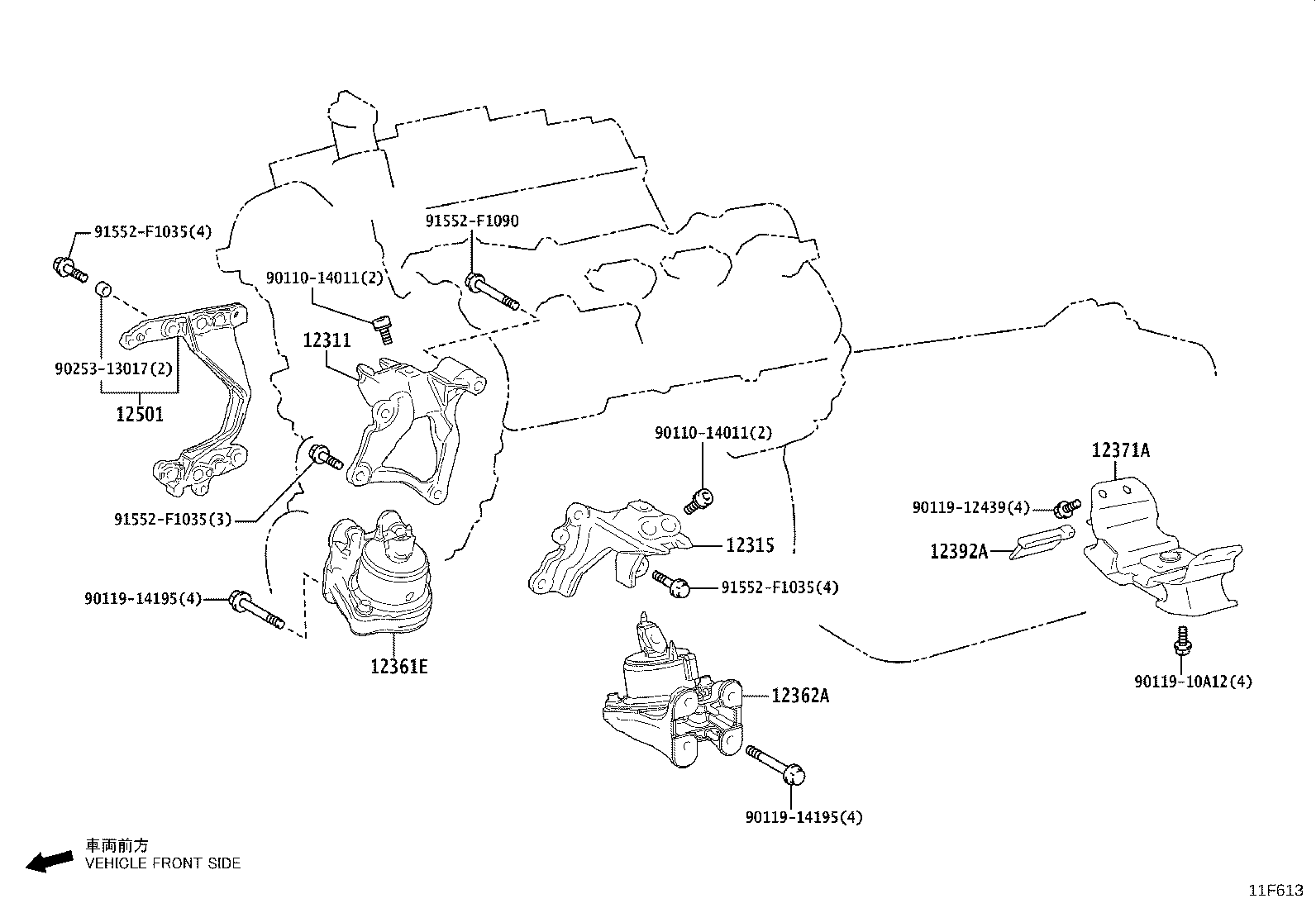

Click highlighted areas on diagram

diagram 12311 12315 12361E 12362A 12371A 12392A 12501 9011014011 9011014011 9011910A12 9011912439 9011914195 9011914195 9025313017 91552F1035 91552F1035 91552F1035 91552F1090
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70190

V35AFTS..VJA300

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70160

V35AFTS..VJA300

 1
12361E - INSULATOR, ENGINE MOUNTING, FRONT RH
12361-70292

V35AFTS..VJA300

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-70022

V35AFTS..VJA300

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-70130

V35AFTS..VJA300

 1
12392A - INSULATOR, ENGINE MOUNTING HEAT, REAR
12391-70050

V35AFTS..VJA300

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-70030

V35AFTS..VJA300

 1
Common parts
90110-14011
90119-10A12
90119-12439
90119-14195
90253-13017
91552-F1035
91552-F1090
