VJA300L-GNUZZ (2021)
Toyota Land Cruiser

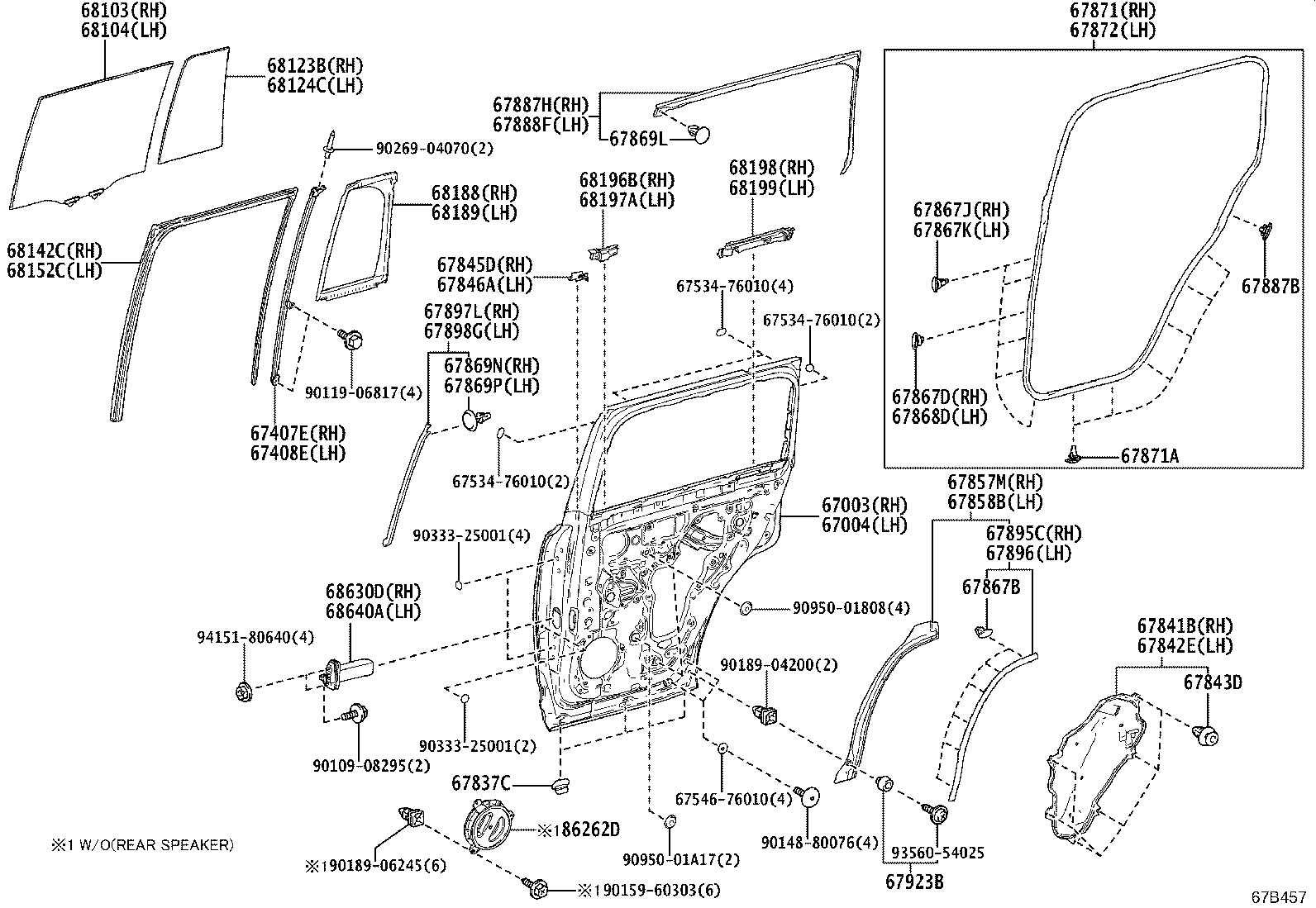

ILLUST NO. 1 OF 2(2104- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-60620 |
GRJ300,VJA300 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-60590 |
GRJ300,VJA300 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-60090 |
GRJ300,VJA300 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-60090 |
GRJ300,VJA300 |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-60090 |
GRJ300,VJA300 |
6 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-60150 |
GRJ300,VJA300 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-60100 |
GRJ300,VJA300 |
1 | ||
| 67843D - CLIP, REAR DOOR SERVICE HOLE | ||||
| 90467-09206 |
GRJ300,VJA300 |
12 | ||
| 67845D - SEAL, REAR DOOR FRONT OUTSIDE, RH | ||||
| 67845-60010 |
GRJ300,VJA300 |
1 | ||
| 67846A - SEAL, REAR DOOR FRONT OUTSIDE, LH | ||||
| 67846-60020 |
GRJ300,VJA300 |
1 | ||
| 67857M - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67850-60010 |
GRJ300,VJA300 |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67860-60010 |
GRJ300,VJA300 |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 53145-60030 |
GRJ300,VJA300 |
12 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-50140 |
GRJ300,VJA300 |
1 | ||
| 67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) | ||||
| 67867-50170 |
GRJ300,VJA300 |
5 | ||
| 67867K - CLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR) | ||||
| 67867-50170 |
GRJ300,VJA300 |
5 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-50140 |
GRJ300,VJA300 |
1 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-33030 |
GRJ300,VJA300 |
2 | ||
| 67869N - CLIP, REAR DOOR WEATHERSTRIP, RH | ||||
| 67869-33030 |
GRJ300,VJA300 |
1 | ||
| 67869P - CLIP, REAR DOOR WEATHERSTRIP, LH | ||||
| 67869-33030 |
GRJ300,VJA300 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-60140 |
GRJ300,VJA300 |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
GRJ300,VJA300 |
12 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-60140 |
GRJ300,VJA300 |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 90467-04034 |
GRJ300,VJA300 |
2 | ||
| 67887H - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-60030 |
GRJ300,VJA300 |
1 | ||
| 67888F - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-60030 |
GRJ300,VJA300 |
1 | ||
| 67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH | ||||
| 67895-60060 |
GRJ300,VJA300 |
1 | ||
| 67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH | ||||
| 67896-60060 |
GRJ300,VJA300 |
1 | ||
| 67897L - WEATHERSTRIP, REAR DOOR, NO.4 RH | ||||
| 67897-60010 |
GRJ300,VJA300 |
1 | ||
| 67898G - WEATHERSTRIP, REAR DOOR, NO.4 LH | ||||
| 67898-60010 |
GRJ300,VJA300 |
1 | ||
| 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 | ||||
| 67923-48060 |
GRJ300,VJA300 |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-60500 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 68103-60510 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(V,Z)..(GCC,GEN) REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-60490 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 68104-60500 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(V,Z)..(GCC,GEN) REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-60430 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(V,Z)..(GCC,GEN) REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED) |
1 | ||
| 68123-60420 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 68124C - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-60420 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 68124-60450 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(V,Z)..(GCC,GEN) REAR SIDE GLASS-PRIVACY(GRAY, TEMPERED) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-60080 |
GRJ300,VJA300 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-60070 |
GRJ300,VJA300 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-60080 |
GRJ300,VJA300 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-60080 |
GRJ300,VJA300 |
1 | ||
| 68196B - SEAL, REAR DOOR BELT, FRONT RH | ||||
| 68196-60010 |
GRJ300,VJA300 |
1 | ||
| 68197A - SEAL, REAR DOOR BELT, FRONT LH | ||||
| 68197-60010 |
GRJ300,VJA300 |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-60020 |
GRJ300,VJA300 |
1 | ||
| 68199 - SEAL, REAR DOOR BELT, REAR LH | ||||
| 68199-60010 |
GRJ300,VJA300 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-60150 |
GRJ300,VJA300 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-60130 |
GRJ300,VJA300 |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-12030 |
GRJ300..A;VJA300..LHD..V..GEN AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 4SPEAKER |
2 | ||
| 86262-12030 |
VJA300..A..GEN;GRJ300,VJA300..G |
2 | ||
| 86262-12030 |
GRJ300,VJA300..LHD..A AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 4SPEAKER |
2 | ||
| Common parts | ||||
| 67534-76010 | ||||
| 67546-76010 | ||||
| 90109-08295 | ||||
| 90119-06817 | ||||
| 90148-80076 | ||||
| 90159-60303 | ||||
| 90189-04200 | ||||
| 90189-06245 | ||||
| 90269-04070 | ||||
| 90333-25001 | ||||
| 90950-01808 | ||||
| 90950-01A17 | ||||
| 93560-54025 | ||||
| 94151-80640 | ||||

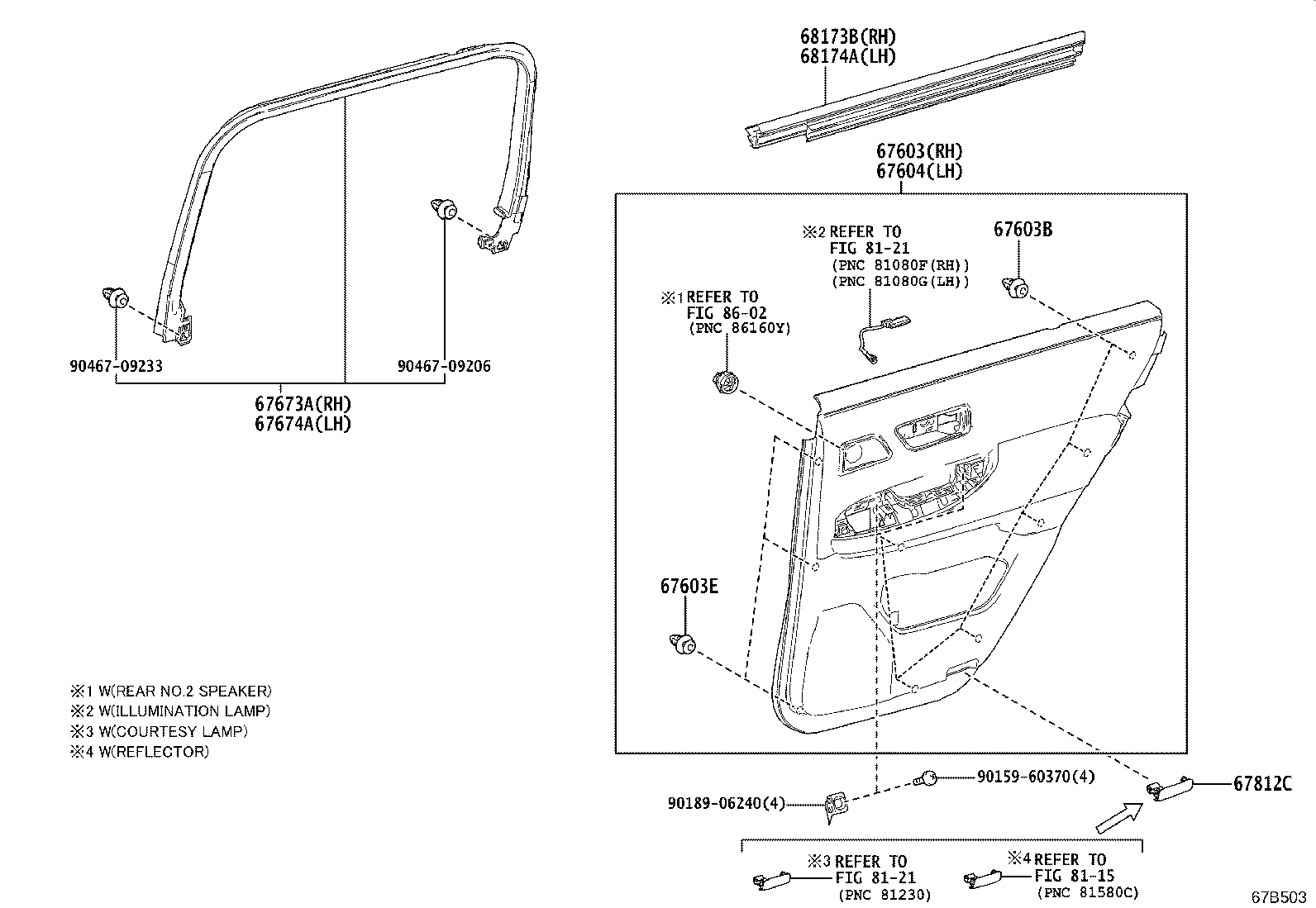

ILLUST NO. 2 OF 2(2104- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-6A090C4 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 67630-6A090C5 |
GRJ300,VJA300..A,G BLACK,TRIM4# |
1 | ||
| 67630-6A130C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67630-6A130C4 |
GRJ300,VJA300..LHD..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67630-6A140C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 67630-6A130C3 |
GRJ300,VJA300..LHD..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67630-6A120C2 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 67630-6A120C3 |
GRJ300,VJA300..V BLACK,TRIM4# |
1 | ||
| 67630-6A130C4 |
GRJ300,VJA300..LHD..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67630-6A140C3 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 67630-6A140C3 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 67630-6A140C4 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM3# |
1 | ||
| 67630-6A140C3 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM2# |
1 | ||
| 67630-6A140C5 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM4# |
1 | ||
| 67630-6A270C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67630-6A140C4 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM3# |
1 | ||
| 67630-6A270C3 |
VJA300..7S..Z BLACK,TRIM2# |
1 | ||
| 67630-6A270C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67630-6A140C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 67630-6A140C4 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM3# |
1 | ||
| 67630-6A270C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67630-6A270C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)&14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67630-6A140C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM4# |
1 | ||
| 67630-6A140C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM4# |
1 | ||
| 67630-6A140C5 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM4# |
1 | ||
| 67630-6A270C4 |
VJA300..7S..Z BLACK,TRIM3# |
1 | ||
| 67630-6A270C5 |
VJA300..7S..Z BLACK,TRIM4# |
1 | ||
| 67630-6A140C5 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM4# |
1 | ||
| 67630-6A270C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67630-6A270C5 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)&14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67630-6A270C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67630-6A270C5 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
GRJ300,VJA300 |
12 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09233 |
GRJ300,VJA300 |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-6A090C4 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 67640-6A130C3 |
GRJ300,VJA300..LHD..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67640-6A120C3 |
GRJ300,VJA300..V BLACK,TRIM4# |
1 | ||
| 67640-6A140C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 67640-6A120C2 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 67640-6A090C5 |
GRJ300,VJA300..A,G BLACK,TRIM4# |
1 | ||
| 67640-6A130C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67640-6A140C3 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 67640-6A140C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 67640-6A140C3 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 67640-6A140C3 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM2# |
1 | ||
| 67640-6A140C4 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM3# |
1 | ||
| 67640-6A140C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM4# |
1 | ||
| 67640-6A270C3 |
VJA300..7S..Z BLACK,TRIM2# |
1 | ||
| 67640-6A130C4 |
GRJ300,VJA300..LHD..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67640-6A140C4 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM3# |
1 | ||
| 67640-6A140C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM4# |
1 | ||
| 67640-6A130C4 |
GRJ300,VJA300..LHD..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67640-6A270C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67640-6A140C5 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM4# |
1 | ||
| 67640-6A270C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)&14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67640-6A140C5 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM4# |
1 | ||
| 67640-6A140C5 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM4# |
1 | ||
| 67640-6A270C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67640-6A270C4 |
VJA300..7S..Z BLACK,TRIM3# |
1 | ||
| 67640-6A140C4 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM3# |
1 | ||
| 67640-6A270C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67640-6A270C5 |
VJA300..7S..Z BLACK,TRIM4# |
1 | ||
| 67640-6A270C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67640-6A270C5 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)&14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67640-6A270C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67640-6A270C5 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-60020 |
GRJ300,VJA300 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-60020 |
GRJ300,VJA300 |
1 | ||
| 67812C - COVER, REAR DOOR HOLE | ||||
| 67811-60030C1 |
GRJ300,VJA300..A,G BLACK,TRIM2#,4# |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-60080 |
GRJ300,VJA300 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-60080 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06240 | ||||
| 90467-09206 | ||||
| 90467-09233 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8121 | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
