VJA300L-GNUZZ (2021)
Toyota Land Cruiser
Production
Apr 2021
-
Sep 9999
Engine
V35AFTS
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )VJA300

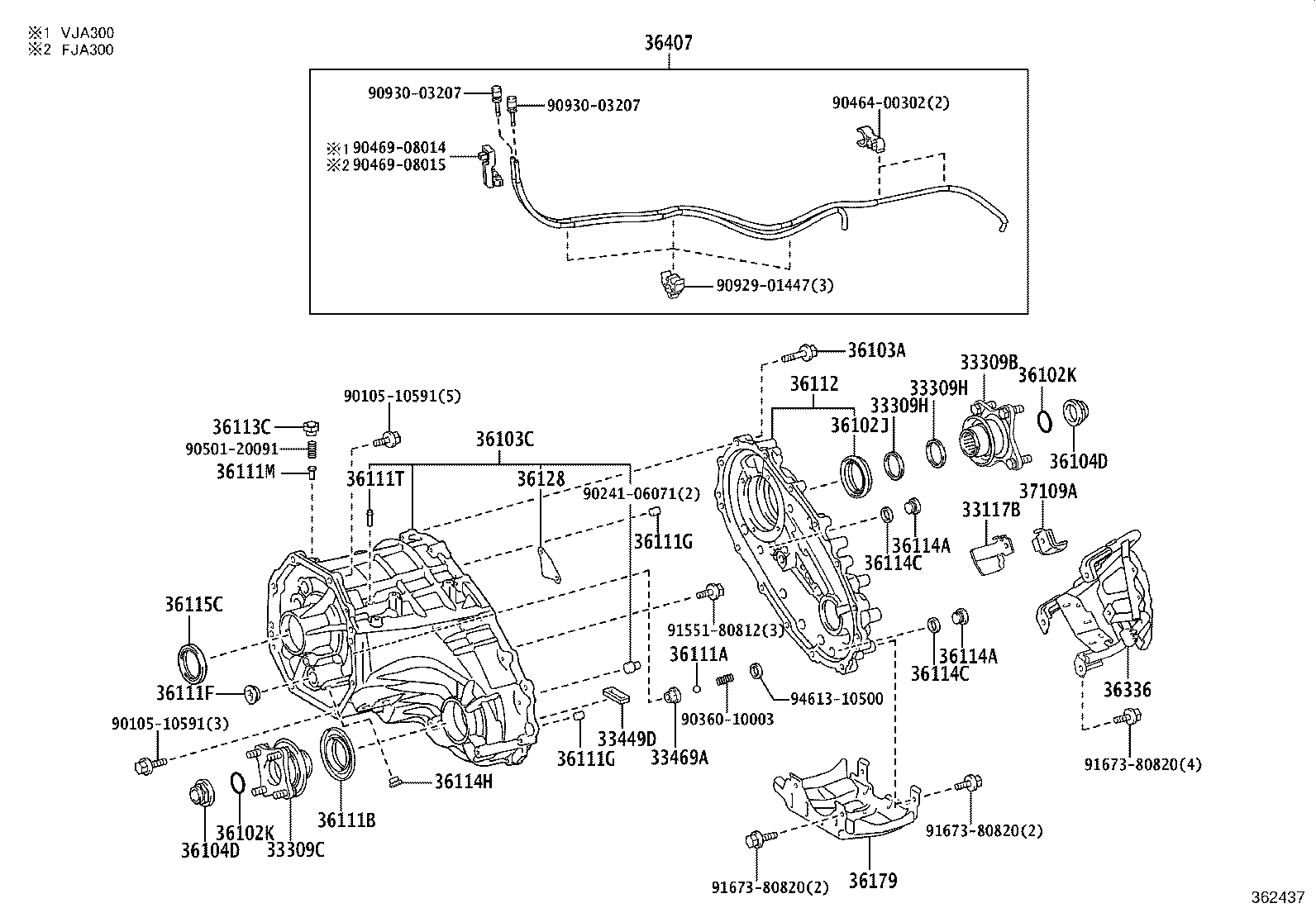

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33117B - PROTECTOR, TRANSFER CASE | ||||
| 36179-60060 |
GRJ300,VJA300 |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-60160 |
GRJ300,VJA300 |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-60170 |
GRJ300,VJA300 |
1 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-34010 |
GRJ300,VJA300 T=0.8 |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-34010 |
GRJ300,VJA300 T=0.8 |
2 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
GRJ300,VJA300 |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60030 |
GRJ300,VJA300 |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-50065 |
GRJ300,VJA300 |
1 | ||
| 36102K - RING, O | ||||
| 90301-31003 |
GRJ300,VJA300 |
2 | ||
| 36102K - RING, O | ||||
| 90301-31003 |
GRJ300,VJA300 |
2 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 91551-00845 |
GRJ300,VJA300 *8-1.25PX45-22 |
14 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60440 |
GRJ300,VJA300 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-24011 |
GRJ300,VJA300 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-24011 |
GRJ300,VJA300 |
2 | ||
| 36111A - SPRING, COMPRESSION (FOR TRANSFER CASE) | ||||
| 90501-10265 |
GRJ300,VJA300 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-50066 |
GRJ300,VJA300 |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-24006 |
GRJ300,VJA300 |
3 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
GRJ300,VJA300 L=14,OD=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
GRJ300,VJA300 L=14,OD=10 |
2 | ||
| 36111M - PIN, SLOTTED SPRING (FOR TRANSFER CASE) | ||||
| 90241-07003 |
GRJ300,VJA300 |
1 | ||
| 36111T - TUBE (FOR TRANSFER CASE) | ||||
| 90441-05001 |
GRJ300,VJA300 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60070 |
GRJ300,VJA300 |
1 | ||
| 36113C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14012 |
GRJ300,VJA300 |
1 | ||
| 36114A - PLUG, TIGHT(FOR TRANSFER CASE) | ||||
| 90341-18060 |
GRJ300,VJA300 |
2 | ||
| 36114A - PLUG, TIGHT(FOR TRANSFER CASE) | ||||
| 90341-18060 |
GRJ300,VJA300 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
GRJ300,VJA300 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
GRJ300,VJA300 |
2 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-12004 |
GRJ300,VJA300 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-51009 |
GRJ300,VJA300 |
1 | ||
| 36128 - DEFLECTOR, BREATHER OIL | ||||
| 36128-60080 |
GRJ300,VJA300 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-60040 |
GRJ300,VJA300 |
1 | ||
| 36336 - INSULATOR, TRANSFER HEAT | ||||
| 36336-60050 |
GRJ300,VJA300 |
1 | ||
| 36407 - HOSE SUB-ASSY, TRANSFER BREATHER | ||||
| 36407-60390 |
VJA300 |
1 | ||
| 37109A - BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR | ||||
| 37109-60050 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90105-10591 | ||||
| 90241-06071 | ||||
| 90360-10003 | ||||
| 90464-00302 | ||||
| 90469-08014 | ||||
| 90469-08015 | ||||
| 90501-20091 | ||||
| 90929-01447 | ||||
| 90930-03207 | ||||
| 91551-80812 | ||||
| 91673-80820 | ||||
| 94613-10500 | ||||
