VJA300L-GNUVZW (2021)
Toyota Land Cruiser
Production
Apr 2021
-
Sep 9999
Engine
V35AFTS
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

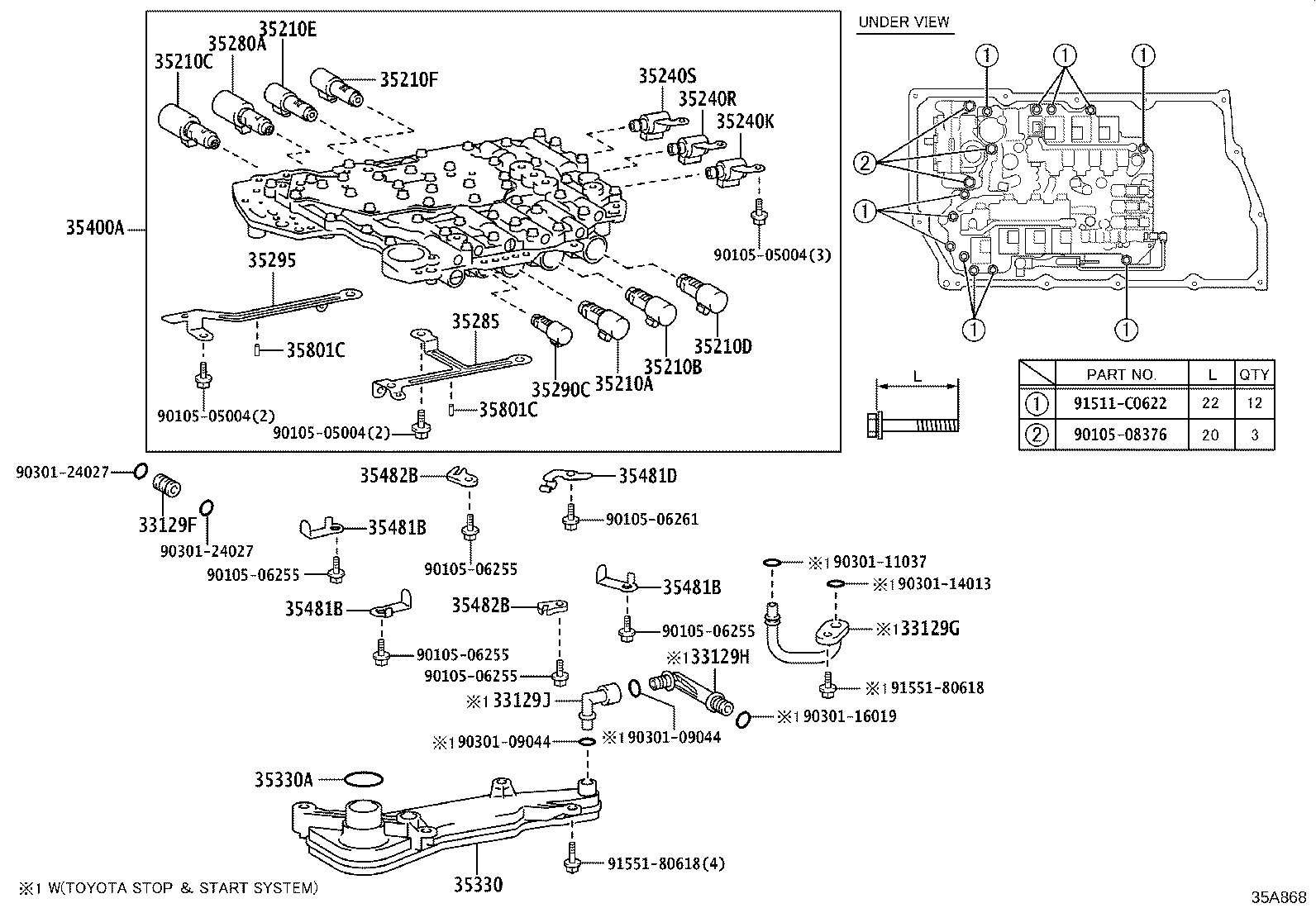

ILLUST NO. 1 OF 2(2104- )VJA300
Click highlighted areas on diagram
AJA0F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33129F - PIPE, TRANSMISSION OIL | ||||
| 33129-60040 |
VJA300 |
1 | ||
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-11010 |
VJA300 |
1 | ||
| 35210B - VALVE, SOLENOID(SL3) | ||||
| 35210-11010 |
VJA300 |
1 | ||
| 35210C - VALVE, SOLENOID(SL2) | ||||
| 35210-11010 |
VJA300 |
1 | ||
| 35210D - VALVE, SOLENOID(SL4) | ||||
| 35210-11010 |
VJA300 |
1 | ||
| 35210E - VALVE, SOLENOID(SL5) | ||||
| 35210-11010 |
VJA300 |
1 | ||
| 35210F - VALVE, SOLENOID(SL6) | ||||
| 35210-11010 |
VJA300 |
1 | ||
| 35240K - SOLENOID ASSY, TRANSMISSION 3WAY(SC1) | ||||
| 35240-11020 |
VJA300 |
1 | ||
| 35240R - SOLENOID ASSY, TRANSMISSION 3WAY(SR) | ||||
| 35240-60050 |
VJA300 |
1 | ||
| 35240S - SOLENOID ASSY, TRANSMISSION 3WAY(SL) | ||||
| 35240-60050 |
VJA300 |
1 | ||
| 35280A - VALVE, SOLENOID(SLU) | ||||
| 35280-11010 |
VJA300 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-60050 |
VJA300 |
1 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-60060 |
VJA300 |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35285-60060 |
VJA300 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60100 |
VJA300 |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-24026 |
VJA300 |
1 | ||
| 35400A - BODY ASSY, TRANSMISSION VALVE W/SOLENOID | ||||
| 35400-60550 |
VJA300 |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-50060 |
VJA300 |
3 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-50060 |
VJA300 |
3 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-50060 |
VJA300 |
3 | ||
| 35481D - CLAMP, VALVE BODY WIRE HARNESS, NO.2 | ||||
| 35481-11010 |
VJA300 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-50020 |
VJA300 |
2 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-50020 |
VJA300 |
2 | ||
| 35801C - PIN, STRAIGHT | ||||
| 90250-03112 |
VJA300 |
8 | ||
| 35801C - PIN, STRAIGHT | ||||
| 90250-03112 |
VJA300 |
8 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-06255 | ||||
| 90105-06261 | ||||
| 90105-08376 | ||||
| 90301-09044 | ||||
| 90301-11037 | ||||
| 90301-14013 | ||||
| 90301-16019 | ||||
| 90301-24027 | ||||
| 91511-C0622 | ||||
| 91551-80618 | ||||

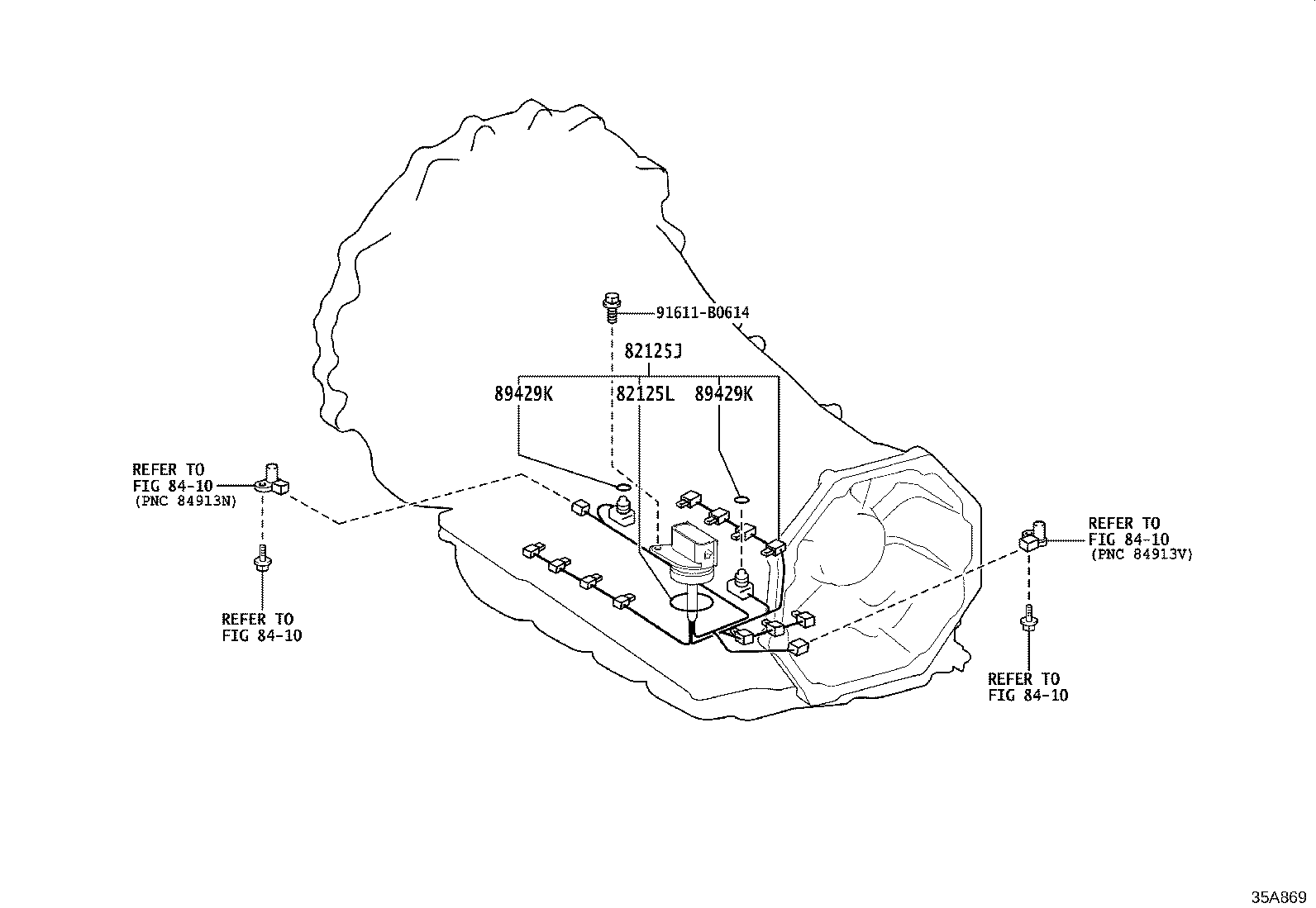

ILLUST NO. 2 OF 2(2104- )VJA300
Click highlighted areas on diagram
AJA0F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-60700 |
VJA300 |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-36014 |
GRJ300,VJA300 |
1 | ||
| 89429K - RING, O(FOR OIL TEMPERATURE SENSOR) | ||||
| 90301-06025 |
VJA300 |
2 | ||
| 89429K - RING, O(FOR OIL TEMPERATURE SENSOR) | ||||
| 90301-06025 |
VJA300 |
2 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 8410 | ||||
