VJA300L-GNUVZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )LHD

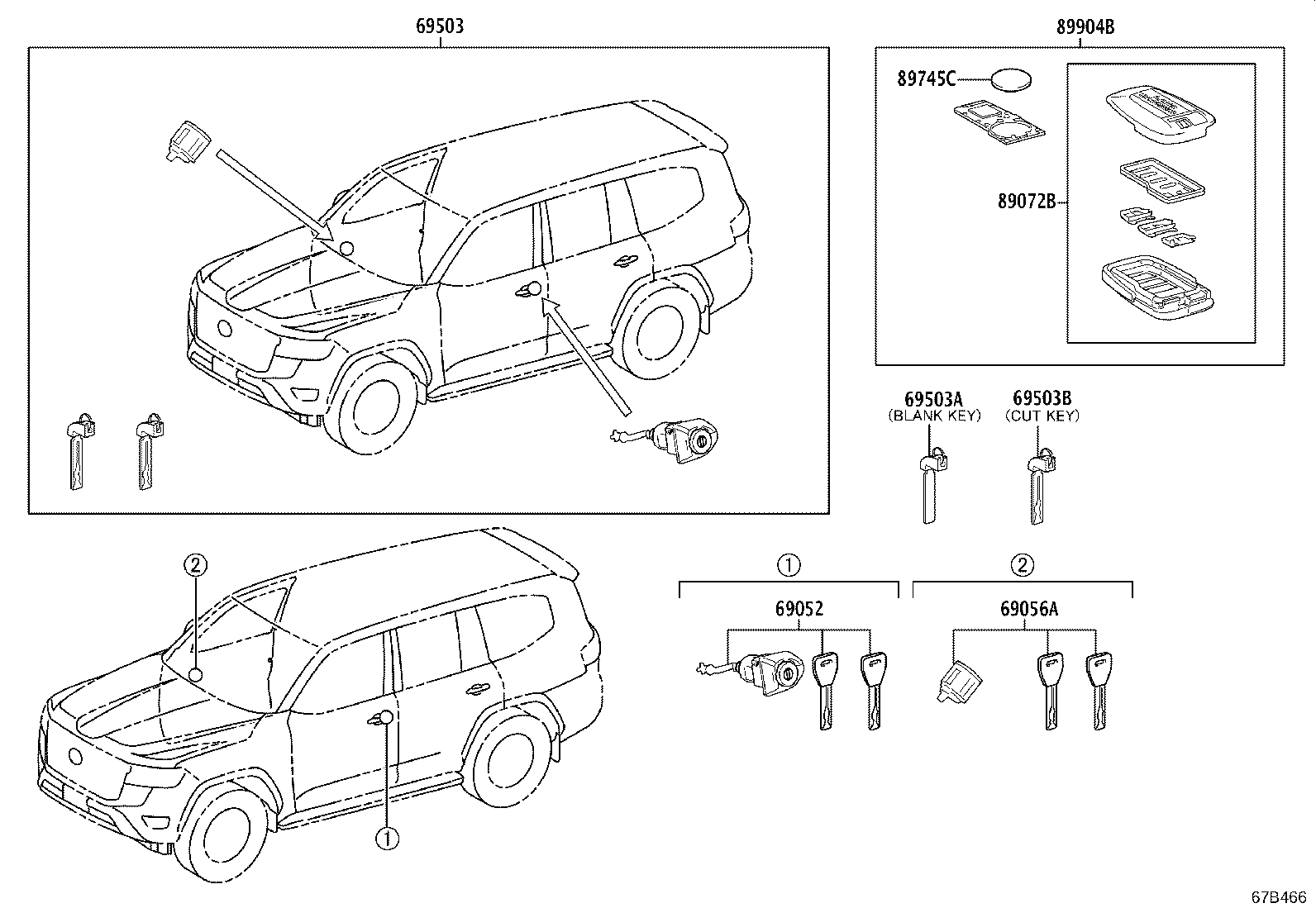

Click highlighted areas on diagram

diagram 69052 69056A 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-60440

GRJ300,VJA300..LHD

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-50160

GRJ300,VJA300

 1
69503 - CYLINDER SET, LOCK
69005-60N90

GRJ300,VJA300..LHD

 1
69503A - KEY, BLANK
69515-K0020

GRJ300,VJA300

BLANK KEY

 1
69503B - KEY, CUT
69515-K0010

GRJ300,VJA300

MASTER KEY

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-60P70

VJA300..7S..Z

 2
89072-60P50

GRJ300,VJA300..V..GCC

 2
89072-60R10

GRJ300,VJA300..A..GCC

SMART ENTRY-WITH(PANIC BUTTON)

 2
89072-60P70

GRJ300,VJA300..V..GCC

BACK DOOR-WITH(POWER BACK DOOR)

 2
89072-60R20

GRJ300,VJA300..A,G

 2
89072-60R30

GRJ300..A,G;VJA300..A..GCC

SMART ENTRY-WITH(PANIC BUTTON)

 2
89745C - BATTERY, TRANSMITTER
89745-K0020

GRJ300,VJA300

CR2450

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-60440

GRJ300,VJA300..V..GCC

 1
8990H-60530

GRJ300,VJA300..A..GCC

SMART ENTRY-WITH(PANIC BUTTON)

 1
8990H-60540

GRJ300,VJA300..A,G

 1
8990H-60460

VJA300..7S..Z

 1
8990H-60460

GRJ300,VJA300..V..GCC

BACK DOOR-WITH(POWER BACK DOOR)

 1
8990H-60550

GRJ300..A,G;VJA300..A..GCC

SMART ENTRY-WITH(PANIC BUTTON)

 1
