VJA300L-GNUGZV (2021)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(2104- )LHD

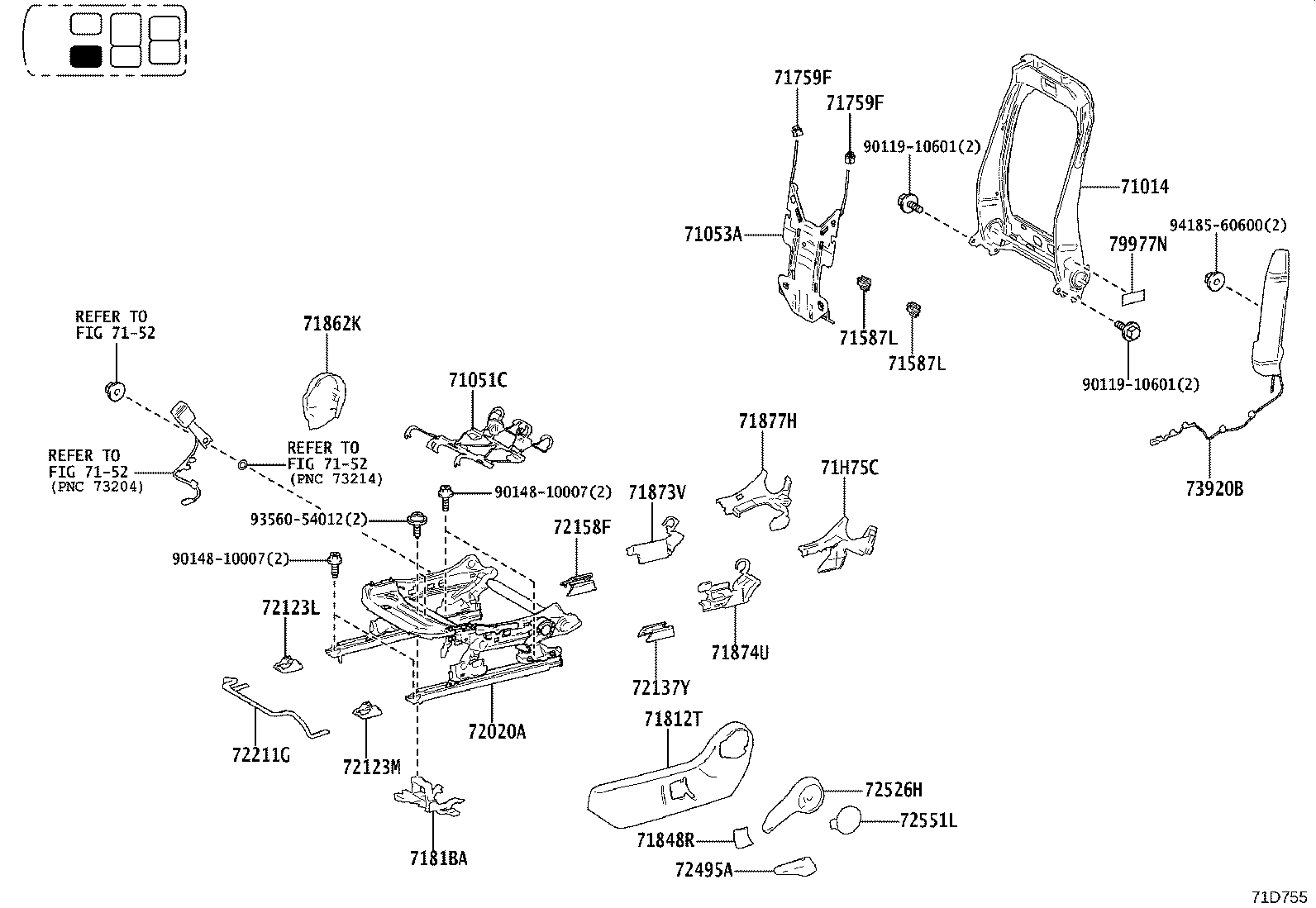

LH SEAT(MANUAL 6 WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60650 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71014-60650 |
VJA300..LHD..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71014-60650 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71014-60650 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71014-60660 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..V |
1 | ||
| 71014-60660 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-60670 |
VJA300..LHD..Z |
1 | ||
| 71014-60670 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 71014-60670 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 71014-60670 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71014-60840 |
VJA300..RHD..(A,V);GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71014-60670 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71051C - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
GRJ300,VJA300 |
1 | ||
| 71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-47050 |
VJA300..RHD..(A,V);GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-47010 |
GRJ300,VJA300 |
2 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-47010 |
GRJ300,VJA300 |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-50040 |
GRJ300,VJA300 |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-50040 |
GRJ300,VJA300 |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-26490C0 |
GRJ300,VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-26510C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71812-26490E0 |
GRJ300,VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 71812-26510E1 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71812-60400C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-60400C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-60400E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-60400E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-60400E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..LHD..(V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-60400E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-60400C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-60400C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 7181BA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-42010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181B-42010 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181B-47010 |
VJA300..RHD..(A,V);GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71849-42010E1 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71849-42010C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090C1 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71862-47090C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71862-47090E0 |
VJA300..RHD..Z;GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60160 |
VJA300..Z;VJA300..RHD..V RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT,NO.1 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT,NO.2 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.1 |
1 | ||
| 71873-60220 |
VJA300..Z;VJA300..RHD..V RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.2 |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874-42050 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT, NO.2 |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-42060 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 71873-42060 |
VJA300..Z;VJA300..RHD..V RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT,NO.1 |
1 | ||
| 71874-60130 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71874-60180 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT,NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71876-42090C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71876-42090C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71876-42090E1 |
VJA300..RHD..Z;GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71876-60330C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71876-60330C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71876-60330E0 |
VJA300..RHD..Z;GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72020A - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-60670 |
GRJ300,VJA300..LHD..V |
1 | ||
| 72020-60650 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72020-60670 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72020-60700 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72020-60670 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-60700 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72020-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72020-60700 |
VJA300..LHD..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72020-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72020-60690 |
VJA300..LHD..Z |
1 | ||
| 72020-60700 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72020-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 72020-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72123L - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-10100 |
GRJ300,VJA300 |
1 | ||
| 72123M - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-10100 |
GRJ300,VJA300 |
1 | ||
| 72137Y - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
GRJ300,VJA300 |
1 | ||
| 72158F - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
GRJ300,VJA300 |
1 | ||
| 72211G - HANDLE, SEAT TRACK ADJUSTING, LH | ||||
| 72211-42020 |
VJA300..RHD..(A,V);GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 72495A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, LH | ||||
| 72495-26020C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 72495-26020E1 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26090E1 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72526-26090C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 72551L - COVER, RECLINING HINGE, LH | ||||
| 72551-47030E0 |
VJA300..RHD..(A,V);GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72551-47030C1 |
VJA300..RHD..(A,V);GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-60040 |
GRJ300,VJA300..V,Z |
1 | ||
| 73920-60040 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73920-60040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73920-60040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73920-60040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73920-60040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-12090 |
GRJ300,VJA300..LHD..V FOR RH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR RH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR RH SEAT |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V FOR LH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR LH SEAT |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR LH SEAT |
1 | ||
| 79977-76010 |
VJA300..Z |
2 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(2104- )LHD
LH SEAT(MANUAL 6 WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-60Q00E0 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q20C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71072-60Q30C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-60Q20C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71072-60Q20E0 |
GRJ300,VJA300..LHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q20E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q30C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71072-60Q30E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q20C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71072-60Q20E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q30E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q30E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q30C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-60Q40C1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60Q50E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q40E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71072-60Q50C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71072-60R40C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60R40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60D1 |
VJA300..Z DK.ROSE,TRIM3# |
1 | ||
| 71072-60R40C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71072-60S60C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60Q60C0 |
VJA300..Z BLACK,TRIM2# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60E1 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60R40E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60R40E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60S80C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71072-60Q70E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60R40E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q70E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60S60C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||

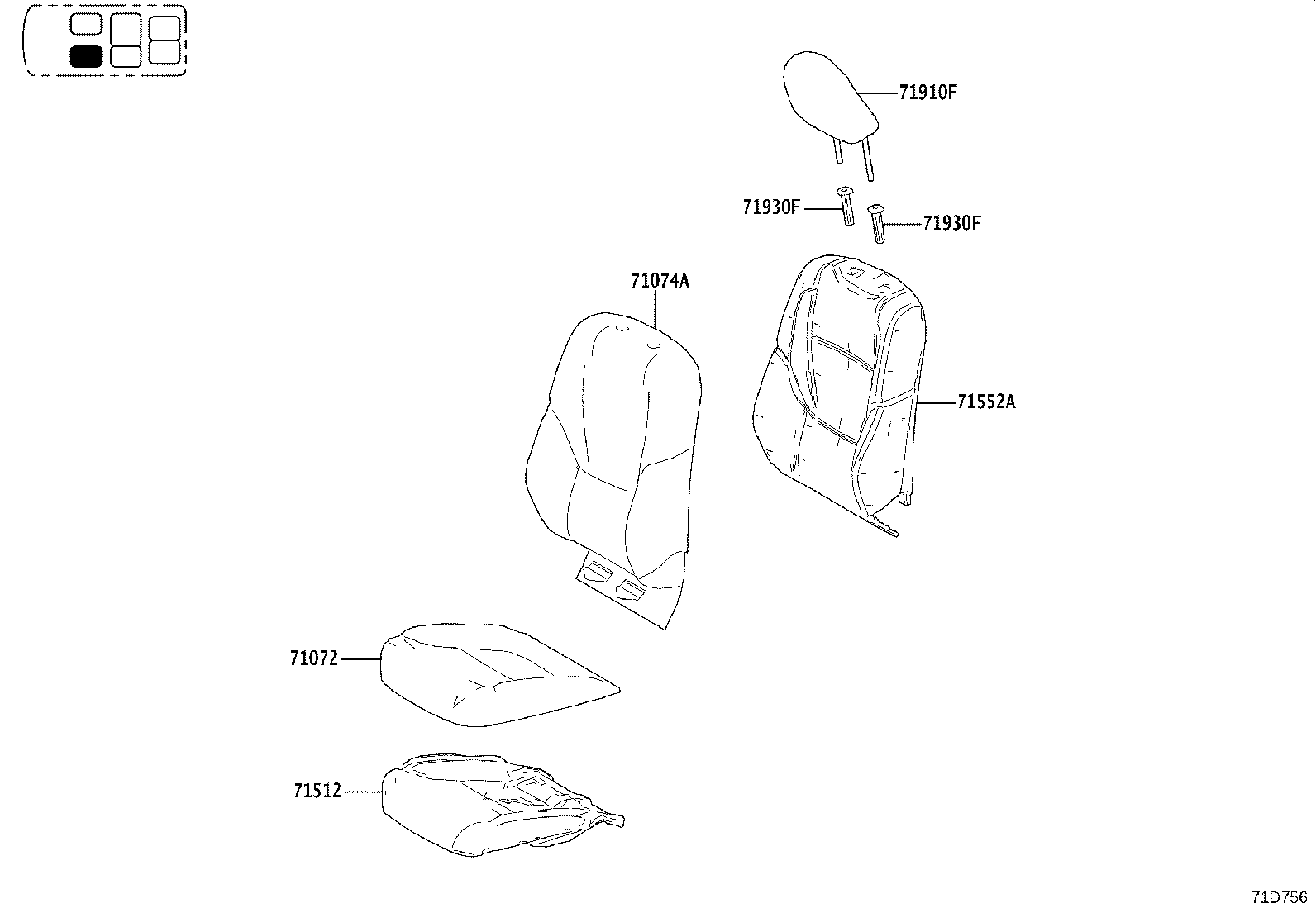

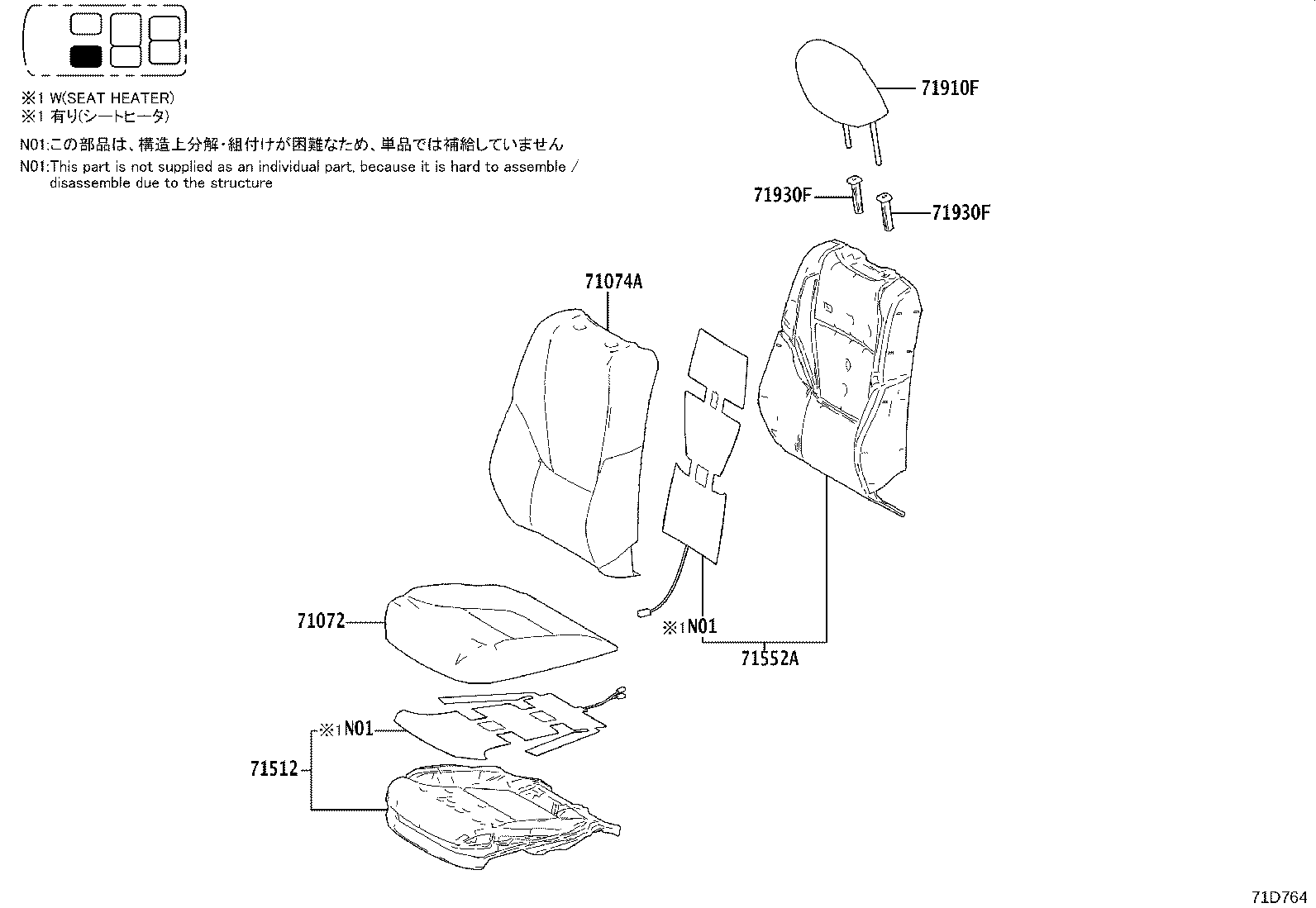

| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-60N40E3 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60F90E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60N50E3 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60N50C4 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-60N50C4 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 71074-60N50E3 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P00C3 |
VJA300..Z BLACK,TRIM2# |
1 | ||
| 71074-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71074-60P00E3 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71074-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71074-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71074-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-60N80E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10C3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71074-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P20E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10D6 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,DK.ROSE,TRIM3# |
1 | ||
| 71074-60F90C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10E3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P00D6 |
VJA300..Z DK.ROSE,TRIM3# |
1 | ||
| 71074-60P20E1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00C3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00E3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60N80C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71074-60Q00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71074-60Q20E1 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q20C3 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71074-60Q00E3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-60Q40E3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q40E3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00E3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00E3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q40C3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-60S40C0 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-60Q00C3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-60S30C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 71074-60Q40C3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-60S40C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-60750 |
VJA300..LHD..Z |
1 | ||
| 71502-60730 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71502-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71512-60480 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..LHD..V |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71512-60460 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71512-60500 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71512-60500 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-60500 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71506-60540 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-60630 |
GRJ300,VJA300..A,G |
1 | ||
| 71506-60530 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71506-60550 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71506-60540 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71506-60430 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..V |
1 | ||
| 71506-60550 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71506-60550 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71506-60540 |
VJA300..Z |
1 | ||
| 71506-60550 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71506-60540 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71552-60650 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71552-60650 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71552-60750 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-60F20C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F20E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50C6 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60C5 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47030C4 |
VJA300..Z W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050C5 |
VJA300..Z W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050E0 |
GRJ300,VJA300 W(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71931-47030C4 |
GRJ300,VJA300..A,G,V W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030E0 |
GRJ300,VJA300 W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930-47050C5 |
GRJ300,VJA300..A,G,V W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47030C4 |
VJA300..Z W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050C5 |
VJA300..Z W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050E0 |
GRJ300,VJA300 W(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71931-47030C4 |
GRJ300,VJA300..A,G,V W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030E0 |
GRJ300,VJA300 W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930-47050C5 |
GRJ300,VJA300..A,G,V W(LOCK),BLACK,TRIM2# |
1 | ||

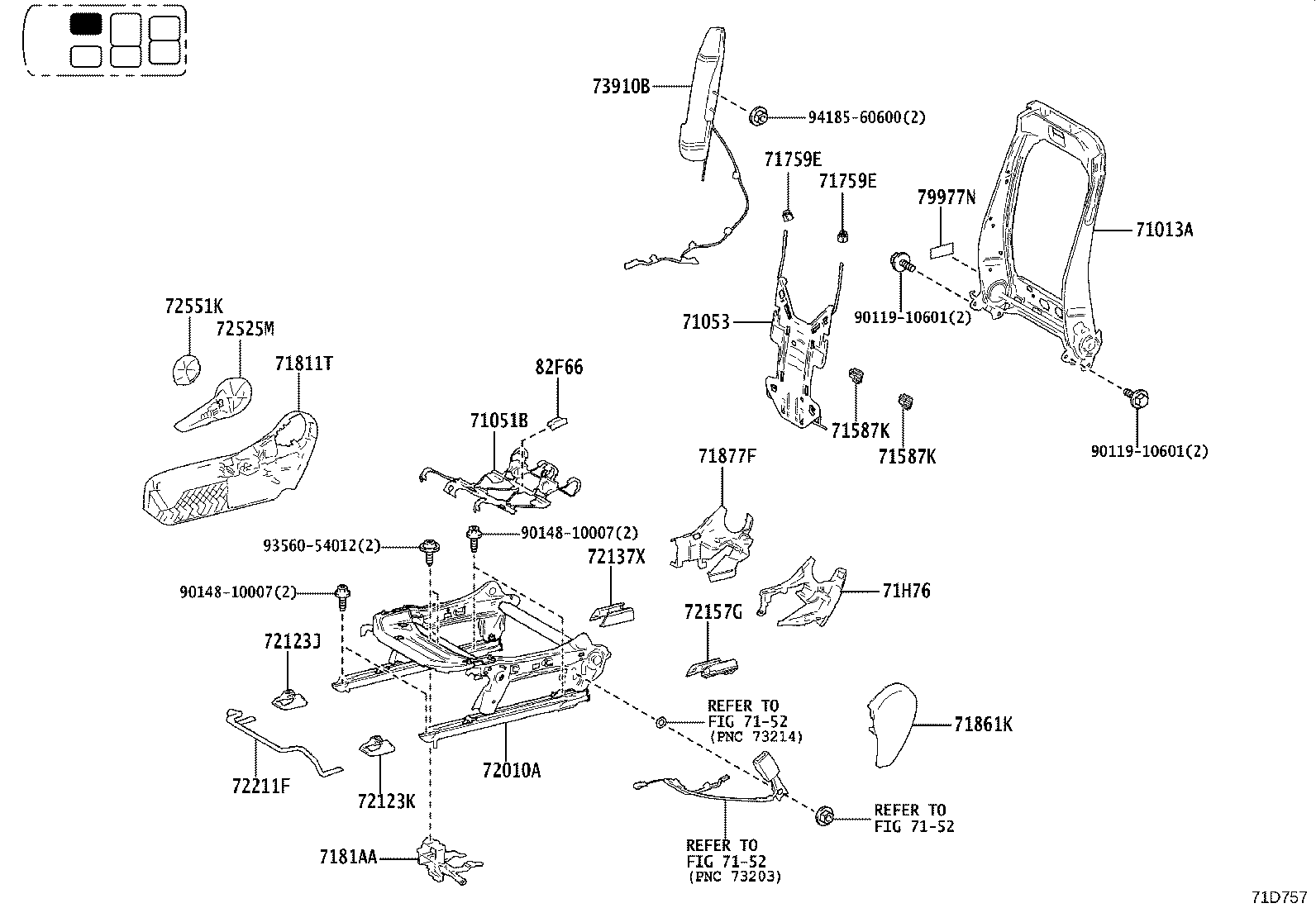

ILLUST NO. 1 OF 2(2104- )LHD
RH SEAT(MANUAL 4 WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60720 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71013-60720 |
VJA300..LHD..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71013-60720 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71013-60720 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71013-60740 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71013-60740 |
VJA300..LHD..Z;VJA300..RHD..V |
1 | ||
| 71013-60740 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-60A10 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
GRJ300,VJA300 |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72760-30200 |
VJA300..LHD..Z |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-47010 |
GRJ300,VJA300 |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-47010 |
GRJ300,VJA300 |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-50040 |
GRJ300,VJA300 |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-50040 |
GRJ300,VJA300 |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26490E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26490E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26490C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71811-26490C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
VJA300..LHD..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71811-26520C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26520E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520E0 |
GRJ300,VJA300..LHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520C0 |
GRJ300,VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26540C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71811-26520E0 |
GRJ300,VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26540E1 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181AA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-42010 |
VJA300..Z;VJA300..RHD..V |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 7181A-47010 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-60190C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-60190E0 |
GRJ300,VJA300..LHD..(A,G,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
VJA300..Z;VJA300..RHD..(A,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-60330C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71875-42070E1 |
GRJ300,VJA300..LHD..(A,G,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
VJA300..Z;VJA300..RHD..(A,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42070C1 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-42100C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
VJA300..Z;VJA300..RHD..(A,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60380C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60380E0 |
GRJ300,VJA300..LHD..(A,G,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72010A - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-60640 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72010-60640 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72010-60620 |
GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 72010-60640 |
VJA300..LHD..Z |
1 | ||
| 72010-60660 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-60660 |
VJA300..LHD..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72010-60660 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72010-60660 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72123J - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10100 |
GRJ300,VJA300 |
1 | ||
| 72123K - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-10100 |
GRJ300,VJA300 |
1 | ||
| 72137X - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
GRJ300,VJA300 |
1 | ||
| 72157G - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
GRJ300,VJA300 |
1 | ||
| 72211F - HANDLE, SEAT TRACK ADJUSTING, RH | ||||
| 72211-42020 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26170C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 72525-26170E1 |
GRJ300,VJA300..LHD..(A,G,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72551K - COVER, RECLINING HINGE, RH | ||||
| 72551-47030C1 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 72551-47030E0 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-60040 |
GRJ300,VJA300..V,Z |
1 | ||
| 73910-60040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73910-60040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73910-60040 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73910-60040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73910-60040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-12090 |
GRJ300,VJA300..LHD..V FOR RH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR RH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR RH SEAT |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V FOR LH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR LH SEAT |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR LH SEAT |
1 | ||
| 79977-76010 |
VJA300..Z |
2 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
2 | ||
| 82F66 - HOLDER, CONNECTOR | ||||
| 82666-47630 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(2104- )LHD
RH SEAT(MANUAL 4 WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-60P50C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-60P50C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71071-60P50E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R50C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71071-60P50C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-60R30E0 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R50C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71071-60R50C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71071-60R50E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R50E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R50E0 |
GRJ300,VJA300..LHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60P50E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R70E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R70C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71071-60R70E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60P50E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R70E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R70C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-60R70C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-60R90C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71071-60S00C0 |
VJA300..Z BLACK,TRIM2# |
1 | ||
| 71071-60R80E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R90E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEIUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-60S00D1 |
VJA300..Z DK.ROSE,TRIM3# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71071-60S00E1 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R80C1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60U30C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-60N50C4 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 71073-60N50E3 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N30E3 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N80E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71073-60N50C4 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60N40E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N50E3 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00E3 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71073-60P00D6 |
VJA300..Z DK.ROSE,TRIM3# |
1 | ||
| 71073-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71073-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N40E1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N80C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71073-60P10E3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q50C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71073-60P10C3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71073-60P00C3 |
VJA300..Z BLACK,TRIM2# |
1 | ||
| 71073-60Q60C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-60Q50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10D6 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,DK.ROSE,TRIM3# |
1 | ||
| 71073-60Q60E3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q60E3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q60C3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60Q60E3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71073-60Q80E1 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q60E3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q60C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-60Q80C3 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71073-60Q60C3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60R00E3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60R00C3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-60R00E3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60T10C0 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60R00C3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-60T10C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60T00C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71501-60820 |
GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 71501-60840 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-60830 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71501-60840 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71501-60830 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71501-60840 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-60860 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71501-60830 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71501-60A80 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71501-60B00 |
VJA300..LHD..Z |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71505-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71505-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71505-60570 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71505-60580 |
VJA300..Z |
1 | ||
| 71551-60740 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71505-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71505-60470 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71551-60740 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71551-60740 |
GRJ300,VJA300..V |
1 | ||
| 71505-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71505-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71505-60590 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71551-60730 |
GRJ300,VJA300..A,G |
1 | ||
| 71505-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71551-60A10 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-60740 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71551-60750 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71551-60740 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71551-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F20C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F20E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50C6 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60C5 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-47050C5 |
GRJ300,VJA300..A,G,V W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050C5 |
VJA300..Z W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050E0 |
GRJ300,VJA300 W(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71931-47030C4 |
GRJ300,VJA300..A,G,V W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030C4 |
VJA300..Z W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71931-47030E0 |
GRJ300,VJA300 W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-47050C5 |
GRJ300,VJA300..A,G,V W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050C5 |
VJA300..Z W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050E0 |
GRJ300,VJA300 W(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71931-47030C4 |
GRJ300,VJA300..A,G,V W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030C4 |
VJA300..Z W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71931-47030E0 |
GRJ300,VJA300 W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
ILLUST NO. 1 OF 2(2104- )LHD
LH SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60650 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71014-60650 |
VJA300..LHD..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71014-60650 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71014-60650 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71014-60660 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..V |
1 | ||
| 71014-60660 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-60670 |
VJA300..LHD..Z |
1 | ||
| 71014-60670 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 71014-60670 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 71014-60670 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71014-60840 |
VJA300..RHD..(A,V);GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71014-60670 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71014-60660 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71051C - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
GRJ300,VJA300 |
1 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-47010 |
GRJ300,VJA300 |
2 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-47010 |
GRJ300,VJA300 |
2 | ||
| 71705G - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-60180C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71706-60180E1 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71706-60180E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71706-60180E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71706-60180E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71706-60180C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71706-60180C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71706-60180C2 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
1 | ||
| 71739A - BEZEL, FRONT SEAT BACK | ||||
| 71739-60060 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 71739-60060 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 71739-60060 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 71739-60060 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-50040 |
GRJ300,VJA300 |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-50040 |
GRJ300,VJA300 |
2 | ||
| 71776B - COVER, FRONT SEAT BACK BOARD, NO.1 | ||||
| 71776-60200E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71776-60200C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71776-60200C0 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
2 | ||
| 71776-60200C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71776-60200C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71776-60200E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71776-60200E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71776-60200E0 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71777B - COVER, FRONT SEAT BACK BOARD, NO.2 | ||||
| 71777-60150C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71777-60150E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71777-60150C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71777-60150C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71777-60150E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71777-60150E0 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71777-60150C0 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
2 | ||
| 71777-60150E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-26490C0 |
GRJ300,VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-26510C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71812-26490E0 |
GRJ300,VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 71812-26510E1 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71812-60400C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-60400C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-60400E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-60400E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-42210C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71812-60400E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..LHD..(V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-42210E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-60400E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71812-60400C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),BLACK,TRIM2# |
1 | ||
| 71812-60400C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 7181BA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-42010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181B-42010 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 7181B-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181B-47010 |
VJA300..RHD..(A,V);GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090C1 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71862-47090C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71862-47090E0 |
VJA300..RHD..Z;GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867X - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-42040C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71868-42040C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71868-42040C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71868-42040C0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71868-42040C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71868-42040C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71868-42040C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71868-42040C0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71868-42040E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868-42040C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71868-42040C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),BLACK,TRIM2# |
1 | ||
| 71868-42040E0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868-42040E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868-42040E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868-42040E0 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868-42040E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868-42040E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868-42040E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71868-42040E0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60160 |
VJA300..Z;VJA300..RHD..V RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT,NO.1 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT,NO.2 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.1 |
1 | ||
| 71873-60220 |
VJA300..Z;VJA300..RHD..V RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.2 |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874-42050 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT, NO.2 |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-42060 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 71873-42060 |
VJA300..Z;VJA300..RHD..V RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT,NO.1 |
1 | ||
| 71874-60130 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71874-60180 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT,NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-42060 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 71873-42060 |
VJA300..Z;VJA300..RHD..V RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT,NO.1 |
1 | ||
| 71874-60130 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71874-60180 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT,NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71876-42090C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71876-42090C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71876-42090E1 |
VJA300..RHD..Z;GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71876-60330C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71876-60330C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71876-60330E0 |
VJA300..RHD..Z;GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72020A - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-60670 |
GRJ300,VJA300..LHD..V |
1 | ||
| 72020-60650 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72020-60670 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 72020-60670 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72020-60700 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72020-60670 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-60700 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72020-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72020-60700 |
VJA300..LHD..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72020-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72020-60690 |
VJA300..LHD..Z |
1 | ||
| 72020-60700 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72020-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 72020-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72123L - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-10100 |
GRJ300,VJA300 |
1 | ||
| 72123M - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-10100 |
GRJ300,VJA300 |
1 | ||
| 72137Y - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
GRJ300,VJA300 |
1 | ||
| 72158F - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
GRJ300,VJA300 |
1 | ||
| 72554L - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-60020 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72554-60020 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 72554-60020 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72554-60020 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72554-60020 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72714A - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-42010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72714-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72714-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72714-42010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72714-42010 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 72714-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 72714-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 72714-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72714-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72760G - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72750-33140 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72750-33140 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72750-33140 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72750-33140 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 72750-33140 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72750-33140 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 72750-33140 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 72750-33150 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72750-33150 |
VJA300..LHD..Z |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72750-33150 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-60040 |
GRJ300,VJA300..V,Z |
1 | ||
| 73920-60040 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73920-60040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73920-60040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73920-60040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73920-60040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 79122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 79122-60010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 79122-60010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 79122-60010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 79122-60010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 79122-60010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 79122-60010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 79122-60010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 79122-60010 |
VJA300..Z |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-12090 |
GRJ300,VJA300..LHD..V FOR RH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR RH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR RH SEAT |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V FOR LH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR LH SEAT |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR LH SEAT |
1 | ||
| 79977-76010 |
VJA300..Z |
2 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
2 | ||
| 82667C - HOLDER, CONNECTOR | ||||
| 82666-28B50 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 82666-28B50 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82666-28B50 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82666-28B50 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82666-28B50 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 82666-28B50 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 82666-28B50 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 82666-28B50 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82666-28B50 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 82712L - SUPPORT, WIRING HARNESS | ||||
| 82712-60580 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 82712-60580 |
VJA300..Z RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 82712-60590 |
VJA300..Z LH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),LH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82712-60590 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..V |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT |
1 | ||
| 85860H - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85802-42020 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85802-42020 |
VJA300..Z |
1 | ||
| 85802-42020 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85802-42020 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 85802-42020 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85802-42020 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85802-42020 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85802-42020 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85802-42020 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 85802-42020 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 85802-42020 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85867G - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-30040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85867-30040 |
VJA300..LHD..Z |
1 | ||
| 85867-30040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 85867-30040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85867-30040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85867-30040 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85867-30040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 85867-30040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85867-30040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 85867-30040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85867-30040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501H - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-33010 |
VJA300..Z |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90189-05003 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 90468-04157 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
| 8606 | ||||
ILLUST NO. 2 OF 2(2104- )LHD
LH SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-60Q00E0 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q20C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71072-60Q30C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-60Q20C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71072-60Q20E0 |
GRJ300,VJA300..LHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q20E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q30C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71072-60Q30E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q20C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71072-60Q20E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q30E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q30E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q30C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-60Q40C1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60Q50E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q40E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71072-60Q50C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60Q60C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71072-60R40C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60R40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60D1 |
VJA300..Z DK.ROSE,TRIM3# |
1 | ||
| 71072-60R40C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71072-60S60C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-60Q60C0 |
VJA300..Z BLACK,TRIM2# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60E1 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60R40E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q60E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60R40E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60S80C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71072-60Q70E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60R40E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60Q70E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-60S60C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-60N40E3 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60F90E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60N50E3 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60N50C4 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-60N50C4 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 71074-60N50E3 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P00C3 |
VJA300..Z BLACK,TRIM2# |
1 | ||
| 71074-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71074-60P00E3 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71074-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71074-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71074-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-60N80E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10C3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71074-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P20E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10D6 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,DK.ROSE,TRIM3# |
1 | ||
| 71074-60F90C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10E3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P00D6 |
VJA300..Z DK.ROSE,TRIM3# |
1 | ||
| 71074-60P20E1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00C3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00E3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60N80C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71074-60Q00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71074-60Q20E1 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q20C3 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71074-60Q00E3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-60Q40E3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q40E3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00E3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q00E3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-60Q40C3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-60S40C0 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-60Q00C3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-60S30C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 71074-60Q40C3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-60S40C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-60750 |
VJA300..LHD..Z |
1 | ||
| 71502-60730 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71502-60690 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71512-60480 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..LHD..V |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71502-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71512-60460 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71512-60480 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71512-60500 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71512-60500 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-60500 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71506-60540 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-60630 |
GRJ300,VJA300..A,G |
1 | ||
| 71506-60530 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71506-60550 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71506-60540 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71506-60430 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..V |
1 | ||
| 71506-60550 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71506-60550 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71506-60540 |
VJA300..Z |
1 | ||
| 71506-60550 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71506-60540 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71552-60650 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-60640 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71552-60650 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71552-60750 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-60F20C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F20E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50C6 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60C5 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47030C4 |
VJA300..Z W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050C5 |
VJA300..Z W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050E0 |
GRJ300,VJA300 W(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71931-47030C4 |
GRJ300,VJA300..A,G,V W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030E0 |
GRJ300,VJA300 W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930-47050C5 |
GRJ300,VJA300..A,G,V W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47030C4 |
VJA300..Z W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050C5 |
VJA300..Z W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050E0 |
GRJ300,VJA300 W(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71931-47030C4 |
GRJ300,VJA300..A,G,V W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030E0 |
GRJ300,VJA300 W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930-47050C5 |
GRJ300,VJA300..A,G,V W(LOCK),BLACK,TRIM2# |
1 | ||
ILLUST NO. 1 OF 2(2104- )LHD
RH SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60720 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71013-60720 |
VJA300..LHD..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71013-60720 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71013-60720 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71013-60740 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71013-60740 |
VJA300..LHD..Z;VJA300..RHD..V |
1 | ||
| 71013-60740 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-60A10 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71013-60740 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
GRJ300,VJA300 |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72760-30200 |
VJA300..LHD..Z |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72760-30200 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-47010 |
GRJ300,VJA300 |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-47010 |
GRJ300,VJA300 |
2 | ||
| 71705F - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-60390C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71705-60390E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71705-60390C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71705-60390C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71705-60390E1 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71705-60390E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71705-60390E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71705-60390C2 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
1 | ||
| 71739A - BEZEL, FRONT SEAT BACK | ||||
| 71739-60060 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 71739-60060 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 71739-60060 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 71739-60060 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-50040 |
GRJ300,VJA300 |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-50040 |
GRJ300,VJA300 |
2 | ||
| 71776B - COVER, FRONT SEAT BACK BOARD, NO.1 | ||||
| 71776-60200E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71776-60200C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71776-60200C0 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
2 | ||
| 71776-60200C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71776-60200C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71776-60200E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71776-60200E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71776-60200E0 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71777B - COVER, FRONT SEAT BACK BOARD, NO.2 | ||||
| 71777-60150C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71777-60150E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71777-60150C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71777-60150C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
2 | ||
| 71777-60150E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71777-60150E0 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71777-60150C0 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
2 | ||
| 71777-60150E0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26490E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26490E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26490C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71811-26490C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
VJA300..LHD..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71811-26520C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26520E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26500E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520E0 |
GRJ300,VJA300..LHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520C0 |
GRJ300,VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71811-26540C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71811-26520E0 |
GRJ300,VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26540E1 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-26520E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181AA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-42010 |
VJA300..Z;VJA300..RHD..V |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 7181A-47010 |
VJA300..A..GEN;GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 7181A-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-60190C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-60190E0 |
GRJ300,VJA300..LHD..(A,G,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47070C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71861-47070E0 |
VJA300..Z;VJA300..RHD..(A,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-42040C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
VJA300..Z;VJA300..RHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-42040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60160 |
VJA300..Z;VJA300..RHD..V RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT,NO.1 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT,NO.2 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.1 |
1 | ||
| 71873-60220 |
VJA300..Z;VJA300..RHD..V RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.2 |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874-42050 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT, NO.2 |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60160 |
VJA300..Z;VJA300..RHD..V RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.1 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT,NO.1 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT,NO.2 |
1 | ||
| 71873-60160 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.1 |
1 | ||
| 71873-60220 |
VJA300..Z;VJA300..RHD..V RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT, NO.2 |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT, NO.2 |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874-42050 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71873-60220 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT, NO.2 |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 71874-42050 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-42060 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 71873-42060 |
VJA300..Z;VJA300..RHD..V RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT,NO.1 |
1 | ||
| 71874-60130 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71873-42060 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT, NO.1 |
1 | ||
| 71874-60130 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.1 |
1 | ||
| 71874-60180 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT,NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT, NO.2 |
1 | ||
| 71874-60180 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT, NO.2 |
1 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-60330C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71875-42070E1 |
GRJ300,VJA300..LHD..(A,G,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
VJA300..Z;VJA300..RHD..(A,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42070C1 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60330E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-42100C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
VJA300..Z;VJA300..RHD..(A,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60380C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-42100E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-60380E0 |
GRJ300,VJA300..LHD..(A,G,V) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72010A - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-60640 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72010-60640 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72010-60620 |
GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 72010-60640 |
VJA300..LHD..Z |
1 | ||
| 72010-60660 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72010-60640 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-60660 |
VJA300..LHD..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72010-60660 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72010-60660 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72123J - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10100 |
GRJ300,VJA300 |
1 | ||
| 72123K - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-10100 |
GRJ300,VJA300 |
1 | ||
| 72137X - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
GRJ300,VJA300 |
1 | ||
| 72157G - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
GRJ300,VJA300 |
1 | ||
| 72553L - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-52040C0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 72553-52040E0 |
VJA300..Z;VJA300..RHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040C0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72553-52040E0 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72713A - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH | ||||
| 72713-42010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72713-42010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 72713-42010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72713-42010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72713-42010 |
VJA300..Z;VJA300..RHD..V |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 72713-42010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-60040 |
GRJ300,VJA300..V,Z |
1 | ||
| 73910-60040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73910-60040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73910-60040 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73910-60040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 73910-60040 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 79121A - BRACKET, FRONT SEAT CUSHION, RH | ||||
| 79121-60090 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 79121-60090 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 79121-60090 |
VJA300..Z |
1 | ||
| 79121-60090 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 79121-60090 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 79121-60090 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 79121-60090 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 79121-60090 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-12090 |
GRJ300,VJA300..LHD..V FOR RH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR RH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR RH SEAT |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V FOR LH SEAT |
1 | ||
| 79977-12090 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR LH SEAT |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),FOR LH SEAT |
1 | ||
| 79977-76010 |
VJA300..Z |
2 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
2 | ||
| 79977-76010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
2 | ||
| 82712L - SUPPORT, WIRING HARNESS | ||||
| 82712-60580 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 82712-60580 |
VJA300..Z RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH SEAT |
1 | ||
| 82712-60590 |
VJA300..Z LH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,RH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),LH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 82712-60580 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),RH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82712-60590 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..V |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),LH SEAT |
1 | ||
| 82712-60590 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),LH SEAT |
1 | ||
| 85860G - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85801-42040 |
VJA300..Z |
1 | ||
| 85801-42040 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85801-42040 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85801-42040 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 85801-42040 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85801-42040 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 85801-42040 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85801-42040 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 85801-42040 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 85801-42040 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85801-42040 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501G - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-33010 |
VJA300..Z |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 87501-33010 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90189-05003 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 90468-04157 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
| 8606 | ||||
ILLUST NO. 2 OF 2(2104- )LHD
RH SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-60P50C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-60P50C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71071-60P50E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R50C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71071-60P50C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-60R30E0 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R50C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71071-60R50C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 71071-60R50E0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R50E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R50E0 |
GRJ300,VJA300..LHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60P50E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R70E1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R70C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71071-60R70E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60P50E1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R70E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R70C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-60R70C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-60R90C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71071-60S00C0 |
VJA300..Z BLACK,TRIM2# |
1 | ||
| 71071-60R80E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R90E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEIUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-60S00D1 |
VJA300..Z DK.ROSE,TRIM3# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71071-60S00E1 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60R80C1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60S00E1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-60U30C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 71071-60S00C0 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-60Q60C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-60N50C4 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 71073-60N50E3 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N30E3 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N80E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71073-60N50C4 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60N40E1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N50E3 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00E3 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71073-60P00D6 |
VJA300..Z DK.ROSE,TRIM3# |
1 | ||
| 71073-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71073-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N40E1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60N80C2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71073-60P10E3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q50C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-60P10C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71073-60P10C3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71073-60P00C3 |
VJA300..Z BLACK,TRIM2# |
1 | ||
| 71073-60Q50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P10D6 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,DK.ROSE,TRIM3# |
1 | ||
| 71073-60Q60E3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q60E3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q60C3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60Q60E3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60P00C3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71073-60Q80E1 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q60E3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60Q60C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-60Q80C3 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71073-60Q60C3 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60R00E3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60R00C3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-60R00E3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-60T10C0 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60R00C3 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-60T10C0 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-60T00C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71501-60820 |
GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 71501-60840 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-60830 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71501-60840 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71501-60830 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71501-60840 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-60860 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71501-60830 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71501-60A80 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71501-60B00 |
VJA300..LHD..Z |
1 | ||
| 71501-60B00 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71505-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71505-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71505-60570 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71505-60580 |
VJA300..Z |
1 | ||
| 71551-60740 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71505-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71505-60470 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71551-60740 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71551-60740 |
GRJ300,VJA300..V |
1 | ||
| 71505-60580 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 71505-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71505-60590 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71551-60730 |
GRJ300,VJA300..A,G |
1 | ||
| 71505-60590 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 71551-60A10 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-60740 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71551-60750 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71551-60740 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 71551-60750 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F20C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 71910-60F30C0 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F20E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71910-60F30E0 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER)&SEAT COVER MATERIAL-FABRIC(SUEDE LIKE)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..7S..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F40C1 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50C6 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#,3# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..A FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F40E4 |
GRJ300,VJA300..A..GCC FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
VJA300..Z REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50C6 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71910-60F60C5 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F50E3 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60C5 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71910-60F60E2 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-47050C5 |
GRJ300,VJA300..A,G,V W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050C5 |
VJA300..Z W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050E0 |
GRJ300,VJA300 W(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71931-47030C4 |
GRJ300,VJA300..A,G,V W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030C4 |
VJA300..Z W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71931-47030E0 |
GRJ300,VJA300 W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-47050C5 |
GRJ300,VJA300..A,G,V W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050C5 |
VJA300..Z W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47050E0 |
GRJ300,VJA300 W(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71931-47030C4 |
GRJ300,VJA300..A,G,V W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030C4 |
VJA300..Z W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71931-47030E0 |
GRJ300,VJA300 W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 82F66 - HOLDER, CONNECTOR | ||||
| 82666-47630 |
GRJ300,VJA300 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
