VJA300L-GNUGZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

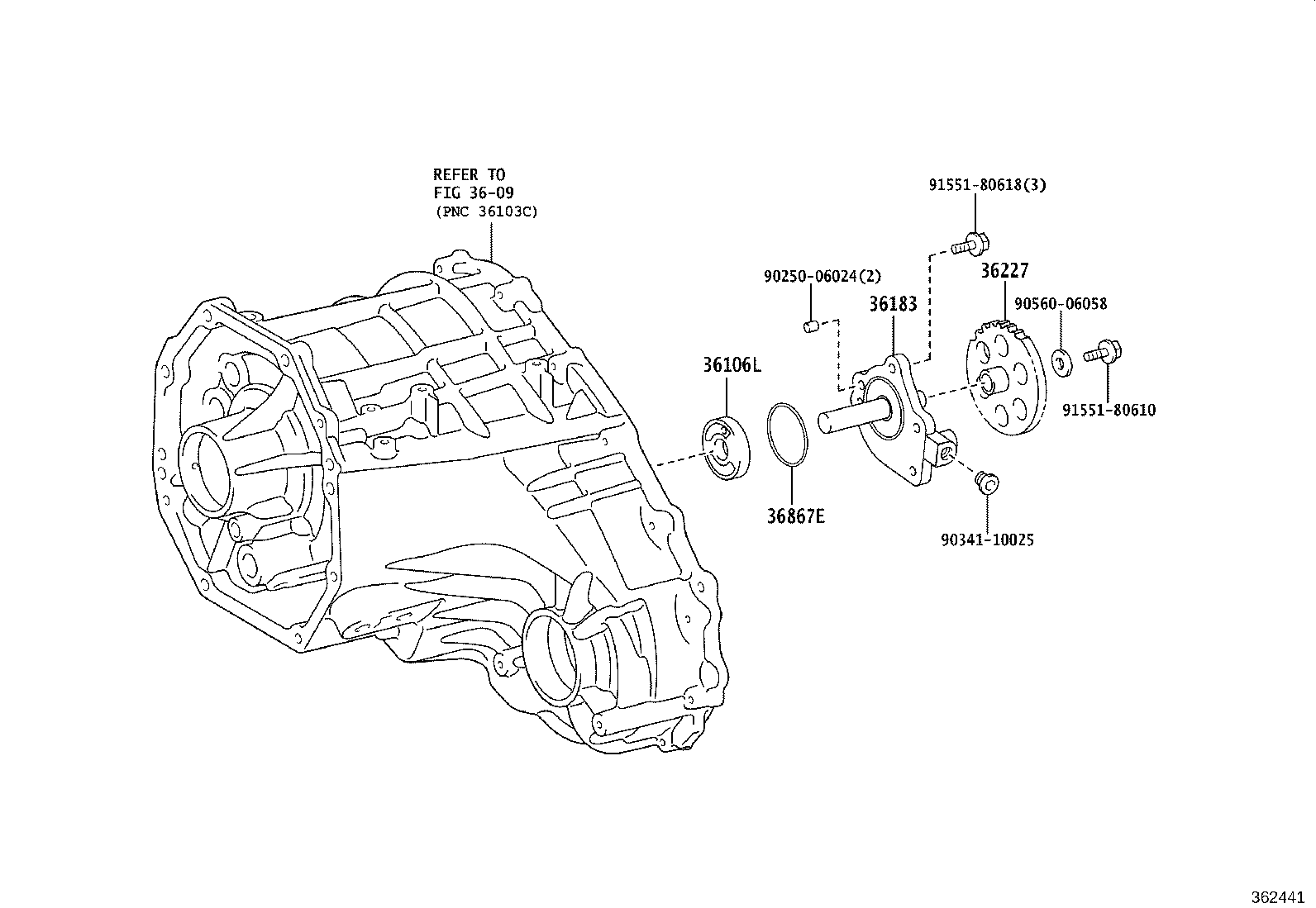

Click highlighted areas on diagram

diagram 3609 36106L 36183 36227 36867E 9025006024 9034110025 9056006058 9155180610 9155180618
Part # Description Qty Price
36106L - ROTOR SET, TRANSFER OIL PUMP
36106-60010

GRJ300,VJA300

 1
36183 - PLATE, TRANSFER OIL PUMP
36183-60020

GRJ300,VJA300

 1
36227 - GEAR, TRANSFER OIL PUMP
36227-60010

GRJ300,VJA300

 1
36867E - SEAL, PACKING
36867-60100

GRJ300,VJA300

 1
Common parts
90250-06024
90341-10025
90560-06058
91551-80610
91551-80618
Linked diagrams
3609
