VJA300L-GNUGZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999

Engine V35AFTS

Transmission 10FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(2104- )V35AFTS

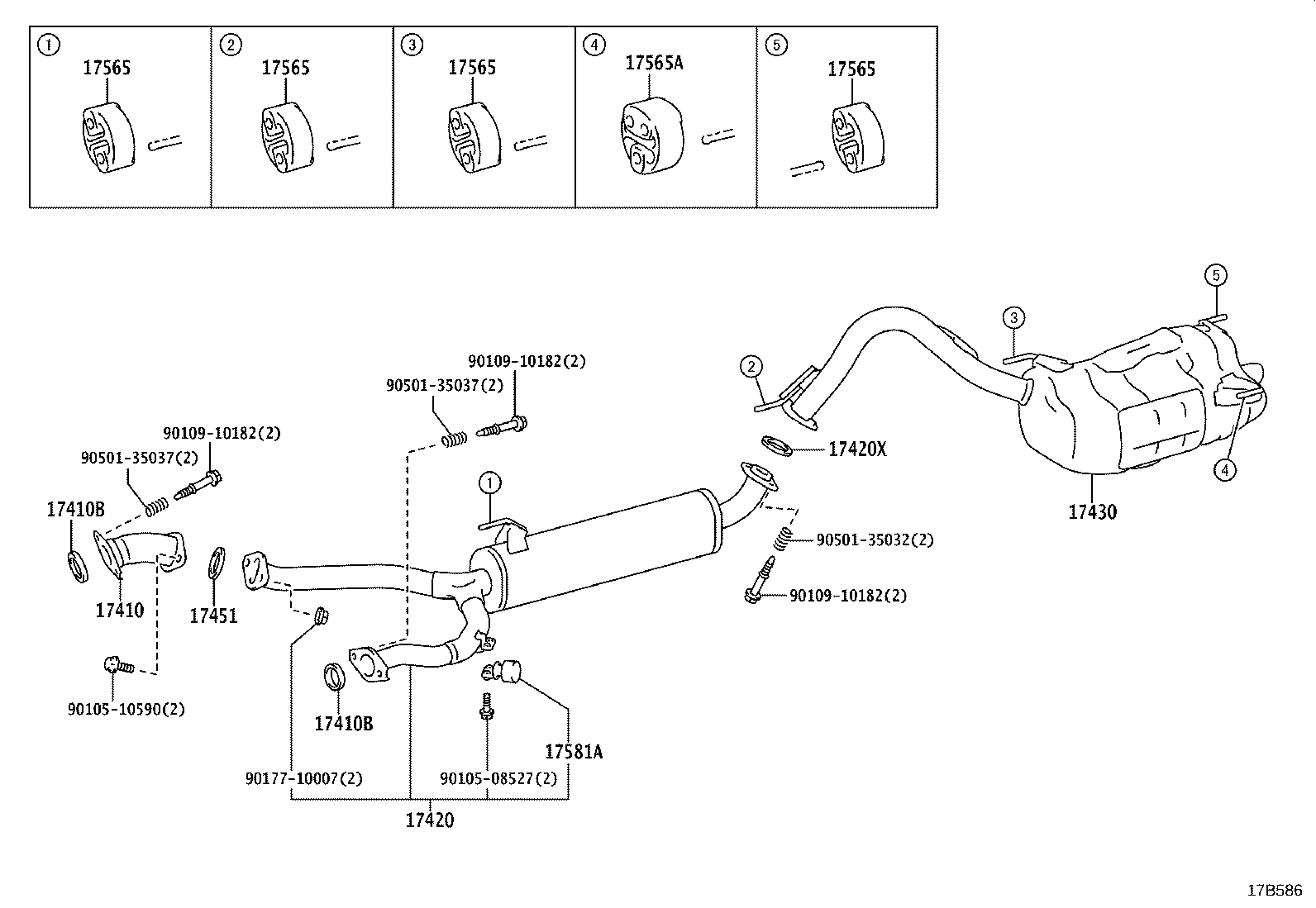

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70400	V35AFTS..VJA300..GCC,GEN	04/2021 - 12/2999	1
17410B - GASKET, EXHAUST PIPE
17451-28040	V35AFTS..VJA300	04/2021 - 12/2999	2
17410B - GASKET, EXHAUST PIPE
17451-28040	V35AFTS..VJA300	04/2021 - 12/2999	2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-70460	V35AFTS..VJA300..GCC,GEN	04/2021 - 12/2999	1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-52050	V35AFTS,1GRFE..GRJ300,VJA300	04/2021 - 12/2999	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70840	V35AFTS..VJA300..GCC,GEN	04/2021 - 12/2999	1
17451 - GASKET, EXHAUST PIPE
90917-06070	V35AFTS,1GRFE..GRJ300,VJA300	04/2021 - 12/2999	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010	V35AFTS,1GRFE..GRJ300,VJA300	04/2021 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010	V35AFTS,1GRFE..GRJ300,VJA300	04/2021 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010	V35AFTS,1GRFE..GRJ300,VJA300	04/2021 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010	V35AFTS,1GRFE..GRJ300,VJA300	04/2021 - 12/2999	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050	V35AFTS,1GRFE..GRJ300,VJA300	04/2021 - 12/2999	1
17581A - DAMPER, EXHAUST PIPE
17581-31050	V35AFTS..VJA300	04/2021 - 12/2999	1
Common parts
90105-08527
90105-10590
90109-10182
90177-10007
90501-35032
90501-35037
