VJA300L-GNUAZV (2021)
Toyota Land Cruiser

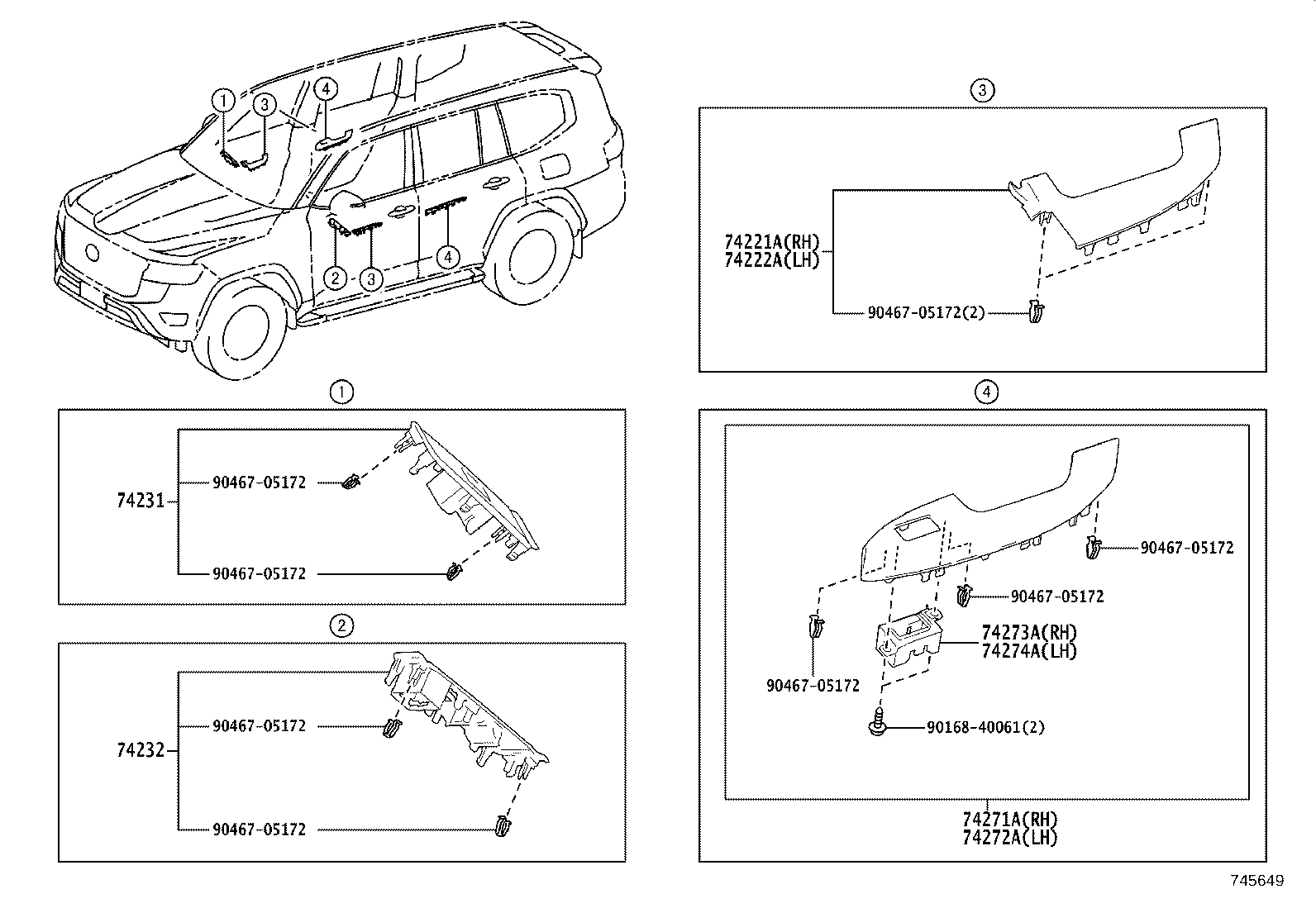

ILLUST NO. 1 OF 2(2104- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221A - COVER, FRONT DOOR ARMREST, RH | ||||
| 67711-60440 |
GRJ300,VJA300..A,G |
1 | ||
| 67711-60450 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 67711-60450 |
GRJ300,VJA300..V |
1 | ||
| 67711-60450 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 67711-60470 |
VJA300..Z |
1 | ||
| 67711-60460 |
GRJ300,VJA300..V,Z FRONT CONSOLE BOX-WOOD |
1 | ||
| 67711-60450 |
VJA300..A..GCC SAUDI ARABIA SPEC&UPGRADE PACKAGE |
1 | ||
| 74222A - COVER, FRONT DOOR ARMREST, LH | ||||
| 67712-60480 |
GRJ300,VJA300..A,G |
1 | ||
| 67712-60490 |
VJA300..A..GCC SAUDI ARABIA SPEC&UPGRADE PACKAGE |
1 | ||
| 67712-60490 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 67712-60510 |
VJA300..Z |
1 | ||
| 67712-60490 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 67712-60490 |
GRJ300,VJA300..V |
1 | ||
| 67712-60500 |
GRJ300,VJA300..V,Z FRONT CONSOLE BOX-WOOD |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-60880 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 74231-60A50 |
GRJ300..G;VJA300..A..GCC SAUDI ARABIA SPEC |
1 | ||
| 74231-60A60 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 74231-60A60 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 74231-60A70 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 74231-60A70 |
VJA300..A..GCC SAUDI ARABIA SPEC&UPGRADE PACKAGE |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60880 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 74232-60840 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 74232-60880 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 74232-60880 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 74232-60880 |
VJA300..A..GCC SAUDI ARABIA SPEC&UPGRADE PACKAGE |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-60410 |
GRJ300,VJA300..A,G |
1 | ||
| 74271-60440 |
VJA300..A..GCC SAUDI ARABIA SPEC&UPGRADE PACKAGE |
1 | ||
| 74271-60440 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 74271-60440 |
GRJ300,VJA300..V |
1 | ||
| 74271-60440 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 74271-60460 |
VJA300..Z |
1 | ||
| 74271-60450 |
GRJ300,VJA300..V,Z FRONT CONSOLE BOX-WOOD |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-60410 |
GRJ300,VJA300..A,G |
1 | ||
| 74272-60440 |
GRJ300,VJA300..V |
1 | ||
| 74272-60440 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 74272-60440 |
VJA300..A..GCC SAUDI ARABIA SPEC&UPGRADE PACKAGE |
1 | ||
| 74272-60460 |
VJA300..Z |
1 | ||
| 74272-60450 |
GRJ300,VJA300..V,Z FRONT CONSOLE BOX-WOOD |
1 | ||
| 74272-60440 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 74273A - PANEL, REAR DOOR ARMREST BASE, LOWER RH | ||||
| 74273-60050 |
GRJ300,VJA300 |
1 | ||
| 74274A - PANEL, REAR DOOR ARMREST BASE, LOWER LH | ||||
| 74274-60050 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90168-40061 | ||||
| 90467-05172 | ||||

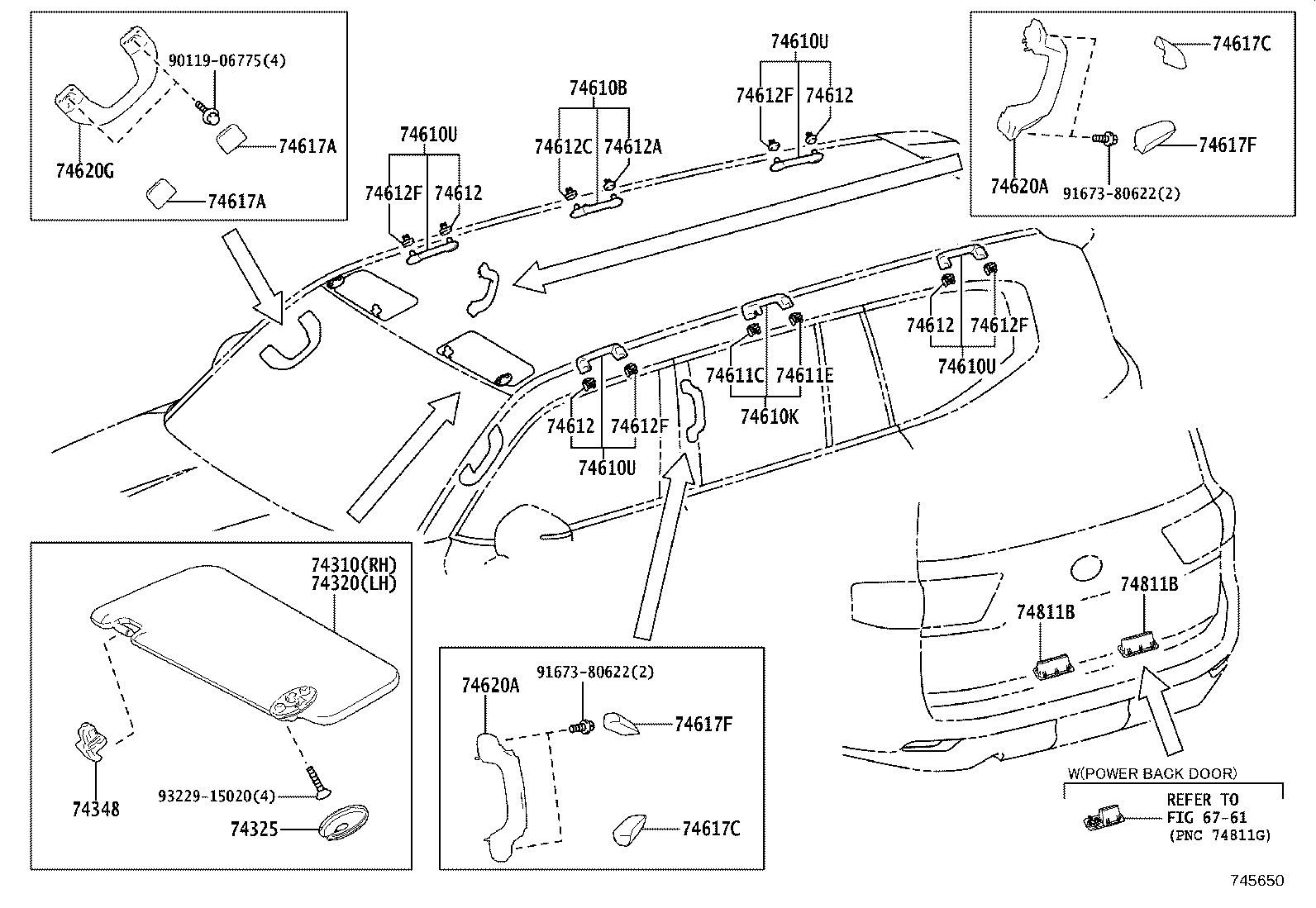

ILLUST NO. 2 OF 2(2104- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-60N50C2 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 74310-60N50E1 |
GRJ300..A,V;VJA300..A..GCC;VJA300..LHD..(G,V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74310-60N50C2 |
GRJ300..A,V;VJA300..A..GCC;VJA300..LHD..(G,V) BLACK,TRIM2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-60K20C2 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 74320-60K20E1 |
GRJ300..A,V;VJA300..A..GCC;VJA300..LHD..(G,V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74320-60K20C2 |
GRJ300..A,V;VJA300..A..GCC;VJA300..LHD..(G,V) BLACK,TRIM2# |
1 | ||
| 74325 - COVER, VISOR BRACKET | ||||
| 74317-60020C2 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74317-60020C2 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74317-60020E2 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-47010C0 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74348-47010C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74348-47010E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74610B - GRIP ASSY, ASSIST, NO.2 RH | ||||
| 74610-33190E1 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74610-33190C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 74610-33190C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 74610K - GRIP ASSY, ASSIST, NO.2 LH | ||||
| 74610-33200C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 74610-33200C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 74610-33200E1 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-33150C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74610-33150E1 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74610-33150C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-33150C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74610-33150E1 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74610-33150C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-33150C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74610-33150E1 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74610-33150C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-33150C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74610-33150E1 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74610-33150C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74611C - COVER, ASSIST GRIP, LH | ||||
| 74611-33020C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 74611-33020E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74611-33020C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 74611E - COVER, ASSIST GRIP, LH | ||||
| 74612-33030E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74612-33030C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 74612-33030C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33020C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74611-33020C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74611-33020E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33020C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74611-33020C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74611-33020E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33020C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74611-33020C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74611-33020E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33020C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74611-33020C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74611-33020E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612A - COVER, ASSIST GRIP, RH | ||||
| 74611-33020C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 74611-33020E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74611-33020C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 74612C - COVER, ASSIST GRIP, RH | ||||
| 74612-33030C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 74612-33030C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 74612-33030E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74612F - COVER, ASSIST GRIP | ||||
| 74612-33030C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74612-33030C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74612-33030E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612F - COVER, ASSIST GRIP | ||||
| 74612-33030C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74612-33030C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74612-33030E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612F - COVER, ASSIST GRIP | ||||
| 74612-33030C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74612-33030C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74612-33030E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612F - COVER, ASSIST GRIP | ||||
| 74612-33030C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74612-33030C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74612-33030E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-60070C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74617-60070E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-60070C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-60070C0 |
VJA300..Z BLACK,TRIM2#,3# |
4 | ||
| 74617-60070E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-60070C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74637-60050C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74637-60050E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74637-60050C0 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74637-60050C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74637-60050E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74637-60050C0 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74638-60050C0 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74638-60050C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74638-60050E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74638-60050C0 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74638-60050C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74638-60050E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74680-60040C0 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74680-60040C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74680-60040E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74680-60040C0 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74680-60040C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74680-60040E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74620G - GRIP ASSY, ASSIST, FRONT | ||||
| 74680-60030E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74680-60030C0 |
VJA300..Z BLACK,TRIM2#,3# |
2 | ||
| 74680-60030C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
2 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 75837-60010E0 |
VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN) NEUTRAL BEIGE,TRIM4# |
2 | ||
| 75837-60010C0 |
VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN) BLACK,TRIM2# |
2 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 75837-60010E0 |
VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN) NEUTRAL BEIGE,TRIM4# |
2 | ||
| 75837-60010C0 |
VJA300..A..EUR;GRJ300,VJA300..(A,G,V)..(GCC,GEN) BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 91673-80622 | ||||
| 93229-15020 | ||||
| Linked diagrams | ||||
| 6761 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
