VJA300L-GNUAZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

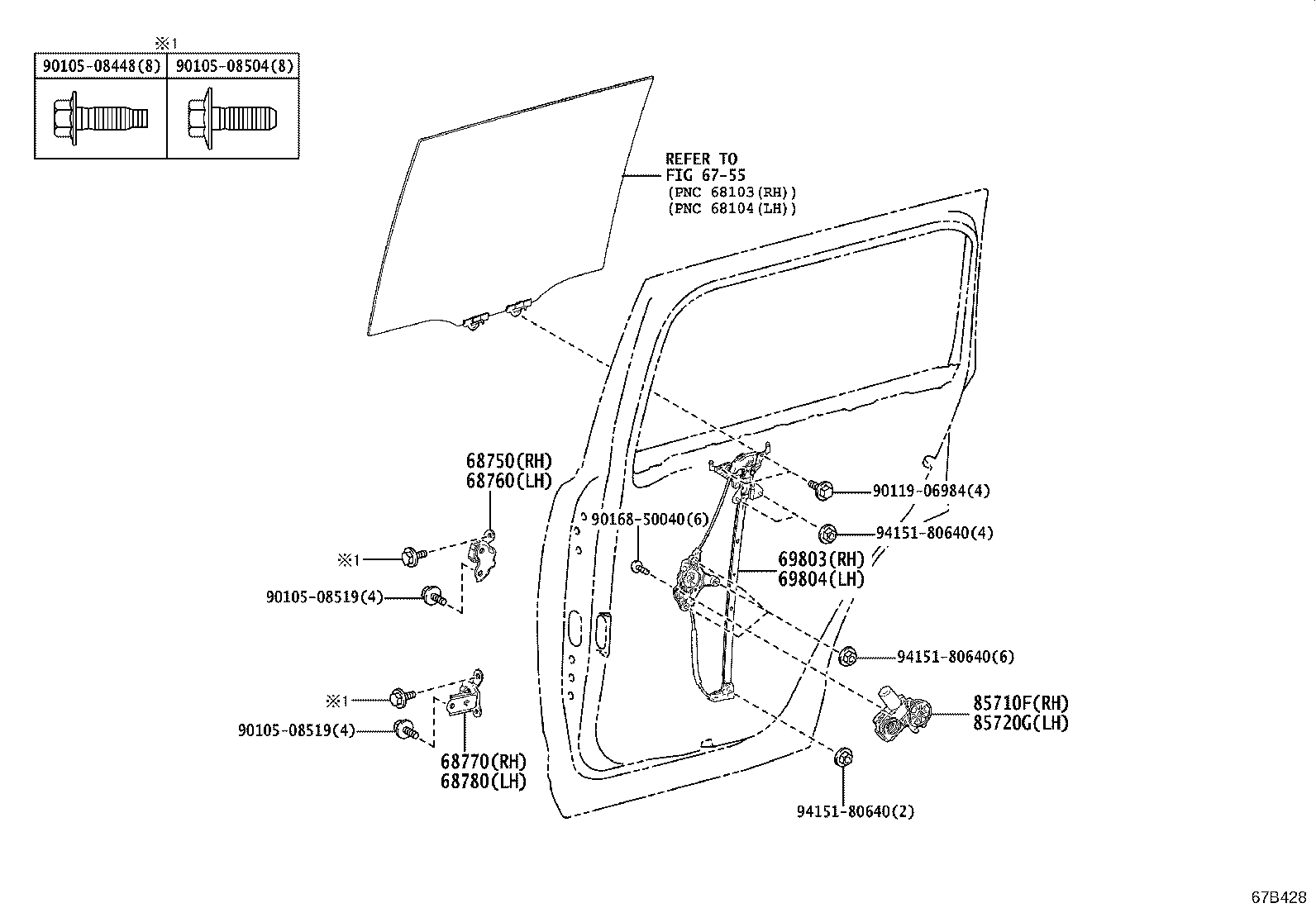

Click highlighted areas on diagram

diagram 6755 68750 68760 68770 68780 69803 69804 85710F 85720G 9010508448 9010508504 9010508519 9010508519 9011906984 9016850040 9415180640 9415180640 9415180640
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-60090

GRJ300,VJA300

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-60090

GRJ300,VJA300

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-60060

GRJ300,VJA300

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-60060

GRJ300,VJA300

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-60080

GRJ300,VJA300

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-60080

GRJ300,VJA300

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-60400

GRJ300,VJA300

 1
85720G - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-60380

GRJ300,VJA300

 1
Common parts
90105-08448
90105-08504
90105-08519
90119-06984
90168-50040
94151-80640
Linked diagrams
6755
