VJA300L-GNUAZV (2021)
Toyota Land Cruiser

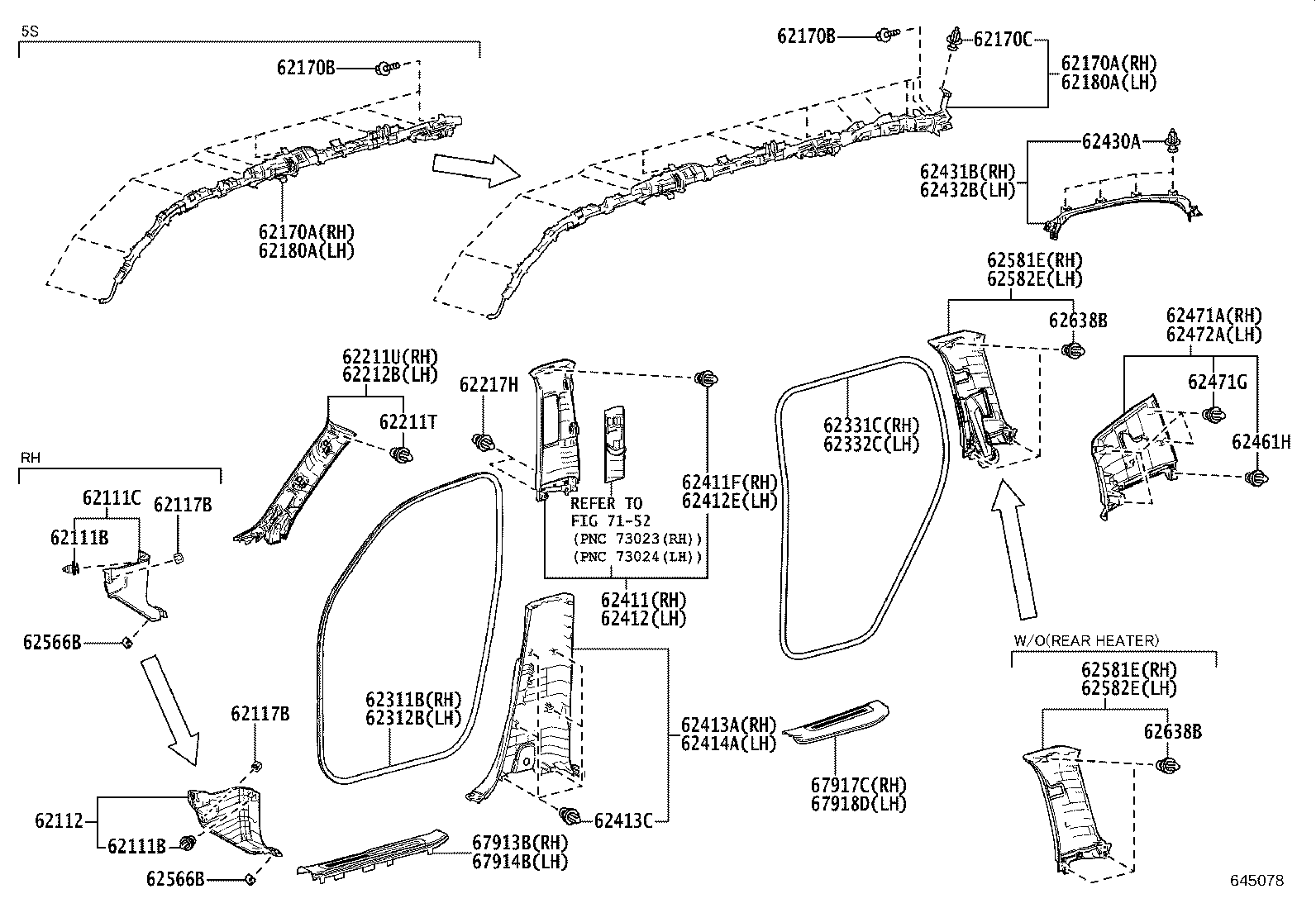

ILLUST NO. 1 OF 2(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
GRJ300,VJA300 |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
GRJ300,VJA300 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60170E0 |
GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62111-60170C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 62111-60170C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60300C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62112-60300E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62112-60300C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GRJ300,VJA300 |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GRJ300,VJA300 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-60170 |
GRJ300,VJA300..7S..(V,Z) |
1 | ||
| 62170-60170 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-60170 |
GRJ300,VJA300..7S..(V,Z) |
1 | ||
| 62170-60170 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 91673-80616 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
28 | ||
| 91673-80616 |
GRJ300,VJA300..7S..(V,Z) |
28 | ||
| 62170B - BOLT, W/WASHER | ||||
| 91673-80616 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
28 | ||
| 91673-80616 |
GRJ300,VJA300..7S..(V,Z) |
28 | ||
| 62170C - CLIP, CURTAIN SHIELD AIR BAG | ||||
| 90467-10167 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
2 | ||
| 90467-10167 |
GRJ300,VJA300..7S..(V,Z) |
2 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-60150 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 62180-60150 |
GRJ300,VJA300..7S..(V,Z) |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-60150 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 62180-60150 |
GRJ300,VJA300..7S..(V,Z) |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
GRJ300,VJA300 |
2 | ||
| 62211U - GARNISH ASSY, FRONT PILLAR, RH | ||||
| 62210-60340C1 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 62210-60350C1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62210-60360C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 62210-60360C2 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62210-60350E1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60360C2 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM2#,3# |
1 | ||
| 62210-60360C2 |
VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,3# |
1 | ||
| 62210-60360C2 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,3# |
1 | ||
| 62210-60360C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62210-60360E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60340E1 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60360E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60360E1 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60360E1 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60360C2 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM2#,3# |
1 | ||
| 62210-60360E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60370C2 |
VJA300..A..GCC UPGRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62210-60360E1 |
VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60360E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60360C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 62210-60370C2 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 62210-60360E1 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60370C2 |
VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62210-60370C2 |
GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62210-60360E1 |
VJA300..Z..EUR;GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60370E1 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60370C2 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62210-60370E1 |
VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60370E1 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60370E1 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60370C2 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62210-60370C2 |
GRJ300,VJA300..LHD..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62210-60370E1 |
VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60370E1 |
VJA300..A..GCC UPGRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60360C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62210-60370E1 |
GRJ300,VJA300..LHD..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60390C1 |
VJA300..A..GCC AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62210-60390E1 |
VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60390E1 |
VJA300..A..GCC AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62210-60390C1 |
VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62212B - GARNISH ASSY, FRONT PILLAR, LH | ||||
| 62220-60340E1 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 62220-60340C1 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 62220-60360C2 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62220-60350E1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60350C1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62220-60360C2 |
VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,3# |
1 | ||
| 62220-60360C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62220-60360C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62220-60360E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360E1 |
VJA300..Z..EUR;GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360C2 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,3# |
1 | ||
| 62220-60360E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 62220-60360E1 |
VJA300..Z..GCC AUDIO(FOR OVERSEAS MARKET)-LESS(WITH/BRACKET & COVER) & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360C2 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,BLACK,TRIM2#,3# |
1 | ||
| 62220-60360E1 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60370C2 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62220-60370C2 |
GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62220-60360E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360C2 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM2#,3# |
1 | ||
| 62220-60370E1 |
VJA300..A..GCC UPGRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360E1 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60370E1 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60370C2 |
VJA300..A..GCC UPGRADE PACKAGE&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62220-60370C2 |
VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62220-60370C2 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 62220-60370C2 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62220-60370E1 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60370E1 |
VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60360E1 |
VJA300..7S..Z AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60370E1 |
GRJ300,VJA300..LHD..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60370E1 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60370C2 |
GRJ300,VJA300..LHD..V..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62220-60390E1 |
VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60390C1 |
VJA300..A..GCC SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62220-60390E1 |
VJA300..A..GCC AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60370E1 |
VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62220-60390C1 |
VJA300..A..GCC AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10216 |
GRJ300,VJA300 |
4 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60180 |
GRJ300,VJA300 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60180 |
GRJ300,VJA300 |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-60110 |
GRJ300,VJA300 |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-60110 |
GRJ300,VJA300 |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-60230C1 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 62410-60240E1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62410-60240C1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62410-60230E1 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62410-60250C2 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62410-60250E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62410-60270C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 62410-60250E1 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62410-60250C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62410-60270C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 62410-60250C2 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62410-60270E0 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62410-60250C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62410-60270E0 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62410-60250E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62411F - CLIP, CENTER PILLAR GARNISH, RH | ||||
| 90467-10161 |
GRJ300,VJA300 |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-60230C1 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 62420-60230E1 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62420-60240C1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62420-60250C2 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62420-60250C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62420-60250E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62420-60250E1 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62420-60270E0 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62420-60250C2 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62420-60240E1 |
GRJ300,VJA300..7S..A SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62420-60270E0 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62420-60250E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62420-60270C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 62420-60270C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 62420-60250C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 62412E - CLIP, CENTER PILLAR GARNISH, LH | ||||
| 90467-10161 |
GRJ300,VJA300 |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-60110C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62413-60110E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62413-60110C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GRJ300,VJA300 |
12 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-60110C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62414-60110E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62414-60110C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90467-09245 |
GRJ300,VJA300 |
8 | ||
| 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH | ||||
| 62431-60020C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62431-60020E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62431-60020C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH | ||||
| 62432-60070E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62432-60070C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62432-60070C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-10161 |
GRJ300,VJA300 |
2 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-60660E0 |
GRJ300,VJA300..7S NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62471-60660C0 |
GRJ300,VJA300..7S..(A,G,V) BLACK,TRIM2# |
1 | ||
| 62471-60660C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 62471G - CLIP, ROOF SIDE INNER GARNISH | ||||
| 90467-09245 |
GRJ300,VJA300 |
8 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-60660C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 62472-60660E0 |
GRJ300,VJA300..7S NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62472-60660C0 |
GRJ300,VJA300..7S..(A,G,V) BLACK,TRIM2# |
1 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-48020 |
GRJ300,VJA300 |
2 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-48020 |
GRJ300,VJA300 |
2 | ||
| 62581E - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-60310C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 62638-60330C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62638-60330C1 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62638-60330E1 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62638-60310E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62581E - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-60310C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 62638-60330C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62638-60330C1 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62638-60330E1 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62638-60310E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62582E - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-60310C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 62639-60330C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62639-60310E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62639-60330C1 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62639-60330E1 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62582E - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-60310C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 62639-60330C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62639-60310E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62639-60330C1 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62639-60330E1 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62638B - CLIP | ||||
| 90467-09245 |
GRJ300,VJA300 |
6 | ||
| 62638B - CLIP | ||||
| 90467-09245 |
GRJ300,VJA300 |
6 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-60120C0 |
VJA300..Z DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67910-60110C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 67910-60120C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 67910-60120E0 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67910-60120E0 |
VJA300..Z DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67910-WY010C0 |
VJA300..Z DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67910-60110E0 |
GRJ300,VJA300..V DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67910-60110E0 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67913-60240E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67910-60110C0 |
GRJ300,VJA300..V DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67910-WY010C0 |
VJA300..V;GRJ300..A,V;VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67913-60240C0 |
GRJ300,VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67913-60240E0 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67913-60240C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 67910-WY010E0 |
GRJ300..A,V;VJA300..V,Z;VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67913-60240C0 |
VJA300..7S..Z DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67913-60240C0 |
GRJ300,VJA300..V..(GCC,GEN) DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67913-60240E0 |
GRJ300,VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-60110C0 |
GRJ300,VJA300..V DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67914-60220C0 |
GRJ300,VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67914-60220E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67914-60220C0 |
GRJ300,VJA300..V..(GCC,GEN) DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67914-60220E0 |
GRJ300,VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67914-60220C0 |
VJA300..7S..Z DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67914-60220C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 67920-60110C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 67914-60220E0 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67920-60120C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 67920-60120E0 |
VJA300..Z DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67920-WY010E0 |
GRJ300..A,V;VJA300..V,Z;VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67920-60110E0 |
GRJ300,VJA300..V DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67920-60120E0 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67920-WY010C0 |
VJA300..V;GRJ300..A,V;VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67920-WY010C0 |
VJA300..Z DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67920-60120C0 |
VJA300..Z DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67920-60110E0 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-60230C0 |
VJA300..7S..Z DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67917-60230C0 |
GRJ300,VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67917-60230C0 |
GRJ300,VJA300..V..(GCC,GEN) DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67930-60100C0 |
VJA300..V;GRJ300..A,V;VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67917-60230E0 |
GRJ300,VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67917-60230E0 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67930-60100C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 67930-60100C0 |
VJA300..Z DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67930-60100C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 67917-60230C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 67930-60100E0 |
GRJ300..A,V;VJA300..V,Z;VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67930-60100E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67917-60230E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-60220C0 |
GRJ300,VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67918-60220C0 |
GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 67918-60220C0 |
GRJ300,VJA300..V..(GCC,GEN) DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67918-60220C0 |
VJA300..7S..Z DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67918-60220E0 |
GRJ300,VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67918-60220E0 |
GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67918-60220E0 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) DOORSCUFF PLATE-WITH(FRONT & REAR=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67940-60060C0 |
VJA300..V;GRJ300..A,V;VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2# |
1 | ||
| 67940-60060E0 |
GRJ300..A,V;VJA300..V,Z;VJA300..A..GCC DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67940-60060C0 |
VJA300..Z DOORSCUFF PLATE-WITH(FRONT ONLY=ILLUMINATED),ACCESSORY,BLACK,TRIM2#,3# |
1 | ||
| 67940-60060C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 67940-60060C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 67940-60060E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 7152 | ||||

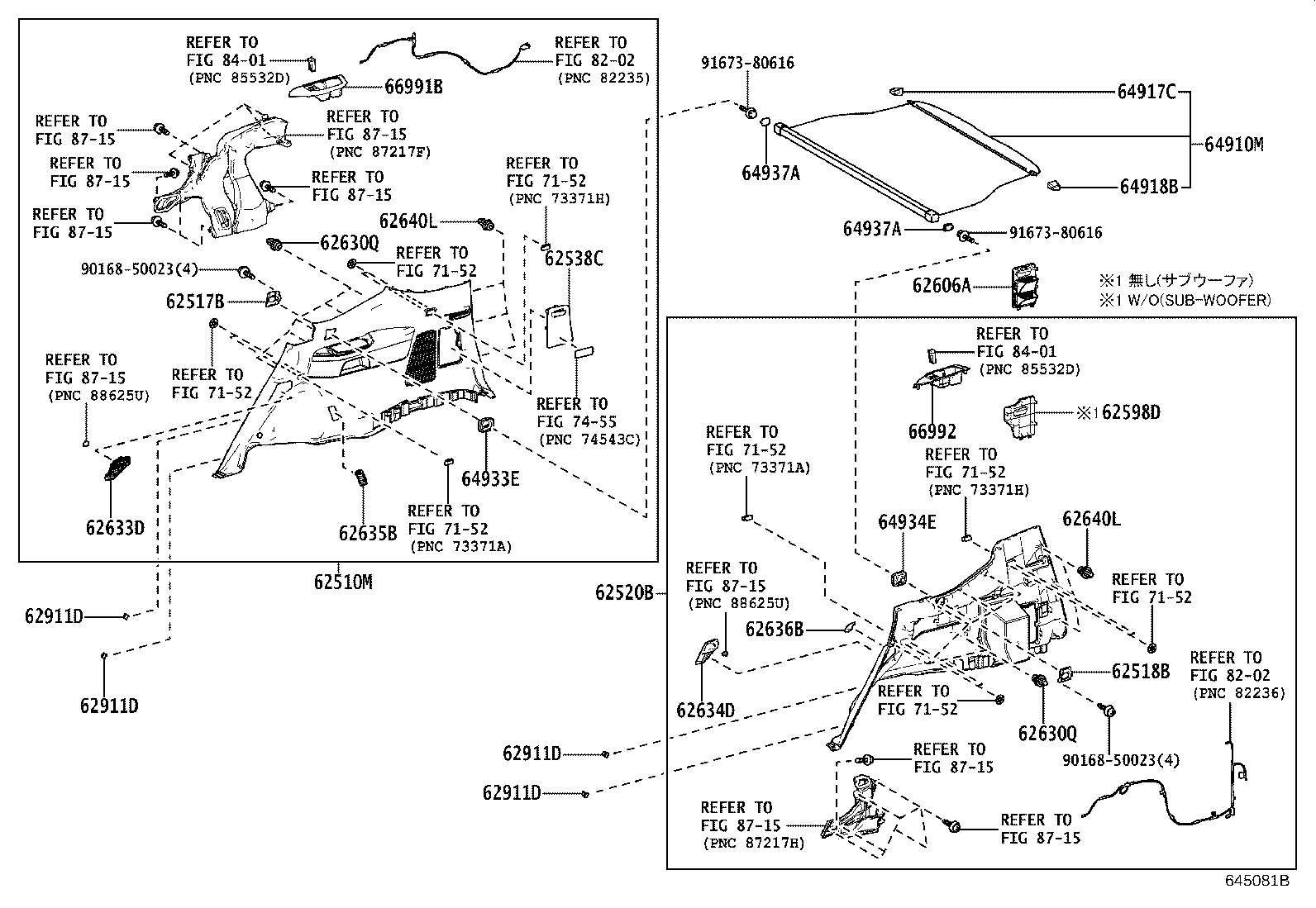

ILLUST NO. 2 OF 2(2104- )7S
POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510M - PANEL ASSY, QUARTER TRIM, RH | ||||
| 62510-60G80C0 |
GRJ300..A;VJA300..(A,G)..GCC BLACK,TRIM2# |
1 | ||
| 62510-60G80E0 |
GRJ300..A;VJA300..(A,G)..GCC NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60G90C0 |
GRJ300,VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 62510-60J00C0 |
GRJ300,VJA300..7S..V BLACK,TRIM2# |
1 | ||
| 62510-60G90E0 |
GRJ300,VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J00E0 |
GRJ300,VJA300..7S..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J30C0 |
GRJ300,VJA300..A..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 62510-60J50C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 62510-60J60C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 62510-60J40C0 |
GRJ300,VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 62510-60J40E0 |
GRJ300,VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J30E0 |
GRJ300,VJA300..A..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J60C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 62510-60J60E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J50E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J70E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J60E0 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J70E0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J70C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 62510-60J70C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 62517B - BASE, QUARTER TRIM, FRONT RH | ||||
| 62517-60040 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH |
1 | ||
| 62517-60040 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 62517-60040 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3) |
1 | ||
| 62518B - BASE, QUARTER TRIM, FRONT LH | ||||
| 62518-60030 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH |
1 | ||
| 62518-60030 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 62518-60030 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3) |
1 | ||
| 62520B - PANEL ASSY, QUARTER TRIM, LH | ||||
| 62520-60L00C0 |
VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 62520-60K90C0 |
VJA300..(A,G)..GCC BLACK,TRIM2# |
1 | ||
| 62520-60L00E0 |
VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60L60C0 |
VJA300..7S..V BLACK,TRIM2# |
1 | ||
| 62520-60K90E0 |
VJA300..(A,G)..GCC NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60M10C0 |
VJA300..A..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 62520-60L60E0 |
VJA300..7S..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60M20C0 |
VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 62520-60M20E0 |
VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60N60C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 62520-60M10E0 |
VJA300..A..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60M80E0 |
VJA300..V..GCC;VJA300..RHD..V TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60N60C0 |
VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 62520-60N60E0 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60N60E0 |
VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60P40E0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60P40C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 62520-60M80C0 |
VJA300..V..GCC;VJA300..RHD..V TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 62520-60P40C0 |
VJA300..V..GCC;VJA300..RHD..V TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 62520-60P40E0 |
VJA300..V..GCC;VJA300..RHD..V TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-60080C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62538-60080E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62538-60080C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62606A - LID SUB-ASSY, QUARTER TRIM, LH | ||||
| 62605-60040C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62605-60040E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62605-60040C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-09245 |
GRJ300,VJA300 |
5 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-09245 |
GRJ300,VJA300 |
5 | ||
| 62633D - COVER, QUARTER TRIM BASE, FRONT RH | ||||
| 62633-60010C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62633-60010C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62633-60010E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62634D - COVER, QUARTER TRIM BASE, FRONT LH | ||||
| 62634-60010C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62634-60010E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62634-60010C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62635B - COVER, QUARTER TRIM BASE, REAR RH | ||||
| 62635-60010C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62635-60010E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62635-60010C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62636B - COVER, QUARTER TRIM BASE, REAR LH | ||||
| 62636-60010E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62636-60010C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62636-60010C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62640L - CLIP(FOR QUARTER TRIM) | ||||
| 90467-10161 |
GRJ300,VJA300 |
3 | ||
| 62640L - CLIP(FOR QUARTER TRIM) | ||||
| 90467-10161 |
GRJ300,VJA300 |
3 | ||
| 62911D - HOOK, SIDE WINDOW LOCK | ||||
| 62911-60030 |
GRJ300,VJA300 |
4 | ||
| 62911D - HOOK, SIDE WINDOW LOCK | ||||
| 62911-60030 |
GRJ300,VJA300 |
4 | ||
| 62911D - HOOK, SIDE WINDOW LOCK | ||||
| 62911-60030 |
GRJ300,VJA300 |
4 | ||
| 62911D - HOOK, SIDE WINDOW LOCK | ||||
| 62911-60030 |
GRJ300,VJA300 |
4 | ||
| 64910M - COVER ASSY, TONNEAU | ||||
| 64910-60260C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64910-60260C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64910-60260E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64917C - CAP, TONNEAU COVER HINGE END, REAR RH | ||||
| 64917-60020C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64917-60020E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64917-60020C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64918B - CAP, TONNEAU COVER HINGE END, REAR LH | ||||
| 64918-60020C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64918-60020C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64918-60020E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64933E - BRACKET, TONNEAU COVER HOLDER, FRONT RH | ||||
| 64933-60020C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64933-60020C0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 64933-60020E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64933-60020C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64933-60020E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64933-60020C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 64933-60020E0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64934E - BRACKET, TONNEAU COVER HOLDER, FRONT LH | ||||
| 64934-60020C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64934-60020C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 64934-60020C0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 64934-60020C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64934-60020E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64934-60020E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64934-60020E0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C1 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
2 | ||
| 64937-60030C1 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
2 | ||
| 64937-60030E1 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C1 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
2 | ||
| 64937-60030C1 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
2 | ||
| 64937-60030E1 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-60050C0 |
VJA300..5S..V;GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 66991-60060C0 |
GRJ300,VJA300..7S..V BLACK,TRIM2# |
1 | ||
| 66991-60050E0 |
VJA300..5S..(V,Z);GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60060C0 |
GRJ300..A,G;VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 66991-60060E0 |
GRJ300,VJA300..7S..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60070C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 66991-60070C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 66991-60060E0 |
GRJ300..A,G;VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60060E0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60060C0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 66991-60070E0 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60070E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60070C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 66991-60070E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992 - HOLDER, CUP, NO.2 | ||||
| 66992-60050E0 |
GRJ300,VJA300..7S..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60050C0 |
GRJ300,VJA300..7S..V BLACK,TRIM2# |
1 | ||
| 66992-60040C0 |
VJA300..5S..V;GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 66992-60050C0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 66992-60050C0 |
GRJ300..A,G;VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 66992-60060C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 66992-60040E0 |
VJA300..5S..(V,Z);GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60050E0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60060C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 66992-60050E0 |
GRJ300..A,G;VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60060C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 66992-60060E0 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60060E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60060E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90168-50023 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8715 | ||||

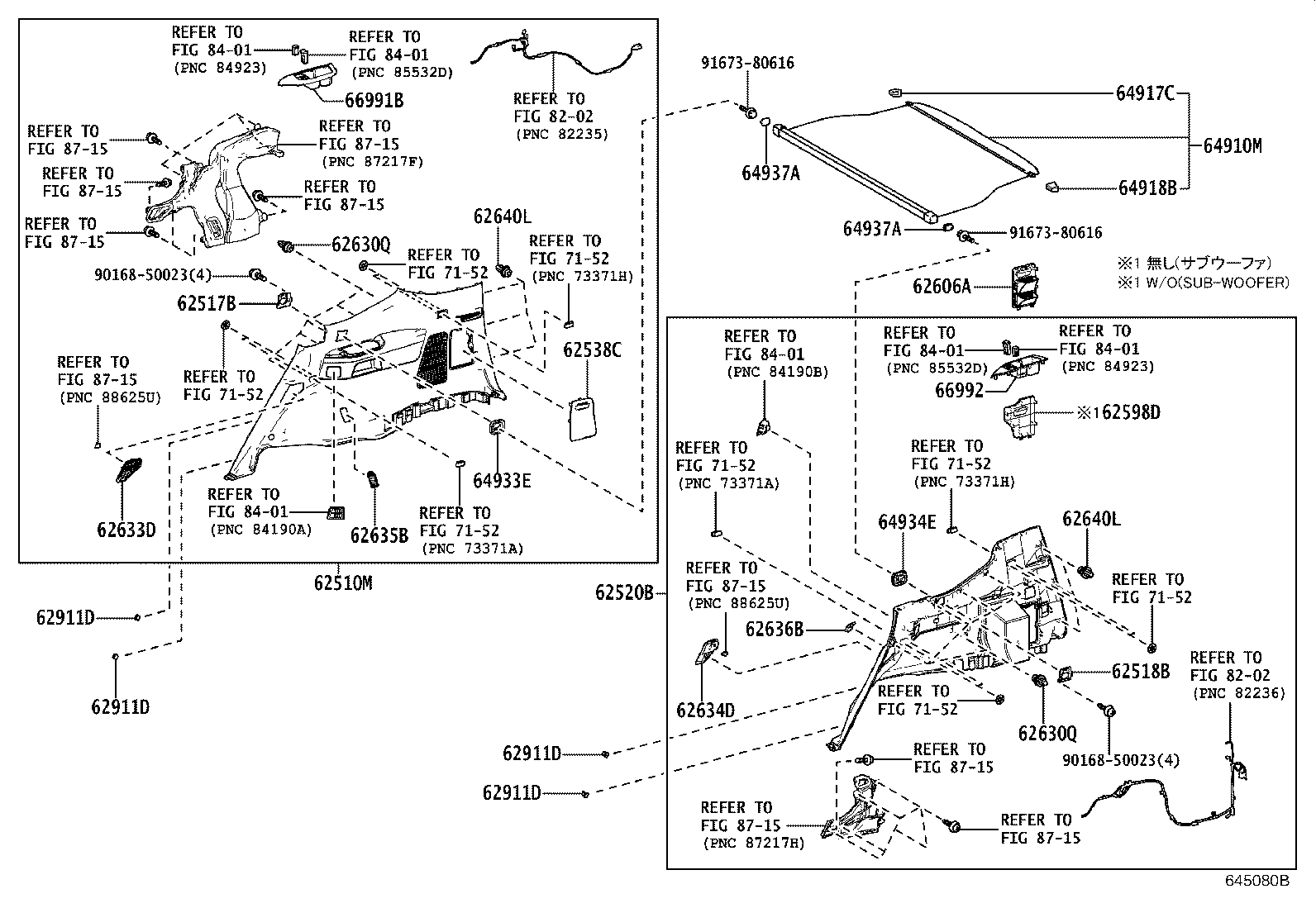

ILLUST NO. 2 OF 2(2104- )7S
MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510M - PANEL ASSY, QUARTER TRIM, RH | ||||
| 62510-60G80C0 |
GRJ300..A;VJA300..(A,G)..GCC BLACK,TRIM2# |
1 | ||
| 62510-60G80E0 |
GRJ300..A;VJA300..(A,G)..GCC NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60G90C0 |
GRJ300,VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 62510-60J00C0 |
GRJ300,VJA300..7S..V BLACK,TRIM2# |
1 | ||
| 62510-60G90E0 |
GRJ300,VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J00E0 |
GRJ300,VJA300..7S..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J30C0 |
GRJ300,VJA300..A..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 62510-60J50C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 62510-60J60C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 62510-60J40C0 |
GRJ300,VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 62510-60J40E0 |
GRJ300,VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J30E0 |
GRJ300,VJA300..A..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J60C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 62510-60J60E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J50E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J70E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J60E0 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J70E0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62510-60J70C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 62510-60J70C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 62517B - BASE, QUARTER TRIM, FRONT RH | ||||
| 62517-60040 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH |
1 | ||
| 62517-60040 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 62517-60040 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3) |
1 | ||
| 62518B - BASE, QUARTER TRIM, FRONT LH | ||||
| 62518-60030 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH |
1 | ||
| 62518-60030 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 62518-60030 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3) |
1 | ||
| 62520B - PANEL ASSY, QUARTER TRIM, LH | ||||
| 62520-60L00C0 |
VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 62520-60K90C0 |
VJA300..(A,G)..GCC BLACK,TRIM2# |
1 | ||
| 62520-60L00E0 |
VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60L60C0 |
VJA300..7S..V BLACK,TRIM2# |
1 | ||
| 62520-60K90E0 |
VJA300..(A,G)..GCC NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60M10C0 |
VJA300..A..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 62520-60L60E0 |
VJA300..7S..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60M20C0 |
VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 62520-60M20E0 |
VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60N60C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 62520-60M10E0 |
VJA300..A..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60M80E0 |
VJA300..V..GCC;VJA300..RHD..V TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60N60C0 |
VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 62520-60N60E0 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60N60E0 |
VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60P40E0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62520-60P40C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 62520-60M80C0 |
VJA300..V..GCC;VJA300..RHD..V TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 62520-60P40C0 |
VJA300..V..GCC;VJA300..RHD..V TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 62520-60P40E0 |
VJA300..V..GCC;VJA300..RHD..V TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-60080C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62538-60080E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62538-60080C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62606A - LID SUB-ASSY, QUARTER TRIM, LH | ||||
| 62605-60040C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 62605-60040E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62605-60040C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-09245 |
GRJ300,VJA300 |
5 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-09245 |
GRJ300,VJA300 |
5 | ||
| 62633D - COVER, QUARTER TRIM BASE, FRONT RH | ||||
| 62633-60010C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62633-60010C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62633-60010E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62634D - COVER, QUARTER TRIM BASE, FRONT LH | ||||
| 62634-60010C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62634-60010E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62634-60010C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62635B - COVER, QUARTER TRIM BASE, REAR RH | ||||
| 62635-60010C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62635-60010E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62635-60010C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62636B - COVER, QUARTER TRIM BASE, REAR LH | ||||
| 62636-60010E0 |
GRJ300,VJA300..V,Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 62636-60010C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 62636-60010C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 62640L - CLIP(FOR QUARTER TRIM) | ||||
| 90467-10161 |
GRJ300,VJA300 |
3 | ||
| 62640L - CLIP(FOR QUARTER TRIM) | ||||
| 90467-10161 |
GRJ300,VJA300 |
3 | ||
| 62911D - HOOK, SIDE WINDOW LOCK | ||||
| 62911-60030 |
GRJ300,VJA300 |
4 | ||
| 62911D - HOOK, SIDE WINDOW LOCK | ||||
| 62911-60030 |
GRJ300,VJA300 |
4 | ||
| 62911D - HOOK, SIDE WINDOW LOCK | ||||
| 62911-60030 |
GRJ300,VJA300 |
4 | ||
| 62911D - HOOK, SIDE WINDOW LOCK | ||||
| 62911-60030 |
GRJ300,VJA300 |
4 | ||
| 64910M - COVER ASSY, TONNEAU | ||||
| 64910-60260C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64910-60260C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64910-60260E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64917C - CAP, TONNEAU COVER HINGE END, REAR RH | ||||
| 64917-60020C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64917-60020E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64917-60020C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64918B - CAP, TONNEAU COVER HINGE END, REAR LH | ||||
| 64918-60020C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64918-60020C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64918-60020E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64933E - BRACKET, TONNEAU COVER HOLDER, FRONT RH | ||||
| 64933-60020C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64933-60020C0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 64933-60020E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64933-60020C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64933-60020E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64933-60020C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 64933-60020E0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64934E - BRACKET, TONNEAU COVER HOLDER, FRONT LH | ||||
| 64934-60020C0 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
1 | ||
| 64934-60020C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 64934-60020C0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 64934-60020C0 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
1 | ||
| 64934-60020E0 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64934-60020E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64934-60020E0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C1 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
2 | ||
| 64937-60030C1 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
2 | ||
| 64937-60030E1 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C1 |
VJA300..Z..GCC;VJA300..RHD..Z TONNEAU COVER-WITH,BLACK,TRIM2#,3# |
2 | ||
| 64937-60030C1 |
GRJ300;VJA300..RHD..(A,V);VJA300..(A,V)..GCC TONNEAU COVER-WITH,BLACK,TRIM2# |
2 | ||
| 64937-60030E1 |
GRJ300;VJA300..RHD;VJA300..(A,V,Z)..GCC TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-60050C0 |
VJA300..5S..V;GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 66991-60060C0 |
GRJ300,VJA300..7S..V BLACK,TRIM2# |
1 | ||
| 66991-60050E0 |
VJA300..5S..(V,Z);GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60060C0 |
GRJ300..A,G;VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 66991-60060E0 |
GRJ300,VJA300..7S..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60070C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 66991-60070C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 66991-60060E0 |
GRJ300..A,G;VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60060E0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60060C0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 66991-60070E0 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60070E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66991-60070C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 66991-60070E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992 - HOLDER, CUP, NO.2 | ||||
| 66992-60050E0 |
GRJ300,VJA300..7S..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60050C0 |
GRJ300,VJA300..7S..V BLACK,TRIM2# |
1 | ||
| 66992-60040C0 |
VJA300..5S..V;GRJ300,VJA300..A,G BLACK,TRIM2# |
1 | ||
| 66992-60050C0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 66992-60050C0 |
GRJ300..A,G;VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),BLACK,TRIM2# |
1 | ||
| 66992-60060C0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 66992-60040E0 |
VJA300..5S..(V,Z);GRJ300,VJA300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60050E0 |
GRJ300..A,G;VJA300..A..GCC TONNEAU COVER-WITH&ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60060C0 |
VJA300..7S..Z BLACK,TRIM2#,3# |
1 | ||
| 66992-60050E0 |
GRJ300..A,G;VJA300..A..GCC ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60060C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 66992-60060E0 |
VJA300..7S..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60060E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 66992-60060E0 |
VJA300..RHD..V;GRJ300,VJA300..V..GCC TONNEAU COVER-WITH&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90168-50023 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
| 8202 | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
