VJA300L-GNUAZV (2021)
Toyota Land Cruiser

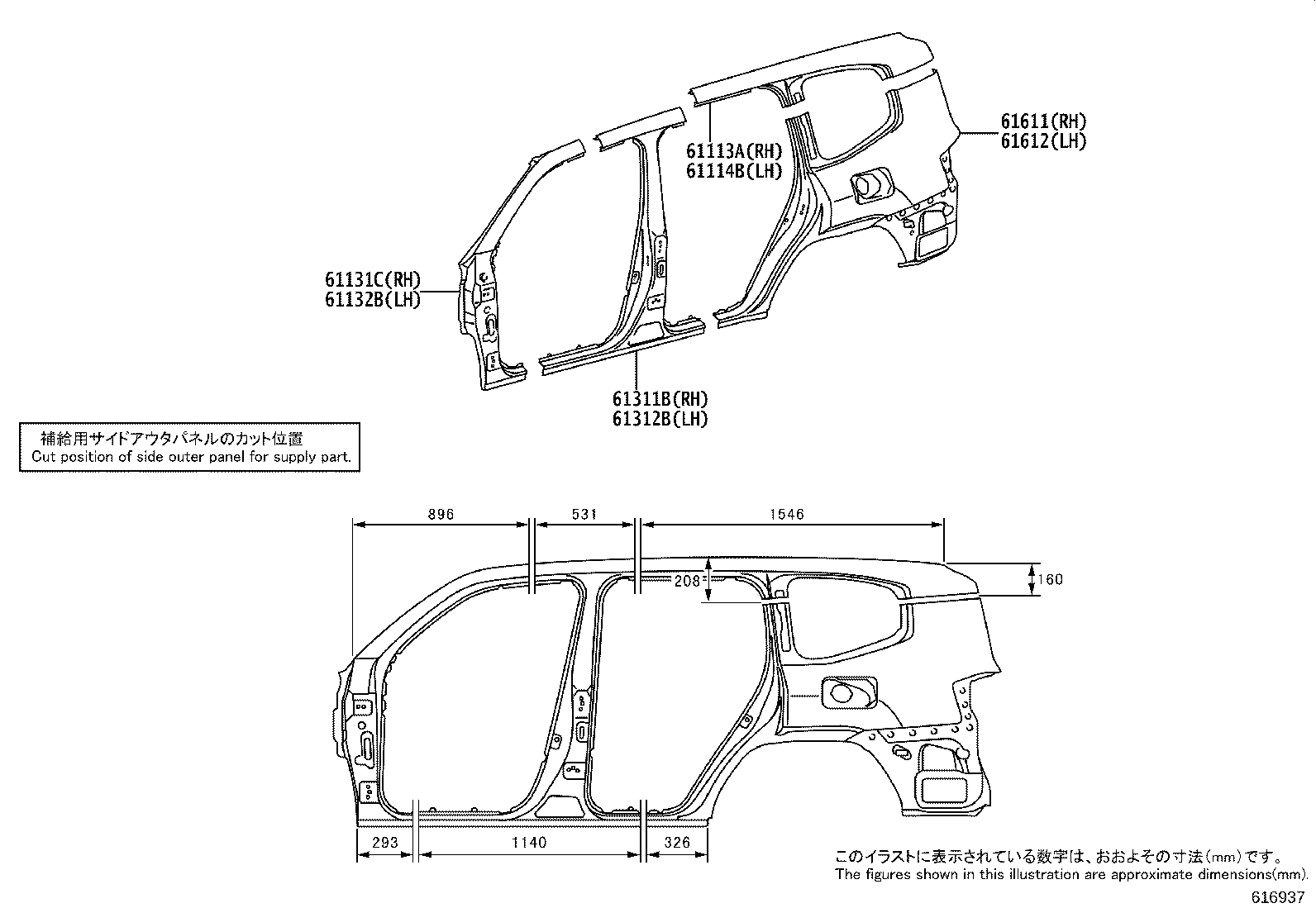

ILLUST NO. 1 OF 3(2104- )
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61113A - PANEL, SIDE, OUTER NO.2 RH | ||||
| 61113-60070 |
GRJ300,VJA300 |
1 | ||
| 61114B - PANEL, SIDE, OUTER NO.2 LH | ||||
| 61114-60050 |
GRJ300,VJA300 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-60350 |
GRJ300,VJA300 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-60280 |
GRJ300,VJA300 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-60160 |
GRJ300,VJA300 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-60230 |
GRJ300,VJA300 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-60B90 |
GRJ300,VJA300 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-60B70 |
GRJ300,VJA300 |
1 | ||

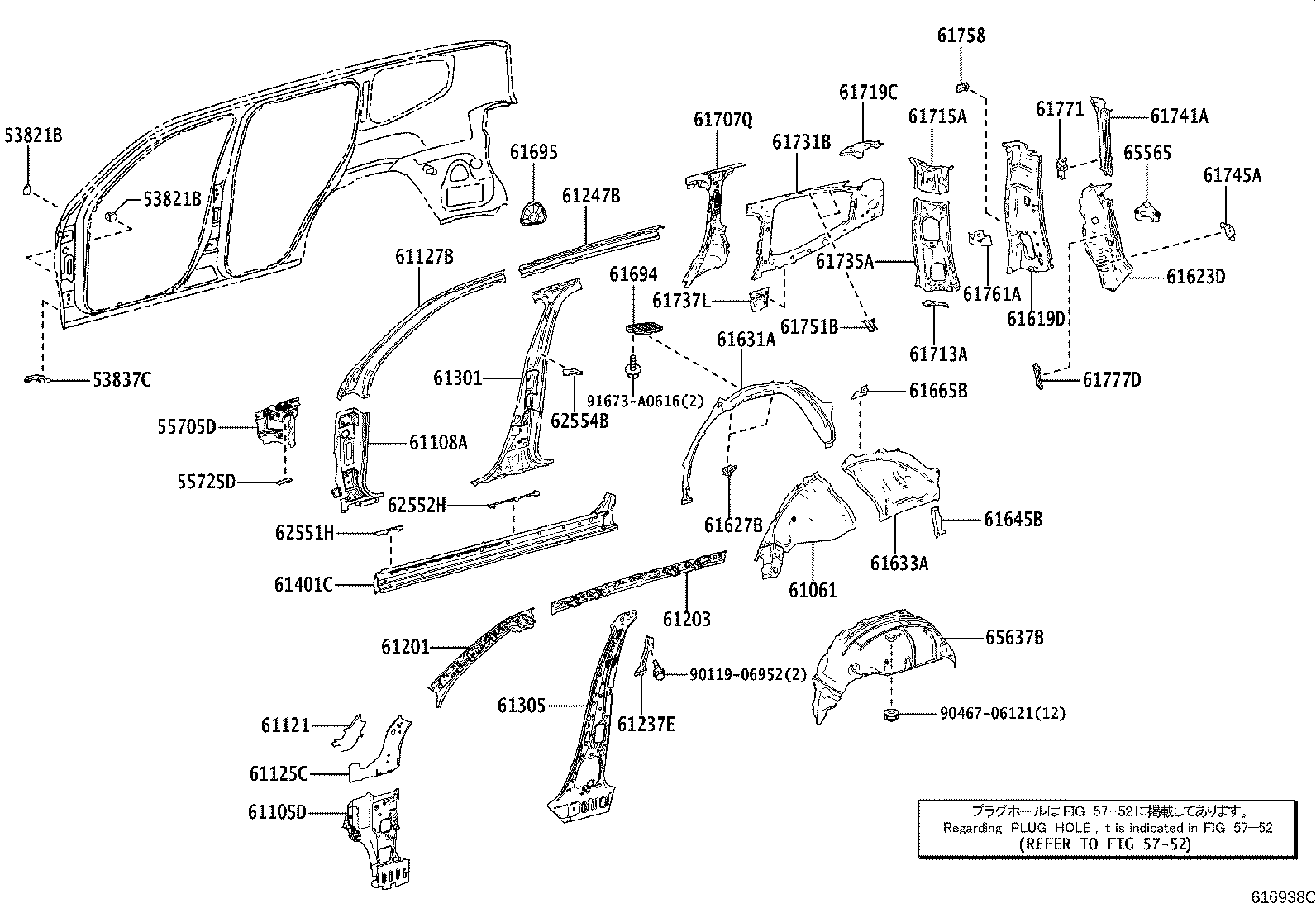

ILLUST NO. 2 OF 3(2104- )
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-42030 |
GRJ300,VJA300 |
2 | ||
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-42030 |
GRJ300,VJA300 |
2 | ||
| 53837C - BRACKET, FRONT SIDE PANEL, NO.2 RH | ||||
| 53837-60040 |
GRJ300,VJA300 |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-60040 |
GRJ300,VJA300 |
1 | ||
| 55725D - REINFORCEMENT, HOOD HINGE MOUNTING, RH | ||||
| 55725-60050 |
GRJ300,VJA300 |
1 | ||
| 61061 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH | ||||
| 61061-60130 |
GRJ300,VJA300 |
1 | ||
| 61105D - PANEL SUB-ASSY, SIDE, NO.3 RH | ||||
| 61105-60010 |
GRJ300,VJA300 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-60120 |
GRJ300,VJA300 |
1 | ||
| 61121 - PANEL, COWL SIDE, OUTER RH | ||||
| 55743-60040 |
GRJ300,VJA300 |
1 | ||
| 61125C - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 55791-60020 |
GRJ300,VJA300 |
1 | ||
| 61127B - REINFORCEMENT, COWL SIDE PANEL, NO.2 RH | ||||
| 61127-60040 |
GRJ300,VJA300 |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-60040 |
GRJ300,VJA300 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-60050 |
GRJ300,VJA300 |
1 | ||
| 61237E - BRACKET, ASSIST GRIP, NO.1 | ||||
| 61237-60080 |
GRJ300,VJA300 |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-60110 |
GRJ300,VJA300 |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-60150 |
GRJ300,VJA300 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-60112 |
GRJ300,VJA300 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-60120 |
GRJ300,VJA300 |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-60120 |
GRJ300,VJA300 |
1 | ||
| 61623D - EXTENSION, QUARTER PANEL, FRONT RH | ||||
| 61623-60120 |
GRJ300,VJA300 |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-60030 |
GRJ300,VJA300 |
2 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-60150 |
GRJ300,VJA300 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-60150 |
GRJ300,VJA300 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-60080 |
GRJ300,VJA300 |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-60160 |
GRJ300,VJA300 |
1 | ||
| 61707Q - PLATE SUB-ASSY, QUARTER WINDOW LOCK GUSSET, RH | ||||
| 61707-60060 |
GRJ300,VJA300 |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-60040 |
GRJ300,VJA300 |
1 | ||
| 61715A - EXTENSION, ROOF SIDE, INNER UPPER RH | ||||
| 61715-60160 |
GRJ300,VJA300 |
1 | ||
| 61719C - BRACKET, ROOF SIDE RAIL, RH | ||||
| 61719-60070 |
GRJ300,VJA300 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-60420 |
GRJ300,VJA300 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-60110 |
GRJ300,VJA300 |
1 | ||
| 61737L - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-60070 |
GRJ300,VJA300 |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-60120 |
GRJ300,VJA300 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-60070 |
GRJ300,VJA300 |
1 | ||
| 61751B - RETAINER, QUARTER TRIM, UPPER | ||||
| 61751-60050 |
GRJ300,VJA300 |
2 | ||
| 61758 - RETAINER, BACK DOOR STOPPER, LOWER | ||||
| 61758-60010 |
GRJ300,VJA300 |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-60030 |
GRJ300,VJA300..7S |
1 | ||
| 61771 - PATCH, BACK DOOR OPENING, UPPER RH | ||||
| 61771-60060 |
GRJ300,VJA300 |
1 | ||
| 61777D - RETAINER, BACK DOOR SIDE STOPPER, RH | ||||
| 61777-60040 |
GRJ300,VJA300 |
1 | ||
| 62551H - PAD, PILLAR, NO.1 RH | ||||
| 62551-60110 |
GRJ300,VJA300 |
1 | ||
| 62552H - PAD, PILLAR, NO.1 RH | ||||
| 62552-60130 |
GRJ300,VJA300 |
1 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-60090 |
GRJ300,VJA300 |
1 | ||
| 65565 - PATCH, SIDE PANEL REAR END, RH | ||||
| 65565-50010 |
VJA300..Z |
1 | ||
| 65565-50010 |
GRJ300,VJA300..V BLIND SPOT MONITOR-WITH |
1 | ||
| 65637B - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90467-06121 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 5752 | ||||

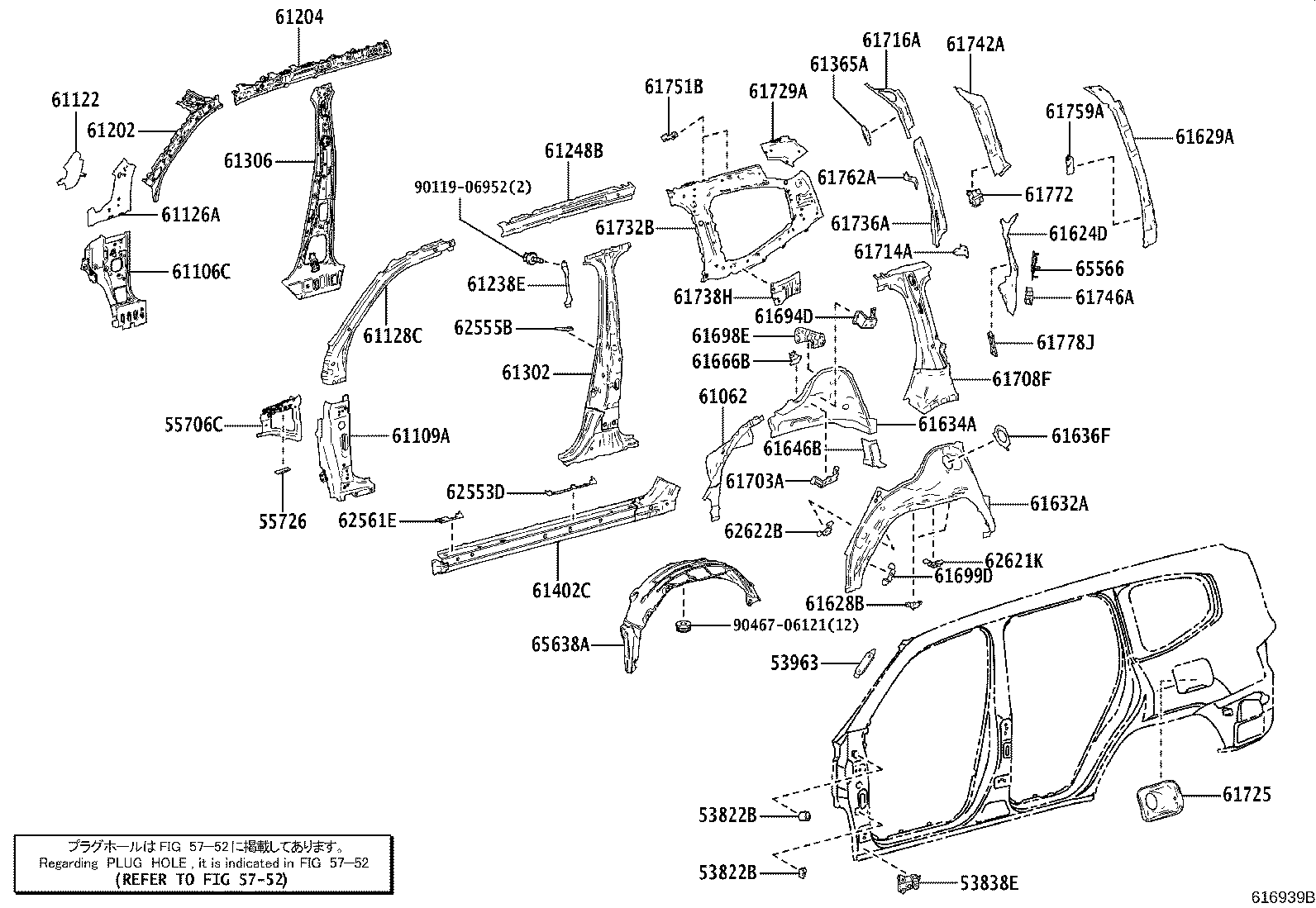

ILLUST NO. 3 OF 3(2104- )
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-42030 |
GRJ300,VJA300 |
2 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-42030 |
GRJ300,VJA300 |
2 | ||
| 53838E - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-60080 |
GRJ300,VJA300 |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-60070 |
GRJ300,VJA300 |
1 | ||
| 55726 - REINFORCEMENT, HOOD HINGE MOUNTING, LH | ||||
| 55725-60050 |
GRJ300,VJA300 |
1 | ||
| 61062 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH | ||||
| 61062-60130 |
GRJ300,VJA300 |
1 | ||
| 61106C - PANEL SUB-ASSY, SIDE, NO.3 LH | ||||
| 61106-60080 |
GRJ300,VJA300 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-60110 |
GRJ300,VJA300 |
1 | ||
| 61122 - PANEL, COWL SIDE, OUTER LH | ||||
| 55744-60190 |
GRJ300,VJA300 |
1 | ||
| 61126A - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 55792-60080 |
GRJ300,VJA300 |
1 | ||
| 61128C - REINFORCEMENT, COWL SIDE PANEL, NO.2 LH | ||||
| 61128-60040 |
GRJ300,VJA300 |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-60040 |
GRJ300,VJA300 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-60050 |
GRJ300,VJA300 |
1 | ||
| 61238E - BRACKET, ASSIST GRIP, NO.2 | ||||
| 61238-60050 |
GRJ300,VJA300 |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61248-60080 |
GRJ300,VJA300 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-60210 |
GRJ300,VJA300 |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-60112 |
GRJ300,VJA300 |
1 | ||
| 61365A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, NO.3 | ||||
| 61365-60040 |
GRJ300,VJA300..7S |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-60120 |
GRJ300,VJA300 |
1 | ||
| 61624D - EXTENSION, QUARTER PANEL, FRONT LH | ||||
| 61624-60090 |
GRJ300,VJA300 |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61627-60030 |
GRJ300,VJA300 |
2 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-60110 |
GRJ300,VJA300 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-60130 |
GRJ300,VJA300 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-60180 |
GRJ300,VJA300 |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61635-47010 |
GRJ300,VJA300 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-60100 |
GRJ300,VJA300 |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61666-60110 |
GRJ300,VJA300 |
1 | ||
| 61698E - BRACKET, REAR WHEEL OPENING, NO.6 | ||||
| 61697-60130 |
GRJ300,VJA300 |
1 | ||
| 61703A - BRACKET,FUEL TANK FILLTER PIPE PROTECTOR | ||||
| 77676-60060 |
GRJ300,VJA300 |
1 | ||
| 61708F - PLATE SUB-ASSY, QUARTER WINDOW LOCK GUSSET, LH | ||||
| 61708-60060 |
GRJ300,VJA300 |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-60040 |
GRJ300,VJA300 |
1 | ||
| 61716A - EXTENSION, ROOF SIDE, INNER UPPER LH | ||||
| 61716-60160 |
GRJ300,VJA300 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-60070 |
GRJ300,VJA300 |
1 | ||
| 61729A - BRACKET, ROOF SIDE RAIL, LH | ||||
| 61729-60090 |
GRJ300,VJA300 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-60290 |
GRJ300,VJA300 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-60120 |
GRJ300,VJA300 |
1 | ||
| 61738H - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-60030 |
GRJ300,VJA300 |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-60120 |
GRJ300,VJA300 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-60070 |
GRJ300,VJA300 |
1 | ||
| 61751B - RETAINER, QUARTER TRIM, UPPER | ||||
| 61751-60050 |
GRJ300,VJA300 |
2 | ||
| 61759A - BRACKET, ROOF SIDE REINFORCEMENT | ||||
| 61759-60020 |
GRJ300,VJA300 |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61762-60040 |
GRJ300,VJA300..7S |
1 | ||
| 61772 - PATCH, BACK DOOR OPENING, UPPER LH | ||||
| 61771-60060 |
GRJ300,VJA300 |
1 | ||
| 61778J - RETAINER, BACK DOOR SIDE STOPPER, LH | ||||
| 61777-60040 |
GRJ300,VJA300 |
1 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-60040 |
GRJ300,VJA300 |
1 | ||
| 62555B - PAD, PILLAR, NO.5 | ||||
| 62555-60070 |
GRJ300,VJA300 |
1 | ||
| 62561E - PAD, PILLAR, NO.1 LH | ||||
| 62561-60030 |
GRJ300,VJA300 |
1 | ||
| 65566 - PATCH, SIDE PANEL REAR END, LH | ||||
| 65565-50010 |
VJA300..Z |
1 | ||
| 65565-50010 |
GRJ300,VJA300..V BLIND SPOT MONITOR-WITH |
1 | ||
| 65638A - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 5752 | ||||
