VJA300L-GNUAZV (2021)
Toyota Land Cruiser

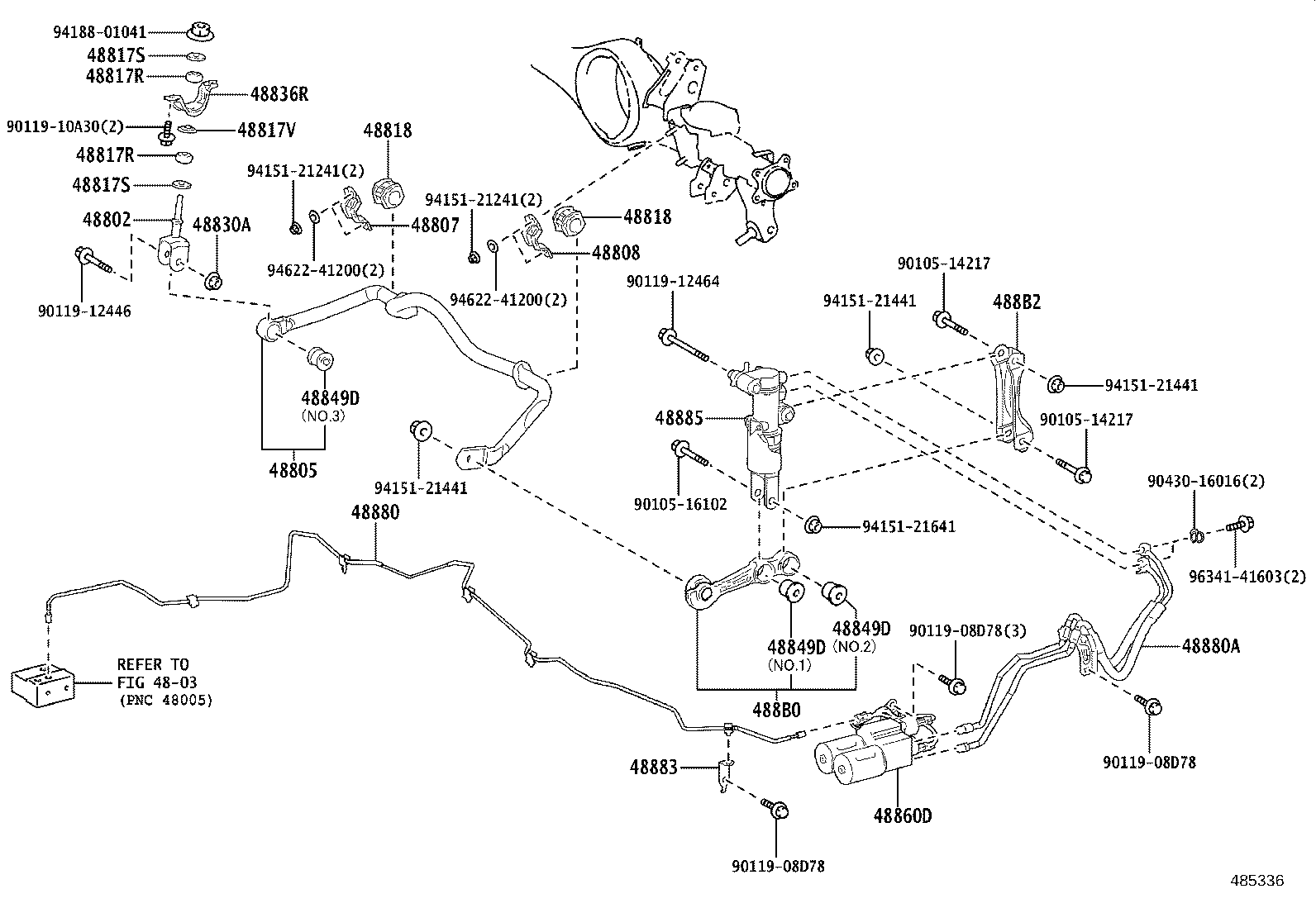

ILLUST NO. 2 OF 2(2104- )
W(AVS & E-KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48807 - BRACKET, REAR STABILIZER BAR, RH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48808 - BRACKET, REAR STABILIZER BAR, LH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60090 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60090 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
GRJ300,VJA300 |
4 | ||
| 48836R - BRACKET, REAR STABILIZER END, RH | ||||
| 48836-60150 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90105-14217 | ||||
| 90105-16102 | ||||
| 90119-08D78 | ||||
| 90119-10A30 | ||||
| 90119-12446 | ||||
| 90119-12464 | ||||
| 90430-16016 | ||||
| 94151-21241 | ||||
| 94151-21441 | ||||
| 94151-21641 | ||||
| 94188-01041 | ||||
| 94622-41200 | ||||
| 96341-41603 | ||||
| Linked diagrams | ||||
| 4803 | ||||

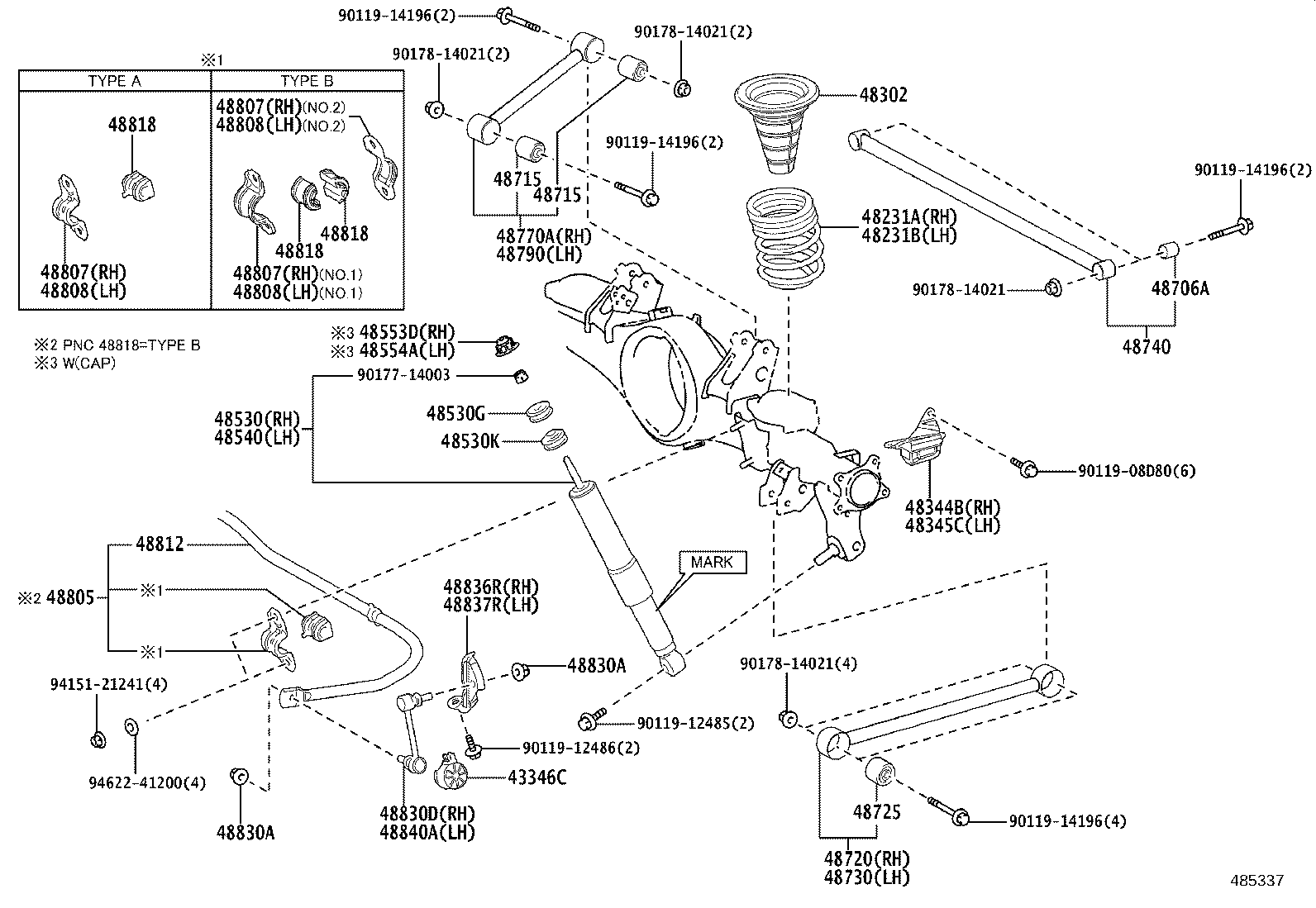

(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43346C - PROTECTOR, LOWER BALL JOINT DUST COVER | ||||
| 43346-60030 |
GRJ300,VJA300 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-60K60 |
VJA300..(V,Z)..GCC |
1 | ||
| 48231-60K50 |
GRJ300;VJA300..(A,G)..GCC |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-60K60 |
VJA300..(V,Z)..GCC |
1 | ||
| 48231-60K50 |
GRJ300;VJA300..(A,G)..GCC |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-60130 |
GRJ300,VJA300..GCC |
2 | ||
| 48344B - STOPPER, BUMPER, REAR RH | ||||
| 48344-60050 |
GRJ300,VJA300 |
1 | ||
| 48345C - STOPPER, BUMPER, REAR LH | ||||
| 48345-60010 |
GRJ300,VJA300 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80A82 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48530-60490,EGYPT SPEC |
1 | ||
| 48530-69795 |
VJA300..Z..GCC MARK 48530-60580,EGYPT SPEC |
1 | ||
| 48530-80A81 |
GRJ300,VJA300..A,G,V MARK 48530-60480 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48505-60070 |
GRJ300,VJA300 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 48505-60130 |
GRJ300,VJA300 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-69025 |
VJA300..Z..GCC MARK 48540-60030,EGYPT SPEC |
1 | ||
| 48530-80A82 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48530-60490,EGYPT SPEC |
1 | ||
| 48530-80A81 |
GRJ300,VJA300..A,G,V MARK 48530-60480 |
1 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-60080 |
GRJ300,VJA300 |
2 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48714-60030 |
GRJ300,VJA300 |
4 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48714-60030 |
GRJ300,VJA300 |
4 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-60080 |
GRJ300,VJA300 |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-60020 |
GRJ300,VJA300 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-60080 |
GRJ300,VJA300 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60170 |
GRJ300,VJA300 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48710-60170 |
GRJ300,VJA300..A,G |
1 | ||
| 48710-60180 |
GRJ300,VJA300..V,Z |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48710-60170 |
GRJ300,VJA300 |
1 | ||
| 48807 - BRACKET, REAR STABILIZER BAR, RH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48807 - BRACKET, REAR STABILIZER BAR, RH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48807 - BRACKET, REAR STABILIZER BAR, RH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48808 - BRACKET, REAR STABILIZER BAR, LH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48808 - BRACKET, REAR STABILIZER BAR, LH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48808 - BRACKET, REAR STABILIZER BAR, LH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-60320 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60090 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60090 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60090 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
GRJ300,VJA300 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
GRJ300,VJA300 |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-60070 |
GRJ300,VJA300 |
1 | ||
| 48836R - BRACKET, REAR STABILIZER END, RH | ||||
| 48836-60150 |
GRJ300,VJA300 |
1 | ||
| 48837R - BRACKET, REAR STABILIZER END, LH | ||||
| 48837-60090 |
GRJ300,VJA300 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-08D80 | ||||
| 90119-12485 | ||||
| 90119-12486 | ||||
| 90119-14196 | ||||
| 90177-14003 | ||||
| 90178-14021 | ||||
| 94151-21241 | ||||
| 94622-41200 | ||||

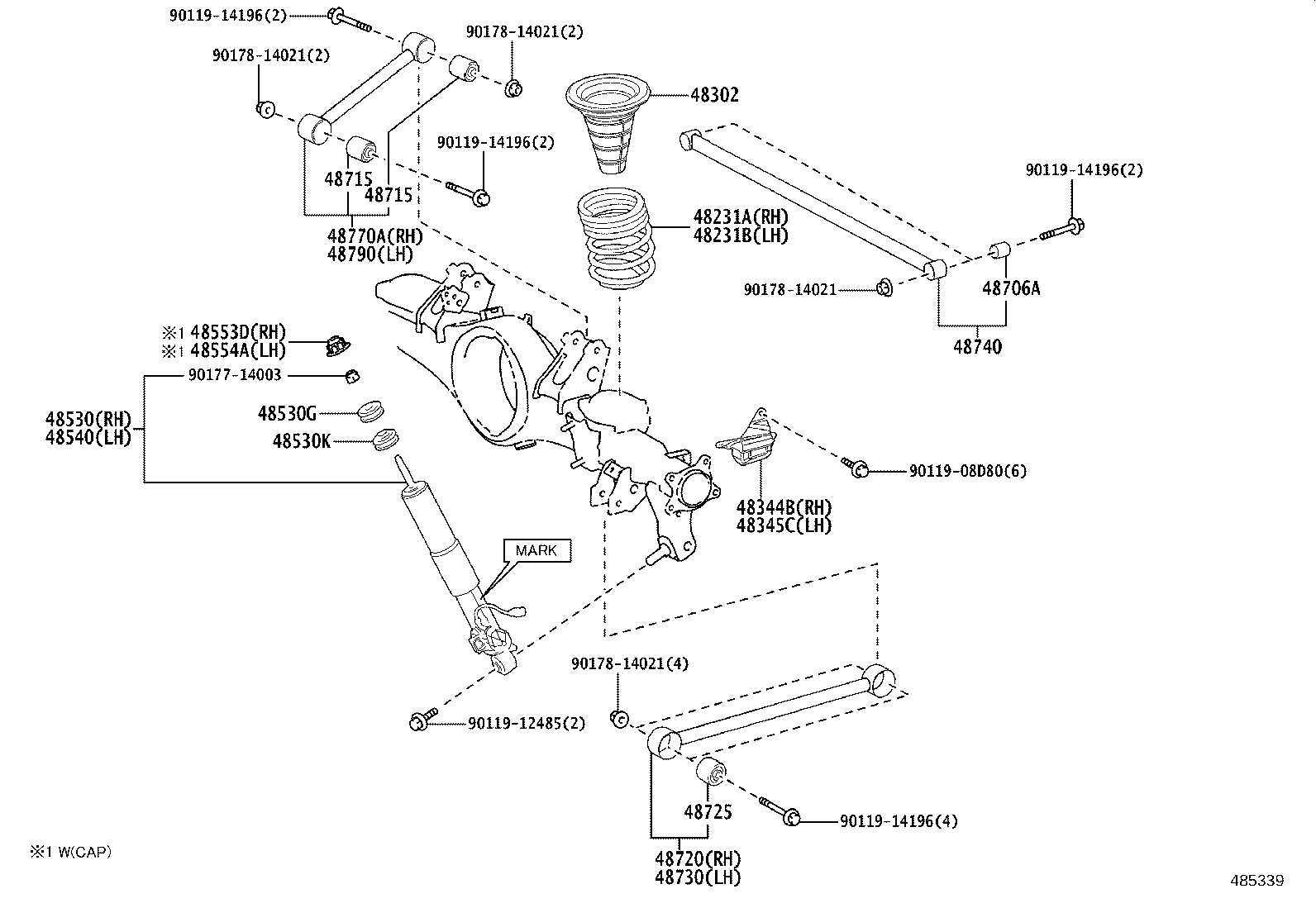

(2104- )
W(AVS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43346C - PROTECTOR, LOWER BALL JOINT DUST COVER | ||||
| 43346-60030 |
GRJ300,VJA300 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-60K60 |
VJA300..(V,Z)..GCC |
1 | ||
| 48231-60K50 |
GRJ300;VJA300..(A,G)..GCC |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-60K60 |
VJA300..(V,Z)..GCC |
1 | ||
| 48231-60K50 |
GRJ300;VJA300..(A,G)..GCC |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-60130 |
GRJ300,VJA300..GCC |
2 | ||
| 48344B - STOPPER, BUMPER, REAR RH | ||||
| 48344-60050 |
GRJ300,VJA300 |
1 | ||
| 48345C - STOPPER, BUMPER, REAR LH | ||||
| 48345-60010 |
GRJ300,VJA300 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80A82 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48530-60490,EGYPT SPEC |
1 | ||
| 48530-69795 |
VJA300..Z..GCC MARK 48530-60580,EGYPT SPEC |
1 | ||
| 48530-80A81 |
GRJ300,VJA300..A,G,V MARK 48530-60480 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48505-60070 |
GRJ300,VJA300 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 48505-60130 |
GRJ300,VJA300 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-69025 |
VJA300..Z..GCC MARK 48540-60030,EGYPT SPEC |
1 | ||
| 48530-80A82 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48530-60490,EGYPT SPEC |
1 | ||
| 48530-80A81 |
GRJ300,VJA300..A,G,V MARK 48530-60480 |
1 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-60080 |
GRJ300,VJA300 |
2 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48714-60030 |
GRJ300,VJA300 |
4 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48714-60030 |
GRJ300,VJA300 |
4 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-60080 |
GRJ300,VJA300 |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-60020 |
GRJ300,VJA300 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-60080 |
GRJ300,VJA300 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60170 |
GRJ300,VJA300 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48710-60170 |
GRJ300,VJA300..A,G |
1 | ||
| 48710-60180 |
GRJ300,VJA300..V,Z |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48710-60170 |
GRJ300,VJA300 |
1 | ||
| 48807 - BRACKET, REAR STABILIZER BAR, RH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48807 - BRACKET, REAR STABILIZER BAR, RH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48807 - BRACKET, REAR STABILIZER BAR, RH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48808 - BRACKET, REAR STABILIZER BAR, LH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48808 - BRACKET, REAR STABILIZER BAR, LH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48808 - BRACKET, REAR STABILIZER BAR, LH | ||||
| 4884A-60020 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-60320 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60090 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60090 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60090 |
GRJ300,VJA300..GCC,GEN TYPE A:REFER ILLUST. |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
GRJ300,VJA300 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
GRJ300,VJA300 |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-60070 |
GRJ300,VJA300 |
1 | ||
| 48836R - BRACKET, REAR STABILIZER END, RH | ||||
| 48836-60150 |
GRJ300,VJA300 |
1 | ||
| 48837R - BRACKET, REAR STABILIZER END, LH | ||||
| 48837-60090 |
GRJ300,VJA300 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-08D80 | ||||
| 90119-12485 | ||||
| 90119-12486 | ||||
| 90119-14196 | ||||
| 90177-14003 | ||||
| 90178-14021 | ||||
| 94151-21241 | ||||
| 94622-41200 | ||||
ILLUST NO. 1 OF 2(2104- )
W(AVS & E-KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-60K60 |
VJA300..(V,Z)..GCC |
1 | ||
| 48231-60K50 |
GRJ300;VJA300..(A,G)..GCC |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-60K60 |
VJA300..(V,Z)..GCC |
1 | ||
| 48231-60K50 |
GRJ300;VJA300..(A,G)..GCC |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-60130 |
GRJ300,VJA300..GCC |
2 | ||
| 48344B - STOPPER, BUMPER, REAR RH | ||||
| 48344-60050 |
GRJ300,VJA300 |
1 | ||
| 48345C - STOPPER, BUMPER, REAR LH | ||||
| 48345-60010 |
GRJ300,VJA300 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80A82 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48530-60490,EGYPT SPEC |
1 | ||
| 48530-69795 |
VJA300..Z..GCC MARK 48530-60580,EGYPT SPEC |
1 | ||
| 48530-80A81 |
GRJ300,VJA300..A,G,V MARK 48530-60480 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48505-60070 |
GRJ300,VJA300 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 48505-60130 |
GRJ300,VJA300 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-69025 |
VJA300..Z..GCC MARK 48540-60030,EGYPT SPEC |
1 | ||
| 48530-80A82 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48530-60490,EGYPT SPEC |
1 | ||
| 48530-80A81 |
GRJ300,VJA300..A,G,V MARK 48530-60480 |
1 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-60080 |
GRJ300,VJA300 |
2 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48714-60030 |
GRJ300,VJA300 |
4 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48714-60030 |
GRJ300,VJA300 |
4 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-60080 |
GRJ300,VJA300 |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-60020 |
GRJ300,VJA300 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-60080 |
GRJ300,VJA300 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60170 |
GRJ300,VJA300 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48710-60170 |
GRJ300,VJA300..A,G |
1 | ||
| 48710-60180 |
GRJ300,VJA300..V,Z |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48710-60170 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-08D80 | ||||
| 90119-12485 | ||||
| 90119-14196 | ||||
| 90177-14003 | ||||
| 90178-14021 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
