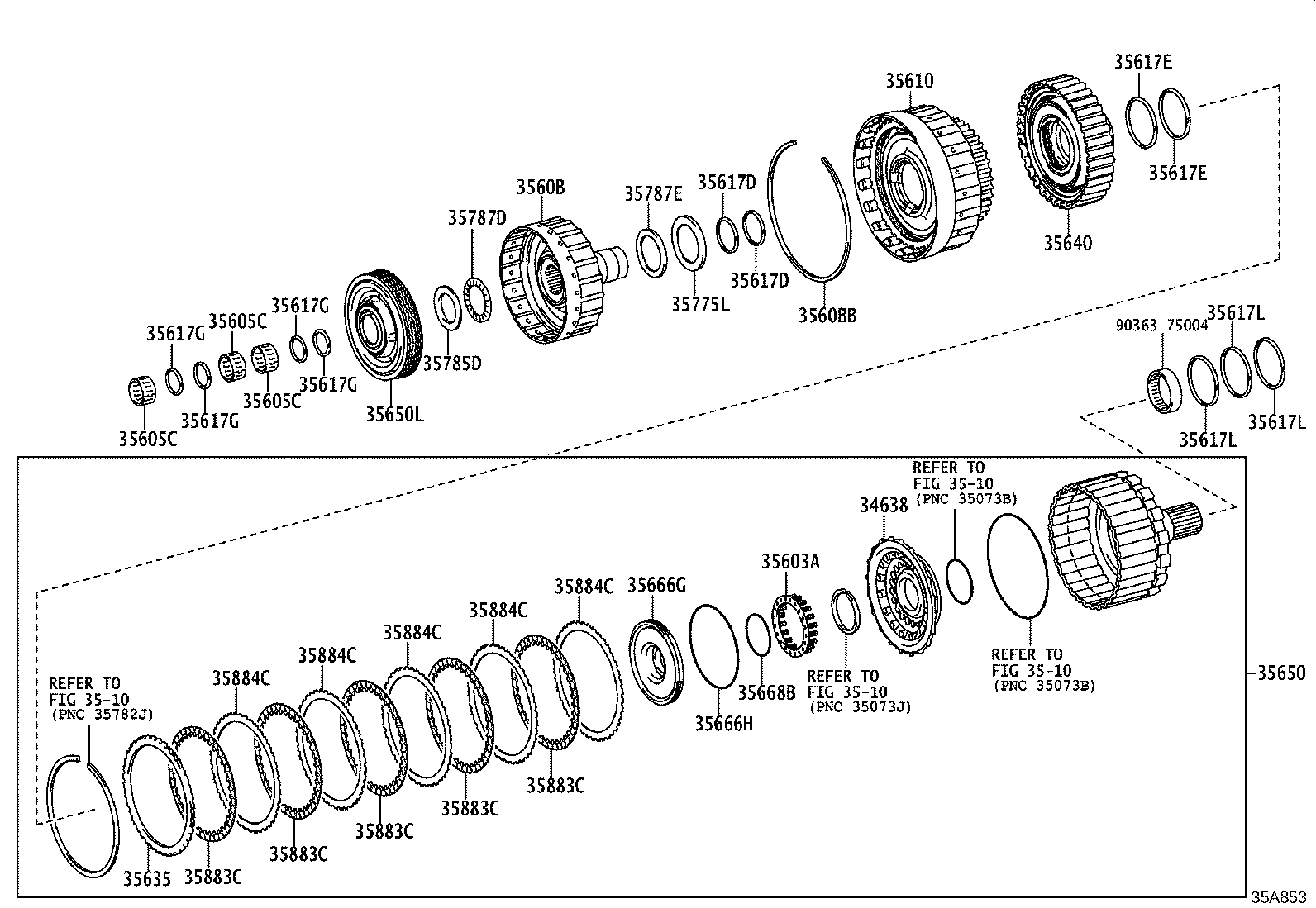

Toyota Land cruiser VJA300 BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

Part #	Description	Period	Qty
34638 - PISTON, C-4 CLUTCH
34638-60020	VJA300	04/2021 - 12/2999	1
35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603-60050	VJA300	04/2021 - 12/2999	1
35605C - BEARING, NEEDLE ROLLER
90364-32027	VJA300	04/2021 - 12/2999	3
35605C - BEARING, NEEDLE ROLLER
90364-32027	VJA300	04/2021 - 12/2999	3
35605C - BEARING, NEEDLE ROLLER
90364-32027	VJA300	04/2021 - 12/2999	3
3560B - DRUM SUB-ASSY, C-2
3560B-60010	VJA300	04/2021 - 12/2999	1
3560BB - RING, HOLE SNAP(FOR C-2 DRUM)
90520-99200	VJA300	04/2021 - 12/2999	1
35610 - CLUTCH ASSY, FRONT MULTIPLE DISC
35610-60190	VJA300	04/2021 - 12/2999	1
35617D - RING, CLUTCH DRUM OIL SEAL
35617-60070	VJA300	04/2021 - 12/2999	2
35617D - RING, CLUTCH DRUM OIL SEAL
35617-60070	VJA300	04/2021 - 12/2999	2
35617E - RING, CLUTCH DRUM OIL SEAL, NO.2
35617-60080	VJA300	04/2021 - 12/2999	2
35617E - RING, CLUTCH DRUM OIL SEAL, NO.2
35617-60080	VJA300	04/2021 - 12/2999	2
35617G - RING, CLUTCH DRUM OIL SEAL
35617-60050	VJA300	04/2021 - 12/2999	4
35617G - RING, CLUTCH DRUM OIL SEAL
35617-60050	VJA300	04/2021 - 12/2999	4
35617G - RING, CLUTCH DRUM OIL SEAL
35617-60050	VJA300	04/2021 - 12/2999	4
35617G - RING, CLUTCH DRUM OIL SEAL
35617-60050	VJA300	04/2021 - 12/2999	4
35617L - RING, CLUTCH DRUM OIL SEAL, NO.3
35617-60070	VJA300	04/2021 - 12/2999	3
35617L - RING, CLUTCH DRUM OIL SEAL, NO.3
35617-60070	VJA300	04/2021 - 12/2999	3
35617L - RING, CLUTCH DRUM OIL SEAL, NO.3
35617-60070	VJA300	04/2021 - 12/2999	3
35635 - FLANGE, FORWARD CLUTCH
35635-60570	VJA300 T=4.9	04/2021 - 12/2999	1
35635-60550	VJA300 T=4.7	04/2021 - 12/2999	1
35635-60590	VJA300 T=5.1	04/2021 - 12/2999	1
35635-60510	VJA300 T=4.3	04/2021 - 12/2999	1
35635-60520	VJA300 T=4.4	04/2021 - 12/2999	1
35635-60580	VJA300 T=5.0	04/2021 - 12/2999	1
35635-60530	VJA300 T=4.5	04/2021 - 12/2999	1
35635-60540	VJA300 T=4.6	04/2021 - 12/2999	1
35635-60560	VJA300 T=4.8	04/2021 - 12/2999	1
35640 - CLUTCH ASSY, C-3
35640-60010	VJA300	04/2021 - 12/2999	1
35650 - CLUTCH ASSY, REAR MULTIPLE DISC
35650-60200	VJA300	04/2021 - 12/2999	1
35650L - CLUTCH ASSY, C-2
35650-60190	VJA300	04/2021 - 12/2999	1
35666G - BALANCER, C-4 CLUTCH
35666-60010	VJA300	04/2021 - 12/2999	1
35666H - RING, O(FOR C-4 CLUTCH BALANCER)
90301-99264	VJA300	04/2021 - 12/2999	1
35668B - RING, O(FOR CLUTCH BALANCER)
90301-61007	VJA300	04/2021 - 12/2999	1
35775L - RACE, THRUST BEARING, NO.5
35775-60030	VJA300	04/2021 - 12/2999	1
35785D - RACE, THRUST BEARING, NO.4
35785-60020	VJA300	04/2021 - 12/2999	1
35787D - BEARING, THRUST NEEDLE ROLLER
90374-47008	VJA300	04/2021 - 12/2999	1
35787E - BEARING, THRUST NEEDLE ROLLER
90374-50004	VJA300	04/2021 - 12/2999	1
35883C - DISC, CLUTCH, NO.4
35883-60010	VJA300	04/2021 - 12/2999	5
35883C - DISC, CLUTCH, NO.4
35883-60010	VJA300	04/2021 - 12/2999	5
35883C - DISC, CLUTCH, NO.4
35883-60010	VJA300	04/2021 - 12/2999	5
35883C - DISC, CLUTCH, NO.4
35883-60010	VJA300	04/2021 - 12/2999	5
35883C - DISC, CLUTCH, NO.4
35883-60010	VJA300	04/2021 - 12/2999	5
35884C - PLATE, CLUTCH, NO.4
35884-60010	VJA300	04/2021 - 12/2999	5
35884C - PLATE, CLUTCH, NO.4
35884-60010	VJA300	04/2021 - 12/2999	5
35884C - PLATE, CLUTCH, NO.4
35884-60010	VJA300	04/2021 - 12/2999	5
35884C - PLATE, CLUTCH, NO.4
35884-60010	VJA300	04/2021 - 12/2999	5
35884C - PLATE, CLUTCH, NO.4
35884-60010	VJA300	04/2021 - 12/2999	5
Common parts
90363-75004
Linked diagrams
3510

VJA300L-GNUAZV (2021)

(2104- )VJA300
