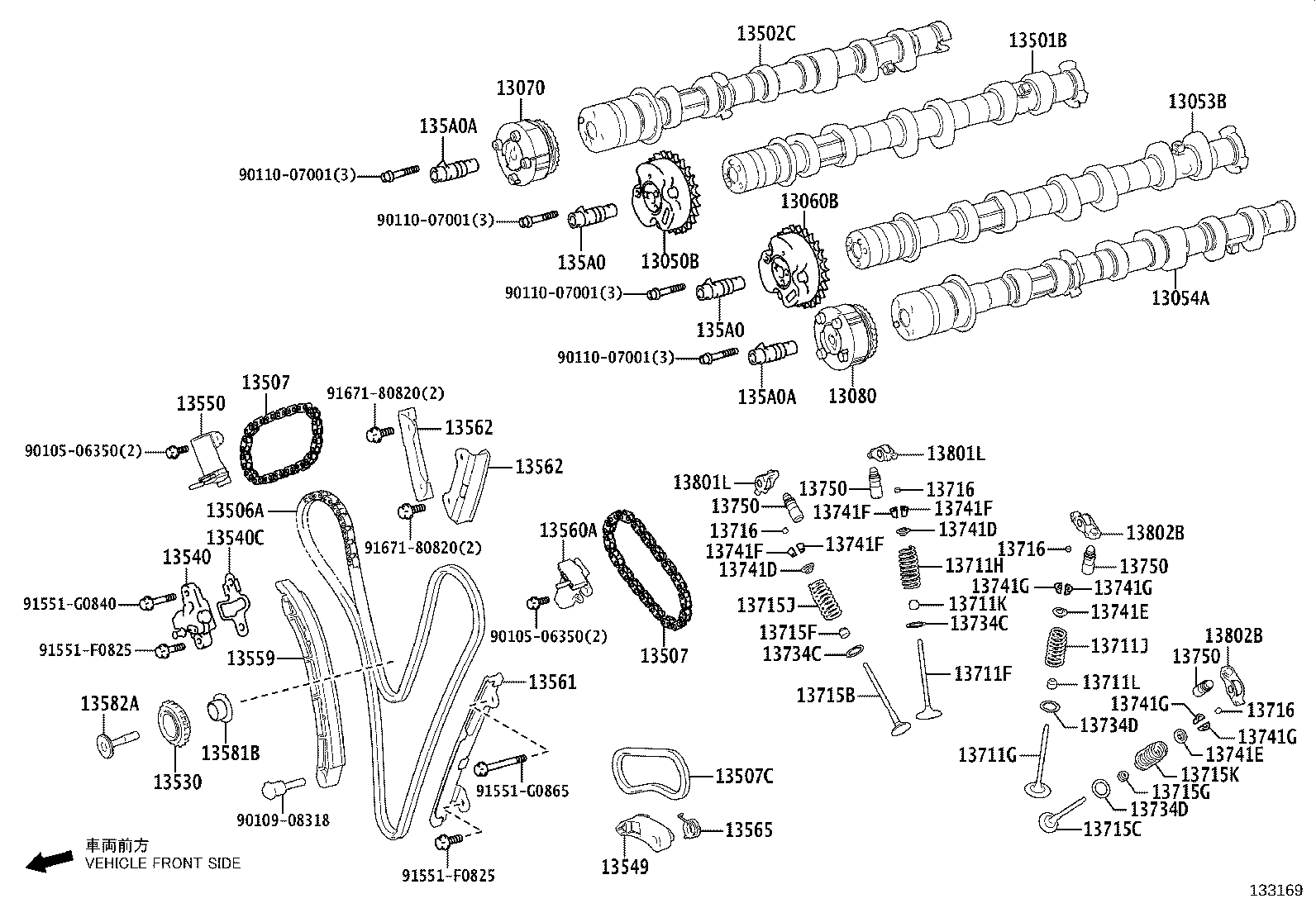

VJA300L-GNUAZV (2021)
Toyota Land Cruiser
(2104- )V35AFTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050B - GEAR ASSY, CAMSHAFT TIMING INTAKE, RH | ||||
| 13050-70030 |
V35AFTS..VJA300 |
1 | ||
| 13053B - CAMSHAFT SUB-ASSY, INTAKE, LH | ||||
| 13053-70020 |
V35AFTS..VJA300 |
1 | ||
| 13054A - CAMSHAFT SUB-ASSY, EXHAUST, LH | ||||
| 13054-70010 |
V35AFTS..VJA300 |
1 | ||
| 13060B - GEAR ASSY, CAMSHAFT TIMING INTAKE, LH | ||||
| 13050-70030 |
V35AFTS..VJA300 |
1 | ||
| 13070 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH | ||||
| 13070-70020 |
V35AFTS..VJA300 |
1 | ||
| 13080 - GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH | ||||
| 13080-70010 |
V35AFTS..VJA300 |
1 | ||
| 13501B - CAMSHAFT SUB-ASSY, INTAKE, RH | ||||
| 13501-70130 |
V35AFTS..VJA300 |
1 | ||
| 13502C - CAMSHAFT SUB-ASSY, EXHAUST, RH | ||||
| 13502-70080 |
V35AFTS..VJA300 |
1 | ||
| 13506A - CHAIN SUB-ASSY, NO.1 | ||||
| 13506-70010 |
V35AFTS..VJA300 |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-70010 |
V35AFTS..VJA300 |
2 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-70010 |
V35AFTS..VJA300 |
2 | ||
| 13507C - CHAIN SUB-ASSY, OIL PUMP DRIVE | ||||
| 13507-70020 |
V35AFTS..VJA300 |
1 | ||
| 13530 - SPROCKET ASSY, IDLE | ||||
| 13530-70020 |
V35AFTS..VJA300 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-70040 |
V35AFTS..VJA300 |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-70010 |
V35AFTS..VJA300 |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-70010 |
V35AFTS..VJA300 |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-70020 |
V35AFTS..VJA300 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-70020 |
V35AFTS..VJA300 |
1 | ||
| 13560A - TENSIONER ASSY, CHAIN, NO.3 | ||||
| 13560-70020 |
V35AFTS..VJA300 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-70020 |
V35AFTS..VJA300 |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-70020 |
V35AFTS..VJA300 |
2 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-70020 |
V35AFTS..VJA300 |
2 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-70010 |
V35AFTS..VJA300 |
1 | ||
| 13581B - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-70010 |
V35AFTS..VJA300 |
1 | ||
| 13582A - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-70010 |
V35AFTS..VJA300 |
1 | ||
| 135A0 - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE) | ||||
| 135A0-70020 |
V35AFTS..VJA300 |
2 | ||
| 135A0 - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE) | ||||
| 135A0-70020 |
V35AFTS..VJA300 |
2 | ||
| 135A0A - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR EXHAUST) | ||||
| 135A0-70020 |
V35AFTS..VJA300 |
2 | ||
| 135A0A - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR EXHAUST) | ||||
| 135A0-70020 |
V35AFTS..VJA300 |
2 | ||
| 13711F - VALVE, INTAKE(FOR RH CYLINDER HEAD) | ||||
| 13711-70070 |
V35AFTS..VJA300 |
6 | ||
| 13711G - VALVE, INTAKE(FOR LH CYLINDER HEAD) | ||||
| 13711-70070 |
V35AFTS..VJA300 |
6 | ||
| 13711H - SPRING, INTAKE VALVE COMPRESSION(FOR RH CYLINDER HEAD) | ||||
| 90501-34028 |
V35AFTS..VJA300 |
6 | ||
| 13711J - SPRING, INTAKE VALVE COMPRESSION(FOR LH CYLINDER HEAD) | ||||
| 90501-34028 |
V35AFTS..VJA300 |
6 | ||
| 13711K - SEAL, INTAKE VALVE STEM OIL(FOR RH CYLINDER HEAD) | ||||
| 90913-02126 |
V35AFTS..VJA300 |
6 | ||
| 13711L - SEAL, INTAKE VALVE STEM OIL(FOR LH CYLINDER HEAD) | ||||
| 90913-02126 |
V35AFTS..VJA300 |
6 | ||
| 13715B - VALVE, EXHAUST(FOR RH CYLINDER HEAD) | ||||
| 13715-70110 |
V35AFTS..VJA300 |
6 | ||
| 13715C - VALVE, EXHAUST(FOR LH CYLINDER HEAD) | ||||
| 13715-70110 |
V35AFTS..VJA300 |
6 | ||
| 13715F - SEAL, EXHAUST VALVE STEM OIL(FOR RH CYLINDER HEAD) | ||||
| 90913-02127 |
V35AFTS..VJA300 |
6 | ||
| 13715G - SEAL, EXHAUST VALVE STEM OIL(FOR LH CYLINDER HEAD) | ||||
| 90913-02127 |
V35AFTS..VJA300 |
6 | ||
| 13715J - SPRING, EXHAUST VALVE COMPRESSION(FOR RH CYLINDER HEAD) | ||||
| 90501-34026 |
V35AFTS..VJA300 |
6 | ||
| 13715K - SPRING, EXHAUST VALVE COMPRESSION(FOR LH CYLINDER HEAD) | ||||
| 90501-34026 |
V35AFTS..VJA300 |
6 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-25010 |
V35AFTS..VJA300 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-25010 |
V35AFTS..VJA300 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-25010 |
V35AFTS..VJA300 |
24 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-25010 |
V35AFTS..VJA300 |
24 | ||
| 13734C - SEAT, VALVE SPRING(FOR RH CYLINDER HEAD) | ||||
| 13734-62020 |
V35AFTS..VJA300 |
12 | ||
| 13734C - SEAT, VALVE SPRING(FOR RH CYLINDER HEAD) | ||||
| 13734-62020 |
V35AFTS..VJA300 |
12 | ||
| 13734D - SEAT, VALVE SPRING(FOR LH CYLINDER HEAD) | ||||
| 13734-62020 |
V35AFTS..VJA300 |
12 | ||
| 13734D - SEAT, VALVE SPRING(FOR LH CYLINDER HEAD) | ||||
| 13734-62020 |
V35AFTS..VJA300 |
12 | ||
| 13741D - RETAINER, VALVE SPRING(FOR RH CYLINDER HEAD) | ||||
| 13741-36010 |
V35AFTS..VJA300 |
12 | ||
| 13741D - RETAINER, VALVE SPRING(FOR RH CYLINDER HEAD) | ||||
| 13741-36010 |
V35AFTS..VJA300 |
12 | ||
| 13741E - RETAINER, VALVE SPRING(FOR LH CYLINDER HEAD) | ||||
| 13741-36010 |
V35AFTS..VJA300 |
12 | ||
| 13741E - RETAINER, VALVE SPRING(FOR LH CYLINDER HEAD) | ||||
| 13741-36010 |
V35AFTS..VJA300 |
12 | ||
| 13741F - LOCK, VALVE SPRING RETAINER(FOR RH CYLINDER HEAD) | ||||
| 90913-03028 |
V35AFTS..VJA300 |
24 | ||
| 13741F - LOCK, VALVE SPRING RETAINER(FOR RH CYLINDER HEAD) | ||||
| 90913-03028 |
V35AFTS..VJA300 |
24 | ||
| 13741F - LOCK, VALVE SPRING RETAINER(FOR RH CYLINDER HEAD) | ||||
| 90913-03028 |
V35AFTS..VJA300 |
24 | ||
| 13741F - LOCK, VALVE SPRING RETAINER(FOR RH CYLINDER HEAD) | ||||
| 90913-03028 |
V35AFTS..VJA300 |
24 | ||
| 13741G - LOCK, VALVE SPRING RETAINER(FOR LH CYLINDER HEAD) | ||||
| 90913-03028 |
V35AFTS..VJA300 |
24 | ||
| 13741G - LOCK, VALVE SPRING RETAINER(FOR LH CYLINDER HEAD) | ||||
| 90913-03028 |
V35AFTS..VJA300 |
24 | ||
| 13741G - LOCK, VALVE SPRING RETAINER(FOR LH CYLINDER HEAD) | ||||
| 90913-03028 |
V35AFTS..VJA300 |
24 | ||
| 13741G - LOCK, VALVE SPRING RETAINER(FOR LH CYLINDER HEAD) | ||||
| 90913-03028 |
V35AFTS..VJA300 |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70020 |
V35AFTS..VJA300 |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70020 |
V35AFTS..VJA300 |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70020 |
V35AFTS..VJA300 |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70020 |
V35AFTS..VJA300 |
24 | ||
| 13801L - ARM SUB-ASSY, VALVE ROCKER, RH | ||||
| 13801-25010 |
V35AFTS..VJA300 |
12 | ||
| 13801L - ARM SUB-ASSY, VALVE ROCKER, RH | ||||
| 13801-25010 |
V35AFTS..VJA300 |
12 | ||
| 13802B - ARM SUB-ASSY, VALVE ROCKER, LH | ||||
| 13801-25010 |
V35AFTS..VJA300 |
12 | ||
| 13802B - ARM SUB-ASSY, VALVE ROCKER, LH | ||||
| 13801-25010 |
V35AFTS..VJA300 |
12 | ||
| Common parts | ||||
| 90105-06350 | ||||
| 90109-08318 | ||||
| 90110-07001 | ||||
| 91551-F0825 | ||||
| 91551-G0840 | ||||
| 91551-G0865 | ||||
| 91671-80820 | ||||
