VJA300L-GMUVZW (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

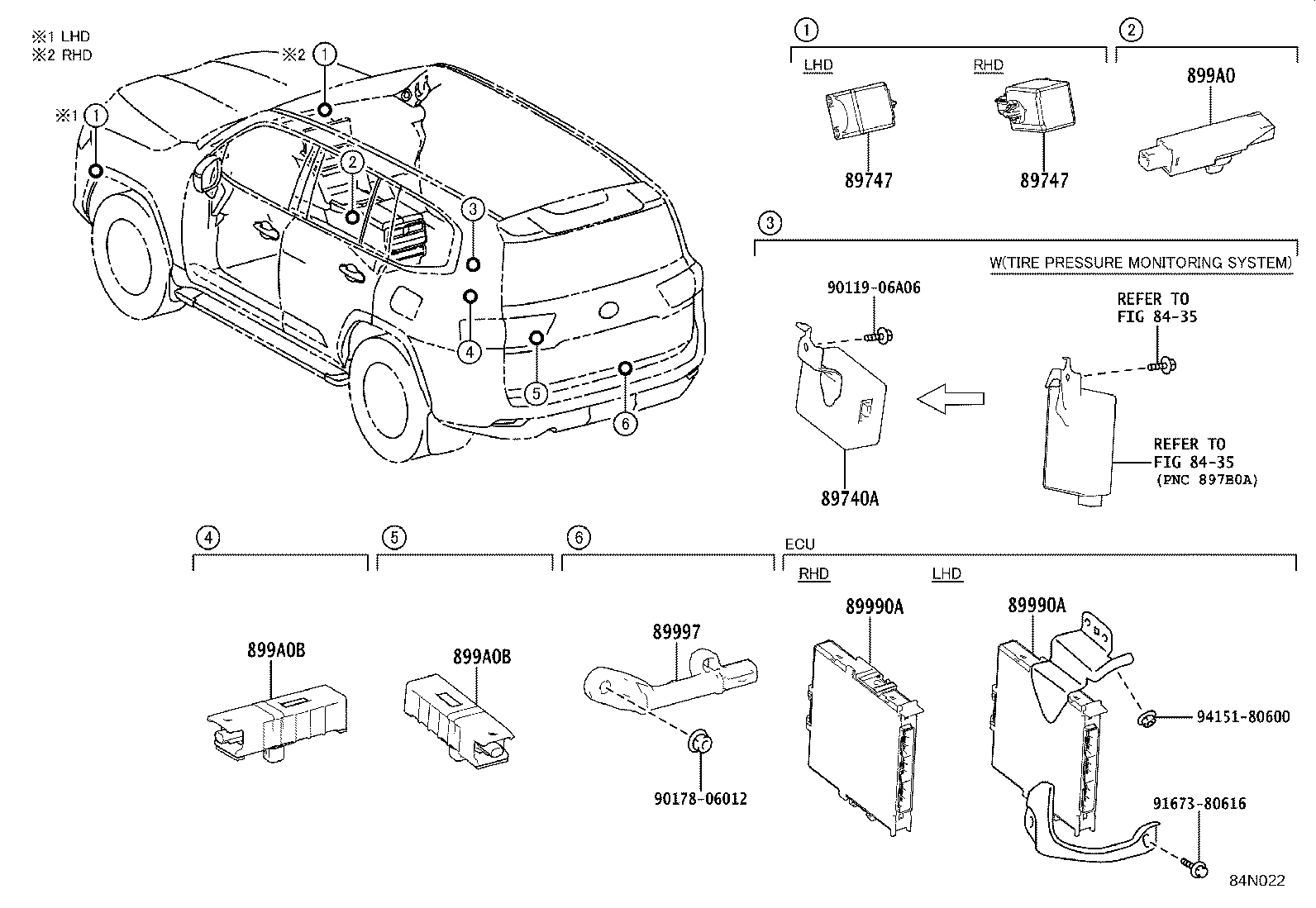

Click highlighted areas on diagram

diagram 8435 8435 89740A 89747 89747 89990A 89990A 89997 899A0 899A0B 899A0B 9011906A06 9017806012 9167380616 9415180600
Part # Description Qty Price
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-60340

VJA300..(V,Z)..EUR

TAJIKISTAN, TURKMENISTAN SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT

 1
89740-60340

VJA300..A..EUR;VJA300..7S..V..EUR

VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT

 1
89740-60340

VJA300..EUR

AZER, GEORGIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GRJ300,VJA300

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GRJ300,VJA300

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-60030

VJA300..A..EUR

SMART ENTRY-WITH

 1
899H0-60050

VJA300..A..EUR;GRJ300,VJA300..LHD..(V,Z)

 1
899H0-60030

VJA300..A..EUR

SMART ENTRY-WITH(PANIC BUTTON)

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-60030

VJA300..A..EUR

SMART ENTRY-WITH

 1
899H0-60050

VJA300..A..EUR;GRJ300,VJA300..LHD..(V,Z)

 1
899H0-60030

VJA300..A..EUR

SMART ENTRY-WITH(PANIC BUTTON)

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

GRJ300,VJA300

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-12130

GRJ300,VJA300

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-60070

GRJ300,VJA300

 2
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-60070

GRJ300,VJA300

 2
Common parts
90119-06A06
90178-06012
91673-80616
94151-80600
Linked diagrams
8435
