VJA300L-GMUVZW (2021)
Toyota Land Cruiser

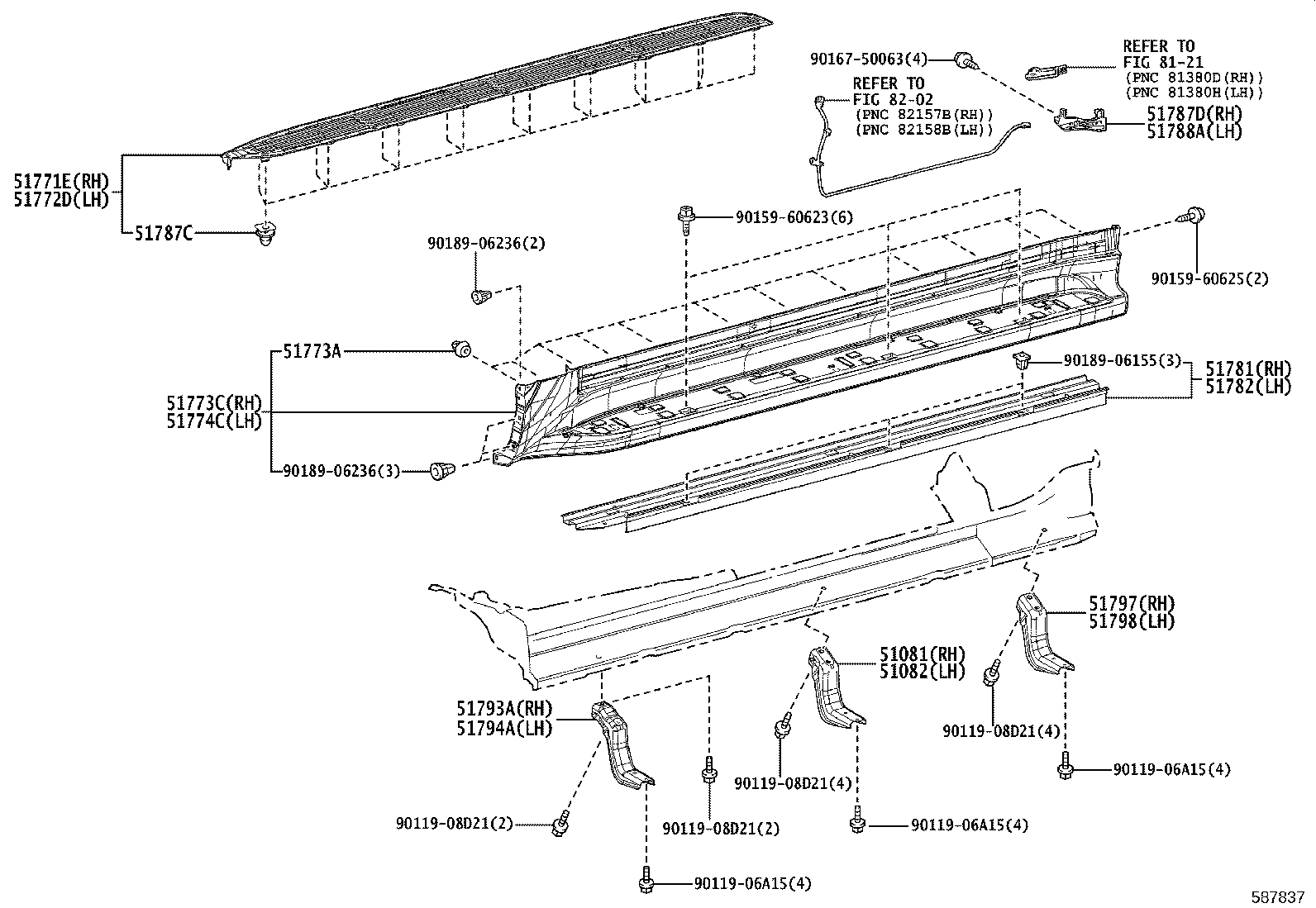

ILLUST NO. 2 OF 2(2104- )RHD..Z ; (2104- )LHD..V,Z
SIDE STEP,W(FULL COVER,STEP LAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH | ||||
| 51081-60020 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH | ||||
| 51082-60040 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51771E - PLATE, STEP, RH | ||||
| 51771-6A210 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-60230 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-09206 |
VJA300..Z;VJA300..V..EUR |
24 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51701-60280A0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,SUPER WHITE 2,040 |
1 | ||
| 51701-60280B0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,SILVER ME.,1F7 |
1 | ||
| 51701-60280A1 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,WHITE PEARL CS.,070 |
1 | ||
| 51701-60280A2 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,PRECIOUS WHITE PEARL,090 |
1 | ||
| 51701-60280B1 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,GRAY ME.,1G3 |
1 | ||
| 51701-60280D0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,DK. RED M.M.,3Q3 |
1 | ||
| 51701-60280C1 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,ATTITUDE BLACK MC.,218 |
1 | ||
| 51701-60280C0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,BLACK,202 |
1 | ||
| 51701-60280E0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 51701-60280J0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,DK. BLUE MC.,8X8 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51702-60190A1 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,WHITE PEARL CS.,070 |
1 | ||
| 51702-60190B1 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,GRAY ME.,1G3 |
1 | ||
| 51702-60190B0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,SILVER ME.,1F7 |
1 | ||
| 51702-60190A0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,SUPER WHITE 2,040 |
1 | ||
| 51702-60190A2 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,PRECIOUS WHITE PEARL,090 |
1 | ||
| 51702-60190C0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,BLACK,202 |
1 | ||
| 51702-60190E0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 51702-60190D0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,DK. RED M.M.,3Q3 |
1 | ||
| 51702-60190C1 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,ATTITUDE BLACK MC.,218 |
1 | ||
| 51702-60190J0 |
VJA300..Z;VJA300..V..EUR NO PAINT REQ.,DK. BLUE MC.,8X8 |
1 | ||
| 51781 - PANEL, STEP, RH | ||||
| 51781-60380 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51782 - PANEL, STEP, LH | ||||
| 51782-60360 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51787C - INSERT, SIDE DOOR STEP PLATE | ||||
| 51787-60070 |
VJA300..Z;VJA300..V..EUR |
34 | ||
| 51787D - REINFORCEMENT, STEP COVER, RH | ||||
| 51787-60110 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51788A - REINFORCEMENT, STEP COVER, LH | ||||
| 51788-60060 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60220 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51794A - BRACKET, SIDE STEP, NO.1 LH | ||||
| 51793-60220 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-60170 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51797-60170 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| Common parts | ||||
| 90119-06A15 | ||||
| 90119-08D21 | ||||
| 90159-60623 | ||||
| 90159-60625 | ||||
| 90167-50063 | ||||
| 90189-06155 | ||||
| 90189-06236 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||

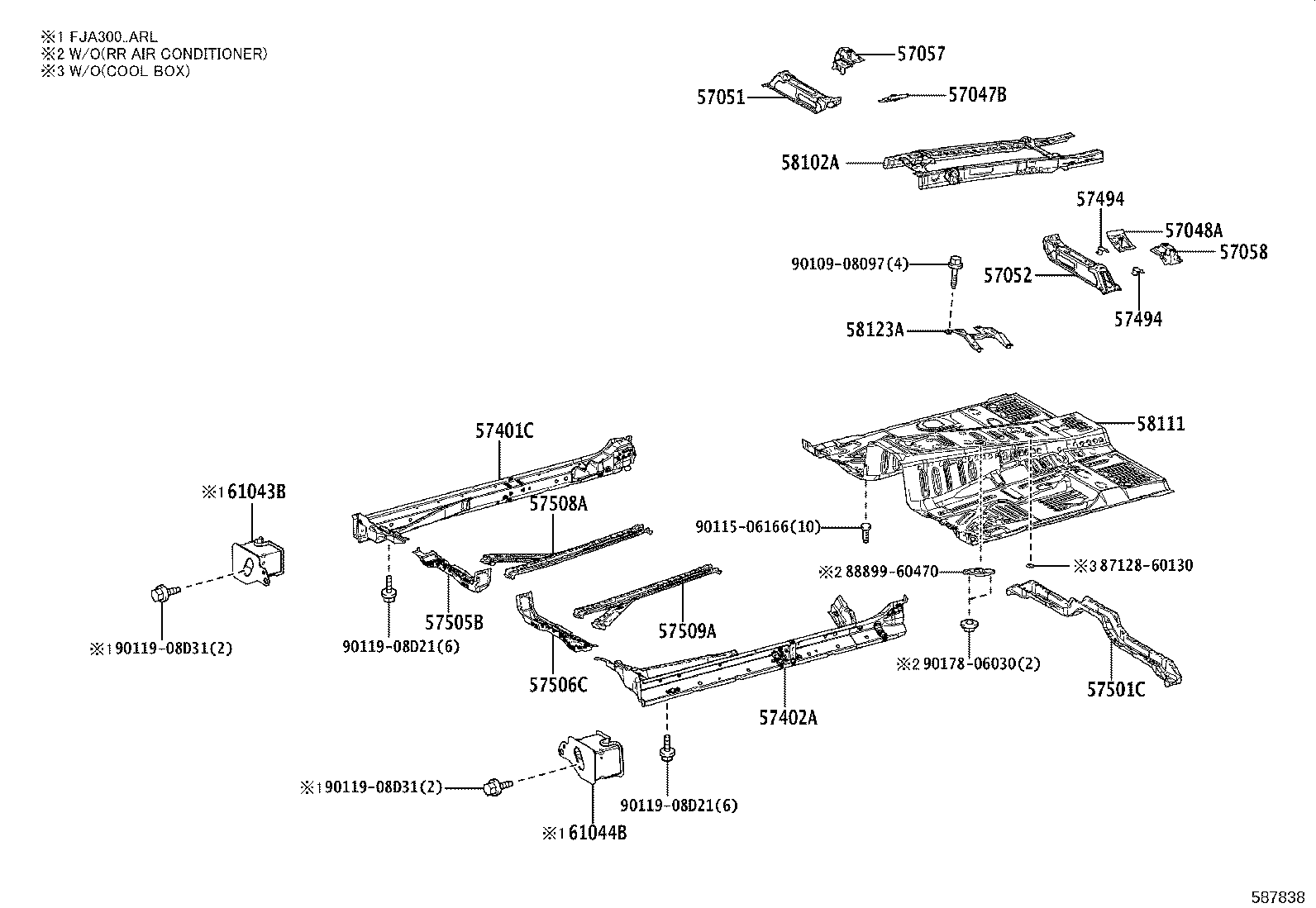

ILLUST NO. 1 OF 2(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57047B - BRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH | ||||
| 57047-60010 |
GRJ300,VJA300 |
1 | ||
| 57048A - BRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH | ||||
| 57048-60010 |
GRJ300,VJA300 |
1 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-60080 |
GRJ300,VJA300 |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-60080 |
GRJ300,VJA300 |
1 | ||
| 57057 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.7 RH | ||||
| 57057-60010 |
GRJ300,VJA300 |
1 | ||
| 57058 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.7 LH | ||||
| 57058-60010 |
GRJ300,VJA300 |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-60140 |
GRJ300,VJA300 |
1 | ||
| 57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-60150 |
GRJ300,VJA300 |
1 | ||
| 57494 - BRACE, FRONT FLOOR CROSS, NO.2 LH | ||||
| 57494-60010 |
GRJ300,VJA300 |
2 | ||
| 57494 - BRACE, FRONT FLOOR CROSS, NO.2 LH | ||||
| 57494-60010 |
GRJ300,VJA300 |
2 | ||
| 57501C - BRACE SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57501-60010 |
GRJ300,VJA300 |
1 | ||
| 57505B - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH | ||||
| 57505-60080 |
GRJ300,VJA300 |
1 | ||
| 57506C - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH | ||||
| 57506-60050 |
GRJ300,VJA300 |
1 | ||
| 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 57508-60030 |
GRJ300,VJA300 |
1 | ||
| 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH | ||||
| 57509-60140 |
GRJ300,VJA300 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-60120 |
GRJ300,VJA300 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60G10 |
GRJ300,VJA300 |
1 | ||
| 58111-60G30 |
GRJ300;VJA300..LHD..(A,V,Z) EXTINGUISHER-WITH(ACCESSORY) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-60110 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 87128-60130 | ||||
| 88899-60470 | ||||
| 90109-08097 | ||||
| 90115-06166 | ||||
| 90119-08D21 | ||||
| 90119-08D31 | ||||
| 90178-06030 | ||||
