VJA300L-GMUAZW (2021)
Toyota Land Cruiser
Production
Apr 2021
-
Sep 9999
Engine
V35AFTS
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )

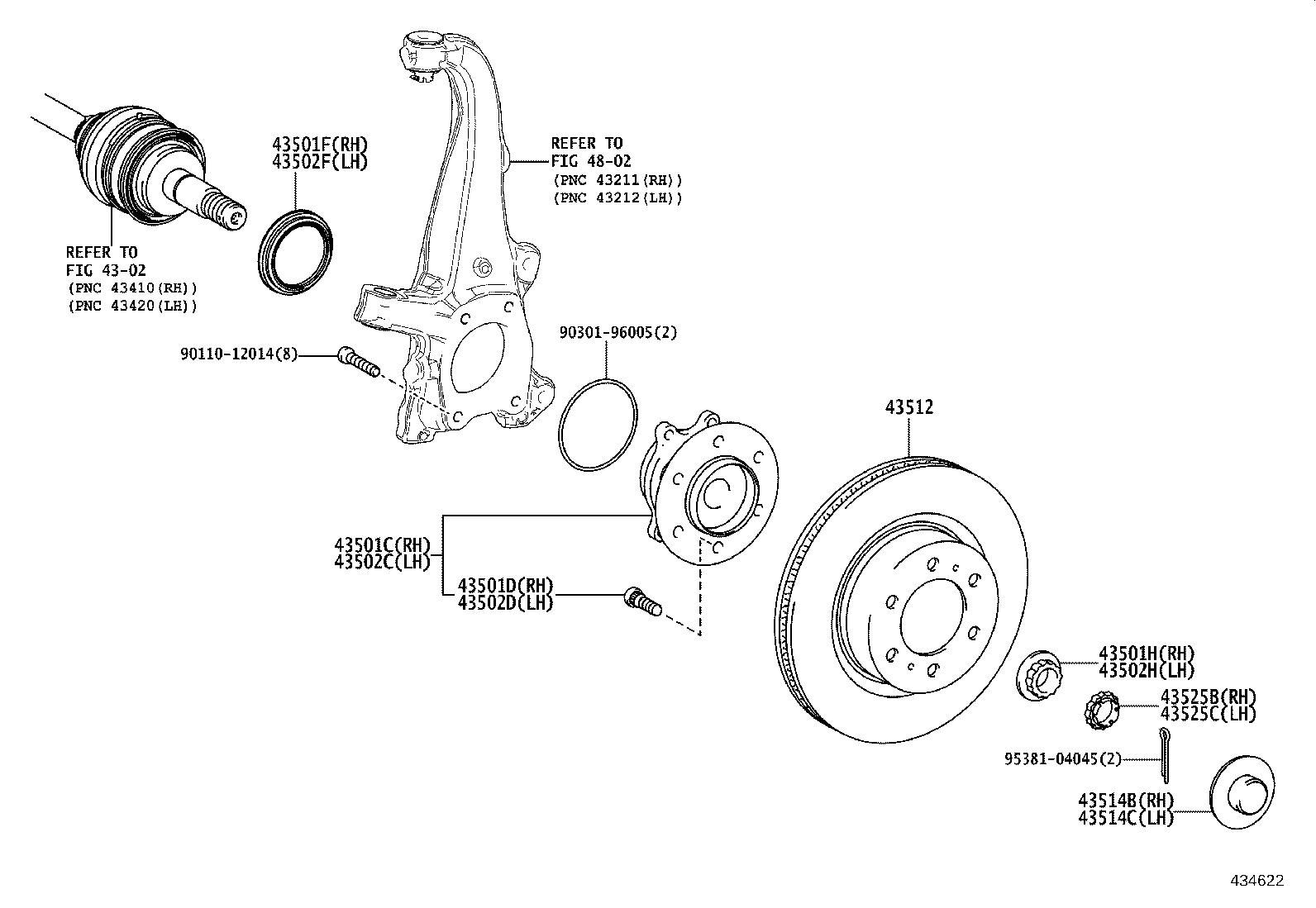

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43550-60010 |
GRJ300,VJA300 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02083 |
GRJ300,VJA300 |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90316-83001 |
GRJ300,VJA300 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90179-32007 |
GRJ300,VJA300 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43550-60010 |
GRJ300,VJA300 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02083 |
GRJ300,VJA300 |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90316-83001 |
GRJ300,VJA300 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90179-32007 |
GRJ300,VJA300 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-60290 |
VJA300 |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-60030 |
GRJ300,VJA300 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-60030 |
GRJ300,VJA300 |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-60010 |
GRJ300,VJA300 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90110-12014 | ||||
| 90301-96005 | ||||
| 95381-04045 | ||||
| Linked diagrams | ||||
| 4302 | ||||
| 4802 | ||||
