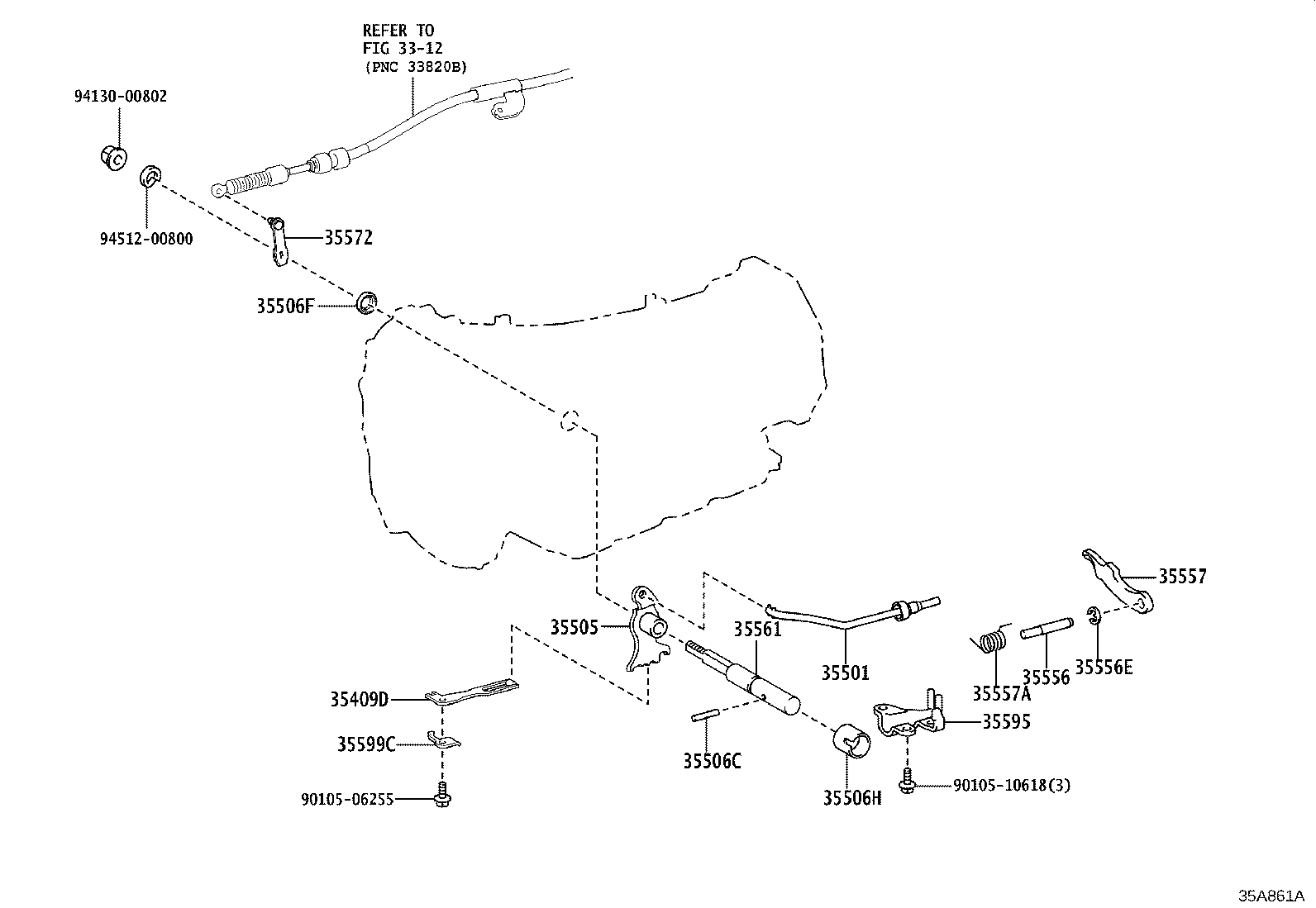

Toyota Land cruiser VJA300 THROTTLE LINK & VALVE LEVER (ATM)

Part #	Description	Period	Qty
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-60060	VJA300	04/2021 - 12/2999	1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-60050	VJA300	04/2021 - 12/2999	1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-60110	VJA300	04/2021 - 12/2999	1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011	GRJ300,VJA300	04/2021 - 12/2999	1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002	VJA300	04/2021 - 12/2999	1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20025	GRJ300,VJA300	04/2021 - 12/2999	1
35556 - SHAFT, PARKING LOCK PAWL
35556-60030	VJA300	04/2021 - 12/2999	1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021	GRJ300,VJA300	04/2021 - 12/2999	1
35557 - PAWL, PARKING LOCK
35557-60060	VJA300	04/2021 - 12/2999	1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90949-03147	VJA300	04/2021 - 12/2999	1
35561 - SHAFT, MANUAL VALVE LEVER
35561-60050	VJA300	04/2021 - 12/2999	1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-60170	VJA300	04/2021 - 12/2999	1
35595 - BRACKET, PARKING LOCK PAWL
35595-60050	VJA300	04/2021 - 12/2999	1
35599C - COVER, MANUAL DETENT SPRING
35599-60040	VJA300	04/2021 - 12/2999	1
Common parts
90105-06255
90105-10618
94130-00802
94512-00800
Linked diagrams
3312

VJA300L-GMUAZW (2021)
