VDJ200R-GNTVZW (2015)
Toyota Land Cruiser
Production
Aug 2015
-
Jul 2017
Engine
1VDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1508- )

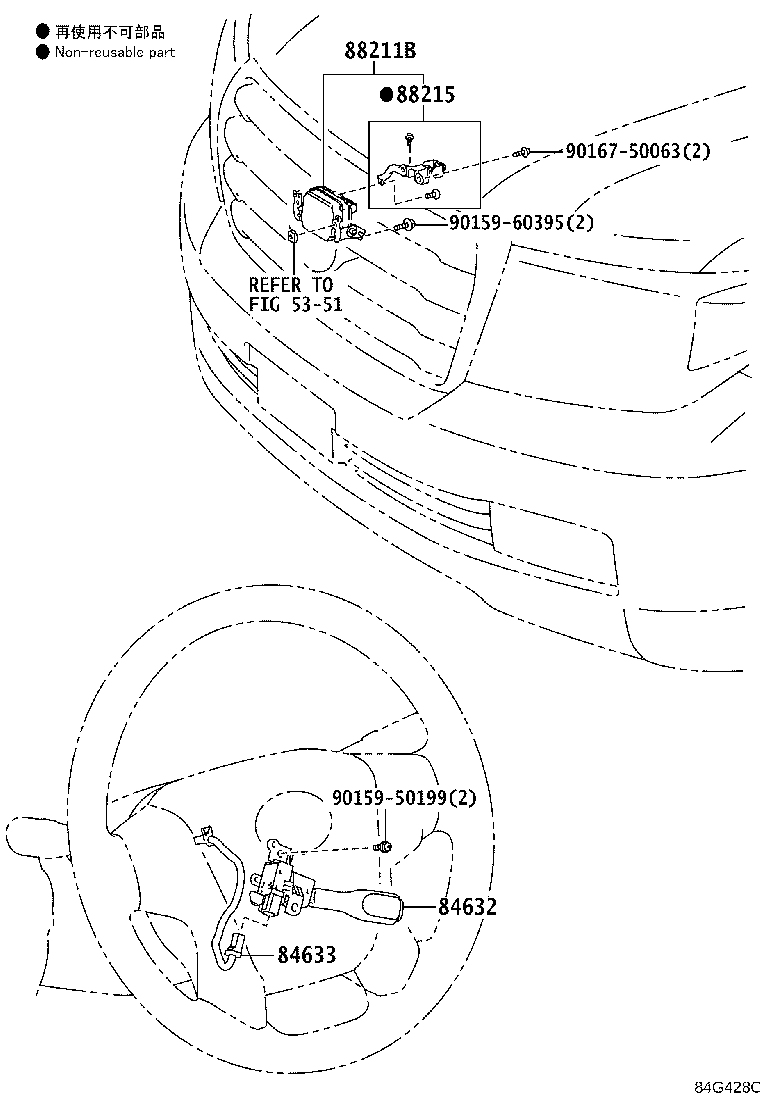

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84632 - SWITCH, CRUISE CONTROL MAIN | ||||
| 84632-47010 |
VDJ200..RHD PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER |
1 | ||
| 84633 - WIRE, CRUISE CONTROL SWITCH | ||||
| 84633-30010 |
VDJ200..RHD PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER |
1 | ||
| 88211B - SENSOR ASSY, MILLIMETER WAVE RADAR | ||||
| 88210-47090 |
VDJ200..RHD SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE |
1 | ||
| 88215 - BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1 | ||||
| 88201-60010 |
VDJ200..RHD SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-60395 | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5351 | ||||
