VDJ200R-GNTVZW (2015)
Toyota Land Cruiser

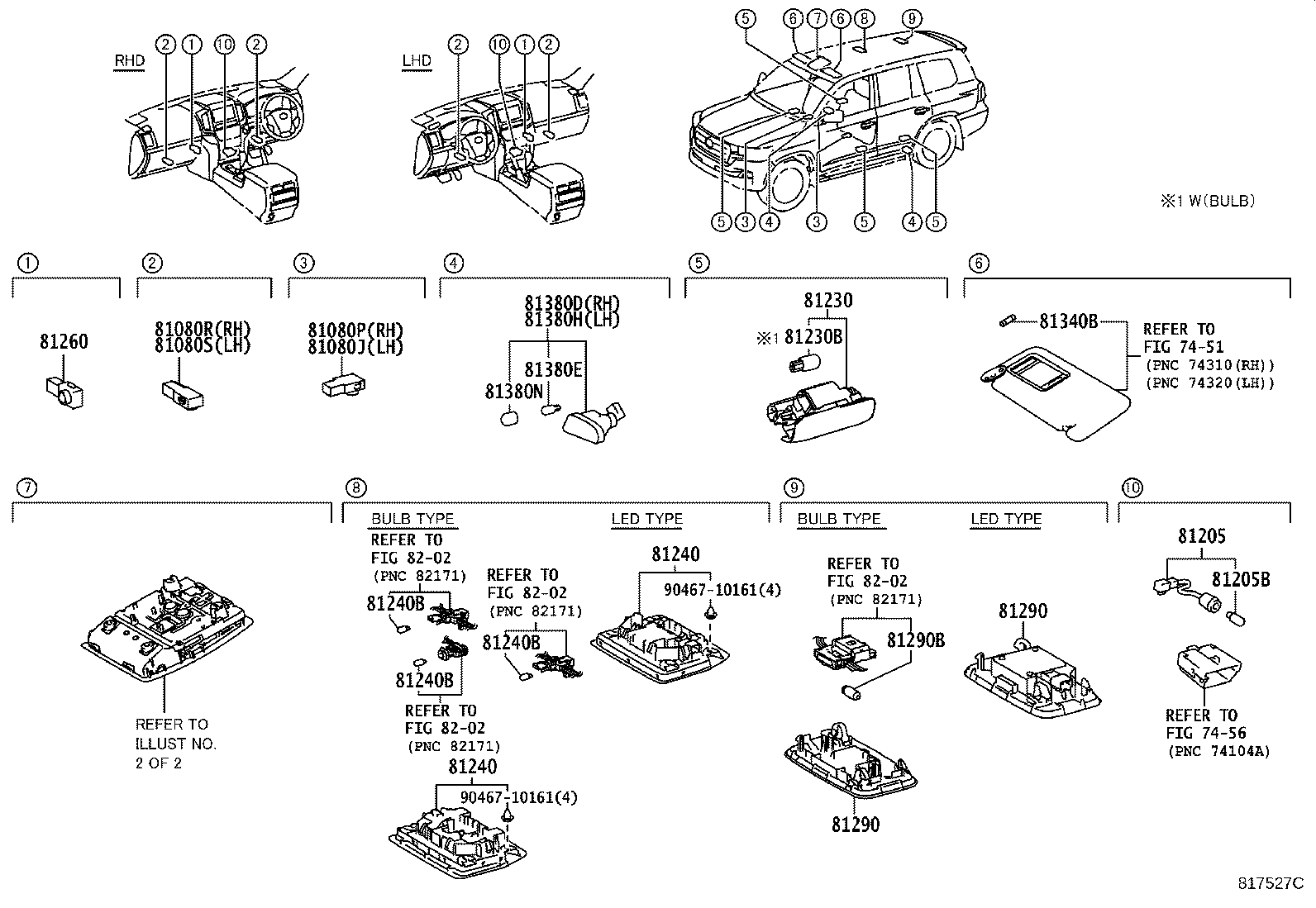

ILLUST NO. 1 OF 1(1508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-62010 |
URJ202..VXR;URJ202..05S;VDJ200..RHD;VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE |
1 | ||
| 81080-62010 |
VDJ200..RHD..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT HEATER-WITHOUT&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080-62010 |
URJ202..VXR;VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT HEATER-WITHOUT |
1 | ||
| 81080-62010 |
VDJ200..RHD..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-62010 |
URJ202..VXR;VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT HEATER-WITHOUT |
1 | ||
| 81080-62010 |
URJ202..VXR;URJ202..05S;VDJ200..RHD;VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE |
1 | ||
| 81080-62010 |
VDJ200..RHD..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080-62010 |
VDJ200..RHD..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT HEATER-WITHOUT&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-22040 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE |
1 | ||
| 81080-22040 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE |
1 | ||
| 81080-22040 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM |
1 | ||
| 81080-22040 |
VDJ200..RHD |
1 | ||
| 81080-58100 |
VDJ200..RHD |
1 | ||
| 81080-58100 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM |
1 | ||
| 81080-58100 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE |
1 | ||
| 81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-22040 |
VDJ200..RHD |
1 | ||
| 81080-58100 |
VDJ200..RHD |
1 | ||
| 81080-58100 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE |
1 | ||
| 81080-22040 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM |
1 | ||
| 81080-22040 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE |
1 | ||
| 81080-22040 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE |
1 | ||
| 81080-58100 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30200 |
VDJ200..RHD |
4 | ||
| 81230-50070 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
VDJ200..RHD 12V 5W |
4 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81360-60090B0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,LT.GRAY,TRIM2#,46 |
1 | ||
| 81360-60020B0 |
VDJ200..RHD LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81360-60090A0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,FLAXEN,TRIM0# |
1 | ||
| 81360-60020A1 |
VDJ200..RHD FLAXEN,TRIM0# |
1 | ||
| 81360-60090C0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,BLACK,TRIM42 |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81360-60090B0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,LT.GRAY,TRIM2#,46 |
1 | ||
| 81360-60020B0 |
VDJ200..RHD LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81360-60090A0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,FLAXEN,TRIM0# |
1 | ||
| 81360-60020A1 |
VDJ200..RHD FLAXEN,TRIM0# |
1 | ||
| 81360-60090C0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,BLACK,TRIM42 |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
VDJ200..RHD 12V 8W |
3 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
VDJ200..RHD 12V 8W |
3 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
VDJ200..RHD 12V 8W |
3 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-58100 |
URJ202,VDJ200 |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81360-60080A0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,FLAXEN,TRIM0# |
1 | ||
| 81240-60060B0 |
VDJ200..RHD LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81360-60080B0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,LT.GRAY,TRIM1#,2#,46 |
1 | ||
| 81240-60060A5 |
VDJ200..RHD FLAXEN,TRIM0# |
1 | ||
| 81360-60080C0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,BLACK,TRIM42 |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81360-60080A0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,FLAXEN,TRIM0# |
1 | ||
| 81240-60060B0 |
VDJ200..RHD LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81360-60080B0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,LT.GRAY,TRIM1#,2#,46 |
1 | ||
| 81240-60060A5 |
VDJ200..RHD FLAXEN,TRIM0# |
1 | ||
| 81360-60080C0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,BLACK,TRIM42 |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 90981-14011 |
VDJ200..RHD 12V 8W |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
| 8202 | ||||

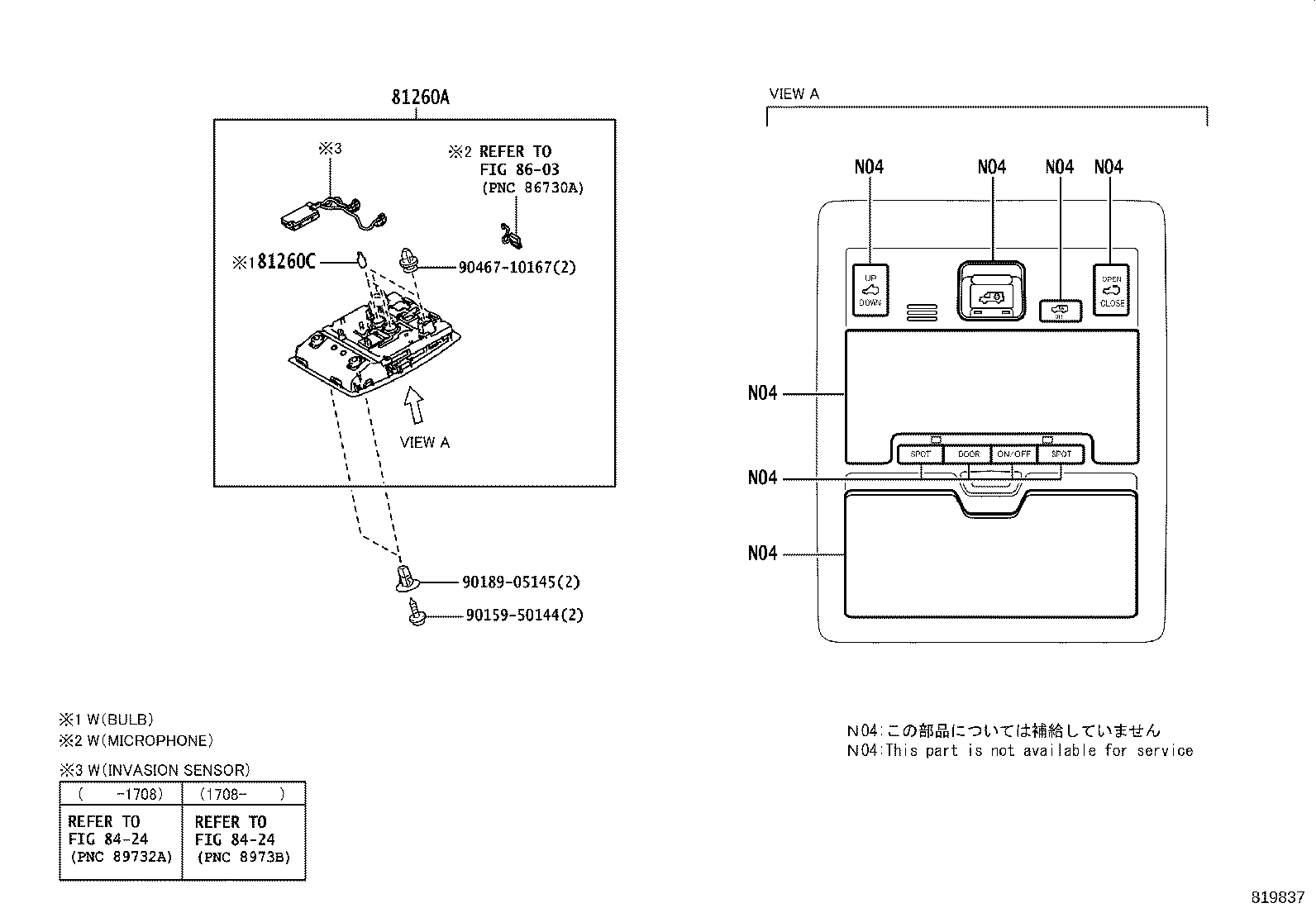

ILLUST NO. 2 OF 2(1508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-60C70C0 |
VDJ200..RHD MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,BLACK,TRIM42 |
1 | ||
| 81260-60C90A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60C90A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60C70B0 |
VDJ200..RHD MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM2#,46 |
1 | ||
| 81260-60C90A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60C70A0 |
VDJ200..RHD MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60C90B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM2#,4# |
1 | ||
| 81260-60C90B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,LT.GRAY,TRIM2#,4# |
1 | ||
| 81260-60D10A0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60D10C0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,BLACK,TRIM42 |
1 | ||
| 81260-60E10A0 |
VDJ200..RHD MOON ROOF-WITH(REMOTE CONTROL),FLAXEN,TRIM0# |
1 | ||
| 81260-60C90B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM2#,4# |
1 | ||
| 81260-60E10B0 |
VDJ200..RHD MOON ROOF-WITH(REMOTE CONTROL),LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60D40B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&ILLUMINATED ENTRY SYSTEM-IG SW& ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,LT.GRAY,TRIM2#,4# |
1 | ||
| 81260-60E30A0 |
VDJ200..RHD MOON ROOF-WITH(REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60D40B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM2#,4# |
1 | ||
| 81260-60D40A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60D10B0 |
VDJ200..RHD ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM2#,46 |
1 | ||
| 81260-60D40A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&ILLUMINATED ENTRY SYSTEM-IG SW& ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60D40B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&ILLUMINATED ENTRY SYSTEM-IG SW& ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM2#,4# |
1 | ||
| 81260-60D40A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&ILLUMINATED ENTRY SYSTEM-IG SW& ROOM & FOOT & SCUFF PLATE&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60E30B0 |
VDJ200..RHD MOON ROOF-WITH(REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60E60A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60E60B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&AUDIO(FOR OVERSEAS MARKET)-EMV& DVD & 9SPEAKER,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60E70B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60E60B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60F60B0 |
VDJ200..RHD LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60F80A0 |
VDJ200..RHD AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60E60A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&AUDIO(FOR OVERSEAS MARKET)-EMV& DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60E60B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&AUDIO(FOR OVERSEAS MARKET)-EMV& DVD & JBL & 14SPEAKER,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60C70B0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL),LT.GRAY,TRIM2#,46 |
1 | ||
| 81260-60E70B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60E70A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&MOON ROOF-WITH(REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60F60A0 |
VDJ200..RHD FLAXEN,TRIM0# |
1 | ||
| 81260-60E70B0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&MOON ROOF-WITH(REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60E70A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60E60A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&AUDIO(FOR OVERSEAS MARKET)-EMV& DVD & 9SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60F80B0 |
VDJ200..RHD AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60C70A0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL),FLAXEN,TRIM0# |
1 | ||
| 81260-60E70A0 |
VDJ200..RHD ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-60D10A0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN),FLAXEN,TRIM0# |
1 | ||
| 81260-60E30A0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE,FLAXEN,TRIM0# |
1 | ||
| 81260-60E30A0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM,FLAXEN,TRIM0# |
1 | ||
| 81260-60D10B0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN),LT.GRAY,TRIM2#,46 |
1 | ||
| 81260-60D10C0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN),BLACK,TRIM42 |
1 | ||
| 81260-60E30B0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60E30B0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE,LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 81260-60C70C0 |
VDJ200..RHD..VXR ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL),BLACK,TRIM42 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
VDJ200..RHD 12V 8W |
2 | ||
| 90981-11062 |
VDJ200..RHD..VXR 12V 8W,ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM |
2 | ||
| 90981-11062 |
VDJ200..RHD..VXR 12V 8W,ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&MOON ROOF-WITH(REMOTE CONTROL)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE |
2 | ||
| Common parts | ||||
| 90159-50144 | ||||
| 90189-05145 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8603 | ||||
