Toyota Land cruiser VDJ200 CYLINDER BLOCK

VDJ200R-GNTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012

Engine 1VDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

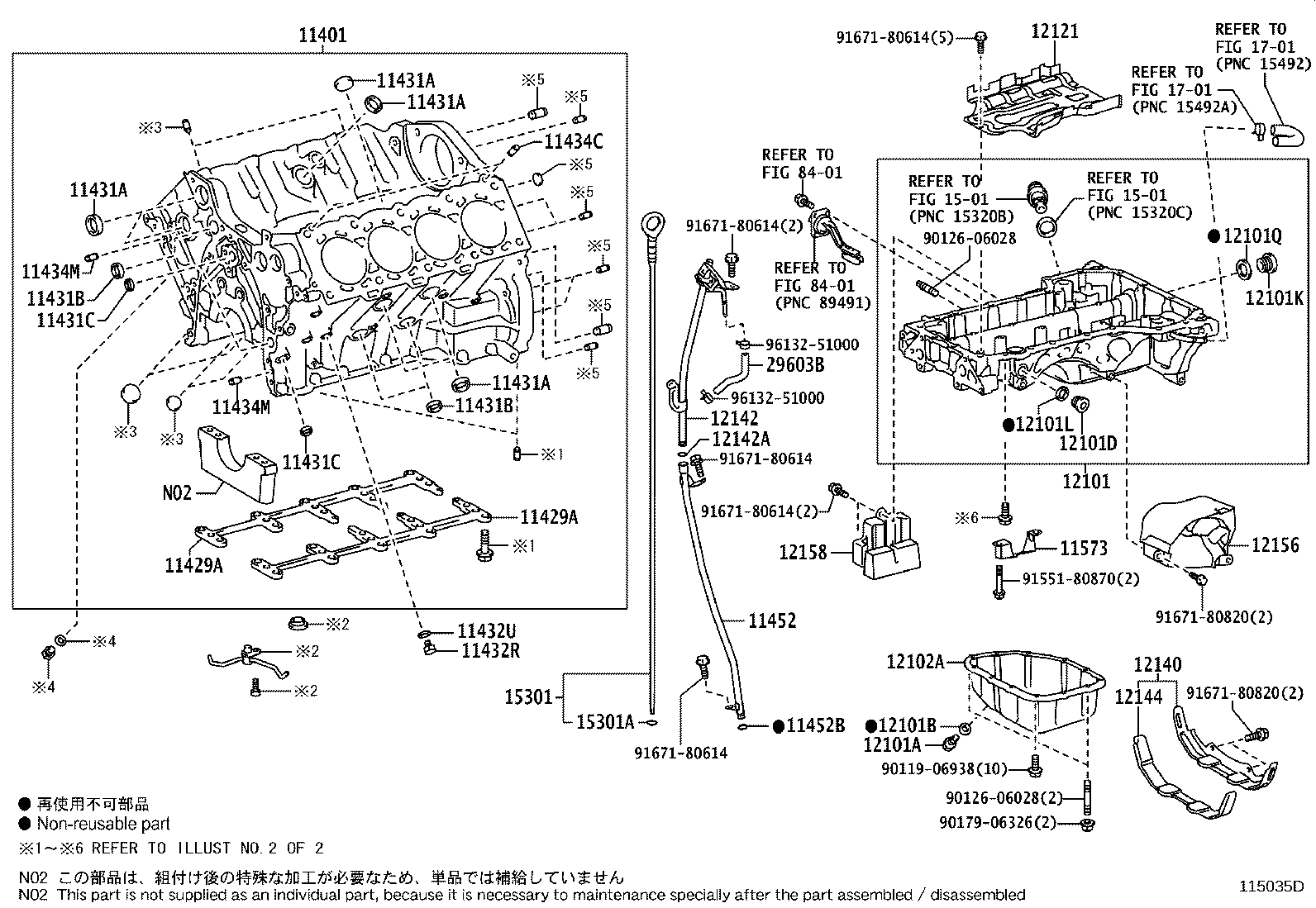

ILLUST NO. 1 OF 2(0709- )1VDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80768	1VDFTV..VDJ200	09/2007 - 01/2012	1
11429A - PLATE, CYLINDER BLOCK STIFFENING
11429-51020	1VDFTV..VDJ200	09/2007 - 01/2012	2
11429A - PLATE, CYLINDER BLOCK STIFFENING
11429-51020	1VDFTV..VDJ200	09/2007 - 01/2012	2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500	1VDFTV..VDJ200	09/2007 - 01/2012	8
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500	1VDFTV..VDJ200	09/2007 - 01/2012	8
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500	1VDFTV..VDJ200	09/2007 - 01/2012	8
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500	1VDFTV..VDJ200	09/2007 - 01/2012	8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-62500	1VDFTV..VDJ200	09/2007 - 01/2012	5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-62500	1VDFTV..VDJ200	09/2007 - 01/2012	5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-61800	1VDFTV..VDJ200	09/2007 - 01/2012	4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-61800	1VDFTV..VDJ200	09/2007 - 01/2012	4
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-12011	1VDFTV..VDJ200	09/2007 - 01/2012	2
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-12221	1VDFTV..VDJ200	09/2007 - 01/2012	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08048	1VDFTV..VDJ200 L=15,OD=8	09/2007 - 01/2012	4
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-08048	1VDFTV..VDJ200	09/2007 - 01/2012	2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-08048	1VDFTV..VDJ200	09/2007 - 01/2012	2
11452 - GUIDE, OIL LEVEL GAGE
11452-51020	1VDFTV..VDJ200	09/2007 - 01/2012	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018	1VDFTV..VDJ200	09/2007 - 01/2012	1
11573 - PLATE, OIL REFLECTOR
11573-51020	1VDFTV..VDJ200	09/2007 - 01/2012	1
12101 - PAN SUB-ASSY, OIL
12101-51030	1VDFTV..VDJ200	09/2007 - 01/2012	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	1VDFTV..VDJ200	09/2007 - 01/2012	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	1VDFTV..VDJ200	09/2007 - 01/2012	1
12101D - PLUG NO.1(FOR OIL PAN)
90341-20013	1VDFTV..VDJ200	09/2007 - 01/2012	1
12101K - PLUG NO.2(FOR OIL PAN)
90341-27006	1VDFTV..VDJ200	09/2007 - 01/2012	1
12101L - GASKET NO.1(FOR OIL PAN)
90430-20004	1VDFTV..VDJ200	09/2007 - 01/2012	1
12101Q - GASKET NO.2(FOR OIL PAN)
90430-27005	1VDFTV..VDJ200	09/2007 - 01/2012	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-51020	1VDFTV..VDJ200	09/2007 - 01/2012	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-51030	1VDFTV..VDJ200	09/2007 - 01/2012	1
12140 - COVER, OIL PAN
12140-51010	1VDFTV..VDJ200	09/2007 - 01/2012	1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-51020	1VDFTV..VDJ200	09/2007 - 01/2012	1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010	1VDFTV..VDJ200	08/2009 - 01/2012	1
96741-19010	1VDFTV..VDJ200	09/2007 - 07/2009	1
12144 - SILENCER, OIL PAN COVER
12144-51010	1VDFTV..VDJ200	09/2007 - 01/2012	1
12156 - INSULATOR, OIL PAN
12156-51010	1VDFTV..VDJ200	09/2007 - 01/2012	1
12158 - INSULATOR, STIFFENER, RH
12158-51010	1VDFTV..VDJ200	09/2007 - 01/2012	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-51030	1VDFTV..VDJ200	09/2007 - 01/2012	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	1VDFTV..VDJ200	09/2007 - 01/2012	1
29603B - HOSE, OIL(FOR OIL LEVEL GAUGE GUIDE)
29603-51010	1VDFTV..VDJ200	09/2007 - 01/2012	1
Common parts
90119-06938
90126-06028
90179-06326
91551-80870
91671-80614
91671-80820
96132-51000
Linked diagrams
1501
1701
8401

ILLUST NO. 2 OF 2(0709- )1VDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500	1VDFTV..VDJ200	09/2007 - 01/2012	8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-62500	1VDFTV..VDJ200	09/2007 - 01/2012	5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-61800	1VDFTV..VDJ200	09/2007 - 01/2012	4
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-12011	1VDFTV..VDJ200	09/2007 - 01/2012	2
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-12221	1VDFTV..VDJ200	09/2007 - 01/2012	2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10040	1VDFTV..VDJ200 L=22,OD=10	09/2007 - 01/2012	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08048	1VDFTV..VDJ200 L=15,OD=8	09/2007 - 01/2012	4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06013	1VDFTV..VDJ200 L=16,OD=6	09/2007 - 01/2012	2
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90250-04122	1VDFTV..VDJ200 L=12,OD=4.0	09/2007 - 01/2012	4
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-06013	1VDFTV..VDJ200	09/2007 - 01/2012	2
11497 - GASKET, CYLINDER BLOCK OIL HOLE
11497-51010	1VDFTV..VDJ200	09/2007 - 01/2012	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-51010	1VDFTV..VDJ200	09/2007 - 01/2012	4
Common parts
90105-10436
90110-06018
90126-08052
90910-02167
90910-02168
91551-80830
91551-80870
91671-80820
94151-80800
