VDJ200L-GNTEZW (2007)
Toyota Land Cruiser

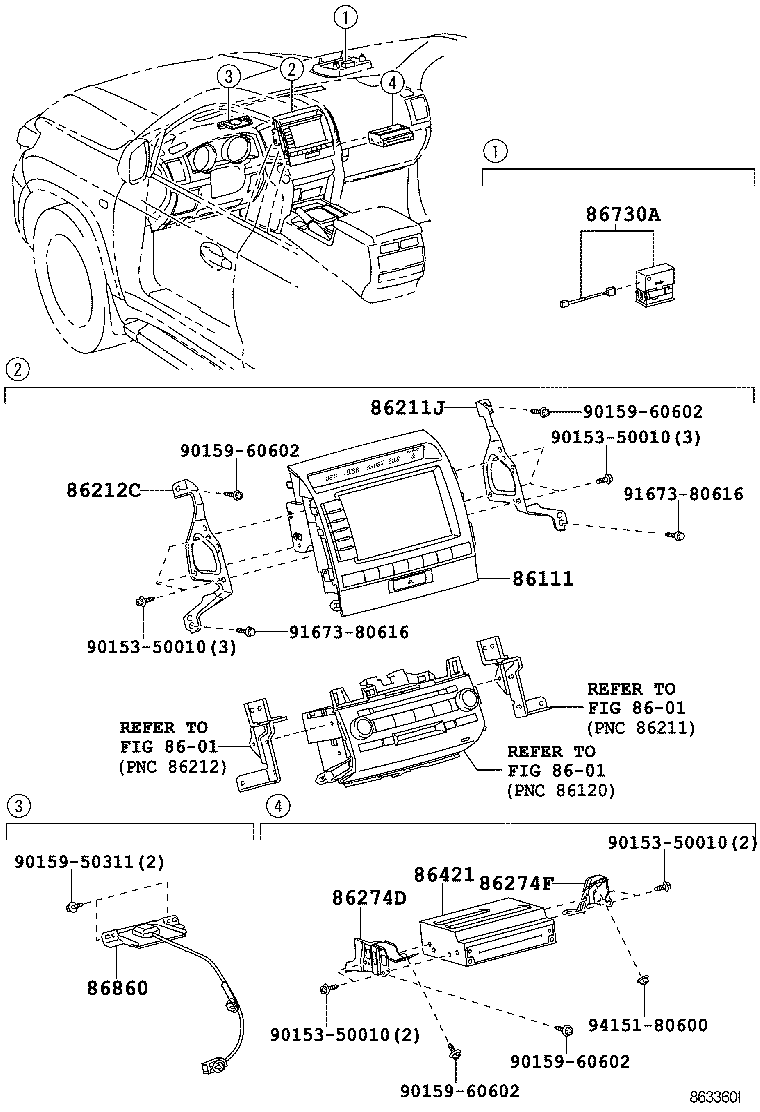

(0709-0907)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86111 - MULTI-DISPLAY | ||||
| 86111-60280 |
UZJ200,VDJ200..LHD..08S FUJITSU TEN,AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,P/N LABEL=8611160280 |
1 | ||
| 86111-60470 |
UZJ200,VDJ200..LHD..08S FUJITSU TEN,AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,P/N LABEL=8611160470 |
1 | ||
| 86111-60330 |
UZJ200,VDJ200..LHD FUJITSU TEN,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,P/N LABEL=8611160330 |
1 | ||
| 86111-60480 |
UZJ200,VDJ200..LHD FUJITSU TEN,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,P/N LABEL=8611160480 |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-60220 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86211-60220 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86211-60220 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-60220 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86212-60220 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86212-60220 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86274D - BRACKET, DISC PLAYER | ||||
| 86274-60320 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86274-60320 |
UZJ200,VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86274F - BRACKET, DISC PLAYER, NO.2 | ||||
| 86274-60310 |
UZJ200,VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86274-60310 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86421 - BOARD, NAVIGATION MODULE | ||||
| 86421-60010 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86421-60010 |
UZJ200,VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48040 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86730-48040 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86730-50060 |
UZJ200,VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-60200 |
UZJ200,VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86860-60120 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8601 | ||||

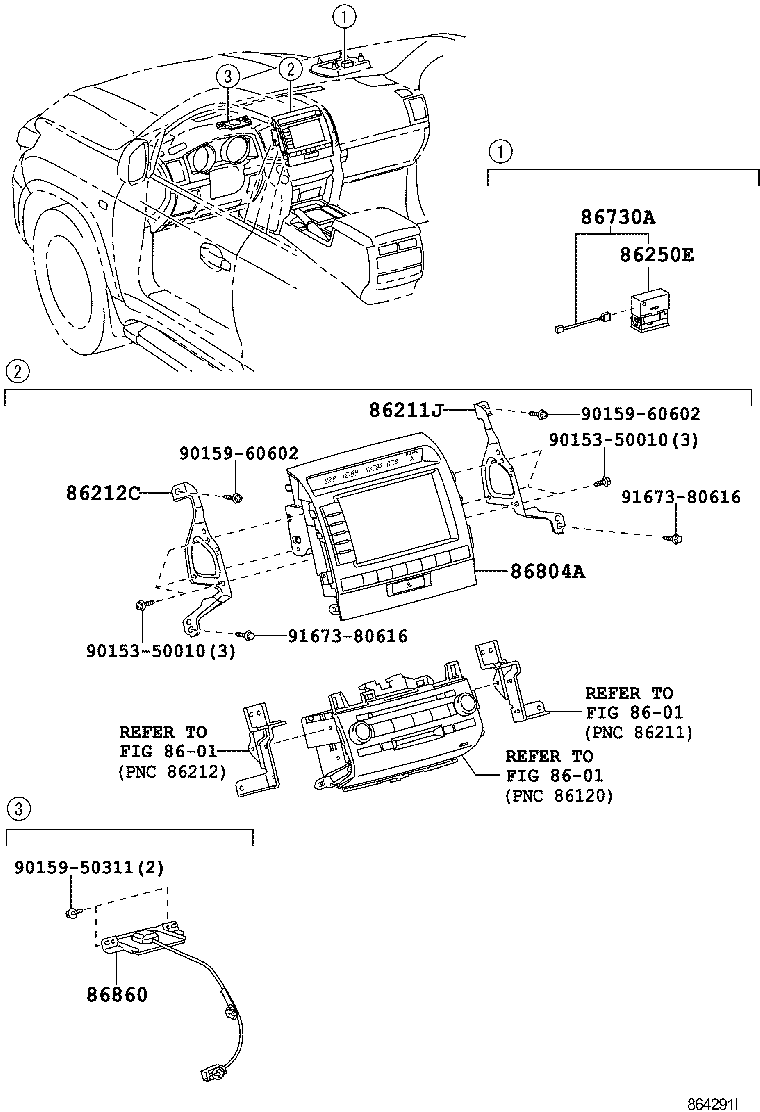

(0907-1201)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-60220 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86211-60220 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86211-60220 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-60220 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86212-60220 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86212-60220 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86250-52030 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86250-52030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48040 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86730-48040 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86730-50060 |
UZJ200,VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH) |
1 | ||
| 86804A - SUB-ASSY, NAVIGATION COMPUTER | ||||
| 86431-60260 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86431-60270 |
UZJ200,VDJ200..LHD..08S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86431-60261 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86431-60272 |
VDJ200..LHD..08S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86431-60271 |
UZJ200,VDJ200..LHD..08S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86431-60273 |
VDJ200..LHD..08S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86431-60590 |
VDJ200..LHD..08S TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-60200 |
UZJ200,VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86860-60120 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8601 | ||||
