VDJ200L-GNTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)

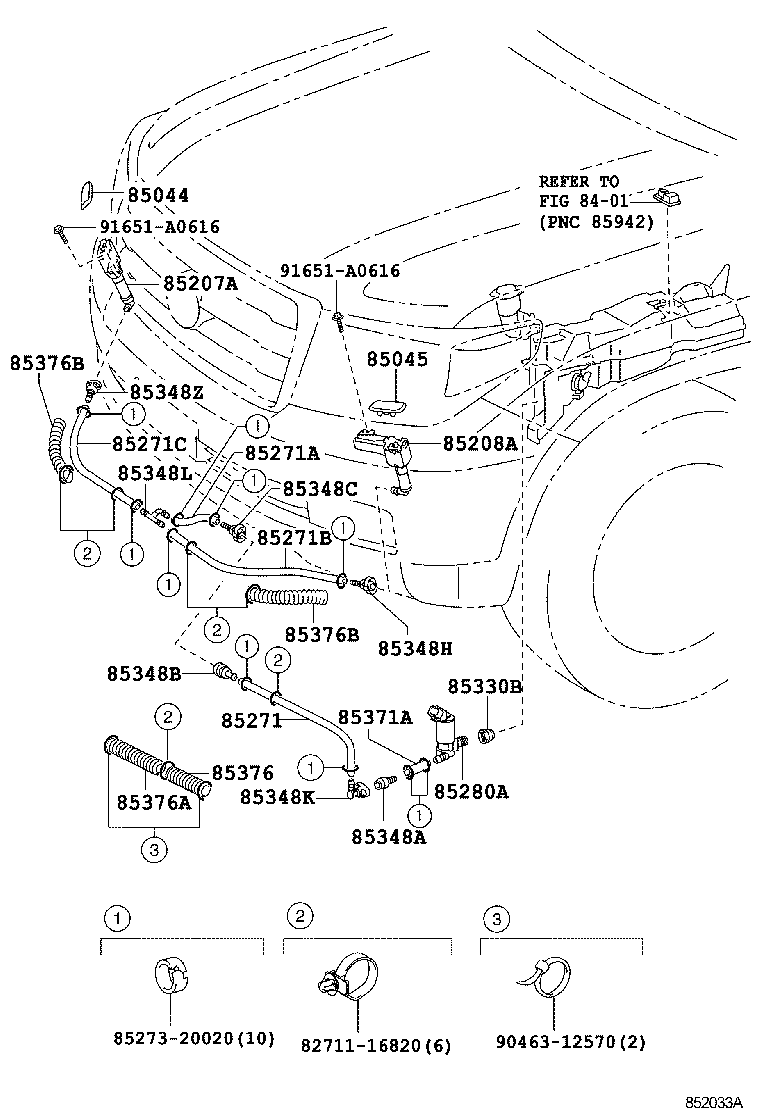

Click highlighted areas on diagram

diagram 8271116820 8401 85044 85045 85207A 85208A 85271 85271A 85271B 85271C 8527320020 85280A 85330B 85348A 85348B 85348C 85348H 85348K 85348L 85348Z 85371A 85376 85376A 85376B 85376B 9046312570 91651A0616 91651A0616
Part # Description Qty Price
85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85044-60110A0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,SUPER WHITE 2,040

 1
85044-60110C0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,BLACK,202

 1
85044-60110E0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,BEIGE M.M.,4R3

 1
85044-60110D0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3

 1
85044-60110B1

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,GRAY ME.,1G3

 1
85044-60110J0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3

 1
85044-60110B0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,SILVER ME.,1F7

 1
85044-60110F0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,GOLD M.M.,5A5

 1
85044-60110G0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,GREEN M.M.,6V2

 1
85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85045-60030A0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,SUPER WHITE 2,040

 1
85045-60030B0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,SILVER ME.,1F7

 1
85045-60030B1

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,GRAY ME.,1G3

 1
85045-60030G0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,GREEN M.M.,6V2

 1
85045-60030D0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3

 1
85045-60030C0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,BLACK,202

 1
85045-60030F0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,GOLD M.M.,5A5

 1
85045-60030E0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,BEIGE M.M.,4R3

 1
85045-60030J0

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3

 1
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-60020

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-60020

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85275-60040

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85375-14400

UZJ200,VDJ200..LHD

L=170,HEADLAMP CLEANER-WITH

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-22100

UZJ200,VDJ200..LHD

L=760,HEADLAMP CLEANER-WITH

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
90445-14072

UZJ200,VDJ200..LHD

*H,L=1320,HEADLAMP CLEANER-WITH

 1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-30040

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90099-32089

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85279-33040

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85279-33040

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
85279-33050

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
85279-33050

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85279-48020

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85279-33020

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5
85279-33040

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85375-16020

UZJ200,VDJ200..LHD

L=40,HEADLAMP CLEANER-WITH

 1
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376-12480

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85376A - PROTECTOR, HEADLAMP CLEANER HOSE, NO.2
85277-60040

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85376B - PROTECTOR, HEADLAMP CLEANER HOSE, NO.3
85276-60180

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 2
85376B - PROTECTOR, HEADLAMP CLEANER HOSE, NO.3
85276-60180

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 2
Common parts
82711-16820
85273-20020
90463-12570
91651-A0616
Linked diagrams
8401
