VDJ200L-GNTEZW (2007)
Toyota Land Cruiser

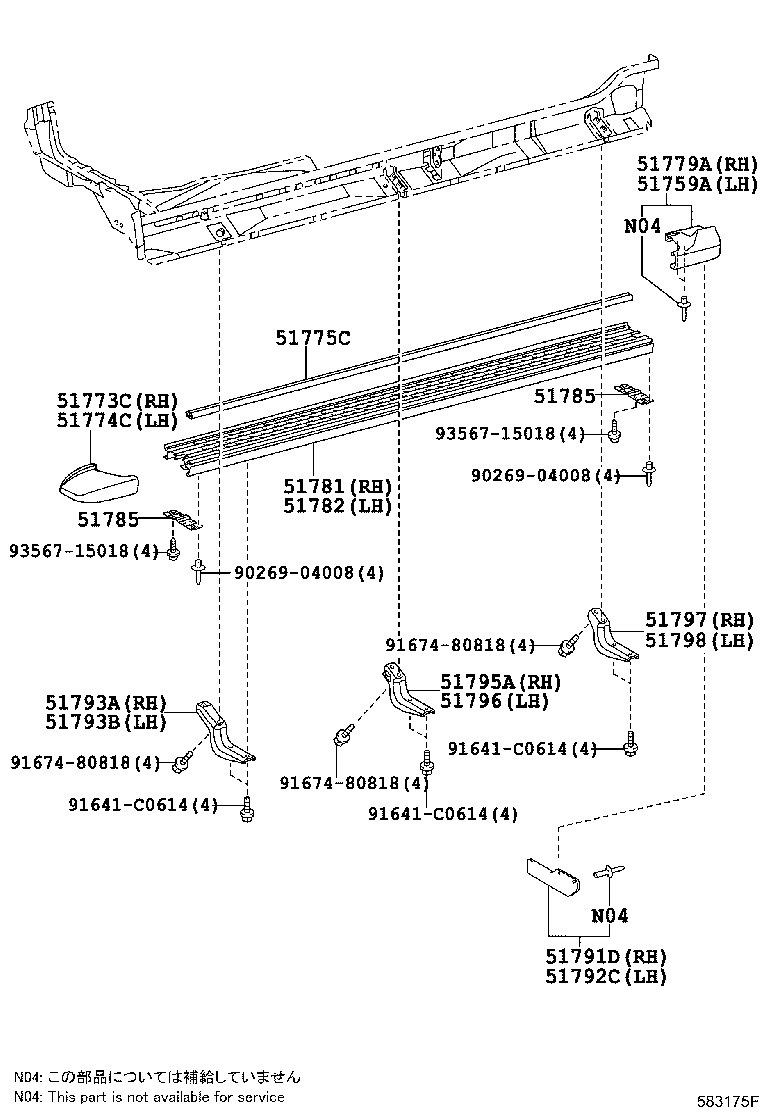

ILLUST NO. 2 OF 2(0709- )
SIDE STEP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60111 |
UZJ200,VDJ200 |
1 | ||
| 51759-60110 |
UZJ200,VDJ200 |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-60150 |
UZJ200,VDJ200 NO PAINT REQ.,MATERIAL BLACK |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-60150 |
UZJ200,VDJ200 NO PAINT REQ. |
1 | ||
| 51775C - MOULDING, SIDE DOOR STEP PLATE, NO.1 | ||||
| 51775-60090 |
UZJ200,VDJ200 |
2 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60111 |
UZJ200,VDJ200 |
1 | ||
| 51779-60110 |
UZJ200,VDJ200 |
1 | ||
| 51781 - PANEL, STEP, RH | ||||
| 51781-60261 |
UZJ200,VDJ200 |
1 | ||
| 51781-60260 |
UZJ200,VDJ200 |
1 | ||
| 51782 - PANEL, STEP, LH | ||||
| 51782-60250 |
UZJ200,VDJ200 |
1 | ||
| 51782-60251 |
UZJ200,VDJ200 |
1 | ||
| 51785 - GUSSET, STEP BRACKET, NO.2 | ||||
| 51785-60010 |
UZJ200,VDJ200 |
4 | ||
| 51785 - GUSSET, STEP BRACKET, NO.2 | ||||
| 51785-60010 |
UZJ200,VDJ200 |
4 | ||
| 51791D - PANEL, STEP, REAR RH | ||||
| 51791-60020 |
UZJ200,VDJ200 |
1 | ||
| 51792C - PANEL, STEP, REAR LH | ||||
| 51792-60010 |
UZJ200,VDJ200 |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60170 |
UZJ200,VDJ200 |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60170 |
UZJ200,VDJ200 |
1 | ||
| 51795A - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-60090 |
UZJ200,VDJ200 |
1 | ||
| 51796 - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51796-60030 |
UZJ200,VDJ200 |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-60110 |
UZJ200,VDJ200 |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51797-60110 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 90269-04008 | ||||
| 91641-C0614 | ||||
| 91674-80818 | ||||
| 93567-15018 | ||||
ILLUST NO. 1 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH | ||||
| 57013-60010 |
UZJ200,VDJ200 |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-60010 |
UZJ200,VDJ200 |
1 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-60060 |
UZJ200,VDJ200 WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57051-60060 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57051-60060 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57051-60060 |
UZJ200,VDJ200 |
1 | ||
| 57051-60061 |
UZJ200,VDJ200 |
1 | ||
| 57051-60060 |
UZJ200,VDJ200 WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57051-60060 |
UZJ200,VDJ200 |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-60060 |
UZJ200,VDJ200 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-60050 |
UZJ200,VDJ200 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-60010 |
UZJ200,VDJ200 |
1 | ||
| 57403B - REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57403-60060 |
UZJ200,VDJ200 |
1 | ||
| 57403-60060 |
UZJ200,VDJ200 WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57403-60060 |
UZJ200,VDJ200 WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57403-60060 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57403-60060 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57417-60080 |
UZJ200,VDJ200 |
1 | ||
| 57403-60060 |
UZJ200,VDJ200 |
1 | ||
| 57404A - REINFORCE SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57404-60060 |
UZJ200,VDJ200 |
1 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-60030 |
VDJ200;UZJ200..RHD;UZJ200..05S WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 57457-60030 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57457-60030 |
UZJ200,VDJ200 WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57457-60030 |
VDJ200;UZJ200..RHD;UZJ200..05S WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 57457-60030 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57457-60030 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 57457-60030 |
UZJ200,VDJ200 WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 57457-60030 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 57457-60030 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57461-60020 |
UZJ200,VDJ200 |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-60090 |
UZJ200,VDJ200 |
1 | ||
| 57515A - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57515-60030 |
UZJ200,VDJ200 |
1 | ||
| 57516A - RETAINER, FRONT FLOOR REINFORCEMENT, FRONT | ||||
| 57516-60010 |
UZJ200,VDJ200 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-60090 |
UZJ200,VDJ200 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60A40 |
UZJ200,VDJ200 WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 58111-60A60 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 58111-60A40 |
UZJ200,VDJ200 WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 58111-60B20 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 58111-60B10 |
VDJ200..LHD;UZJ200..RHD;UZJ200..05S WITH(COOL BOX) |
1 | ||
| 58111-60A40 |
VDJ200;UZJ200..RHD;UZJ200..05S WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 58111-60A60 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 58111-60A40 |
UZJ200..05S;VDJ200..LHD WITH(COOL BOX) |
1 | ||
| 58111-60A40 |
VDJ200;UZJ200..RHD;UZJ200..05S WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 58111-60A60 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 58111-60A60 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 58111-60A41 |
UZJ200..05S;VDJ200..LHD WITH(COOL BOX) |
1 | ||
| 58111-60A61 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 58111-60A60 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-60070 |
UZJ200,VDJ200 |
2 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-60070 |
UZJ200,VDJ200 |
2 | ||
| 58179B - BRACKET, ACCELERATOR CABLE CLAMP | ||||
| 58179-60020 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 58179-60020 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 58179-60020 |
VDJ200;UZJ200..RHD;UZJ200..05S WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 58179-60020 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 58179-60020 |
VDJ200;UZJ200..RHD;UZJ200..05S WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 91674-80818 | ||||
| Linked diagrams | ||||
| 5752 | ||||
