VDJ200L-GNTEZW (2015)
Toyota Land Cruiser

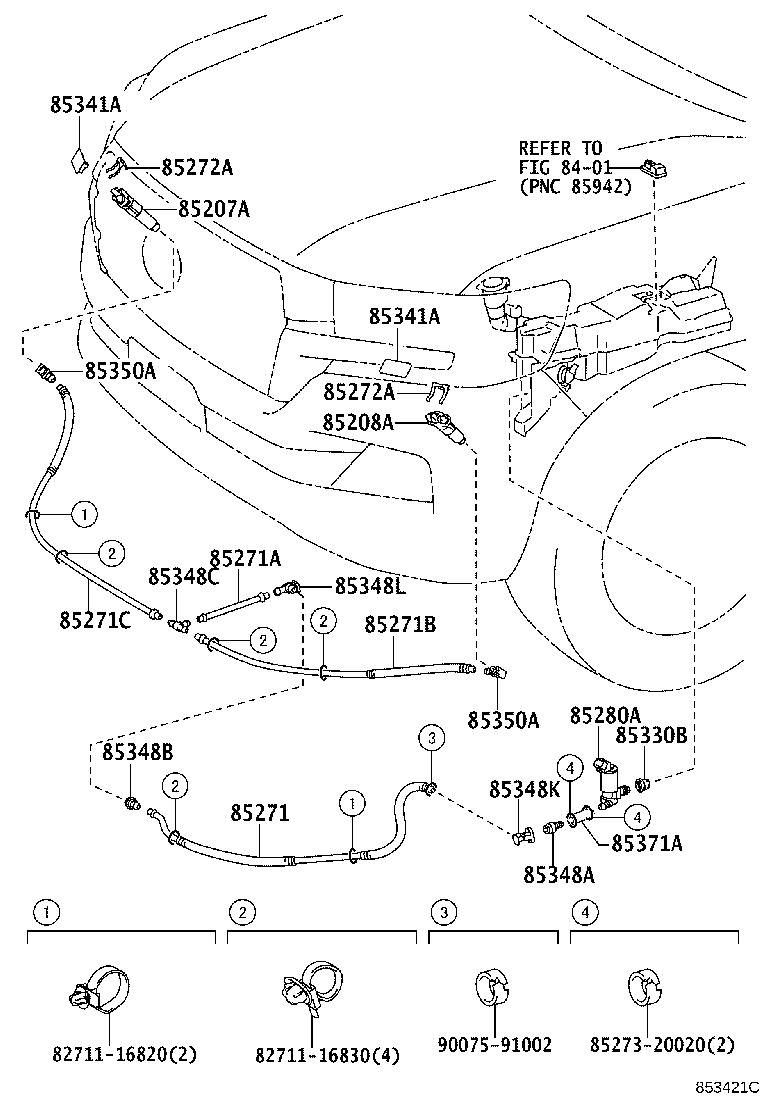

(1508-1707)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-60110 |
URJ202,VDJ200 |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-60110 |
URJ202,VDJ200 |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15091 |
URJ202,VDJ200 L=900 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15089 |
URJ202,VDJ200 L=120 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-60090 |
URJ202,VDJ200 L=600 |
1 | ||
| 85376-58130 |
URJ202,VDJ200 L=670 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15081 |
URJ202,VDJ200 L=1100 |
1 | ||
| 90075-15068 |
URJ202,VDJ200 L=65 |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-75050 |
URJ202,VDJ200 |
2 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-75050 |
URJ202,VDJ200 |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-30040 |
URJ202,VDJ200 |
1 | ||
| 85330B - BUSH, HEADLAMP CLEANER WASHER JAR | ||||
| 90099-32089 |
URJ202,VDJ200 |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-60070J0 |
URJ202,VDJ200 DARK BLUE MC.,8P8,RH |
1 | ||
| 85353-60070E1 |
URJ202,VDJ200 COPPER BROWN MC.,4S6,RH |
1 | ||
| 85353-60070E0 |
URJ202,VDJ200 BEIGE M.M.,4R3,RH |
1 | ||
| 85354-60070E1 |
URJ202,VDJ200 COPPER BROWN MC.,4S6,LH |
1 | ||
| 85354-60070J0 |
URJ202,VDJ200 DARK BLUE MC.,8P8,LH |
1 | ||
| 85353-60070C2 |
URJ202,VDJ200 SPARKLING BLACK PEARL CS.,220,RH |
1 | ||
| 85354-60070E0 |
URJ202,VDJ200 BEIGE M.M.,4R3,LH |
1 | ||
| 85353-60070D0 |
URJ202,VDJ200 DK. RED M.M.,3Q3,RH |
1 | ||
| 85354-60070C2 |
URJ202,VDJ200 SPARKLING BLACK PEARL CS.,220,LH |
1 | ||
| 85353-60070C0 |
URJ202,VDJ200 BLACK,202,RH |
1 | ||
| 85353-60070A1 |
URJ202,VDJ200 WHITE PEARL CS.,070,RH |
1 | ||
| 85353-60070A0 |
URJ202,VDJ200 SUPER WHITE 2,040,RH |
1 | ||
| 85354-60070A0 |
URJ202,VDJ200 SUPER WHITE 2,040,LH |
1 | ||
| 85353-60070B0 |
URJ202,VDJ200 SILVER ME.,1F7,RH |
1 | ||
| 85354-60070C0 |
URJ202,VDJ200 BLACK,202,LH |
1 | ||
| 85354-60070A1 |
URJ202,VDJ200 WHITE PEARL CS.,070,LH |
1 | ||
| 85353-60070B1 |
URJ202,VDJ200 GRAY ME.,1G3,RH |
1 | ||
| 85354-60070C1 |
URJ202,VDJ200 ATTITUDE BLACK MC.,218,LH |
1 | ||
| 85354-60070B0 |
URJ202,VDJ200 SILVER ME.,1F7,LH |
1 | ||
| 85353-60070C1 |
URJ202,VDJ200 ATTITUDE BLACK MC.,218,RH |
1 | ||
| 85354-60070D0 |
URJ202,VDJ200 DK. RED M.M.,3Q3,LH |
1 | ||
| 85354-60070B1 |
URJ202,VDJ200 GRAY ME.,1G3,LH |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-60070J0 |
URJ202,VDJ200 DARK BLUE MC.,8P8,RH |
1 | ||
| 85353-60070E1 |
URJ202,VDJ200 COPPER BROWN MC.,4S6,RH |
1 | ||
| 85353-60070E0 |
URJ202,VDJ200 BEIGE M.M.,4R3,RH |
1 | ||
| 85354-60070E1 |
URJ202,VDJ200 COPPER BROWN MC.,4S6,LH |
1 | ||
| 85354-60070J0 |
URJ202,VDJ200 DARK BLUE MC.,8P8,LH |
1 | ||
| 85353-60070C2 |
URJ202,VDJ200 SPARKLING BLACK PEARL CS.,220,RH |
1 | ||
| 85354-60070E0 |
URJ202,VDJ200 BEIGE M.M.,4R3,LH |
1 | ||
| 85353-60070D0 |
URJ202,VDJ200 DK. RED M.M.,3Q3,RH |
1 | ||
| 85354-60070C2 |
URJ202,VDJ200 SPARKLING BLACK PEARL CS.,220,LH |
1 | ||
| 85353-60070C0 |
URJ202,VDJ200 BLACK,202,RH |
1 | ||
| 85353-60070A1 |
URJ202,VDJ200 WHITE PEARL CS.,070,RH |
1 | ||
| 85353-60070A0 |
URJ202,VDJ200 SUPER WHITE 2,040,RH |
1 | ||
| 85354-60070A0 |
URJ202,VDJ200 SUPER WHITE 2,040,LH |
1 | ||
| 85353-60070B0 |
URJ202,VDJ200 SILVER ME.,1F7,RH |
1 | ||
| 85354-60070C0 |
URJ202,VDJ200 BLACK,202,LH |
1 | ||
| 85354-60070A1 |
URJ202,VDJ200 WHITE PEARL CS.,070,LH |
1 | ||
| 85353-60070B1 |
URJ202,VDJ200 GRAY ME.,1G3,RH |
1 | ||
| 85354-60070C1 |
URJ202,VDJ200 ATTITUDE BLACK MC.,218,LH |
1 | ||
| 85354-60070B0 |
URJ202,VDJ200 SILVER ME.,1F7,LH |
1 | ||
| 85353-60070C1 |
URJ202,VDJ200 ATTITUDE BLACK MC.,218,RH |
1 | ||
| 85354-60070D0 |
URJ202,VDJ200 DK. RED M.M.,3Q3,LH |
1 | ||
| 85354-60070B1 |
URJ202,VDJ200 GRAY ME.,1G3,LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85357-42070 |
URJ202,VDJ200 |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17012 |
URJ202,VDJ200 |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 90075-17010 |
URJ202,VDJ200 |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17001 |
URJ202,VDJ200 |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17009 |
URJ202,VDJ200 |
1 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17009 |
URJ202,VDJ200 |
2 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17009 |
URJ202,VDJ200 |
2 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 85375-16020 |
URJ202,VDJ200 L=40 |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 85273-20020 | ||||
| 90075-91002 | ||||
| Linked diagrams | ||||
| 8401 | ||||

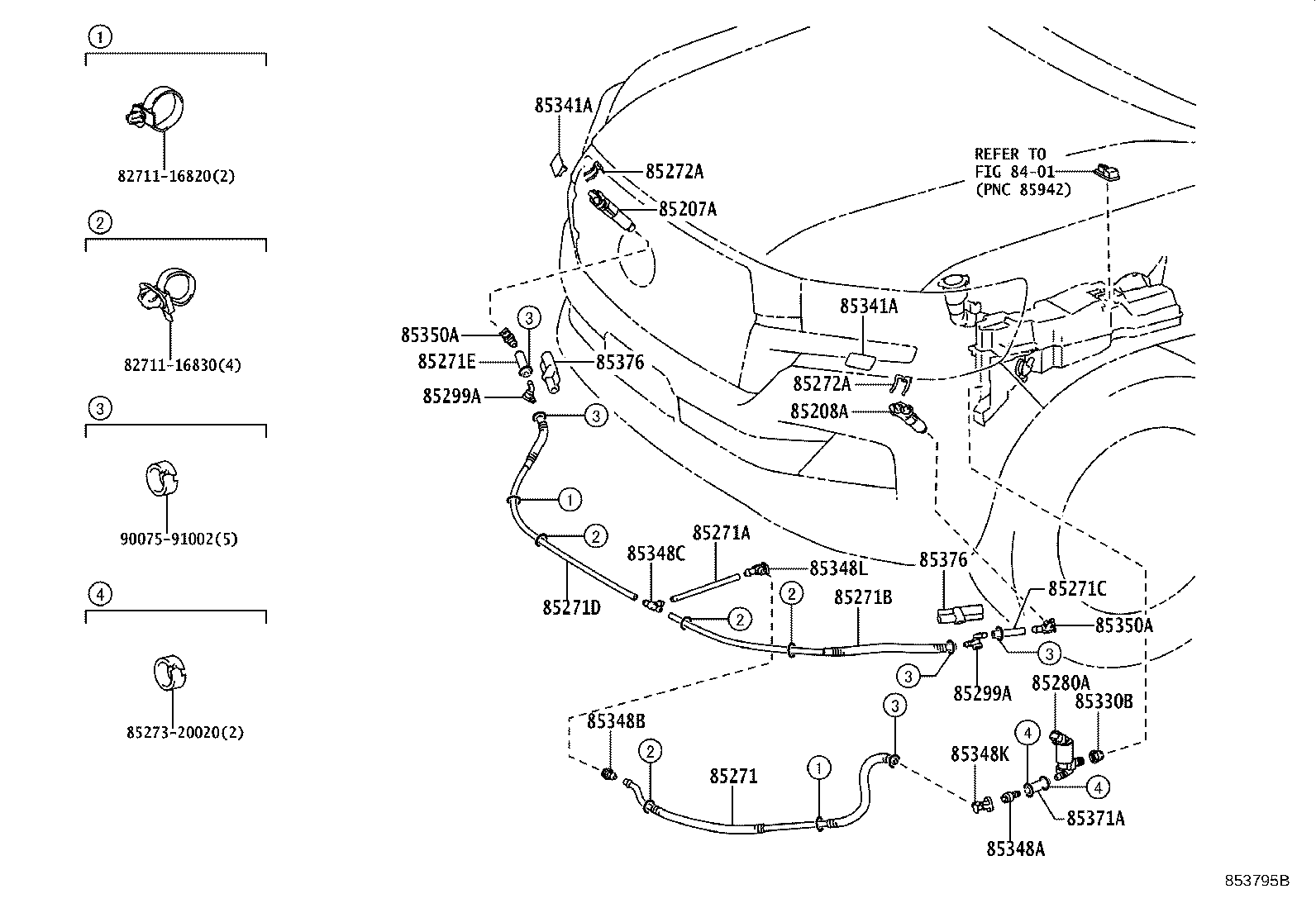

(1707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-60110 |
URJ202,VDJ200 |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-60110 |
URJ202,VDJ200 |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15091 |
URJ202,VDJ200 L=900 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15089 |
URJ202,VDJ200 L=120 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-60090 |
URJ202,VDJ200 L=600 |
1 | ||
| 85376-58130 |
URJ202,VDJ200 L=670 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15081 |
URJ202,VDJ200 L=1100 |
1 | ||
| 90075-15068 |
URJ202,VDJ200 L=65 |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90075-15071 |
URJ202,VDJ200 L=1000 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 90075-15074 |
URJ202,VDJ200 L=80 |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-75050 |
URJ202,VDJ200 |
2 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-75050 |
URJ202,VDJ200 |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-30040 |
URJ202,VDJ200 |
1 | ||
| 85299A - VALVE ASSY, CHECK | ||||
| 85376-60A61 |
URJ202,VDJ200 |
2 | ||
| 85299A - VALVE ASSY, CHECK | ||||
| 85376-60A61 |
URJ202,VDJ200 |
2 | ||
| 85330B - BUSH, HEADLAMP CLEANER WASHER JAR | ||||
| 90099-32089 |
URJ202,VDJ200 |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-60070J0 |
URJ202,VDJ200 DARK BLUE MC.,8P8,RH |
1 | ||
| 85353-60070E1 |
URJ202,VDJ200 COPPER BROWN MC.,4S6,RH |
1 | ||
| 85353-60070E0 |
URJ202,VDJ200 BEIGE M.M.,4R3,RH |
1 | ||
| 85354-60070E1 |
URJ202,VDJ200 COPPER BROWN MC.,4S6,LH |
1 | ||
| 85354-60070J0 |
URJ202,VDJ200 DARK BLUE MC.,8P8,LH |
1 | ||
| 85353-60070C2 |
URJ202,VDJ200 SPARKLING BLACK PEARL CS.,220,RH |
1 | ||
| 85354-60070E0 |
URJ202,VDJ200 BEIGE M.M.,4R3,LH |
1 | ||
| 85353-60070D0 |
URJ202,VDJ200 DK. RED M.M.,3Q3,RH |
1 | ||
| 85354-60070C2 |
URJ202,VDJ200 SPARKLING BLACK PEARL CS.,220,LH |
1 | ||
| 85353-60070C0 |
URJ202,VDJ200 BLACK,202,RH |
1 | ||
| 85353-60070A1 |
URJ202,VDJ200 WHITE PEARL CS.,070,RH |
1 | ||
| 85353-60070A0 |
URJ202,VDJ200 SUPER WHITE 2,040,RH |
1 | ||
| 85354-60070A0 |
URJ202,VDJ200 SUPER WHITE 2,040,LH |
1 | ||
| 85353-60070B0 |
URJ202,VDJ200 SILVER ME.,1F7,RH |
1 | ||
| 85354-60070C0 |
URJ202,VDJ200 BLACK,202,LH |
1 | ||
| 85354-60070A1 |
URJ202,VDJ200 WHITE PEARL CS.,070,LH |
1 | ||
| 85353-60070B1 |
URJ202,VDJ200 GRAY ME.,1G3,RH |
1 | ||
| 85354-60070C1 |
URJ202,VDJ200 ATTITUDE BLACK MC.,218,LH |
1 | ||
| 85354-60070B0 |
URJ202,VDJ200 SILVER ME.,1F7,LH |
1 | ||
| 85353-60070C1 |
URJ202,VDJ200 ATTITUDE BLACK MC.,218,RH |
1 | ||
| 85354-60070D0 |
URJ202,VDJ200 DK. RED M.M.,3Q3,LH |
1 | ||
| 85354-60070B1 |
URJ202,VDJ200 GRAY ME.,1G3,LH |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-60070J0 |
URJ202,VDJ200 DARK BLUE MC.,8P8,RH |
1 | ||
| 85353-60070E1 |
URJ202,VDJ200 COPPER BROWN MC.,4S6,RH |
1 | ||
| 85353-60070E0 |
URJ202,VDJ200 BEIGE M.M.,4R3,RH |
1 | ||
| 85354-60070E1 |
URJ202,VDJ200 COPPER BROWN MC.,4S6,LH |
1 | ||
| 85354-60070J0 |
URJ202,VDJ200 DARK BLUE MC.,8P8,LH |
1 | ||
| 85353-60070C2 |
URJ202,VDJ200 SPARKLING BLACK PEARL CS.,220,RH |
1 | ||
| 85354-60070E0 |
URJ202,VDJ200 BEIGE M.M.,4R3,LH |
1 | ||
| 85353-60070D0 |
URJ202,VDJ200 DK. RED M.M.,3Q3,RH |
1 | ||
| 85354-60070C2 |
URJ202,VDJ200 SPARKLING BLACK PEARL CS.,220,LH |
1 | ||
| 85353-60070C0 |
URJ202,VDJ200 BLACK,202,RH |
1 | ||
| 85353-60070A1 |
URJ202,VDJ200 WHITE PEARL CS.,070,RH |
1 | ||
| 85353-60070A0 |
URJ202,VDJ200 SUPER WHITE 2,040,RH |
1 | ||
| 85354-60070A0 |
URJ202,VDJ200 SUPER WHITE 2,040,LH |
1 | ||
| 85353-60070B0 |
URJ202,VDJ200 SILVER ME.,1F7,RH |
1 | ||
| 85354-60070C0 |
URJ202,VDJ200 BLACK,202,LH |
1 | ||
| 85354-60070A1 |
URJ202,VDJ200 WHITE PEARL CS.,070,LH |
1 | ||
| 85353-60070B1 |
URJ202,VDJ200 GRAY ME.,1G3,RH |
1 | ||
| 85354-60070C1 |
URJ202,VDJ200 ATTITUDE BLACK MC.,218,LH |
1 | ||
| 85354-60070B0 |
URJ202,VDJ200 SILVER ME.,1F7,LH |
1 | ||
| 85353-60070C1 |
URJ202,VDJ200 ATTITUDE BLACK MC.,218,RH |
1 | ||
| 85354-60070D0 |
URJ202,VDJ200 DK. RED M.M.,3Q3,LH |
1 | ||
| 85354-60070B1 |
URJ202,VDJ200 GRAY ME.,1G3,LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85357-42070 |
URJ202,VDJ200 |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17012 |
URJ202,VDJ200 |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 90075-17010 |
URJ202,VDJ200 |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17001 |
URJ202,VDJ200 |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17009 |
URJ202,VDJ200 |
1 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17009 |
URJ202,VDJ200 |
2 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17009 |
URJ202,VDJ200 |
2 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 85375-16020 |
URJ202,VDJ200 L=40 |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85277-53060 |
URJ202,VDJ200 |
2 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85277-53060 |
URJ202,VDJ200 |
2 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 85273-20020 | ||||
| 90075-91002 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
