Toyota Land cruiser VDJ200 FRONT SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
EU
LAND CRUISER
VDJ200L-GNTEZW (2015)
4803 - FRONT SPRING & SHOCK ABSORBER

VDJ200L-GNTEZW (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999

Engine 1VDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

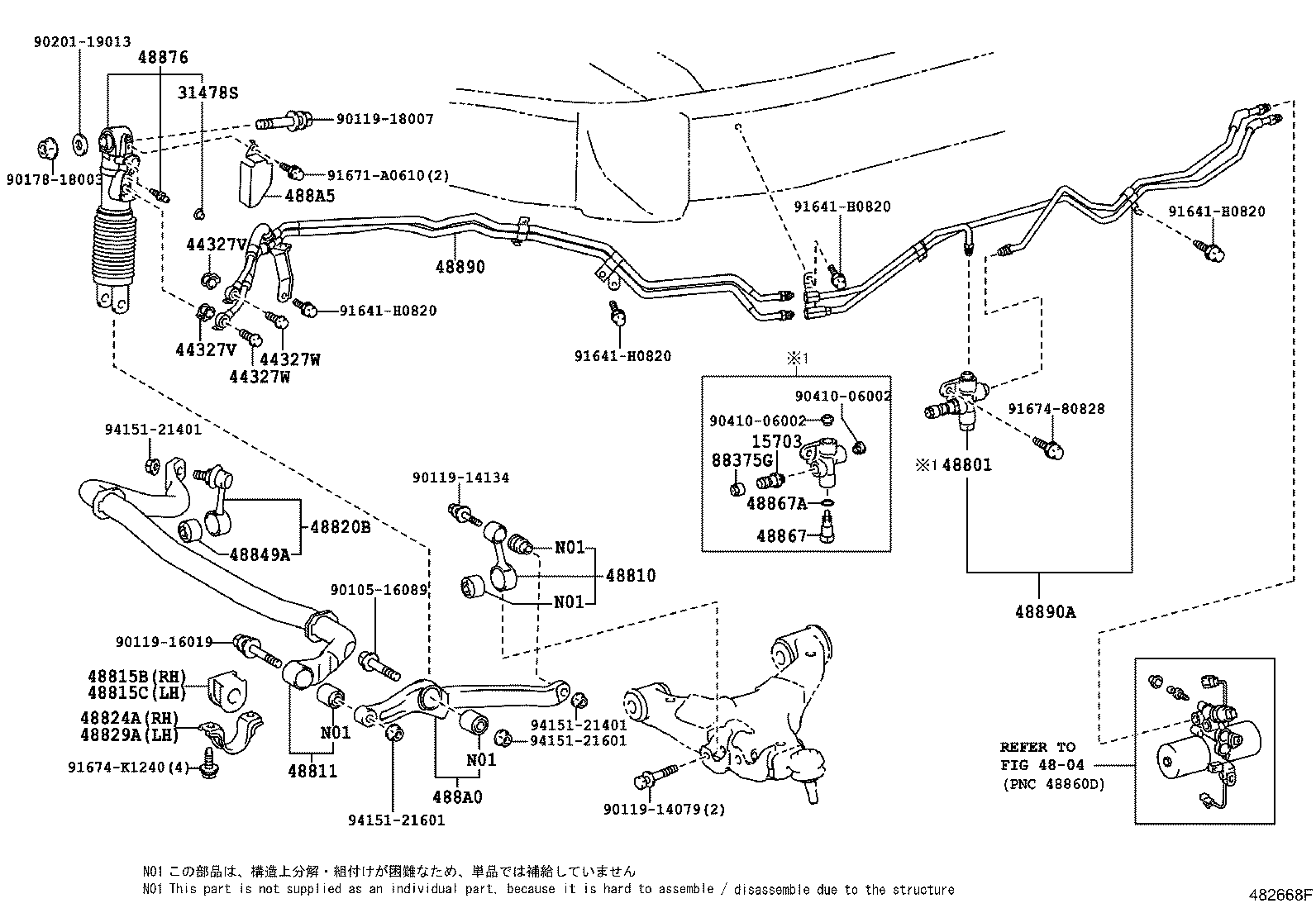

ILLUST NO. 2 OF 2(1704- )

Click highlighted areas on diagram

KDSS

Part #	Description	Period	Qty
15703 - VALVE SUB-ASSY, OIL NOZZLE
15703-60010	1URFE,1VDFTV..URJ202,VDJ200	08/2015 - 04/2017	2
15703-60010	1URFE,1VDFTV..URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
15703-60010	1VDFTV..VDJ200;1URFE..URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
15703-60010	1URFE..URJ202..08S..VX;1VDFTV..VDJ200..05S..VX;1VDFTV..VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
15703-60010	1URFE,1VDFTV..URJ202,VDJ200	04/2017 - 03/2021	1
31478S - CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL)
31478-60020	URJ202,VDJ200	08/2015 - 03/2021	2
31478-60020	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 09/2020	2
31478-60020	VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2021	2
31478-60020	VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 03/2021	2
44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE
90430-16016	URJ202,VDJ200	08/2015 - 03/2021	2
44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE
90430-16016	URJ202,VDJ200	08/2015 - 03/2021	2
44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE)
96341-41603	URJ202,VDJ200	08/2015 - 03/2021	2
44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE)
96341-41603	URJ202,VDJ200	08/2015 - 03/2021	2
48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL
48001-60020	URJ202,VDJ200	08/2015 - 03/2017	2
48001-60021	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	04/2017 - 09/2020	1
48001-60021	URJ202,VDJ200	04/2017 - 03/2021	1
48001-60020	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 03/2017	2
48001-60021	VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48001-60020	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2017	2
48001-60020	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2017	2
48001-60021	VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK	04/2017 - 03/2021	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-60060	URJ202,VDJ200	08/2015 - 03/2021	1
48810-60051	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48811 - BAR, STABILIZER, FRONT
48804-60120	URJ202,VDJ200	08/2015 - 03/2021	1
48811-60290	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH
48815-60250	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48815-60260	URJ202,VDJ200	08/2015 - 03/2021	1
48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH
48815-60260	URJ202,VDJ200	08/2015 - 03/2021	1
48815-60250	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-60071	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48820-60082	URJ202,VDJ200	08/2015 - 03/2021	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-60170	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48824-60180	URJ202,VDJ200	08/2015 - 03/2021	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-60170	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48824-60180	URJ202,VDJ200	08/2015 - 03/2021	1
48849A - BUSH, FRONT STABILIZER LINK, RH
48849-60120	URJ202,VDJ200	08/2015 - 03/2021	1
48849-60110	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER
48867-60010	URJ202,VDJ200	08/2015 - 04/2017	2
48867-60010	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48867-60010	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
48867-60011	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	04/2017 - 09/2020	1
48867-60011	URJ202,VDJ200	04/2017 - 03/2021	1
48867-60011	VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK	04/2017 - 03/2021	1
48867-60011	VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48867-60010	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE)
96711-19007	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
96711-19007	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200	04/2017 - 03/2021	1
48876 - CYLINDER, FRONT STABILIZER CONTROL
48876-60021	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 09/2018	1
48876-60021	URJ202,VDJ200	08/2015 - 09/2018	1
48876-60021	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 09/2018	1
48876-60021	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 09/2018	1
48876-60022	URJ202,VDJ200	10/2018 - 03/2021	1
48876-60022	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	10/2018 - 09/2020	1
48876-60022	URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	10/2018 - 03/2021	1
48876-60022	VDJ200..VX;URJ202..08S..VX SUSPENSION-FRONT=IRS, REAR=4LINK	10/2018 - 03/2021	1
48890 - TUBE ASSY, FRONT STABILIZER CONTROL, NO.1
48890-60022	URJ202,VDJ200	08/2015 - 12/2015	1
48890-60023	URJ202,VDJ200	01/2016 - 03/2021	1
48890A - TUBE ASSY, FRONT STABILIZER CONTROL, NO.2
48880-60060	URJ202,VDJ200	04/2017 - 03/2021	1
48890-60030	URJ202,VDJ200	08/2015 - 04/2017	1
488A0 - ARM ASSY, STABILIZER CONTROL, FRONT
488A0-60010	URJ202,VDJ200	08/2015 - 03/2021	1
488A5 - PROTECTOR, STABILIZER CONTROL TUBE
488A5-60010	URJ202,VDJ200	08/2015 - 03/2021	1
88375G - CAP, SERVICE VALVE
88375-60010	URJ202,VDJ200	08/2015 - 04/2017	2
88375-60010	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
88375-60010	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
88375-60010	URJ202,VDJ200	04/2017 - 03/2021	1
88375-60010	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
Common parts
90105-16089
90119-14079
90119-14134
90119-16019
90119-18007
90178-18003
90201-19013
90410-06002
91641-H0820
91671-A0610
91674-80828
91674-K1240
94151-21401
94151-21601
Linked diagrams
4804

ILLUST NO. 2 OF 2(0709-1704)

Click highlighted areas on diagram

KDSS

Part #	Description	Period	Qty
15703 - VALVE SUB-ASSY, OIL NOZZLE
15703-60010	1URFE,1VDFTV..URJ202,VDJ200	08/2015 - 04/2017	2
15703-60010	1URFE,1VDFTV..URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
15703-60010	1VDFTV..VDJ200;1URFE..URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
15703-60010	1URFE..URJ202..08S..VX;1VDFTV..VDJ200..05S..VX;1VDFTV..VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
15703-60010	1URFE,1VDFTV..URJ202,VDJ200	04/2017 - 03/2021	1
15703 - VALVE SUB-ASSY, OIL NOZZLE
15703-60010	1URFE,1VDFTV..URJ202,VDJ200	08/2015 - 04/2017	2
15703-60010	1URFE,1VDFTV..URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
15703-60010	1VDFTV..VDJ200;1URFE..URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
15703-60010	1URFE..URJ202..08S..VX;1VDFTV..VDJ200..05S..VX;1VDFTV..VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
15703-60010	1URFE,1VDFTV..URJ202,VDJ200	04/2017 - 03/2021	1
31478S - CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL)
31478-60020	URJ202,VDJ200	08/2015 - 03/2021	2
31478-60020	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 09/2020	2
31478-60020	VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2021	2
31478-60020	VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 03/2021	2
44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE
90430-16016	URJ202,VDJ200	08/2015 - 03/2021	2
44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE
90430-16016	URJ202,VDJ200	08/2015 - 03/2021	2
44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE)
96341-41603	URJ202,VDJ200	08/2015 - 03/2021	2
44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE)
96341-41603	URJ202,VDJ200	08/2015 - 03/2021	2
48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL
48001-60020	URJ202,VDJ200	08/2015 - 03/2017	2
48001-60021	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	04/2017 - 09/2020	1
48001-60021	URJ202,VDJ200	04/2017 - 03/2021	1
48001-60020	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 03/2017	2
48001-60021	VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48001-60020	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2017	2
48001-60020	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2017	2
48001-60021	VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK	04/2017 - 03/2021	1
48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL
48001-60020	URJ202,VDJ200	08/2015 - 03/2017	2
48001-60021	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	04/2017 - 09/2020	1
48001-60021	URJ202,VDJ200	04/2017 - 03/2021	1
48001-60020	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 03/2017	2
48001-60021	VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48001-60020	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2017	2
48001-60020	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2017	2
48001-60021	VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK	04/2017 - 03/2021	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-60060	URJ202,VDJ200	08/2015 - 03/2021	1
48810-60051	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48811 - BAR, STABILIZER, FRONT
48804-60120	URJ202,VDJ200	08/2015 - 03/2021	1
48811-60290	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH
48815-60250	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48815-60260	URJ202,VDJ200	08/2015 - 03/2021	1
48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH
48815-60260	URJ202,VDJ200	08/2015 - 03/2021	1
48815-60250	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-60071	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48820-60082	URJ202,VDJ200	08/2015 - 03/2021	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-60170	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48824-60180	URJ202,VDJ200	08/2015 - 03/2021	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-60170	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48824-60180	URJ202,VDJ200	08/2015 - 03/2021	1
48849A - BUSH, FRONT STABILIZER LINK, RH
48849-60120	URJ202,VDJ200	08/2015 - 03/2021	1
48849-60110	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 03/2021	1
48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER
48867-60010	URJ202,VDJ200	08/2015 - 04/2017	2
48867-60010	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48867-60010	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
48867-60011	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	04/2017 - 09/2020	1
48867-60011	URJ202,VDJ200	04/2017 - 03/2021	1
48867-60011	VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK	04/2017 - 03/2021	1
48867-60011	VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48867-60010	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER
48867-60010	URJ202,VDJ200	08/2015 - 04/2017	2
48867-60010	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48867-60010	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
48867-60011	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	04/2017 - 09/2020	1
48867-60011	URJ202,VDJ200	04/2017 - 03/2021	1
48867-60011	VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK	04/2017 - 03/2021	1
48867-60011	VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48867-60010	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE)
96711-19007	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
96711-19007	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200	04/2017 - 03/2021	1
48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE)
96711-19007	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
96711-19007	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200	08/2015 - 04/2017	2
96711-19007	URJ202,VDJ200	04/2017 - 03/2021	1
48876 - CYLINDER, FRONT STABILIZER CONTROL
48876-60021	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 09/2018	1
48876-60021	URJ202,VDJ200	08/2015 - 09/2018	1
48876-60021	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 09/2018	1
48876-60021	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 09/2018	1
48876-60022	URJ202,VDJ200	10/2018 - 03/2021	1
48876-60022	URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	10/2018 - 09/2020	1
48876-60022	URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL	10/2018 - 03/2021	1
48876-60022	VDJ200..VX;URJ202..08S..VX SUSPENSION-FRONT=IRS, REAR=4LINK	10/2018 - 03/2021	1
48890 - TUBE ASSY, FRONT STABILIZER CONTROL, NO.1
48890-60022	URJ202,VDJ200	08/2015 - 12/2015	1
48890-60023	URJ202,VDJ200	01/2016 - 03/2021	1
48890A - TUBE ASSY, FRONT STABILIZER CONTROL, NO.2
48880-60060	URJ202,VDJ200	04/2017 - 03/2021	1
48890-60030	URJ202,VDJ200	08/2015 - 04/2017	1
488A0 - ARM ASSY, STABILIZER CONTROL, FRONT
488A0-60010	URJ202,VDJ200	08/2015 - 03/2021	1
488A5 - PROTECTOR, STABILIZER CONTROL TUBE
488A5-60010	URJ202,VDJ200	08/2015 - 03/2021	1
88375G - CAP, SERVICE VALVE
88375-60010	URJ202,VDJ200	08/2015 - 04/2017	2
88375-60010	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
88375-60010	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
88375-60010	URJ202,VDJ200	04/2017 - 03/2021	1
88375-60010	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
88375G - CAP, SERVICE VALVE
88375-60010	URJ202,VDJ200	08/2015 - 04/2017	2
88375-60010	URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
88375-60010	URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)	08/2015 - 04/2017	2
88375-60010	URJ202,VDJ200	04/2017 - 03/2021	1
88375-60010	VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK	08/2015 - 04/2017	2
Common parts
90105-16089
90119-14079
90119-14134
90119-16019
90119-18007
90178-18003
90201-19013
90410-06002
91641-H0820
91671-A0610
91674-80828
91674-K1240
94151-21401
94151-21601
Linked diagrams
4804

VDJ200L-GNTEZW (2015)

ILLUST NO. 2 OF 2(1704- )

ILLUST NO. 2 OF 2(0709-1704)

Part Price Details
