VDJ200L-GMTVZW (2015)
Toyota Land Cruiser

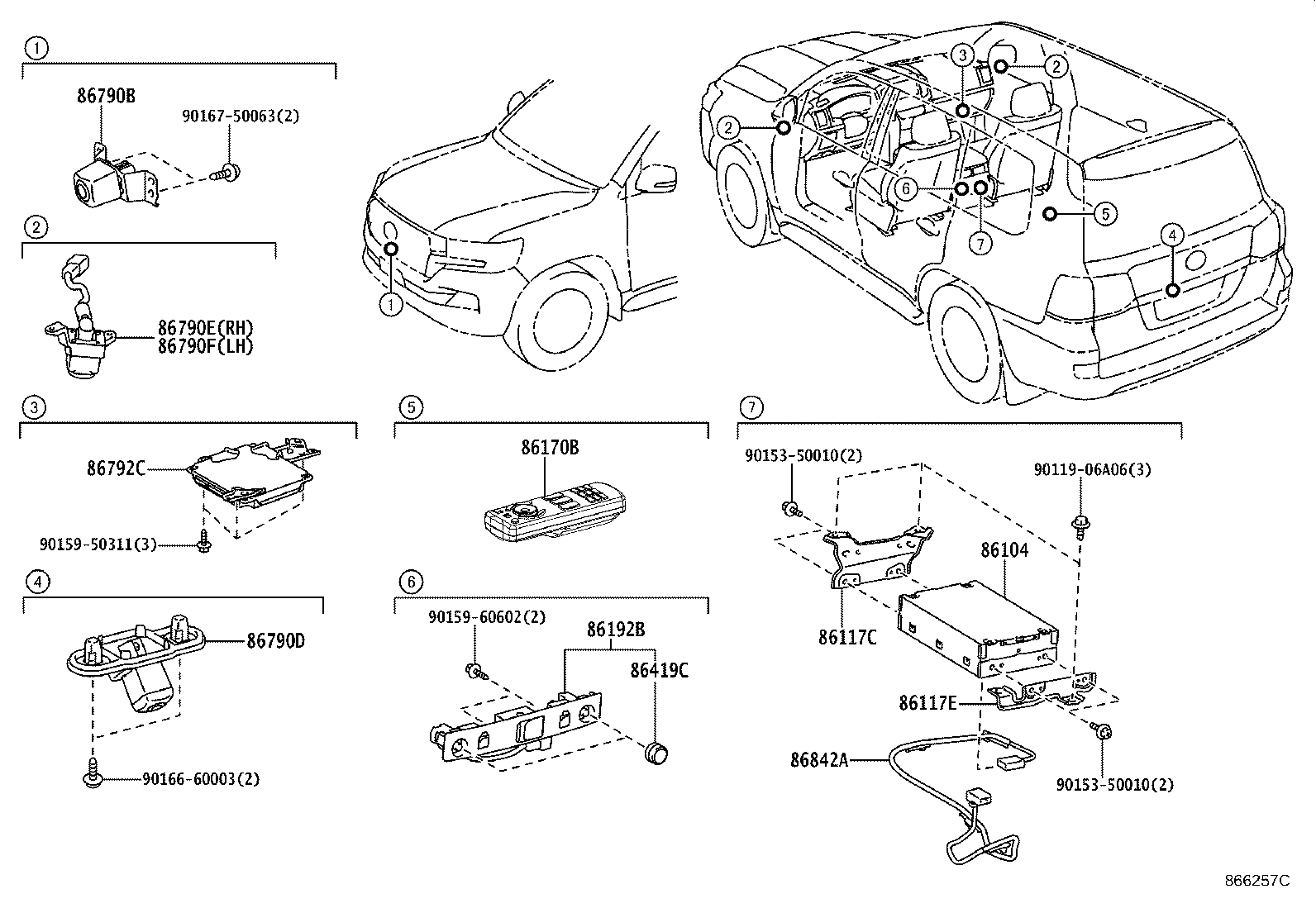

ILLUST NO. 1 OF 2(1508- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY | ||||
| 862B1-48010 |
URJ202..VXR;VDJ200..RHD;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-60160 |
URJ202..VXR;VDJ200..RHD;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86117E - BRACKET, MULTI-DISPLAY CONTROLLER, NO.3 | ||||
| 86118-60160 |
URJ202..VXR;VDJ200..RHD;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-60150 |
VDJ200..05S..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86170-60150 |
VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86170-60150 |
VDJ200..05S..VXR UKRAINE SPEC&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86170-60250 |
VDJ200..05S..VXR RUSSIA SPEC&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86170-60250 |
VDJ200..05S..VXR KAZAKHSTAN SPEC&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86170-60150 |
VDJ200..05S..VXR UKRAINE SPEC&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86170-60150 |
VDJ200..05S..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86192B - TERMINAL, HEADPHONE | ||||
| 86192-60100 |
URJ202..VXR;VDJ200..RHD;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86419C - KNOB, AUDIO MODULE | ||||
| 86419-60020 |
URJ202..VXR;VDJ200..RHD;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 867B0-60011 |
URJ202,VDJ200 BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60010 |
URJ202,VDJ200 BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60012 |
URJ202,VDJ200 BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-60260 |
URJ202,VDJ200..LHD BACK MONITOR-WITH(GUIDE) |
1 | ||
| 867B0-60041 |
URJ202,VDJ200 BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60042 |
URJ202,VDJ200 BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86790-60260 |
URJ202,VDJ200..LHD..VX BACK MONITOR-WITH(CAMERA ONLY) |
1 | ||
| 867B0-60040 |
URJ202,VDJ200 BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86790E - CAMERA ASSY, TELEVISION, SIDE RH | ||||
| 867B0-60031 |
URJ202..VXR;VDJ200..05S;VDJ200..LHD..08S..VX BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60031 |
URJ202..VXR;VDJ200..05S..VXR RUSSIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60031 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60031 |
URJ202..VXR;VDJ200..05S..VXR UKRAINE SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR UKRAINE SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60031 |
URJ202..VXR;VDJ200..05S..VXR KAZAKHSTAN SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60030 |
URJ202,VDJ200 BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR UKRAINE SPEC&WITH(AVS)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60031 |
URJ202..VXR;VDJ200..05S..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR UKRAINE SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH(GUIDE& MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR UKRAINE SPEC&WITH(AVS)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR UKRAINE SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&BACK MONITOR-WITH(GUIDE & MULTITERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR RUSSIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR KAZAKHSTAN SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR ARMENIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60032 |
VDJ200..05S..VXR UKRAINE SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86790F - CAMERA ASSY, TELEVISION, SIDE LH | ||||
| 867B0-60021 |
URJ202..VXR;VDJ200..05S;VDJ200..LHD..08S..VX BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60020 |
URJ202,VDJ200 BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60021 |
URJ202..VXR;VDJ200..05S..VXR RUSSIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60021 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR UKRAINE SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60021 |
URJ202..VXR;VDJ200..05S..VXR UKRAINE SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR UKRAINE SPEC&WITH(AVS)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR UKRAINE SPEC&WITH(AVS)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR RUSSIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60021 |
URJ202..VXR;VDJ200..05S..VXR KAZAKHSTAN SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR UKRAINE SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH(GUIDE& MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR UKRAINE SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&BACK MONITOR-WITH(GUIDE & MULTITERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR ARMENIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60021 |
URJ202..VXR;VDJ200..05S..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR UKRAINE SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 867B0-60022 |
VDJ200..05S..VXR KAZAKHSTAN SPEC&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-60620 |
VDJ200..LHD..VX KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..VXR UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..LHD..VX UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..LHD..VX RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..LHD..VX AZERBAIJAN, GEORGIA, ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..VXR RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..VXR KAZAKHSTAN SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86792-60620 |
VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS)&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 86842A - WIRE, NAVIGATION, NO.1 | ||||
| 86842-60B00 |
URJ202..VXR;VDJ200..RHD;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90153-50010 | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 90166-60003 | ||||
| 90167-50063 | ||||
ILLUST NO. 2 OF 2(1508- )RHD ; (1708- )LHD
REAR MONITOR DISPLAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86292 - COVER, TELEVISION SET | ||||
| 86292-60020 |
URJ202..VXR;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86292-60020 |
URJ202..VXR;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86292 - COVER, TELEVISION SET | ||||
| 86292-60020 |
URJ202..VXR;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86292-60020 |
URJ202..VXR;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 86292D - CLIP(FOR TELEVISION SET COVER) | ||||
| 90467-0504522 |
VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 90467-0504522 |
VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 90467-0504522 |
VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 90467-0504522 |
VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 90467-0504522 |
VDJ200..05S..VXR HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 90467-0504522 |
URJ202..VXR;VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 90467-0504522 |
VDJ200..05S..VXR HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 90467-0504522 |
URJ202..VXR;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 90467-0504522 |
URJ202..VXR;VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
16 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-48110C0 |
URJ202..VXR;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(*VCS),BLACK,TRIM0#,2#,4# |
2 | ||
| 86295-48110C0 |
URJ202..VXR;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
2 | ||
| 86295E - BASE, TELEVISION, NO.2 | ||||
| 86295-60060 |
VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86295-60060 |
VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86295-60060 |
VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86295-60060 |
VDJ200..05S..VXR HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86295-60060 |
VDJ200..05S..VXR HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86295-60060 |
VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86295-60060 |
URJ202..VXR;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86295-60060 |
URJ202..VXR;VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86295-60060 |
URJ202..VXR;VDJ200..05S..VXR ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&REAR SEAT ENTERTAINMENT-WITH |
2 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-60370C0 |
URJ202..VXR;VDJ200..05S..VXR PANASONIC,REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(*VCS),BLACK,TRIM0#,2#,4# |
2 | ||
| 86680-60370C0 |
URJ202..VXR;VDJ200..05S..VXR PANASONIC,REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM0#,2#,4# |
2 | ||
| Common parts | ||||
| 90179-06274 | ||||
