VDJ200L-GMTVZW (2015)
Toyota Land Cruiser

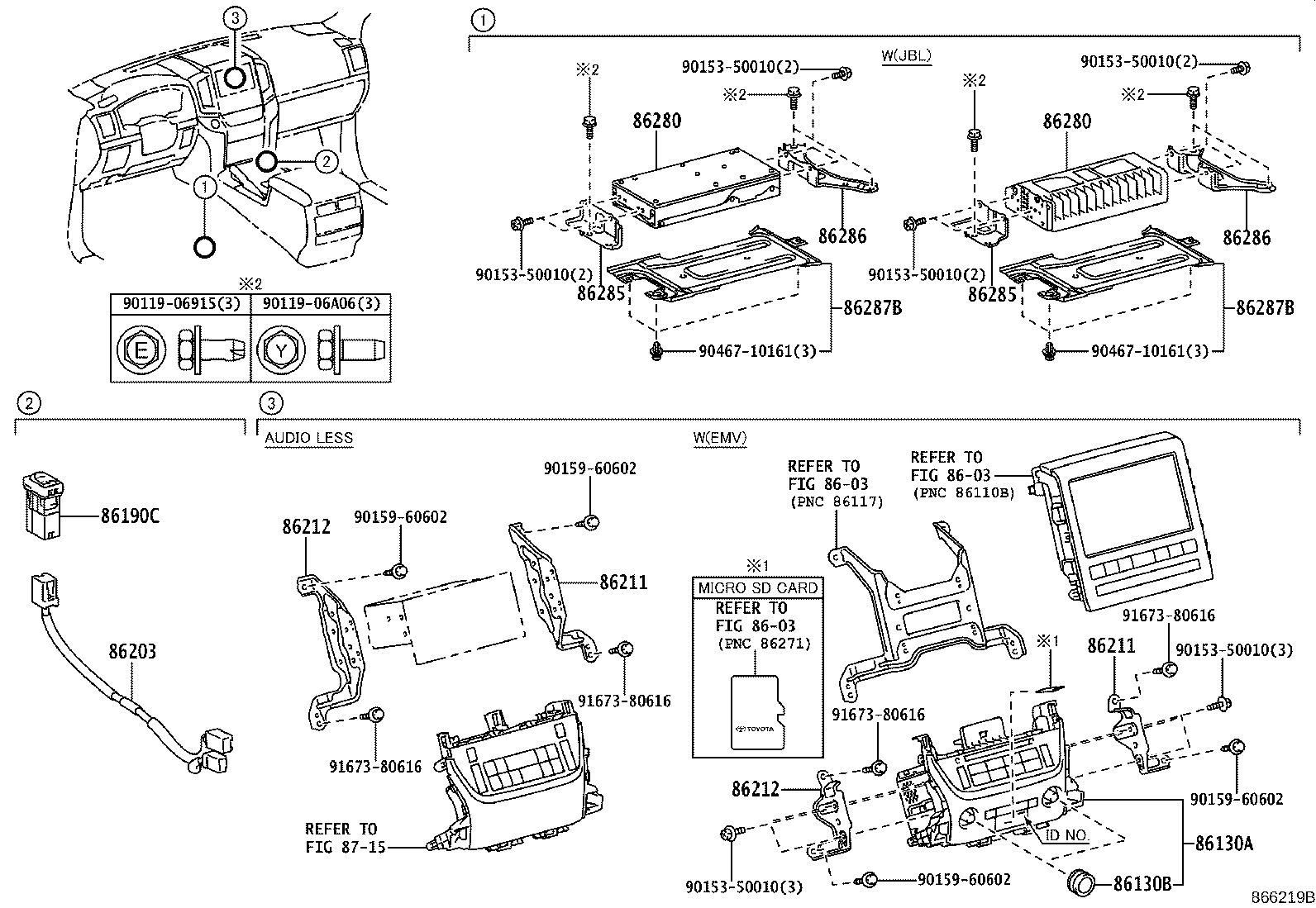

ILLUST NO. 1 OF 2(1508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-60G40 |
URJ202,VDJ200..05S PIONEER,ID=P11239,AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G60 |
URJ202,VDJ200..05S PIONEER,ID=P11240,RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G60 |
URJ202,VDJ200..05S PIONEER,ID=P11240,UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S PIONEER,ID=P11246,UKRAINE SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S PIONEER,ID=P11246,RUSSIA SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G60 |
URJ202,VDJ200..05S PIONEER,ID=P11240,KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S PIONEER,ID=P11246,KAZAKHSTAN SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S PIONEER,ID=P11246,UKRAINE SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60J70 |
VDJ200..05S PIONEER,ID=P11295,AZERBAIJAN, GEORGIA, ARMENIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
URJ202,VDJ200..05S PIONEER,ID=P11246,RUSSIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S..VX PIONEER,ID=P11246,ARMENIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
1 | ||
| 86804-60G70 |
URJ202..05S;VDJ200..05S..VXR PIONEER,ID=P11246,AZERBAIJAN, GEORGIA, ARMENIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S..VXR PIONEER,ID=P11246,UKRAINE SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..VXR;VDJ200..LHD..08S..VX PIONEER,ID=P11246,ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
1 | ||
| 86804-60G70 |
URJ202..05S;VDJ200..05S..VXR PIONEER,ID=P11246,RUSSIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
1 | ||
| 86804-60G70 |
URJ202,VDJ200..05S PIONEER,ID=P11246,KAZAKHSTAN SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S..VX PIONEER,ID=P11246,AZERBAIJAN, GEORGIA, ARMENIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S..VX PIONEER,ID=P11246,UKRAINE SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S..VXR PIONEER,ID=P11246,RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
1 | ||
| 86804-60G70 |
VDJ200..05S..VX PIONEER,ID=P11246,RUSSIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
1 | ||
| 86804-60G70 |
VDJ200..05S..VXR PIONEER,ID=P11246,AZERBAIJAN, GEORGIA, ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86804-60G70 |
VDJ200..05S..VX PIONEER,ID=P11246,KAZAKHSTAN SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
1 | ||
| 86804-60G70 |
VDJ200..VXR;VDJ200..LHD..08S..VX PIONEER,ID=P11246,KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
1 | ||
| 86804-60G70 |
VDJ200..05S..VXR PIONEER,ID=P11246,UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86130B - KNOB, RECEIVER SWITCH | ||||
| 90010-22117 |
VDJ200..05S UKRAINE SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
VDJ200..05S RUSSIA SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
URJ202,VDJ200..05S RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
URJ202,VDJ200..05S RUSSIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
URJ202,VDJ200..05S UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
URJ202,VDJ200..05S KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
VDJ200..05S KAZAKHSTAN SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
VDJ200..05S UKRAINE SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
URJ202,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
URJ202,VDJ200..05S KAZAKHSTAN SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
VDJ200..05S..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
URJ202..05S;VDJ200..05S..VXR RUSSIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
2 | ||
| 90010-22117 |
VDJ200..05S..VX ARMENIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
2 | ||
| 90010-22117 |
VDJ200..05S..VX RUSSIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
2 | ||
| 90010-22117 |
VDJ200..05S..VX AZERBAIJAN, GEORGIA, ARMENIA SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
VDJ200..VXR;VDJ200..LHD..08S..VX ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
2 | ||
| 90010-22117 |
VDJ200..05S..VXR RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
2 | ||
| 90010-22117 |
VDJ200..05S..VX UKRAINE SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
VDJ200..05S..VX KAZAKHSTAN SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
2 | ||
| 90010-22117 |
VDJ200..05S..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
VDJ200..VXR;VDJ200..LHD..08S..VX KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS)&MAYDAY SYSTEM-WITH |
2 | ||
| 90010-22117 |
VDJ200..05S..VXR UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 90010-22117 |
VDJ200..05S..VXR UKRAINE SPEC&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
2 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-60070 |
URJ202,VDJ200..LHD..VXR AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86190-60070 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-60410 |
URJ202,VDJ200..LHD..VXR AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86203-60411 |
URJ202,VDJ200..LHD..VXR AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86203-60410 |
VDJ200..RHD;URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86203-60411 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60420 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86211-60440 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP) |
1 | ||
| 86211-60440 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER |
1 | ||
| 86211-60420 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86211-60440 |
URJ202,VDJ200..LHD |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60420 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86211-60440 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP) |
1 | ||
| 86211-60440 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER |
1 | ||
| 86211-60420 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86211-60440 |
URJ202,VDJ200..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60440 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP) |
1 | ||
| 86212-60440 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER |
1 | ||
| 86212-60420 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86212-60440 |
URJ202,VDJ200..LHD |
1 | ||
| 86212-60420 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60440 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP) |
1 | ||
| 86212-60440 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER |
1 | ||
| 86212-60420 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86212-60440 |
URJ202,VDJ200..LHD |
1 | ||
| 86212-60420 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-60630 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86280-60630 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-60630 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86280-60630 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-60160 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86285-60160 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-60160 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86285-60160 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-60060 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86286-60060 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-60060 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86286-60060 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-60070 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86287-60070 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-60070 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 86287-60070 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90153-50010 | ||||
| 90159-60602 | ||||
| 90467-10161 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
| 8715 | ||||

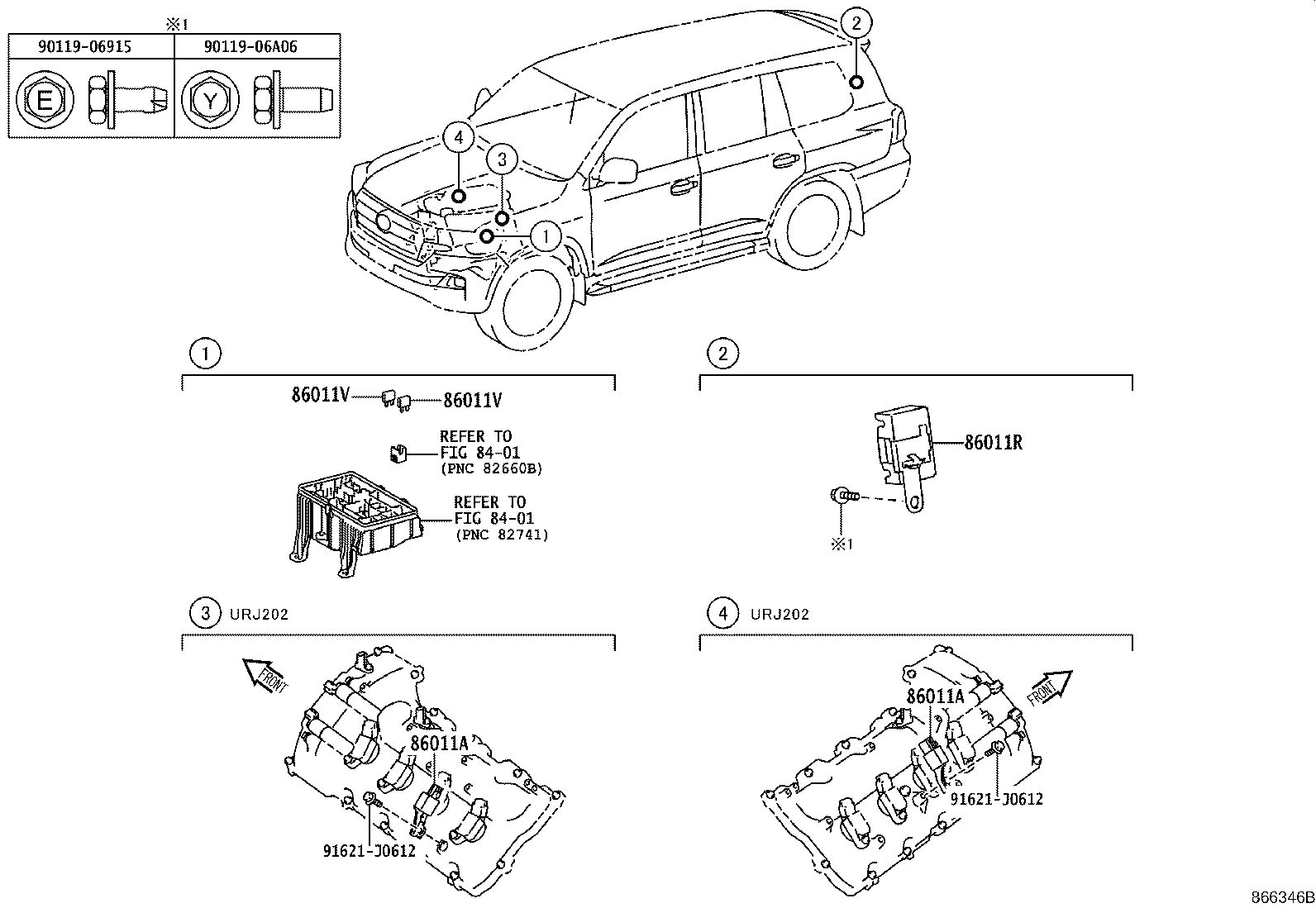

ILLUST NO. 2 OF 2(1508- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04204 |
URJ202,VDJ200 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
URJ202,VDJ200 |
2 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
URJ202,VDJ200 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
