VDJ200L-GMTVZW (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )LHD

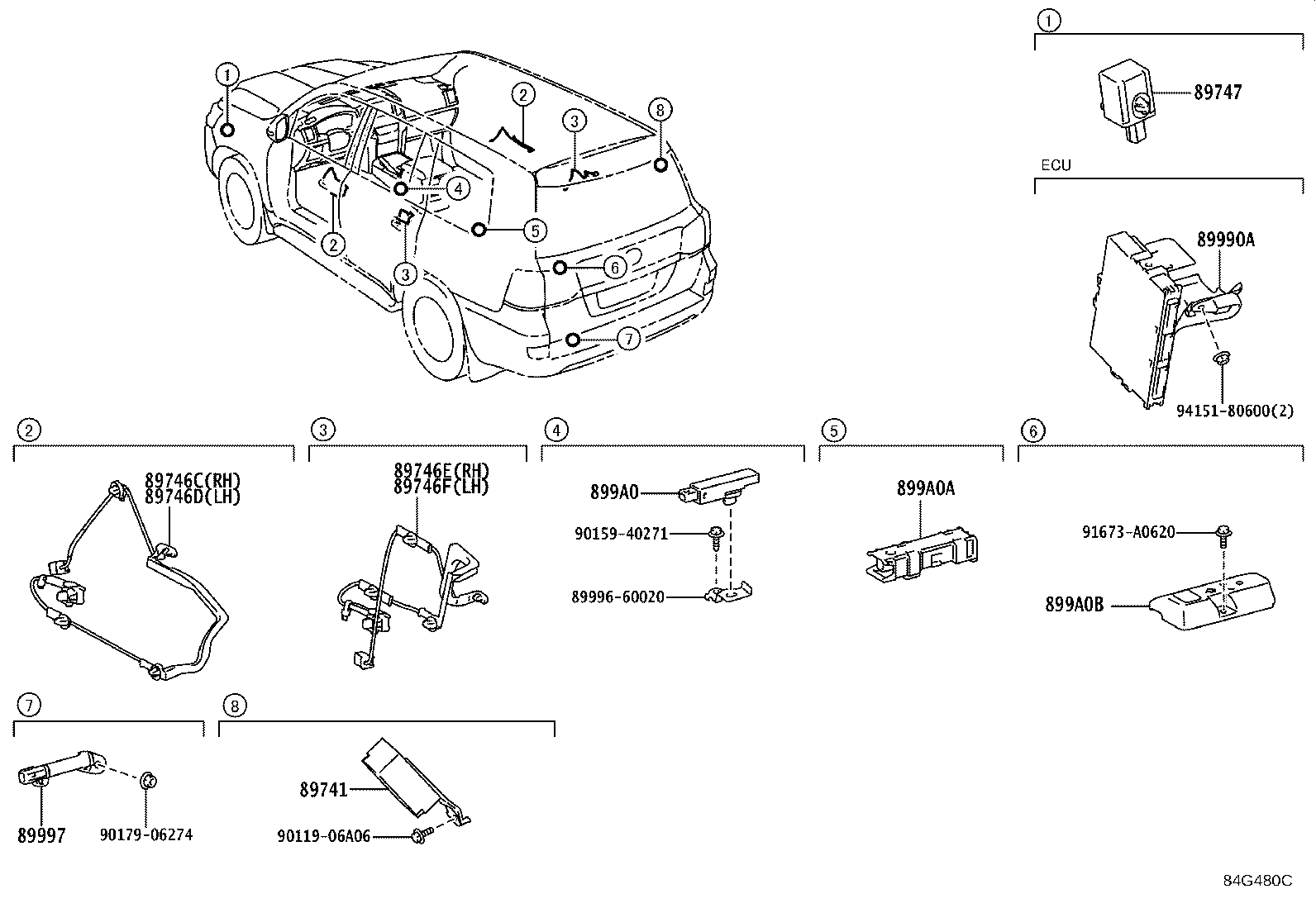

Click highlighted areas on diagram

diagram 89741 89746C 89746D 89746E 89746F 89747 89990A 8999660020 89997 899A0 899A0A 899A0B 9011906A06 9015940271 9017906274 91673A0620 9415180600
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-60250

URJ202,VDJ200

 1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-60050

URJ202,VDJ200

 1
89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2
89746-60060

URJ202,VDJ200

 1
89746E - HARNESS, ELECTRICAL KEY WIRE, NO.3
89746-60070

URJ202,VDJ200

 1
89746F - HARNESS, ELECTRICAL KEY WIRE, NO.4
89746-60080

URJ202,VDJ200

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

URJ202,VDJ200

 1
89990A - COMPUTER ASSY, SMART KEY
89990-60471

URJ202,VDJ200..LHD

 1
89990-60690

URJ202,VDJ200..LHD

 1
89990-60280

URJ202,VDJ200..05S..VX

SMART ENTRY-WITH(EXCEPT REAR DOOR)

 1
89990-60670

URJ202,VDJ200..05S..VX

SMART ENTRY-WITH(EXCEPT REAR DOOR)

 1
89990-60470

URJ202,VDJ200..LHD

 1
89990-60770

URJ202,VDJ200..LHD

 1
89990-60750

URJ202,VDJ200..05S..VX

SMART ENTRY-WITH(EXCEPT REAR DOOR)

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

URJ202,VDJ200

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

URJ202,VDJ200

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-60020

URJ202,VDJ200

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-60040

URJ202,VDJ200

 1
Common parts
89996-60020
90119-06A06
90159-40271
90179-06274
91673-A0620
94151-80600
