VDJ200L-GMTVZW (2015)
Toyota Land Cruiser

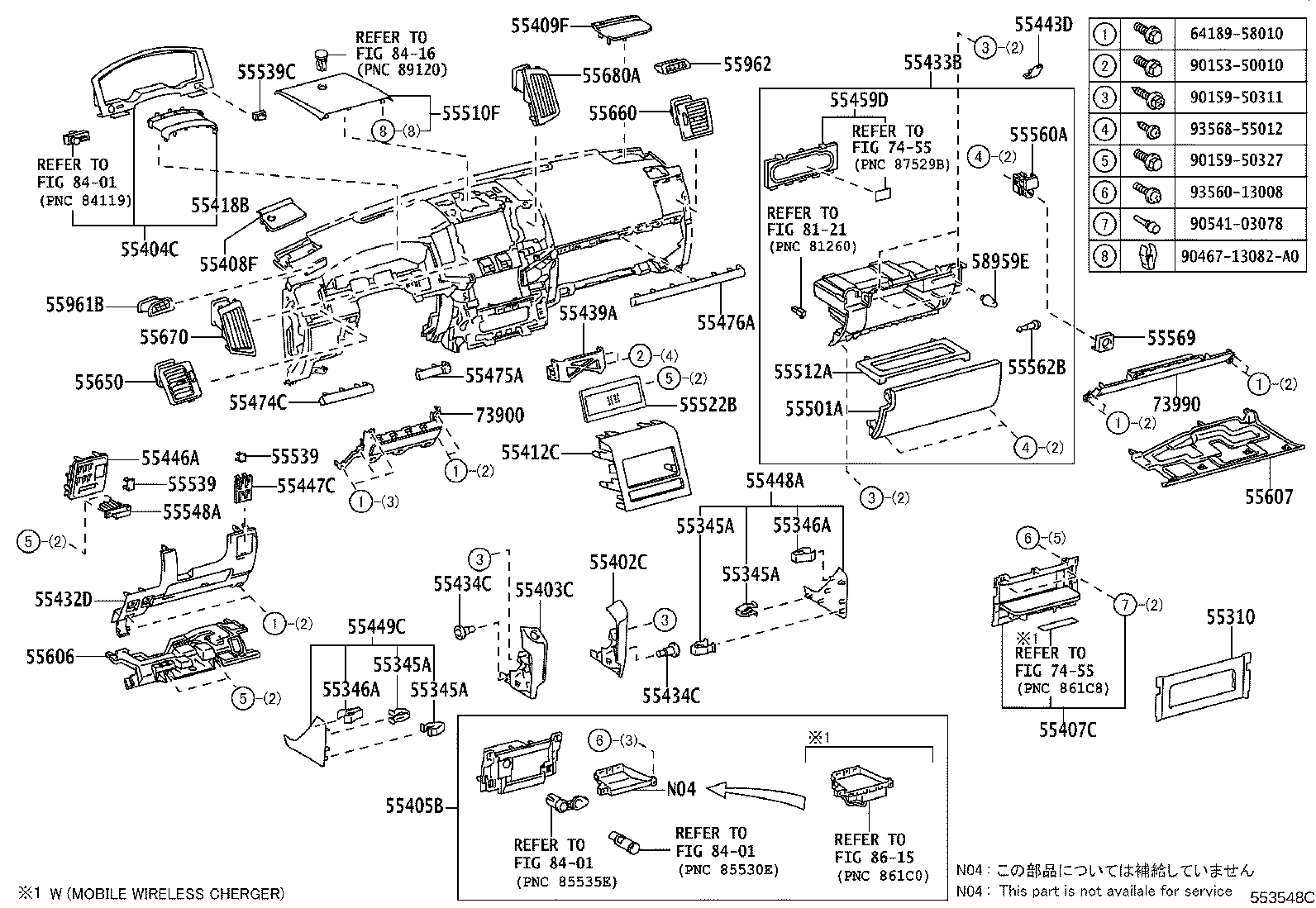

ILLUST NO. 2 OF 2(1508- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55310 - PANEL ASSY, INSTRUMENT, LOWER | ||||
| 55310-60130 |
URJ202,VDJ200 |
1 | ||
| 55310-60130B0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S SILVER HAIRLINE,TRIM1#,2#,4# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05172 |
URJ202,VDJ200 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05172 |
URJ202,VDJ200 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05172 |
URJ202,VDJ200 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05172 |
URJ202,VDJ200 |
4 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
URJ202,VDJ200 MELLOW WHITE |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
URJ202,VDJ200 MELLOW WHITE |
2 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-60110A3 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55402-60110C4 |
URJ202..VXR;VDJ200..05S..VXR BLACK,TRIM1#,23,25,42,46 |
1 | ||
| 55402-60110C4 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55402-60110C4 |
VDJ200..LHD..08S;URJ202,VDJ200..05S..VX BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55402-60110C5 |
URJ202..VXR;VDJ200..05S..VXR BLACK/CAMEL,TRIM25 |
1 | ||
| 55402-60110C4 |
URJ202..VXR;VDJ200..05S..VXR BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55402-60110E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55402-60111C4 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK/GRAY,TRIM1#,2#,42,46 |
1 | ||
| 55402-60111E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-60100A3 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55403-60100C4 |
URJ202..VXR;VDJ200..05S..VXR BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55403-60100C4 |
URJ202..VXR;VDJ200..05S..VXR BLACK,TRIM1#,23,25,42,46 |
1 | ||
| 55403-60100C4 |
VDJ200..LHD..08S;URJ202,VDJ200..05S..VX BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55403-60100C4 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55403-60100C5 |
URJ202..VXR;VDJ200..05S..VXR BLACK/CAMEL,TRIM25 |
1 | ||
| 55403-60100E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55403-60101C4 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK/GRAY,TRIM1#,2#,42,46 |
1 | ||
| 55403-60101E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60390C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55404-60390E0 |
URJ202,VDJ200..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55404-60381C0 |
URJ202,VDJ200..05S..VX SPEEDOMETER-ANALOG(KM/H),BLACK,TRIM1#,2#,46 |
1 | ||
| 55404-60391C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55404-60381E0 |
URJ202,VDJ200..05S..VX SPEEDOMETER-ANALOG(KM/H),ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55404-60391E0 |
URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-60420 |
URJ202,VDJ200..LHD |
1 | ||
| 55405-60491 |
URJ202,VDJ200..LHD WIRELESS CHARGER-WITH |
1 | ||
| 55405-60490 |
URJ202,VDJ200..LHD WIRELESS CHARGER-WITH |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-60110 |
URJ202,VDJ200 |
1 | ||
| 55407-60080 |
URJ202,VDJ200..LHD WIRELESS CHARGER-WITH |
1 | ||
| 55407-60110B0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S SILVER HAIRLINE,TRIM1#,2#,4# |
1 | ||
| 55407-60081B0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S WIRELESS CHARGER-WITH,SILVER HAIRLINE,TRIM1#,2#,4# |
1 | ||
| 55407-60081 |
URJ202,VDJ200..LHD WIRELESS CHARGER-WITH |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-60110 |
VDJ200..RHD;URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55408-60110 |
VDJ200..LHD..VXR UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55408-60110 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55408-60110 |
VDJ200..LHD..VX UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55408-60110 |
VDJ200..VXR ARMENIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55408-60110 |
VDJ200..LHD..VX KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55408-60110 |
VDJ200..LHD..VX RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55472-60100 |
URJ202,VDJ200..LHD |
1 | ||
| 55408-60110 |
VDJ200..LHD..VX AZERBAIJAN, GEORGIA, ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55408-60110 |
VDJ200..LHD..VX ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55408-60110 |
VDJ200..LHD..VXR KAZAKHSTAN SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55408-60110 |
VDJ200..LHD..VX UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55408-60110 |
VDJ200..LHD..VXR RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55408-60110 |
VDJ200..LHD..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55408-60110 |
VDJ200..VXR UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-60020 |
VDJ200..LHD..VXR UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55409-60020 |
VDJ200..RHD;URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55409-60020 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55409-60020 |
VDJ200..LHD..VX ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55409-60020 |
VDJ200..VXR ARMENIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55409-60020 |
VDJ200..LHD..VX UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55473-60060 |
URJ202,VDJ200..LHD |
1 | ||
| 55409-60020 |
VDJ200..LHD..VXR KAZAKHSTAN SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55409-60020 |
VDJ200..LHD..VX RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55409-60020 |
VDJ200..LHD..VXR RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55409-60020 |
VDJ200..LHD..VX KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55409-60020 |
VDJ200..VXR UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55409-60020 |
VDJ200..LHD..VXR AZERBAIJAN, GEORGIA, ARMENIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55409-60020 |
VDJ200..LHD..VX AZERBAIJAN, GEORGIA, ARMENIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55409-60020 |
VDJ200..LHD..VX UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-60400 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55412-60400 |
URJ202,VDJ200..LHD |
1 | ||
| 55412-60400 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55412-60400 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP) |
1 | ||
| 55412-60400 |
URJ202,VDJ200..LHD..VX EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-60010C0 |
VDJ200;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55418-60020C0 |
URJ202,VDJ200..05S..VX SPEEDOMETER-ANALOG(KM/H),BLACK,TRIM1#,2#,46 |
1 | ||
| 55418-60010E1 |
URJ202,VDJ200 ORCHID BROWN,TRIM0# |
1 | ||
| 55418-60020E0 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55418-60020C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60431C0 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),BLACK,TRIM2#,4# |
1 | ||
| 55432-60431A3 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),FLAXEN,TRIM0# |
1 | ||
| 55432-60431A3 |
URJ202;VDJ200..LHD..VXR FLAXEN,TRIM0# |
1 | ||
| 55432-60440A1 |
VDJ200..LHD..VX FLAXEN,TRIM0# |
1 | ||
| 55432-60432A3 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),FLAXEN,TRIM0# |
1 | ||
| 55432-60431C0 |
URJ202..08S;VDJ200..LHD..VXR BLACK,TRIM2#,4# |
1 | ||
| 55432-60440C0 |
VDJ200..LHD..VX BLACK,TRIM1#,2#,4# |
1 | ||
| 55432-60432A3 |
URJ202;VDJ200..LHD..VXR FLAXEN,TRIM0# |
1 | ||
| 55432-60440C0 |
URJ202,VDJ200..LHD..VXR FRONT SEAT-MANUAL(SEPARATE SEAT),BLACK,TRIM1#,2#,4# |
1 | ||
| 55432-60441A1 |
URJ202,VDJ200..LHD..VXR FRONT SEAT-MANUAL(SEPARATE SEAT),FLAXEN,TRIM0# |
1 | ||
| 55432-60441C0 |
VDJ200..LHD..VX BLACK,TRIM1#,46 |
1 | ||
| 55432-60432C0 |
URJ202..08S;VDJ200..VXR BLACK,TRIM2#,42,46 |
1 | ||
| 55432-60441A1 |
VDJ200..LHD..VX FLAXEN,TRIM0# |
1 | ||
| 55432-60432E1 |
URJ202;VDJ200..VXR NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55432-60441C0 |
VDJ200..LHD..VX BLACK,TRIM1#,4# |
1 | ||
| 55432-60432C0 |
URJ202..08S;VDJ200..LHD..VXR BLACK,TRIM2#,4# |
1 | ||
| 55432-60432C0 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),BLACK,TRIM2#,42,46 |
1 | ||
| 55432-60441E1 |
URJ202,VDJ200..VXR FRONT SEAT-MANUAL(SEPARATE SEAT),NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55432-60441C0 |
URJ202,VDJ200..LHD..VXR FRONT SEAT-MANUAL(SEPARATE SEAT),BLACK,TRIM1#,4# |
1 | ||
| 55432-60432C0 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),BLACK,TRIM2#,4# |
1 | ||
| 55432-60432E1 |
VDJ200..LHD..VX FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55432-60440A1 |
URJ202,VDJ200..LHD..VXR FRONT SEAT-MANUAL(SEPARATE SEAT),FLAXEN,TRIM0# |
1 | ||
| 55432-60441E1 |
VDJ200..LHD..VX NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55432-60441C0 |
URJ202,VDJ200..VXR FRONT SEAT-MANUAL(SEPARATE SEAT),BLACK,TRIM1#,46 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-60091C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55320-60090A0 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55320-60091E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55320-60091A0 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55320-60090C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55320-60091C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55434C - RETAINER,INSTRUMENT PANEL LOWER PAD SET | ||||
| 67771-36030C0 |
URJ202,VDJ200 BLACK |
2 | ||
| 55434C - RETAINER,INSTRUMENT PANEL LOWER PAD SET | ||||
| 67771-36030C0 |
URJ202,VDJ200 BLACK |
2 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-60011 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55439-60011 |
URJ202,VDJ200..LHD |
1 | ||
| 55439-60011 |
URJ202,VDJ200..LHD..VX EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55439-60011 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER |
1 | ||
| 55439-60011 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55439-60011 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP) |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-60080 |
URJ202,VDJ200 |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60140C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55446-60140A0 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55446-60260E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55446-60260C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-60080C0 |
VDJ200;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55447-60080E0 |
URJ202,VDJ200 NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55447-60080A2 |
URJ202,VDJ200 FLAXEN,TRIM0# |
1 | ||
| 55447-60080C0 |
VDJ200;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60050C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55448-60050A0 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55448-60050E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55448-60050C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-60080A0 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55449-60080C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55449-60080C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55449-60080E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-60010 |
URJ202,VDJ200..LHD |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55011-60100C0 |
URJ202,VDJ200..LHD..VXR GROSS WOOD,TRIM04,47 |
1 | ||
| 55011-60100C0 |
URJ202,VDJ200..LHD..VX GROSS WOOD,TRIM04 |
1 | ||
| 55011-60100C0 |
URJ202,VDJ200..LHD..VX GROSS WOOD,TRIM0# |
1 | ||
| 55011-60100E2 |
VDJ200..LHD;URJ202..VXR;URJ202..05S DK.BRAWN,TRIM11,23,25,42,46 |
1 | ||
| 55011-60100B0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S SILVER HAIRLINE,TRIM11,23,25,42,46 |
1 | ||
| 55011-60100C0 |
URJ202,VDJ200..VXR GROSS WOOD,TRIM0#,47 |
1 | ||
| 55011-60100E3 |
URJ202,VDJ200..LHD LIGHT BROWN,TRIM04,47 |
1 | ||
| 55011-60100E4 |
URJ202,VDJ200..LHD BROWN,TRIM47 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55012-60100E3 |
URJ202,VDJ200..LHD LIGHT BROWN,TRIM04,47 |
1 | ||
| 55012-60100C0 |
URJ202,VDJ200..LHD..VX GROSS WOOD,TRIM04 |
1 | ||
| 55012-60100E2 |
VDJ200..LHD;URJ202..VXR;URJ202..05S DK.BRAWN,TRIM11,23,25,42,46 |
1 | ||
| 55012-60100E4 |
URJ202,VDJ200..LHD BROWN,TRIM47 |
1 | ||
| 55012-60100B0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S SILVER HAIRLINE,TRIM11,23,25,42,46 |
1 | ||
| 55012-60100C0 |
URJ202,VDJ200..VXR GROSS WOOD,TRIM0#,47 |
1 | ||
| 55012-60100C0 |
URJ202,VDJ200..LHD..VX GROSS WOOD,TRIM0# |
1 | ||
| 55012-60100C0 |
URJ202,VDJ200..LHD..VXR GROSS WOOD,TRIM04,47 |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55043-60050C0 |
URJ202,VDJ200..LHD..VXR GROSS WOOD,TRIM04,47 |
1 | ||
| 55043-60050C0 |
URJ202,VDJ200..VXR GROSS WOOD,TRIM0#,47 |
1 | ||
| 55043-60050E3 |
URJ202,VDJ200..LHD LIGHT BROWN,TRIM04,47 |
1 | ||
| 55043-60050C0 |
URJ202,VDJ200..LHD..VX GROSS WOOD,TRIM0# |
1 | ||
| 55043-60050E4 |
URJ202,VDJ200..LHD BROWN,TRIM47 |
1 | ||
| 55043-60050B0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S SILVER HAIRLINE,TRIM11,23,25,42,46 |
1 | ||
| 55043-60050C0 |
URJ202,VDJ200..LHD..VX GROSS WOOD,TRIM04 |
1 | ||
| 55043-60050E2 |
VDJ200..LHD;URJ202..VXR;URJ202..05S DK.BRAWN,TRIM11,23,25,42,46 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60211A3 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55501-60211C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55501-60211C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55501-60211E1 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-60120 |
URJ202,VDJ200..LHD |
1 | ||
| 55510-60070 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55510-60070 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-60030 |
URJ202,VDJ200 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
URJ202,VDJ200..LHD..VXR EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55522-52020 |
URJ202,VDJ200..LHD |
1 | ||
| 55522-52020 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER & AUDIO(DOP) |
1 | ||
| 55522-52020 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER |
1 | ||
| 55522-52020 |
URJ202,VDJ200..LHD..VX EMV & NAVIGATION SYSTEM-WITH(*VCS) |
1 | ||
| 55522-52020 |
URJ202,VDJ200..LHD..VX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
URJ202,VDJ200..LHD RUSSIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
URJ202,VDJ200..LHD UKRAINE SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-52060C0 |
URJ202,VDJ200 BLACK |
1 | ||
| 55539-52060C0 |
URJ202,VDJ200..LHD AZERBAIJAN, GEORGIA, ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
URJ202,VDJ200..LHD KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..LHD ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200 BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200..LHD KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200..LHD AZERBAIJAN, GEORGIA, ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD UKRAINE SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
VDJ200..LHD ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200..LHD UKRAINE SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-28170C0 |
URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD RUSSIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
URJ202,VDJ200 BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD AZERBAIJAN, GEORGIA, ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200..LHD RUSSIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
URJ202,VDJ200..LHD RUSSIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
URJ202,VDJ200..LHD UKRAINE SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-52060C0 |
URJ202,VDJ200 BLACK |
1 | ||
| 55539-52060C0 |
URJ202,VDJ200..LHD AZERBAIJAN, GEORGIA, ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
URJ202,VDJ200..LHD KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..LHD ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200 BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200..LHD KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200..LHD AZERBAIJAN, GEORGIA, ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD UKRAINE SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
VDJ200..LHD ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200..LHD UKRAINE SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-28170C0 |
URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD RUSSIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
URJ202,VDJ200 BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
VDJ200..LHD AZERBAIJAN, GEORGIA, ARMENIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-52060C4 |
URJ202,VDJ200..LHD RUSSIA SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK |
1 | ||
| 55539-28170C0 |
URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH,BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-60130C0 |
URJ202..VXR;VDJ200..LHD CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55539-60130E1 |
URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR),ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55539-60130C0 |
URJ202..VXR;VDJ200..LHD BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55539-60130C0 |
URJ202..VXR;URJ202..05S;VDJ200..LHD;VDJ200..RHD..VX BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55539-60130C0 |
VDJ200..05S..VX SPEEDOMETER-ANALOG(KM/H),BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55539-60130E1 |
URJ202..08S;VDJ200..LHD BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR),ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55539-60130E1 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55539-60130E1 |
VDJ200..05S..VX SPEEDOMETER-ANALOG(KM/H),ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030A1 |
URJ202,VDJ200 FLAXEN,TRIM0# |
1 | ||
| 55548-52030C0 |
VDJ200;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55548-52030C0 |
VDJ200;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55548-52030E5 |
URJ202,VDJ200 NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-60040A3 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55560-60040C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55560-60040E1 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55560-60040C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
URJ202,VDJ200 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-60030A3 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 55569-60030C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 55569-60030E1 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 55569-60030C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60180 |
URJ202,VDJ200..LHD |
1 | ||
| 55606-60081 |
URJ202,VDJ200..LHD |
1 | ||
| 55606-60080 |
URJ202,VDJ200..LHD |
1 | ||
| 55606-60180 |
URJ202,VDJ200..LHD FRAME NO.=4XXXXXX |
1 | ||
| 55606-60081 |
URJ202,VDJ200..LHD FRAME NO.=5XXXXXX |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-60110 |
URJ202,VDJ200..LHD |
1 | ||
| 55607-60111 |
URJ202,VDJ200..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60331C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55650-60330C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55650-60331E0 |
URJ202,VDJ200..LHD ORCHID BROWN,TRIM47 |
1 | ||
| 55650-60330E0 |
URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60401C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55660-60401E0 |
URJ202,VDJ200..LHD ORCHID BROWN,TRIM47 |
1 | ||
| 55660-60400C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55660-60400E0 |
URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60310E0 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55670-60310C0 |
URJ202..VXR;URJ202..05S;VDJ200..LHD;VDJ200..RHD..VX BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55670-60310E1 |
URJ202,VDJ200 ORCHID BROWN,TRIM47 |
1 | ||
| 55670-60310C1 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK/SILVER HAIRLINE,TRIM1#,2#,42,46 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60180E0 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55680-60180C0 |
URJ202..VXR;URJ202..05S;VDJ200..LHD;VDJ200..RHD..VX BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55680-60180E1 |
URJ202,VDJ200 ORCHID BROWN,TRIM47 |
1 | ||
| 55680-60180C1 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK/SILVER HAIRLINE,TRIM1#,2#,42,46 |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-60081C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55961-60081E1 |
URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-60070C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 55962-60070E1 |
URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-B1010 |
URJ202,VDJ200 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60090A2 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 73900-60090E0 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 73900-60090C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 73900-60090C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-60010A1 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| 73990-60010C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 73990-60011C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,42,46 |
1 | ||
| 73990-60011C0 |
VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
1 | ||
| 73990-60011E1 |
URJ202,VDJ200..LHD NEUTRAL BEIGE,TRIM47 |
1 | ||
| 73990-60011A1 |
URJ202,VDJ200..LHD FLAXEN,TRIM0# |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90153-50010 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90467-13082A0 | ||||
| 90541-03078 | ||||
| 93560-13008 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8121 | ||||
| 8401 | ||||
| 8416 | ||||
| 8615 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
