VDJ200L-GMTVZW (2015)
Toyota Land Cruiser

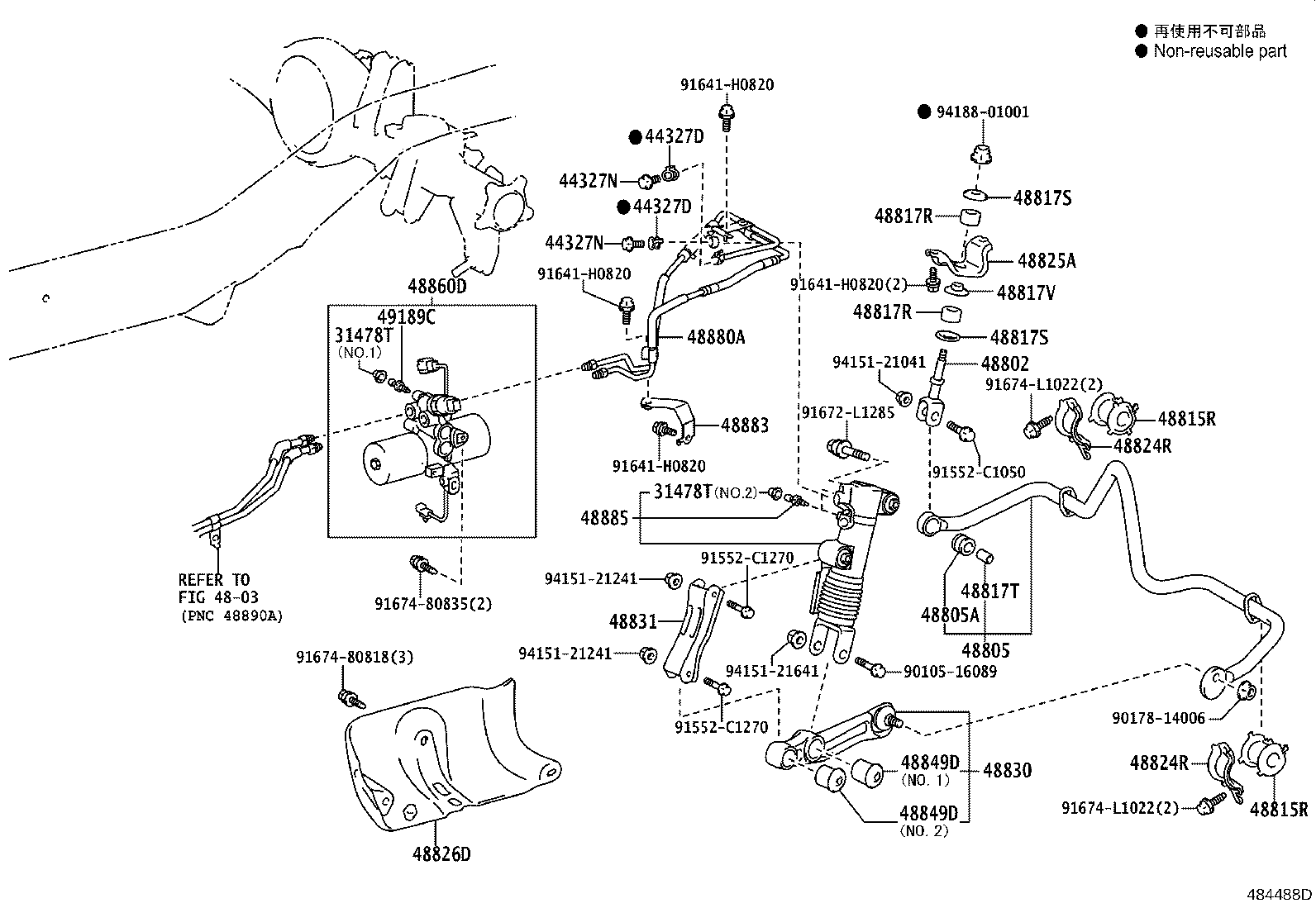

ILLUST NO. 2 OF 2(0709-1704)
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478T - CAP, BLEEDER PLUG(FOR REAR SUSPENSION CONTROL) | ||||
| 31478-20020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),NO.1 |
1 | ||
| 31478-20020 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-20020 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-60020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),NO.2 |
2 | ||
| 31478-20020 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-20020 |
URJ202,VDJ200 NO.1 |
1 | ||
| 31478-60020 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-20020 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-60020 |
URJ202,VDJ200 NO.2 |
2 | ||
| 31478-60020 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 31478-60020 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-60020 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 31478T - CAP, BLEEDER PLUG(FOR REAR SUSPENSION CONTROL) | ||||
| 31478-20020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),NO.1 |
1 | ||
| 31478-20020 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-20020 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-60020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),NO.2 |
2 | ||
| 31478-20020 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-20020 |
URJ202,VDJ200 NO.1 |
1 | ||
| 31478-60020 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-20020 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-60020 |
URJ202,VDJ200 NO.2 |
2 | ||
| 31478-60020 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 31478-60020 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-60020 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) | ||||
| 90430-16016 |
URJ202,VDJ200 |
2 | ||
| 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) | ||||
| 90430-16016 |
URJ202,VDJ200 |
2 | ||
| 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
URJ202,VDJ200 |
2 | ||
| 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
URJ202,VDJ200 |
2 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60110 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48802-60100 |
URJ202,VDJ200 |
1 | ||
| 48802-60110 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48802-60110 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-60120 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48805-60120 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48805-60120 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48805-60110 |
URJ202,VDJ200 |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 48849-60010 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48849-60010 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48849-60010 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 90385-13013 |
URJ202,VDJ200 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60241 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48815-60221 |
URJ202,VDJ200 |
2 | ||
| 48815-60241 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60241 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60241 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48815-60221 |
URJ202,VDJ200 |
2 | ||
| 48815-60241 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60241 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-60010 |
URJ202,VDJ200 |
2 | ||
| 48817-60020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
4 | ||
| 48817-60020 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 48817-60020 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-60010 |
URJ202,VDJ200 |
2 | ||
| 48817-60020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
4 | ||
| 48817-60020 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 48817-60020 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02200 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 90948-02200 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
4 | ||
| 90948-02201 |
URJ202,VDJ200 |
2 | ||
| 90948-02200 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02200 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 90948-02200 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
4 | ||
| 90948-02201 |
URJ202,VDJ200 |
2 | ||
| 90948-02200 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817T - COLLAR(FOR STABILIZER REAR BAR) | ||||
| 90387-10175 |
URJ202,VDJ200 |
1 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02197 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 90948-02202 |
URJ202,VDJ200 |
1 | ||
| 90948-02197 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 90948-02197 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26230 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48824-26230 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48824-26230 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48824-60160 |
URJ202,VDJ200 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26230 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48824-26230 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48824-26230 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48824-60160 |
URJ202,VDJ200 |
2 | ||
| 48825A - BRACKET, REAR STABILIZER END | ||||
| 48825-60070 |
URJ202,VDJ200 |
1 | ||
| 48826D - PROTECTOR, STABILIZER CONTROL VALVE | ||||
| 48826-60021 |
URJ202,VDJ200 |
1 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-60050 |
URJ202,VDJ200 |
1 | ||
| 48831 - LINK, REAR STABILIZER, NO.2 | ||||
| 48831-60060 |
URJ202,VDJ200 |
1 | ||
| 48849D - BUSH, REAR STABILIZER LINK | ||||
| 48849-60090 |
URJ202,VDJ200 NO.2 |
1 | ||
| 48849-60050 |
URJ202,VDJ200 NO.1 |
1 | ||
| 48849D - BUSH, REAR STABILIZER LINK | ||||
| 48849-60090 |
URJ202,VDJ200 NO.2 |
1 | ||
| 48849-60050 |
URJ202,VDJ200 NO.1 |
1 | ||
| 48860D - HOUSING ASSY, STABILIZER CONTROL W/ACCUMULATOR | ||||
| 48006-60023 |
URJ202,VDJ200 |
1 | ||
| 48006-60023 |
URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48006-60023 |
URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48006-60023 |
VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48006-60024 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48006-60024 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48006-60024 |
URJ202,VDJ200 |
1 | ||
| 48006-60024 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48006-60024 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48006-60024 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48880 - TUBE ASSY, REAR STABILIZER CONTROL, NO.1 | ||||
| 48880-60021 |
URJ202,VDJ200 |
1 | ||
| 48880A - TUBE ASSY, REAR STABILIZER CONTROL, NO.2 | ||||
| 48880-60031 |
URJ202,VDJ200 |
1 | ||
| 48880-60032 |
URJ202,VDJ200 |
1 | ||
| 48883 - BRACKET, STABILIZER, CONTROL TUBE | ||||
| 48883-60010 |
URJ202,VDJ200 |
1 | ||
| 48885 - CYLINDER, REAR STABILIZER CONTROL | ||||
| 48886-60021 |
URJ202,VDJ200 |
1 | ||
| 48886-60021 |
URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48886-60021 |
VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48886-60022 |
VDJ200..VX;URJ202..08S..VX SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48886-60021 |
URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48886-60022 |
URJ202,VDJ200..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48886-60022 |
URJ202,VDJ200 |
1 | ||
| 48886-60022 |
URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48886-60022 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48886-60022 |
VDJ200..RHD;URJ202,VDJ200..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 49189C - PLUG, REAR SUSPENSION CONTROL BLEEDER | ||||
| 47547-20010 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 47547-20010 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 47547-20010 |
URJ202,VDJ200 |
1 | ||
| 47547-20010 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 47547-20010 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 47547-20010 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 49189C - PLUG, REAR SUSPENSION CONTROL BLEEDER | ||||
| 47547-20010 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 47547-20010 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 47547-20010 |
URJ202,VDJ200 |
1 | ||
| 47547-20010 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 47547-20010 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 47547-20010 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| Common parts | ||||
| 90105-16089 | ||||
| 90178-14006 | ||||
| 91552-C1050 | ||||
| 91552-C1270 | ||||
| 91641-H0820 | ||||
| 91672-L1285 | ||||
| 91674-80818 | ||||
| 91674-80835 | ||||
| 91674-L1022 | ||||
| 94151-21041 | ||||
| 94151-21241 | ||||
| 94151-21641 | ||||
| 94188-01001 | ||||
| Linked diagrams | ||||
| 4803 | ||||
ILLUST NO. 2 OF 2(1704- )
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478T - CAP, BLEEDER PLUG(FOR REAR SUSPENSION CONTROL) | ||||
| 31478-20020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),NO.1 |
1 | ||
| 31478-20020 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-20020 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-60020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),NO.2 |
2 | ||
| 31478-20020 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-20020 |
URJ202,VDJ200 NO.1 |
1 | ||
| 31478-60020 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-20020 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-60020 |
URJ202,VDJ200 NO.2 |
2 | ||
| 31478-60020 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 31478-60020 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-60020 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 31478T - CAP, BLEEDER PLUG(FOR REAR SUSPENSION CONTROL) | ||||
| 31478-20020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),NO.1 |
1 | ||
| 31478-20020 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-20020 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-60020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),NO.2 |
2 | ||
| 31478-20020 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-20020 |
URJ202,VDJ200 NO.1 |
1 | ||
| 31478-60020 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-20020 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-60020 |
URJ202,VDJ200 NO.2 |
2 | ||
| 31478-60020 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 31478-60020 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-60020 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) | ||||
| 90430-16016 |
URJ202,VDJ200 |
2 | ||
| 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) | ||||
| 90430-16016 |
URJ202,VDJ200 |
2 | ||
| 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
URJ202,VDJ200 |
2 | ||
| 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
URJ202,VDJ200 |
2 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60110 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48802-60100 |
URJ202,VDJ200 |
1 | ||
| 48802-60110 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48802-60110 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-60120 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48805-60120 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48805-60120 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48805-60110 |
URJ202,VDJ200 |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 48849-60010 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48849-60010 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48849-60010 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 90385-13013 |
URJ202,VDJ200 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60241 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48815-60221 |
URJ202,VDJ200 |
2 | ||
| 48815-60241 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60241 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60241 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48815-60221 |
URJ202,VDJ200 |
2 | ||
| 48815-60241 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60241 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-60010 |
URJ202,VDJ200 |
2 | ||
| 48817-60020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
4 | ||
| 48817-60020 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 48817-60020 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-60010 |
URJ202,VDJ200 |
2 | ||
| 48817-60020 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
4 | ||
| 48817-60020 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 48817-60020 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02200 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 90948-02200 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
4 | ||
| 90948-02201 |
URJ202,VDJ200 |
2 | ||
| 90948-02200 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02200 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 90948-02200 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
4 | ||
| 90948-02201 |
URJ202,VDJ200 |
2 | ||
| 90948-02200 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817T - COLLAR(FOR STABILIZER REAR BAR) | ||||
| 90387-10175 |
URJ202,VDJ200 |
1 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02197 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 90948-02202 |
URJ202,VDJ200 |
1 | ||
| 90948-02197 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 90948-02197 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26230 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48824-26230 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48824-26230 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48824-60160 |
URJ202,VDJ200 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26230 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48824-26230 |
URJ202..VXR;VDJ200..05S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48824-26230 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
2 | ||
| 48824-60160 |
URJ202,VDJ200 |
2 | ||
| 48825A - BRACKET, REAR STABILIZER END | ||||
| 48825-60070 |
URJ202,VDJ200 |
1 | ||
| 48826D - PROTECTOR, STABILIZER CONTROL VALVE | ||||
| 48826-60021 |
URJ202,VDJ200 |
1 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-60050 |
URJ202,VDJ200 |
1 | ||
| 48831 - LINK, REAR STABILIZER, NO.2 | ||||
| 48831-60060 |
URJ202,VDJ200 |
1 | ||
| 48849D - BUSH, REAR STABILIZER LINK | ||||
| 48849-60090 |
URJ202,VDJ200 NO.2 |
1 | ||
| 48849-60050 |
URJ202,VDJ200 NO.1 |
1 | ||
| 48849D - BUSH, REAR STABILIZER LINK | ||||
| 48849-60090 |
URJ202,VDJ200 NO.2 |
1 | ||
| 48849-60050 |
URJ202,VDJ200 NO.1 |
1 | ||
| 48860D - HOUSING ASSY, STABILIZER CONTROL W/ACCUMULATOR | ||||
| 48006-60023 |
URJ202,VDJ200 |
1 | ||
| 48006-60023 |
URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48006-60023 |
URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48006-60023 |
VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48006-60024 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48006-60024 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48006-60024 |
URJ202,VDJ200 |
1 | ||
| 48006-60024 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48006-60024 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48006-60024 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48880A - TUBE ASSY, REAR STABILIZER CONTROL, NO.2 | ||||
| 48880-60031 |
URJ202,VDJ200 |
1 | ||
| 48880-60032 |
URJ202,VDJ200 |
1 | ||
| 48883 - BRACKET, STABILIZER, CONTROL TUBE | ||||
| 48883-60010 |
URJ202,VDJ200 |
1 | ||
| 48885 - CYLINDER, REAR STABILIZER CONTROL | ||||
| 48886-60021 |
URJ202,VDJ200 |
1 | ||
| 48886-60021 |
URJ202,VDJ200 SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48886-60021 |
VDJ200;URJ202..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48886-60022 |
VDJ200..VX;URJ202..08S..VX SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48886-60021 |
URJ202..08S..VX;VDJ200..05S..VX;VDJ200..LHD..08S SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48886-60022 |
URJ202,VDJ200..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48886-60022 |
URJ202,VDJ200 |
1 | ||
| 48886-60022 |
URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48886-60022 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48886-60022 |
VDJ200..RHD;URJ202,VDJ200..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 49189C - PLUG, REAR SUSPENSION CONTROL BLEEDER | ||||
| 47547-20010 |
URJ202..08S..VX;VDJ200..LHD..VX SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 47547-20010 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD..VXR SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 47547-20010 |
URJ202,VDJ200 |
1 | ||
| 47547-20010 |
URJ202,VDJ200..LHD..VXR SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 47547-20010 |
VDJ200..RHD..VXR;URJ202,VDJ200..LHD..VX SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 47547-20010 |
VDJ200..RHD;URJ202..08S..VX;VDJ200..LHD..VX SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| Common parts | ||||
| 90105-16089 | ||||
| 90178-14006 | ||||
| 91552-C1050 | ||||
| 91552-C1270 | ||||
| 91641-H0820 | ||||
| 91672-L1285 | ||||
| 91674-80818 | ||||
| 91674-80835 | ||||
| 91674-L1022 | ||||
| 94151-21041 | ||||
| 94151-21241 | ||||
| 94151-21641 | ||||
| 94188-01001 | ||||
| Linked diagrams | ||||
| 4803 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
