VDJ200L-GMTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0709- )

Click highlighted areas on diagram

CONDENSER & FUN SHROUD

diagram 827112B640 88453 88454A 88460 88467 88467 8846720190 88467A 88467A 88469D 88469D 88474 88550 8857860391 8857860391 88590 88723B 8889750020 8889960400 8889960400 9009120619 9009120619 9009120619 9009120619 9009904117 9009904119 9011906192
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60400

UZJ200,VDJ200

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UZJ200,VDJ200

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UZJ200,VDJ200

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-60010

UZJ200,VDJ200

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-60010

UZJ200,VDJ200

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

UZJ200,VDJ200

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

UZJ200,VDJ200

 2
88474 - DRYER, COOLER
88474-12030

UZJ200,VDJ200

 1
Common parts
82711-2B640
88467-20190
88578-60391
88897-50020
88899-60400
90091-20619
90099-04117
90099-04119
90119-06192

ILLUST NO. 2 OF 3(0709- )VDJ200

Click highlighted areas on diagram

FRONT SINGLE,W(COOL BOX)

diagram 8714 8719 88374B 88374C 88375B 88375D 88704 88710 88710E 88711 88716A 887181E050 887181E050 887182D150 887186A810 887186A820 88719A 9009914119 9009914120 9009914121 9155380612 9155380622 9155380622 9155380622 9155380622 91651F0625 9167180612 9415180641
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

VDJ200

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

UZJ200,VDJ200

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

VDJ200

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

UZJ200,VDJ200

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60440

VDJ200

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-6B580

UZJ200,VDJ200

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-6B600

UZJ200,VDJ200..05S

 1
88710-6B590

UZJ200,VDJ200..05S

WITH(COOL BOX)

 1
88710-6B601

UZJ200,VDJ200..05S

 1
88710-6B591

UZJ200,VDJ200..05S

WITH(COOL BOX)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60820

VDJ200

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C200

UZJ200,VDJ200

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

UZJ200,VDJ200

 1
Common parts
88718-1E050
88718-2D150
88718-6A810
88718-6A820
90099-14119
90099-14120
90099-14121
91553-80612
91553-80622
91651-F0625
91671-80612
94151-80641
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0709- )VDJ200

Click highlighted areas on diagram

FRONT SINGLE,W/O(COOL BOX)

diagram 8714 8719 88374B 88374C 88375B 88375D 88704 88710 88710E 88711 88716A 887181E050 887181E050 887182D150 887186A810 88719A 9009914119 9009914120 9009914121 9155380612 9155380622 9155380622 9155380622 9155380622 91651F0625 9167180612 9415180641
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

VDJ200

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

UZJ200,VDJ200

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

VDJ200

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

UZJ200,VDJ200

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60440

VDJ200

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-6B580

UZJ200,VDJ200

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-6B600

UZJ200,VDJ200..05S

 1
88710-6B590

UZJ200,VDJ200..05S

WITH(COOL BOX)

 1
88710-6B601

UZJ200,VDJ200..05S

 1
88710-6B591

UZJ200,VDJ200..05S

WITH(COOL BOX)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60820

VDJ200

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C200

UZJ200,VDJ200

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

UZJ200,VDJ200

 1
Common parts
88718-1E050
88718-2D150
88718-6A810
90099-14119
90099-14120
90099-14121
91553-80612
91553-80622
91651-F0625
91671-80612
94151-80641
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0709- )VDJ200

Click highlighted areas on diagram

FRONT DUAL

diagram 8714 8719 88374B 88374C 88375B 88375D 88699A 88704 88710 88710E 88711 88716A 88717 887181E050 887181E050 887182D150 887186A800 887186A810 887186A820 88719A 9009914119 9009914120 9009914121 9155380612 9155380622 9155380622 9155380622 9155380622 91651F0625 9167180612 9415180641
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

VDJ200

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

UZJ200,VDJ200

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

VDJ200

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

UZJ200,VDJ200

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60440

VDJ200

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-6B580

UZJ200,VDJ200

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-6B600

UZJ200,VDJ200..05S

 1
88710-6B590

UZJ200,VDJ200..05S

WITH(COOL BOX)

 1
88710-6B601

UZJ200,VDJ200..05S

 1
88710-6B591

UZJ200,VDJ200..05S

WITH(COOL BOX)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60820

VDJ200

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C200

UZJ200,VDJ200

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

UZJ200,VDJ200

 1
Common parts
88718-1E050
88718-2D150
88718-6A800
88718-6A810
88718-6A820
90099-14119
90099-14120
90099-14121
91553-80612
91553-80622
91651-F0625
91671-80612
94151-80641
Linked diagrams
8714
8719

ILLUST NO. 3 OF 3(0709- )

Click highlighted areas on diagram

W/O(REAR) & W/(COOL BOX)

diagram 8714 8714 8714 88710C 9415180641 9415180641 9415180641 9415180641
Part # Description Qty Price
88710C - TUBE ASSY, AIR CONDITIONER
88710-6B620

UZJ200,VDJ200..05S

WITH(COOL BOX)

 1
Common parts
94151-80641
Linked diagrams
8714

ILLUST NO. 3 OF 3(0709- )

Click highlighted areas on diagram

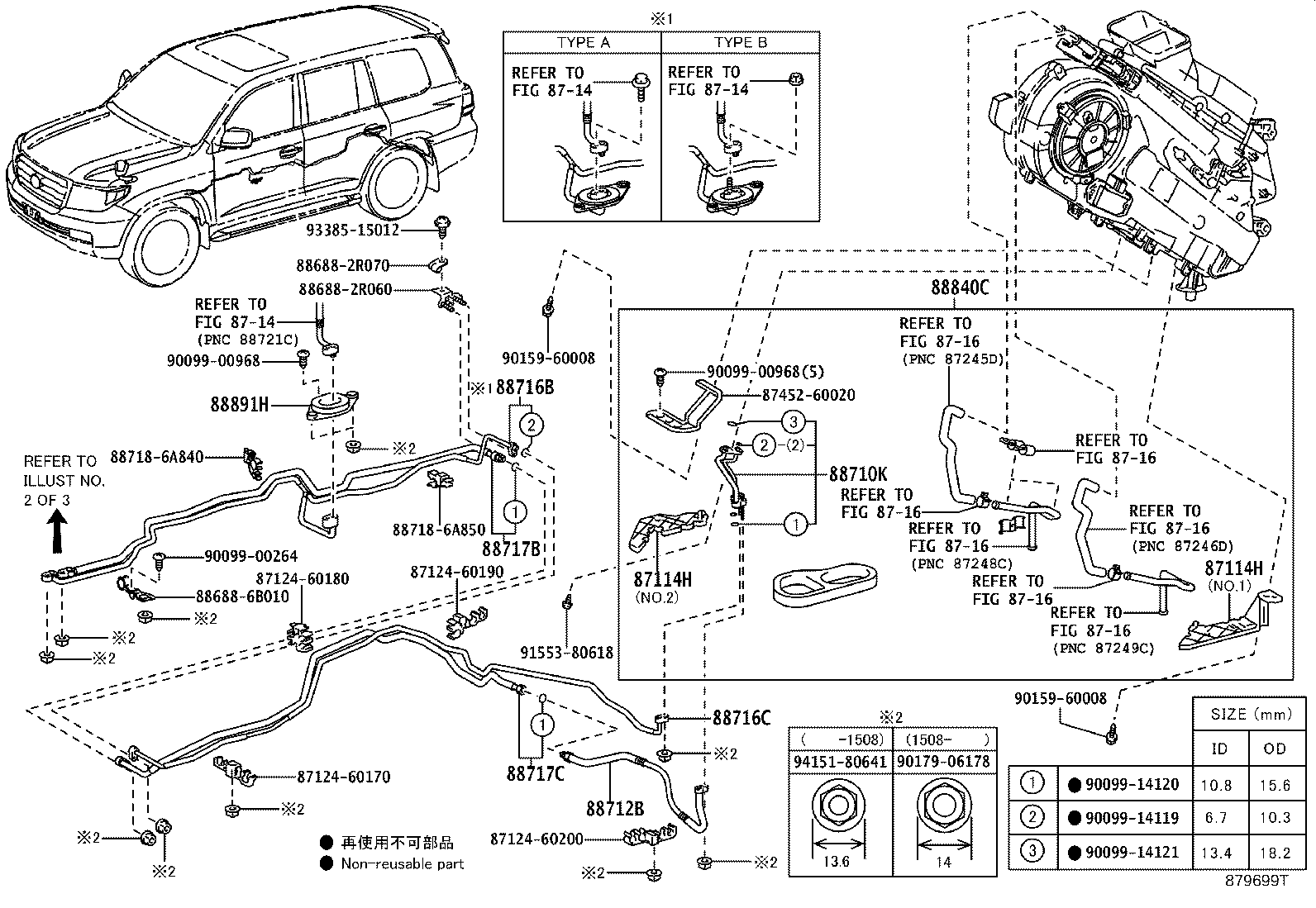

REAR,W(COOL BOX)

diagram 87114H 87114H 8712460170 8712460180 8712460190 8712460200 8714 8714 8714 8716 8716 8716 8716 8716 8716 8716 8745260020 886882R060 886882R070 886886B010 88710K 88712B 88716B 88716C 88717B 88717C 887186A840 887186A850 88840C 88891H 9009900264 9009900968 9009900968 9009914119 9009914120 9009914121 9015960008 9015960008 9017906178 9155380618 9338515012 9415180641
Part # Description Qty Price
Common parts
87124-60170
87124-60180
87124-60190
87124-60200
87452-60020
88688-2R060
88688-2R070
88688-6B010
88718-6A840
88718-6A850
90099-00264
90099-00968
90099-14119
90099-14120
90099-14121
90159-60008
90179-06178
91553-80618
93385-15012
94151-80641
Linked diagrams
8714
8716

ILLUST NO. 3 OF 3(0709- )

Click highlighted areas on diagram

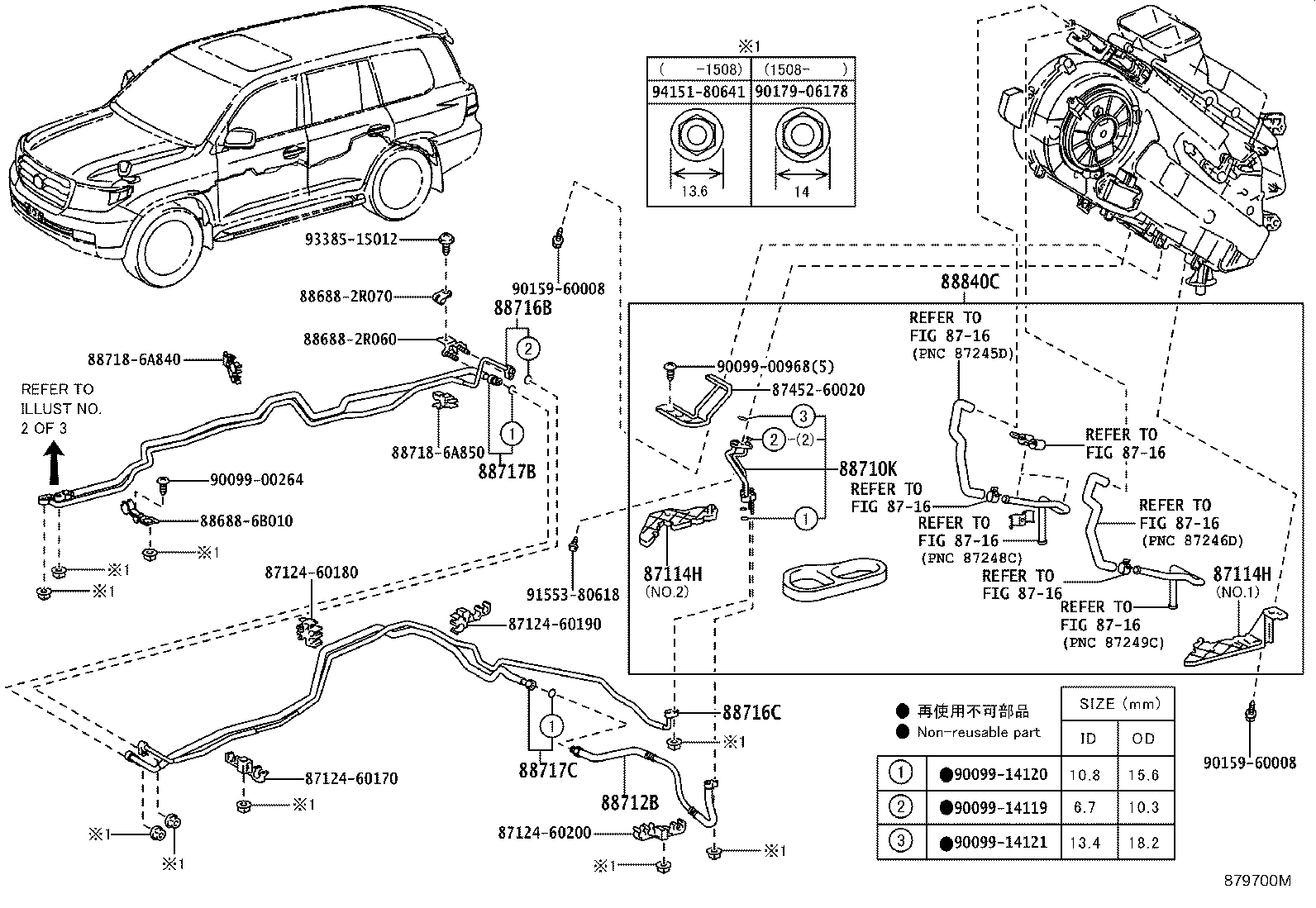

REAR,W/O(COOL BOX)

diagram 87114H 87114H 8712460170 8712460180 8712460190 8712460200 8716 8716 8716 8716 8716 8716 8716 8745260020 886882R060 886882R070 886886B010 88710K 88712B 88716B 88716C 88717B 88717C 887186A840 887186A850 88840C 9009900264 9009900968 9009914119 9009914120 9009914121 9015960008 9015960008 9017906178 9155380618 9338515012 9415180641
Part # Description Qty Price
Common parts
87124-60170
87124-60180
87124-60190
87124-60200
87452-60020
88688-2R060
88688-2R070
88688-6B010
88718-6A840
88718-6A850
90099-00264
90099-00968
90099-14119
90099-14120
90099-14121
90159-60008
90179-06178
91553-80618
93385-15012
94151-80641
Linked diagrams
8716
