VDJ200L-GMTEZW (2007)
Toyota Land Cruiser
Production
Sep 2007
-
Jan 2012
Engine
1VDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

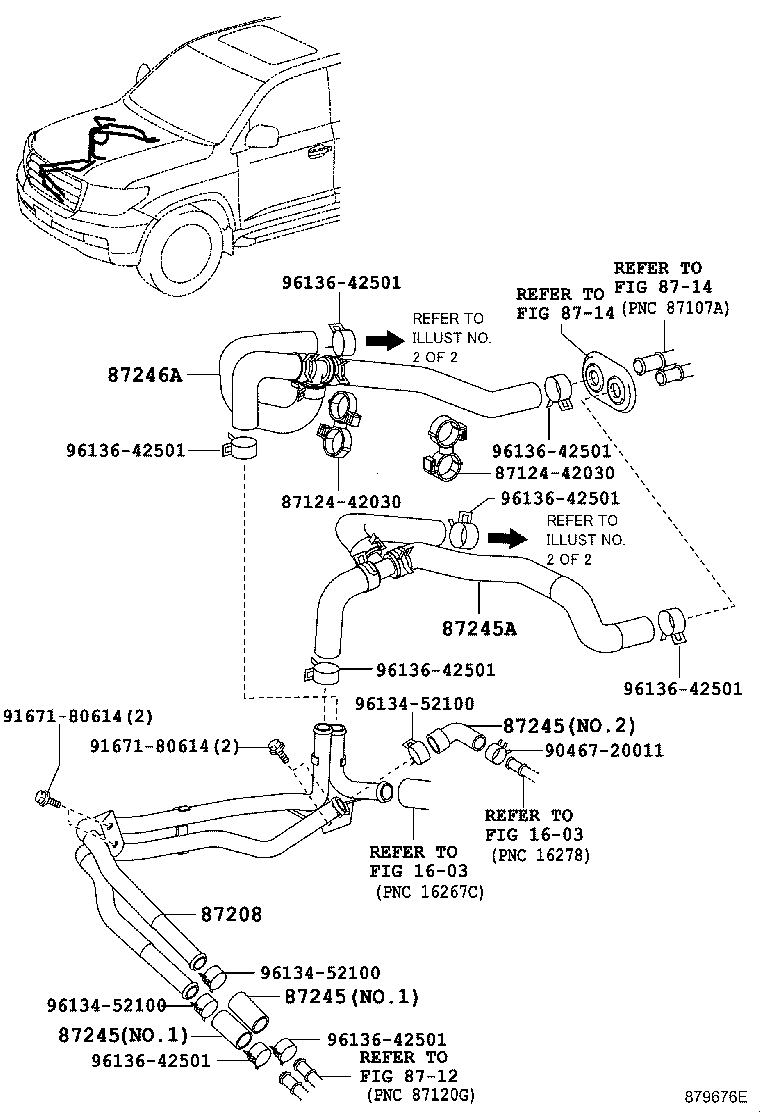

ILLUST NO. 1 OF 2(0709- )VDJ200
Click highlighted areas on diagram
FRONT,W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-60650 |
VDJ200 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
VDJ200 NO.1 |
2 | ||
| 87245-60B50 |
VDJ200 NO.2 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
VDJ200 NO.1 |
2 | ||
| 87245-60B50 |
VDJ200 NO.2 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
VDJ200 NO.1 |
2 | ||
| 87245-60B50 |
VDJ200 NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-60C10 |
VDJ200..05S |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-60C20 |
VDJ200..05S |
1 | ||
| Common parts | ||||
| 87124-42030 | ||||
| 90467-20011 | ||||
| 91671-80614 | ||||
| 96134-52100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||
| 8714 | ||||

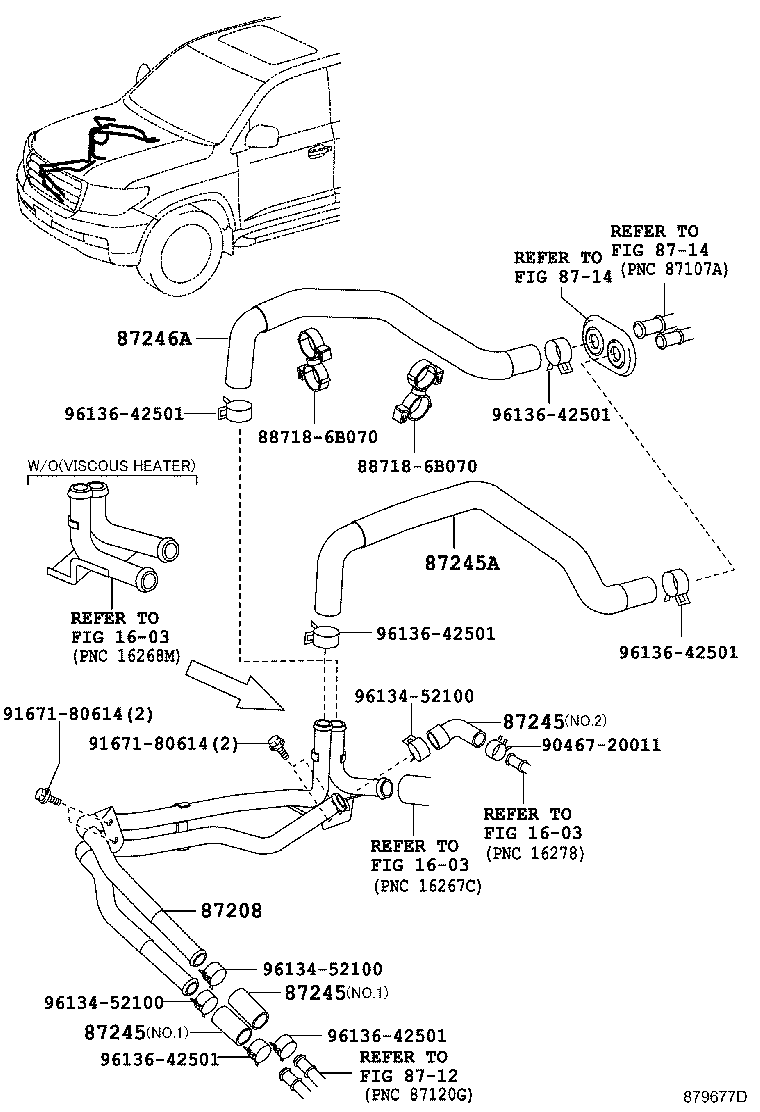

ILLUST NO. 1 OF 2(0709- )VDJ200
Click highlighted areas on diagram
FRONT,W/O(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-60650 |
VDJ200 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
VDJ200 NO.1 |
2 | ||
| 87245-60B50 |
VDJ200 NO.2 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
VDJ200 NO.1 |
2 | ||
| 87245-60B50 |
VDJ200 NO.2 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
VDJ200 NO.1 |
2 | ||
| 87245-60B50 |
VDJ200 NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-60C10 |
VDJ200..05S |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-60C20 |
VDJ200..05S |
1 | ||
| Common parts | ||||
| 88718-6B070 | ||||
| 90467-20011 | ||||
| 91671-80614 | ||||
| 96134-52100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(0709- )
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-28460 | ||||
| 87124-28480 | ||||
| 87124-60210 | ||||
| 87124-60220 | ||||
| 87124-60250 | ||||
| 87124-60260 | ||||
| 87124-60280 | ||||
| 87452-60030 | ||||
| 90159-60008 | ||||
| 90179-06178 | ||||
| 90179-06314 | ||||
| 94151-80641 | ||||
| 96134-52100 | ||||
| 96136-42501 | ||||
| 96136-52501 | ||||
| Linked diagrams | ||||
| 8718 | ||||
