VDJ200L-GMTEZW (2007)
Toyota Land Cruiser

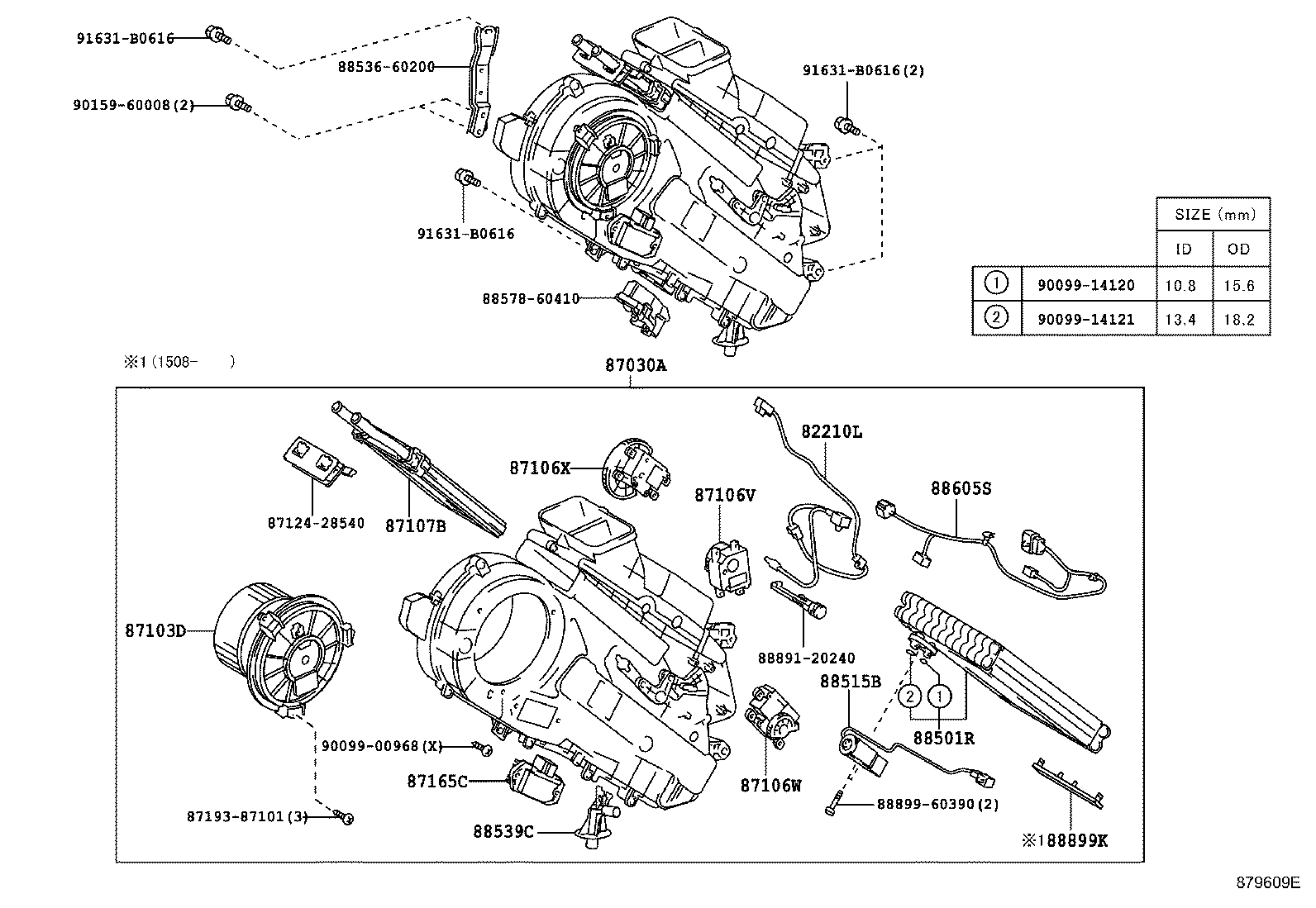

ILLUST NO. 2 OF 3(0709- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-28540 | ||||
| 87193-87101 | ||||
| 88536-60200 | ||||
| 88578-60410 | ||||
| 88891-20240 | ||||
| 88899-60390 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60008 | ||||
| 91631-B0616 | ||||

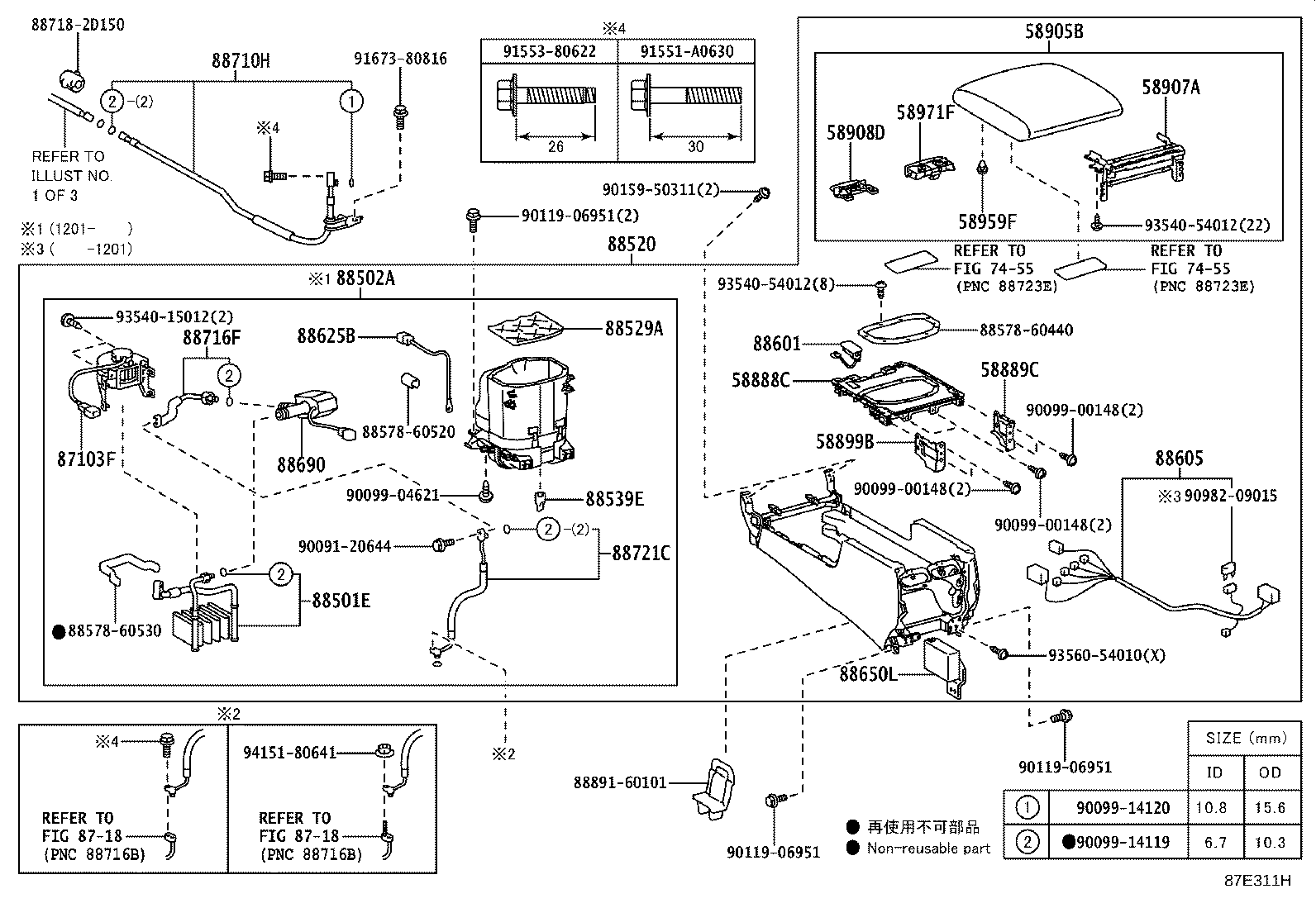

ILLUST NO. 3 OF 3(0709- )LHD
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58888C - BASE, COOLING BOX | ||||
| 58888-60010 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58888-60010 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 58889C - BRACKET, COOLING BOX | ||||
| 58889-60010 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58889-60010 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 58899B - BRACKET, COOLING BOX, NO.2 | ||||
| 58899-60010 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 58899-60010 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) | ||||
| 58905-60220C0 |
VDJ200..LHD WITH(COOL BOX),BLACK,TRIM1# |
1 | ||
| 58905-60230E0 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.BROWN,TRIM4# |
1 | ||
| 58905-60220E0 |
VDJ200..LHD WITH(COOL BOX),DK. BROWN,TRIM4# |
1 | ||
| 58905-60230C0 |
VDJ200..05S WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 58907A - HINGE SUB-ASSY, COOLING BOX DOOR | ||||
| 58907-60100 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58907-60100 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 58908D - LOCK SUB-ASSY, COOLING BOX DOOR | ||||
| 58908-60040 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58908-60040 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 58959F - CUSHION, COOLING BOX DOOR | ||||
| 58959-60060 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
4 | ||
| 58959-60060 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 58971F - LOCK, COOLING BOX DOOR | ||||
| 58971-60030 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 58971-60030 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) | ||||
| 87103-60450 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 87103-60450 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-60350 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88501-60350 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-60340C0 |
UZJ200,VDJ200..LHD WITH(COOL BOX),BLACK,TRIM1# |
1 | ||
| 88520-60360E0 |
UZJ200,VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 88520-60360C0 |
UZJ200,VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 88520-60340E0 |
UZJ200,VDJ200..LHD WITH(COOL BOX),DK. BROWN,TRIM4# |
1 | ||
| 88520-60361C0 |
VDJ200..05S WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 88520-60341C0 |
VDJ200..05S WITH(COOL BOX),BLACK,TRIM1# |
1 | ||
| 88520-60341E0 |
VDJ200..LHD WITH(COOL BOX),DK. BROWN,TRIM4# |
1 | ||
| 88520-60361E0 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 88529A - TRAY, COOLING BOX | ||||
| 88529-60050 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 88529-60050 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-60270 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 88539-60270 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60050 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 88601-60050 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-6A180 |
UZJ200,VDJ200..LHD WITH(COOL BOX) |
1 | ||
| 88605-6A180 |
UZJ200,VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88605-6A181 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88605-6A181 |
UZJ200,VDJ200..LHD WITH(COOL BOX) |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-60070 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 88625-60070 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88650L - AMPLIFIER ASSY, AIR CONDITIONER (FOR COOL BOX) | ||||
| 88650-60C70 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88650-60C70 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-60280 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88690-60280 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88720-60210 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88720-60210 |
UZJ200,VDJ200..LHD WITH(COOL BOX) |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-6C280 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| 88716-6C280 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88721C - HOSE, LIQUID | ||||
| 88721-60170 |
VDJ200..LHD WITH(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 88721-60170 |
VDJ200;UZJ200..LHD WITH(COOL BOX) |
1 | ||
| Common parts | ||||
| 88578-60440 | ||||
| 88578-60520 | ||||
| 88578-60530 | ||||
| 88718-2D150 | ||||
| 88891-60101 | ||||
| 90091-20644 | ||||
| 90099-00148 | ||||
| 90099-04621 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90982-09015 | ||||
| 91551-A0630 | ||||
| 91553-80622 | ||||
| 91673-80816 | ||||
| 93540-15012 | ||||
| 93540-54012 | ||||
| 93560-54010 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8718 | ||||

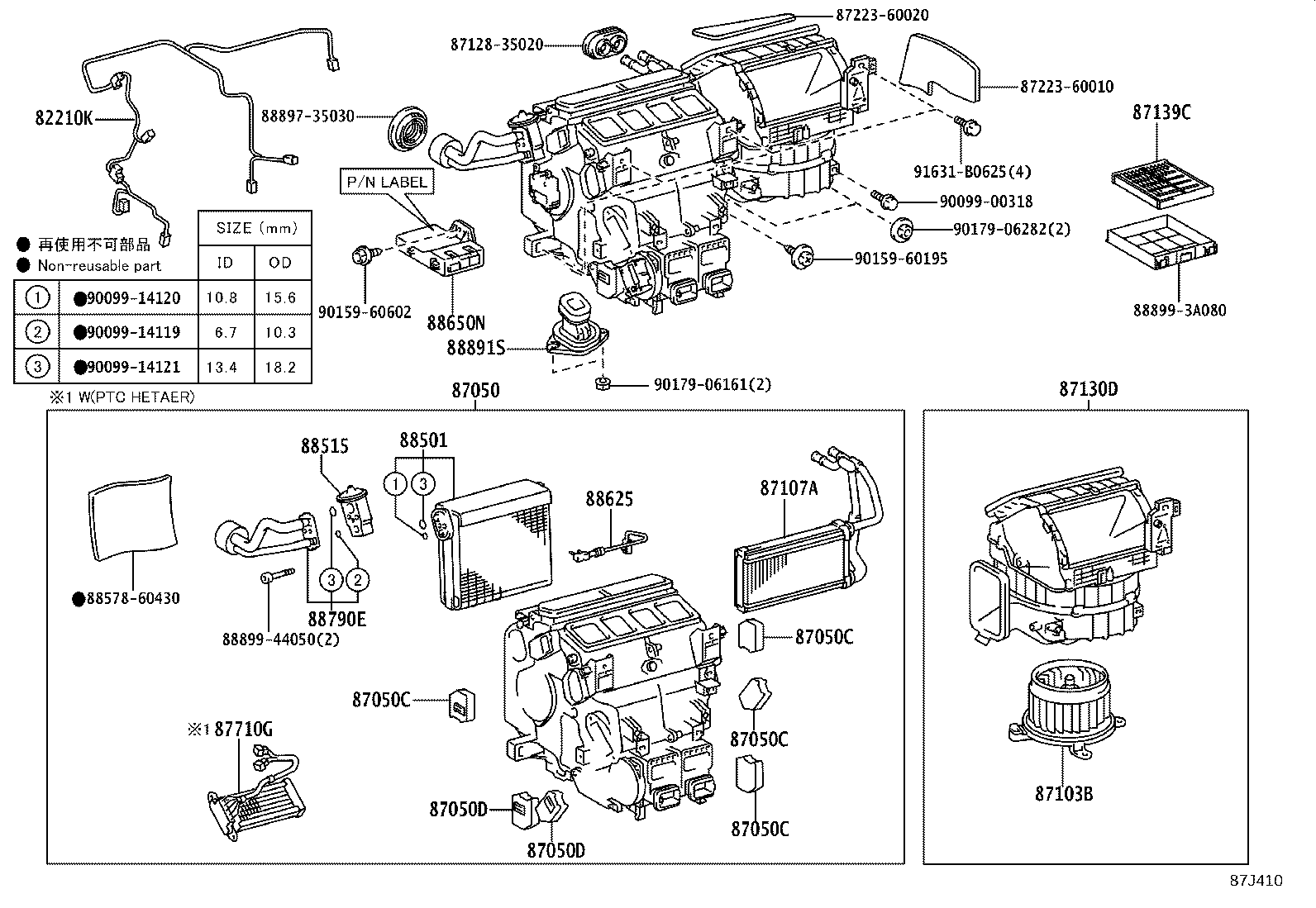

ILLUST NO. 1 OF 3(0709-1201)LHD
FRONT,W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60090 |
UZJ200,VDJ200..05S |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60460 |
UZJ200,VDJ200..05S |
1 | ||
| 87050-60450 |
UZJ200,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60510 |
VDJ200..05S COLD SPEC&WITH(COOL BOX) |
1 | ||
| 87050-60520 |
VDJ200..05S COLD SPEC |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..05S |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..05S |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..05S |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..05S |
4 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60260 |
UZJ200,VDJ200 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60260 |
UZJ200,VDJ200 |
2 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60480 |
UZJ200,VDJ200..LHD |
1 | ||
| 87103-60390 |
UZJ200,VDJ200..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60410 |
UZJ200,VDJ200 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60530 |
UZJ200,VDJ200..LHD |
1 | ||
| 87130-60532 |
UZJ200,VDJ200..LHD |
1 | ||
| 87130-60531 |
UZJ200,VDJ200..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
UZJ200,VDJ200 MICRO DUST FILTER,MICRO DUST FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-50020 |
VDJ200..05S COLD SPEC&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S COLD SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60360 |
UZJ200,VDJ200 |
1 | ||
| 88501-60361 |
UZJ200,VDJ200 |
1 | ||
| 88501-60362 |
UZJ200,VDJ200 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
UZJ200,VDJ200 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
UZJ200,VDJ200 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60C80 |
UZJ200,VDJ200..LHD INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60D20 |
VDJ200..LHD COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60D70 |
UZJ200,VDJ200..LHD |
1 | ||
| 88650-60D20 |
VDJ200..LHD COLD SPEC |
1 | ||
| 88650-60C81 |
UZJ200,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60D71 |
UZJ200,VDJ200..05S |
1 | ||
| 88650-60D21 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60D21 |
VDJ200..05S COLD SPEC |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A10 |
VDJ200..05S COLD SPEC&WITH(COOL BOX) |
1 | ||
| 88710-60A00 |
UZJ200,VDJ200 |
1 | ||
| 88710-60A10 |
UZJ200..LHD;VDJ200..RHD;VDJ200..05S WITH(COOL BOX) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87223-60010 | ||||
| 87223-60020 | ||||
| 88578-60430 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90179-06161 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||

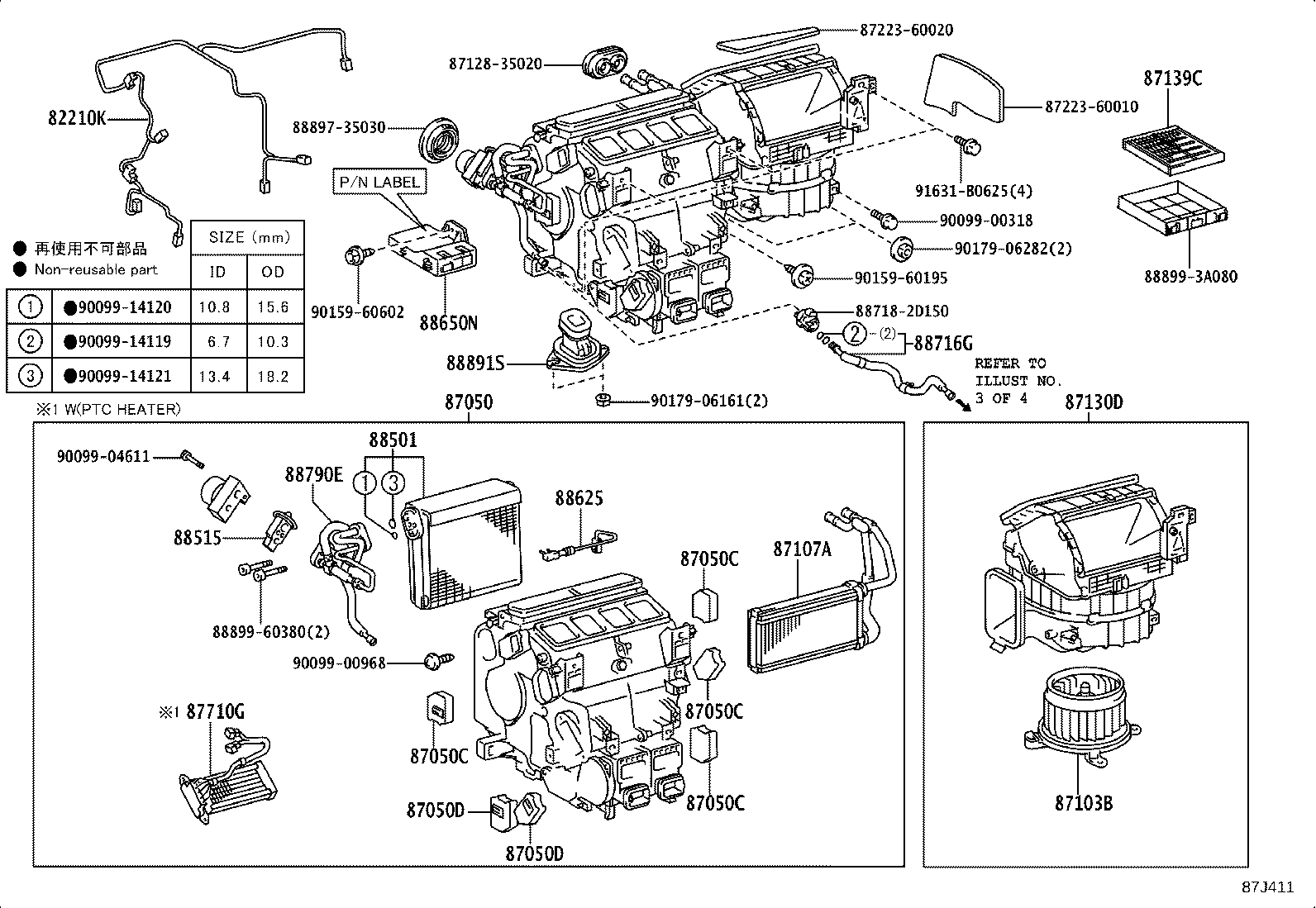

ILLUST NO. 1 OF 3(0709-1201)LHD
FRONT,W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60090 |
UZJ200,VDJ200..05S |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60460 |
UZJ200,VDJ200..05S |
1 | ||
| 87050-60450 |
UZJ200,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60510 |
VDJ200..05S COLD SPEC&WITH(COOL BOX) |
1 | ||
| 87050-60520 |
VDJ200..05S COLD SPEC |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..05S |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..05S |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..05S |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
UZJ200,VDJ200..05S |
4 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60260 |
UZJ200,VDJ200 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60260 |
UZJ200,VDJ200 |
2 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60480 |
UZJ200,VDJ200..LHD |
1 | ||
| 87103-60390 |
UZJ200,VDJ200..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60410 |
UZJ200,VDJ200 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60530 |
UZJ200,VDJ200..LHD |
1 | ||
| 87130-60532 |
UZJ200,VDJ200..LHD |
1 | ||
| 87130-60531 |
UZJ200,VDJ200..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
UZJ200,VDJ200 MICRO DUST FILTER,MICRO DUST FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-50020 |
VDJ200..05S COLD SPEC&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S COLD SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60360 |
UZJ200,VDJ200 |
1 | ||
| 88501-60361 |
UZJ200,VDJ200 |
1 | ||
| 88501-60362 |
UZJ200,VDJ200 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
UZJ200,VDJ200 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
UZJ200,VDJ200 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60C80 |
UZJ200,VDJ200..LHD INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60D20 |
VDJ200..LHD COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60D70 |
UZJ200,VDJ200..LHD |
1 | ||
| 88650-60D20 |
VDJ200..LHD COLD SPEC |
1 | ||
| 88650-60C81 |
UZJ200,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60D71 |
UZJ200,VDJ200..05S |
1 | ||
| 88650-60D21 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60D21 |
VDJ200..05S COLD SPEC |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-6C180 |
UZJ200..LHD;VDJ200..05S WITH(COOL BOX) |
1 | ||
| 88716-6C180 |
VDJ200..05S COLD SPEC&WITH(COOL BOX) |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A10 |
VDJ200..05S COLD SPEC&WITH(COOL BOX) |
1 | ||
| 88710-60A00 |
UZJ200,VDJ200 |
1 | ||
| 88710-60A10 |
UZJ200..LHD;VDJ200..RHD;VDJ200..05S WITH(COOL BOX) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87223-60010 | ||||
| 87223-60020 | ||||
| 88718-2D150 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 88899-60380 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04611 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90179-06161 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
