VDJ200L-GMTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)LHD

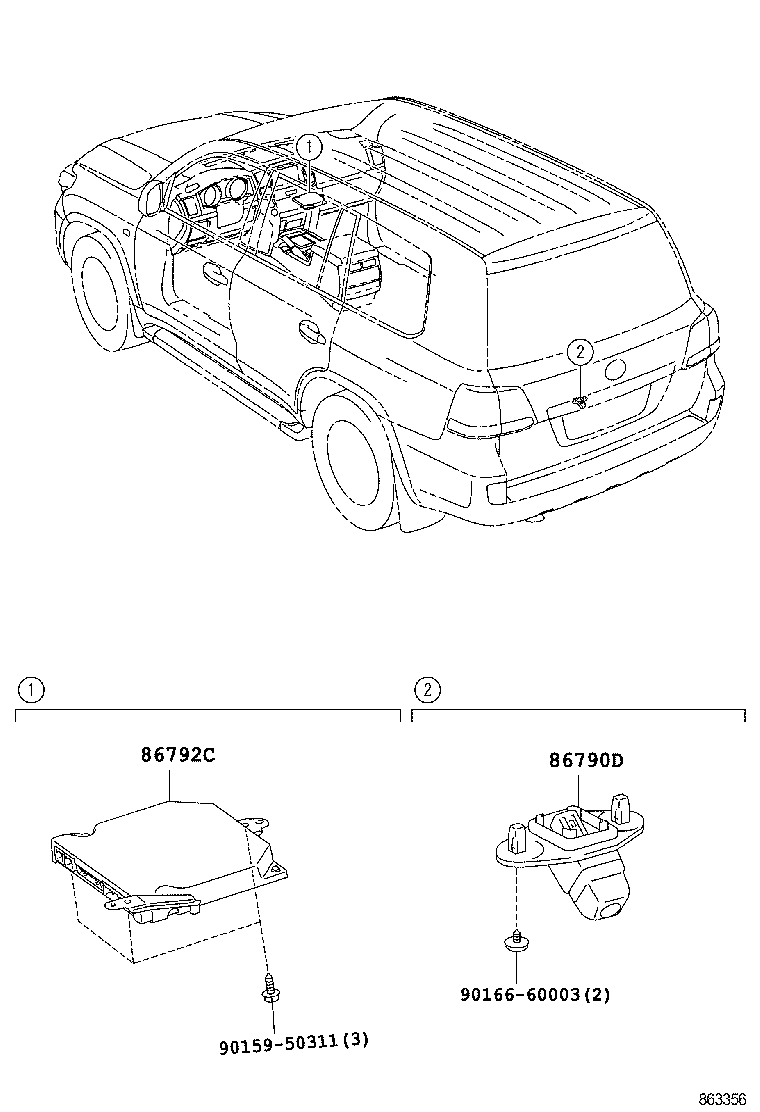

Click highlighted areas on diagram

diagram 86790D 86792C 9015950311 9016660003
Part # Description Qty Price
86790D - CAMERA ASSY, TELEVISION, RR
86790-60080

UZJ200,VDJ200

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

 1
86790-60081

UZJ200,VDJ200..LHD

BACK MONITOR-GUIDE

 1
86790-60080

UZJ200,VDJ200..LHD

BACK MONITOR-GUIDE

 1
86792C - COMPUTER, PARKING ASSIST
86792-60120

UZJ200,VDJ200..LHD

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH

 1
86792-60300

UZJ200,VDJ200..LHD

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH

 1
86792-60140

UZJ200,VDJ200..LHD

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

 1
86792-60320

UZJ200,VDJ200..LHD

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

 1
86792-60300

VDJ200..LHD;UZJ200..LHD..08S

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE

 1
86792-60320

VDJ200..LHD;UZJ200..LHD..08S

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE

 1
Common parts
90159-50311
90166-60003
