VDJ200L-GMTEZW (2007)
Toyota Land Cruiser

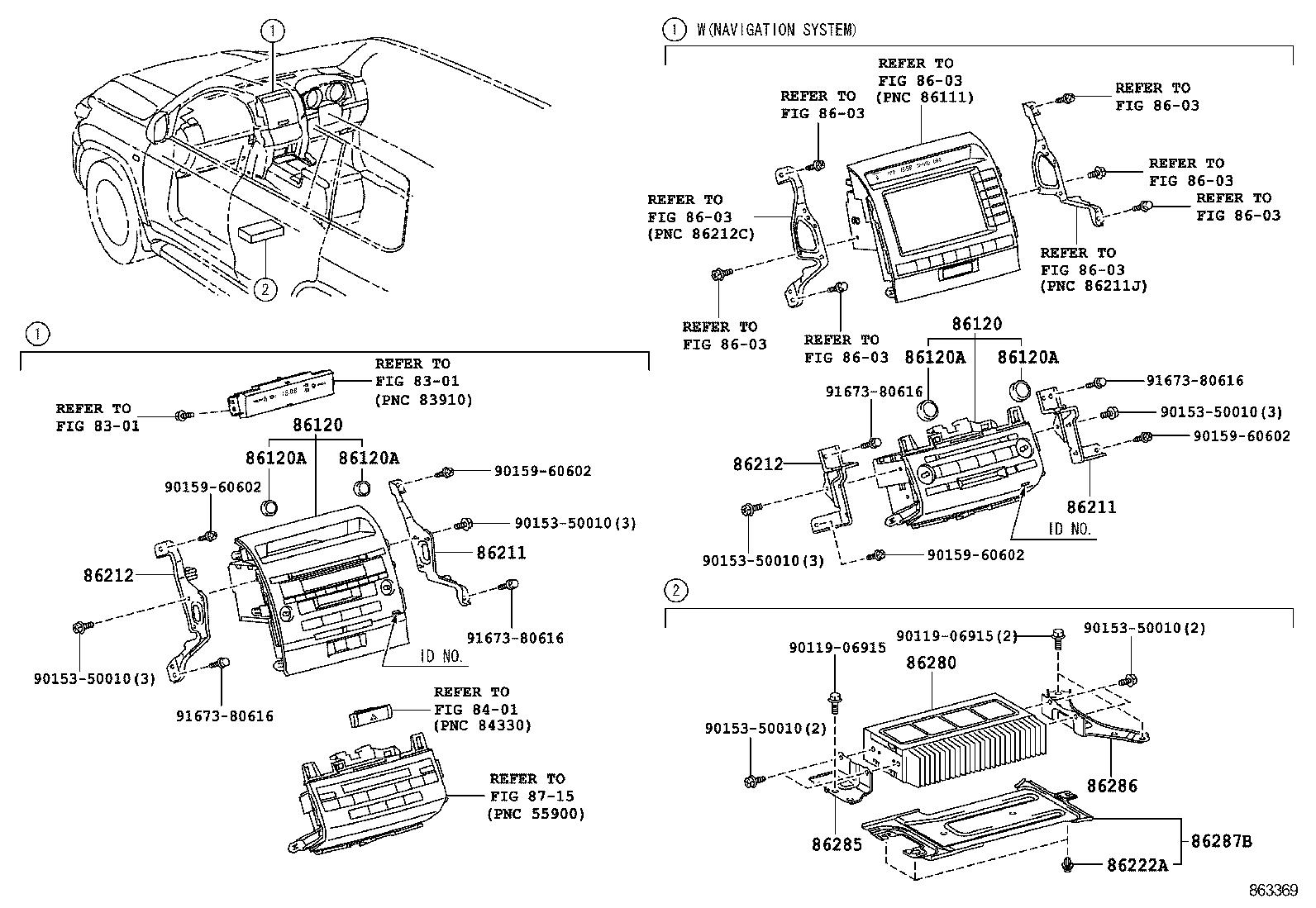

ILLUST NO. 1 OF 3(0709-1201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60890 |
UZJ200,VDJ200..LHD PIONEER,ID=P3812,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86120-60B70 |
UZJ200,VDJ200..LHD PIONEER,ID=P7514,RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86120-60A00 |
UZJ200,VDJ200..LHD PIONEER,ID=P8606,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86120-60G80 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P3835,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86120-60J00 |
UZJ200,VDJ200..LHD PIONEER,ID=P7550,ESTONIA OR LATVIA OR LITHUANIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60G90 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P8627,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FMJBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60G90 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P8627,EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60G80 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P3835 |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,AZERBAIJAN,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60890 |
UZJ200,VDJ200..LHD PIONEER,ID=P3812,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86120-60B70 |
UZJ200,VDJ200..LHD PIONEER,ID=P7514,RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86120-60A00 |
UZJ200,VDJ200..LHD PIONEER,ID=P8606,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86120-60G80 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P3835,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86120-60J00 |
UZJ200,VDJ200..LHD PIONEER,ID=P7550,ESTONIA OR LATVIA OR LITHUANIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60G90 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P8627,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FMJBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60G90 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P8627,EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120-60G80 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P3835 |
1 | ||
| 86120-60J00 |
UZJ200..05S;VDJ200..LHD PIONEER,ID=P7550,AZERBAIJAN,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22057 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22057 |
UZJ200,VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22056 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22065 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
2 | ||
| 90010-22066 |
UZJ200,VDJ200..LHD ESTONIA OR LATVIA OR LITHUANIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV &NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22065 |
UZJ200..05S;VDJ200..LHD |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD AZERBAIJAN,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22057 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22057 |
UZJ200,VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22056 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22065 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
2 | ||
| 90010-22066 |
UZJ200,VDJ200..LHD ESTONIA OR LATVIA OR LITHUANIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV &NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22065 |
UZJ200..05S;VDJ200..LHD |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD AZERBAIJAN,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22057 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22057 |
UZJ200,VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22056 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22065 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
2 | ||
| 90010-22066 |
UZJ200,VDJ200..LHD ESTONIA OR LATVIA OR LITHUANIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV &NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22065 |
UZJ200..05S;VDJ200..LHD |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD AZERBAIJAN,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22057 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22057 |
UZJ200,VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22056 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD RUSSIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22065 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
2 | ||
| 90010-22066 |
UZJ200,VDJ200..LHD ESTONIA OR LATVIA OR LITHUANIA SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV &NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD KAZAKHSTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22065 |
UZJ200..05S;VDJ200..LHD |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
UZJ200..05S;VDJ200..LHD AZERBAIJAN,GEORGIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 90010-22066 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
2 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60210 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86211-60230 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86211-60210 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86211-60200 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86211-60200 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86211-60210 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86211-60200 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60210 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86211-60230 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86211-60210 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86211-60200 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86211-60200 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86211-60210 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86211-60200 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60200 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86212-60210 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86212-60200 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86212-60210 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86212-60200 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86212-60210 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86212-60230 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60200 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86212-60210 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86212-60200 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86212-60210 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86212-60200 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86212-60210 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86212-60230 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86222A - CLIP, RADIO RECEIVER BRACKET NO.1 | ||||
| 90467-10161 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
3 | ||
| 90467-10161 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
3 | ||
| 90467-10161 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
3 | ||
| 90467-10161 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
3 | ||
| 90467-10161 |
UZJ200..05S;VDJ200..LHD |
3 | ||
| 90467-10161 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
3 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-60400 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86280-60400 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86280-60490 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86280-0W770 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86280-0W770 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86280-60490 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86280-60490 |
UZJ200..05S;VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-60160 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86285-60200 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86285-60160 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86285-60200 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86285-60160 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86285-60160 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-60070 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86286-60070 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86286-60060 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86286-60070 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86286-60060 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86286-60070 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-60070 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86287-60070 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 86287-60070 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86287-60070 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86287-60070 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86287-60070 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 90159-60602 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8301 | ||||
| 8401 | ||||
| 8603 | ||||
| 8715 | ||||
ILLUST NO. 3 OF 3(0709-1508)UZJ200,VDJ200
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04171 |
UZJ200,VDJ200 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
UZJ200,VDJ200 |
2 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
UZJ200,VDJ200 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

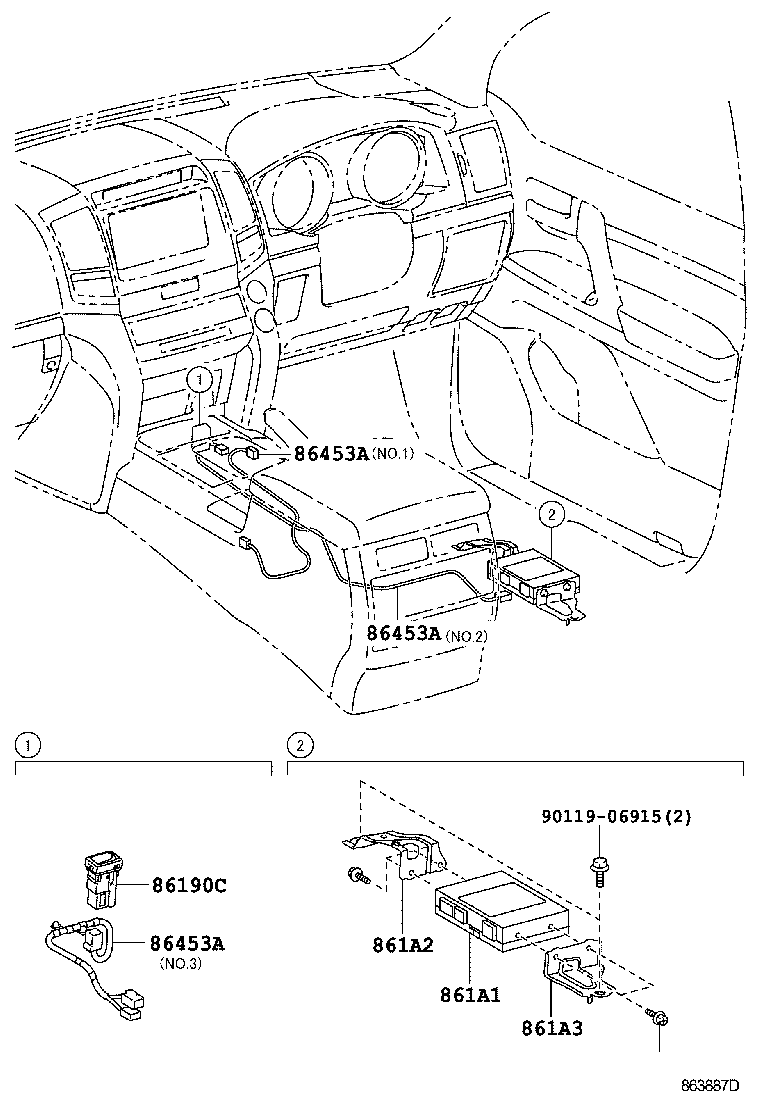

ILLUST NO. 2 OF 3(0907-1201)
USB JACK & ECU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 86190-48030 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 86190-48030 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A0-48030 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 861A0-77010 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 861A0-77010 |
UZJ200..05S;VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 861A0-48030 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 861A0-48030 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 861A0-77010 |
UZJ200..05S;VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 861A0-77010 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-60040 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 861A2-60040 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 861A2-60040 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2 | ||||
| 861A3-60040 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 861A3-60040 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER |
1 | ||
| 861A3-60040 |
UZJ200..05S;VDJ200..LHD |
1 | ||
| 86453A - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.1 |
1 | ||
| 86453-60050 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.2 |
1 | ||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.1 |
1 | ||
| 86453-60050 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.2 |
1 | ||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD NO.1 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.3 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.3 |
1 | ||
| 86453-60050 |
UZJ200..05S;VDJ200..LHD NO.2 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD NO.3 |
1 | ||
| 86453A - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.1 |
1 | ||
| 86453-60050 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.2 |
1 | ||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.1 |
1 | ||
| 86453-60050 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.2 |
1 | ||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD NO.1 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.3 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.3 |
1 | ||
| 86453-60050 |
UZJ200..05S;VDJ200..LHD NO.2 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD NO.3 |
1 | ||
| 86453A - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.1 |
1 | ||
| 86453-60050 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.2 |
1 | ||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.1 |
1 | ||
| 86453-60050 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.2 |
1 | ||
| 86453-60030 |
UZJ200..05S;VDJ200..LHD NO.1 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,NO.3 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NO.3 |
1 | ||
| 86453-60050 |
UZJ200..05S;VDJ200..LHD NO.2 |
1 | ||
| 86453-60080 |
UZJ200..05S;VDJ200..LHD NO.3 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
