VDJ200L-GMTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)

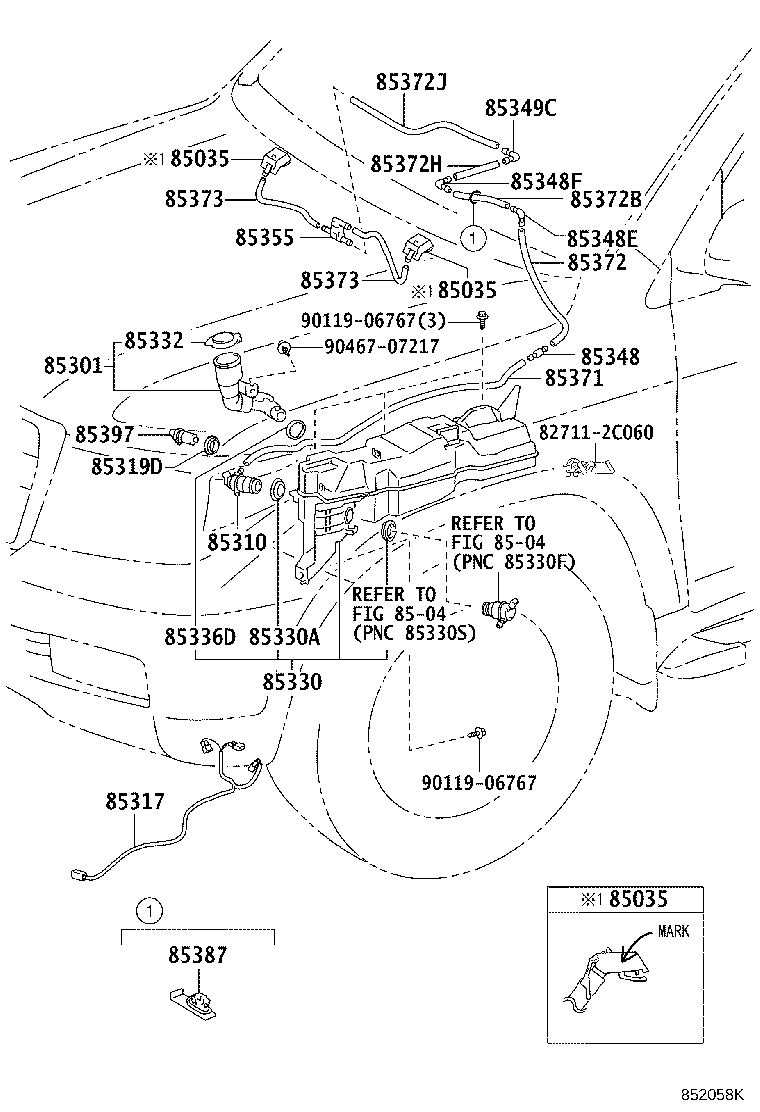

Click highlighted areas on diagram

W/O(HEADLAMP CLEANER)

diagram 827112C060 85035 85035 85035 8504 8504 85301 85310 85317 85319D 85330 85330A 85332 85336D 85348 85348E 85348F 85349C 85355 85371 85372 85372B 85372H 85372J 85373 85373 85387 85397 9011906767 9011906767 9046707217
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-28220

UZJ200,VDJ200

MARK +1

 2
85381-28230

UZJ200,VDJ200

MARK +3

 2
85381-28240

UZJ200,VDJ200

MARK -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-28220

UZJ200,VDJ200

MARK +1

 2
85381-28230

UZJ200,VDJ200

MARK +3

 2
85381-28240

UZJ200,VDJ200

MARK -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-28220

UZJ200,VDJ200

MARK +1

 2
85381-28230

UZJ200,VDJ200

MARK +3

 2
85381-28240

UZJ200,VDJ200

MARK -1

 2
85301 - INLET SUB-ASSY, WASHER
85301-60060

UZJ200,VDJ200

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

UZJ200,VDJ200

 1
85330-47010

UZJ200,VDJ200

 1
85317 - WIRING ASSY, WASHER
85317-60350

UZJ200,VDJ200..LHD

 1
85317-60360

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85319D - PACKING, FRONT WASHER
85319-33230

UZJ200,VDJ200

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-60350

UZJ200,VDJ200..LHD

 1
85355-60180

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

UZJ200,VDJ200

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-60060

UZJ200,VDJ200

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

UZJ200,VDJ200

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

UZJ200,VDJ200

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

UZJ200,VDJ200

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

UZJ200,VDJ200

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

UZJ200,VDJ200

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

UZJ200,VDJ200

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

UZJ200,VDJ200

*H,L=330

 1
90099-33080

UZJ200,VDJ200..LHD

*H,L=330,HEADLAMP CLEANER-WITH

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

UZJ200,VDJ200

*H,L=240

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

UZJ200,VDJ200

*H,L=110

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

UZJ200,VDJ200

*H,L=65

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

UZJ200,VDJ200

*H,L=760

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

UZJ200,VDJ200

*H,L=310

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

UZJ200,VDJ200

*H,L=310

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-52090

UZJ200,VDJ200

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-30400

UZJ200,VDJ200

 1
Common parts
82711-2C060
90119-06767
90467-07217
Linked diagrams
8504

(0709- )

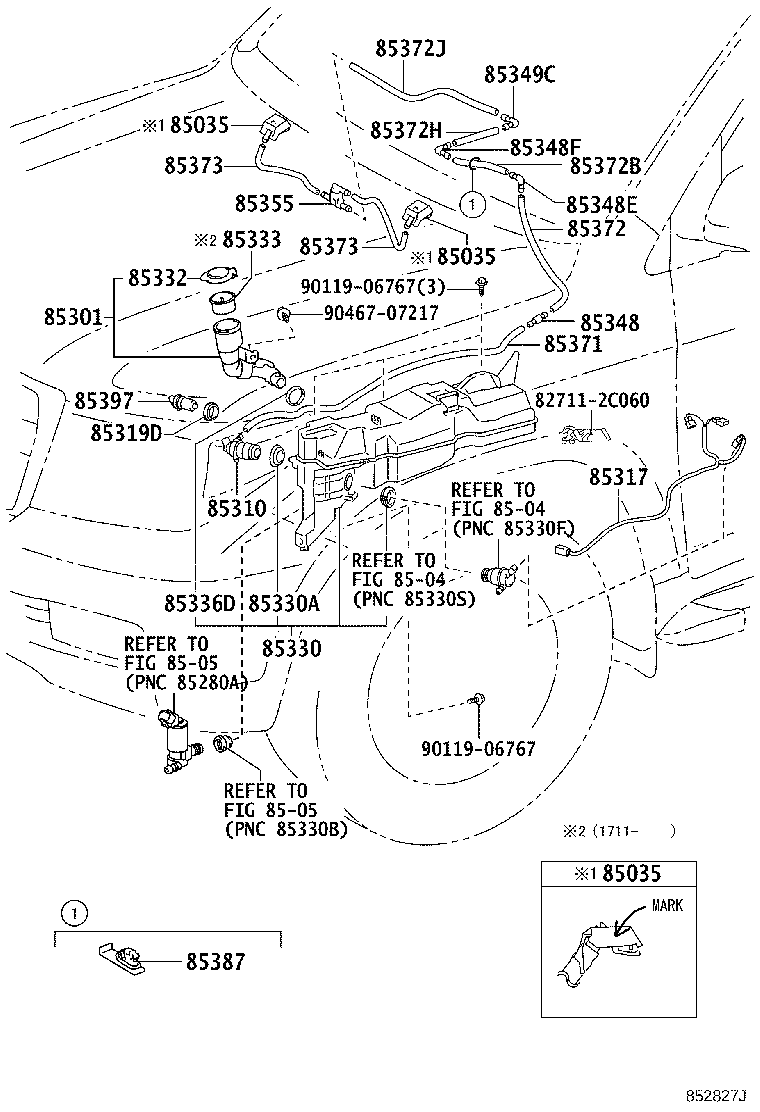

Click highlighted areas on diagram

W(HEADLAMP CLEANER)

diagram 827112C060 85035 85035 85035 8504 8504 8505 8505 85301 85310 85317 85319D 85330 85330A 85332 85333 85336D 85348 85348E 85348F 85349C 85355 85371 85372 85372B 85372H 85372J 85373 85373 85387 85397 9011906767 9011906767 9046707217
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-28220

UZJ200,VDJ200

MARK +1

 2
85381-28230

UZJ200,VDJ200

MARK +3

 2
85381-28240

UZJ200,VDJ200

MARK -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-28220

UZJ200,VDJ200

MARK +1

 2
85381-28230

UZJ200,VDJ200

MARK +3

 2
85381-28240

UZJ200,VDJ200

MARK -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-28220

UZJ200,VDJ200

MARK +1

 2
85381-28230

UZJ200,VDJ200

MARK +3

 2
85381-28240

UZJ200,VDJ200

MARK -1

 2
85301 - INLET SUB-ASSY, WASHER
85301-60060

UZJ200,VDJ200

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

UZJ200,VDJ200

 1
85330-47010

UZJ200,VDJ200

 1
85317 - WIRING ASSY, WASHER
85317-60350

UZJ200,VDJ200..LHD

 1
85317-60360

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85319D - PACKING, FRONT WASHER
85319-33230

UZJ200,VDJ200

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-60350

UZJ200,VDJ200..LHD

 1
85355-60180

UZJ200,VDJ200..LHD

HEADLAMP CLEANER-WITH

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

UZJ200,VDJ200

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-60060

UZJ200,VDJ200

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

UZJ200,VDJ200

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

UZJ200,VDJ200

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

UZJ200,VDJ200

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

UZJ200,VDJ200

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20200

UZJ200,VDJ200

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

UZJ200,VDJ200

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

UZJ200,VDJ200

*H,L=330

 1
90099-33080

UZJ200,VDJ200..LHD

*H,L=330,HEADLAMP CLEANER-WITH

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

UZJ200,VDJ200

*H,L=240

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

UZJ200,VDJ200

*H,L=110

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

UZJ200,VDJ200

*H,L=65

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

UZJ200,VDJ200

*H,L=760

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

UZJ200,VDJ200

*H,L=310

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

UZJ200,VDJ200

*H,L=310

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-52090

UZJ200,VDJ200

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-30400

UZJ200,VDJ200

 1
Common parts
82711-2C060
90119-06767
90467-07217
Linked diagrams
8504
8505
