VDJ200L-GMTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)LHD

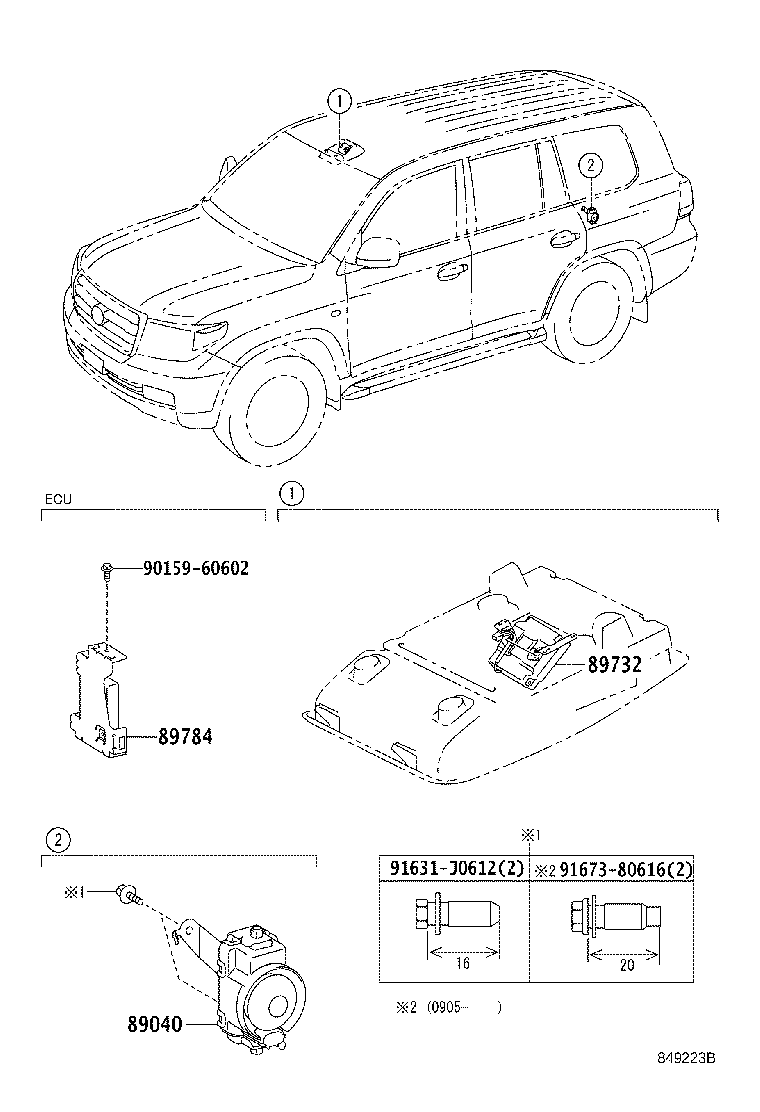

Click highlighted areas on diagram

diagram 89040 89732 89784 9015960602 91631J0612 9167380616
Part # Description Qty Price
89040 - SIREN ASSY, THEFT WARNING
89040-60040

UZJ200,VDJ200

 1
89732 - SENSOR, THEFT WARNING RADAR
89732-60060

UZJ200,VDJ200..LHD

ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(*SERT & REMOTE CONTROL)

 1
89732-60050

UZJ200,VDJ200..LHD

ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)

 1
89732-60061

UZJ200,VDJ200..LHD

ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)&MOON ROOF-WITH(*SERT & REMOTE CONTROL)

 1
89732-60051

UZJ200,VDJ200..LHD

ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-60010

UZJ200,VDJ200..LHD

 1
89784-60080

UZJ200,VDJ200..LHD

 1
Common parts
90159-60602
91631-J0612
91673-80616
