VDJ200L-GMTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )URJ202,UZJ200 ; (1608- )VDJ200

Click highlighted areas on diagram

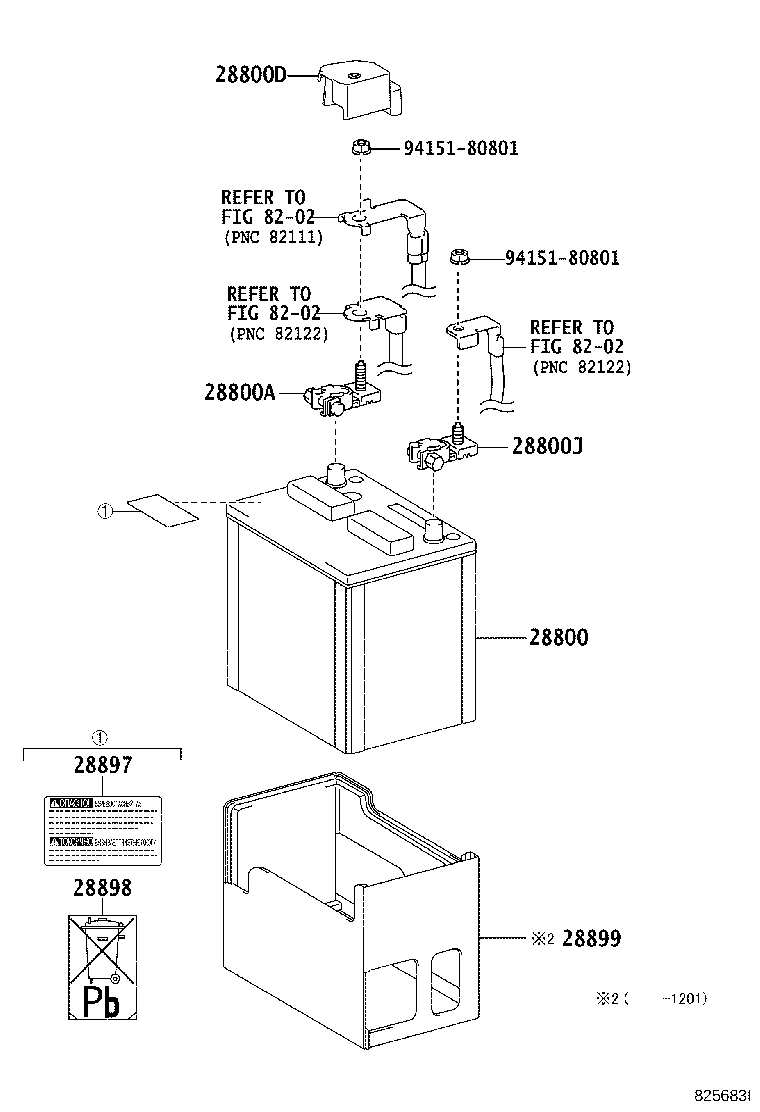

1-BATTERY

diagram 28800 28800A 28800D 28800J 28897 28898 28899 8202 8202 8202 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-17131

1VDFTV..VDJ200

105D31R,COLD SPEC

 1
28800-17121

1VDFTV..VDJ200;2UZFE..UZJ200..LHD

80D26L

 1
28800-64251

1VDFTV..VDJ200

105D31L,COLD SPEC

 1
28800-17111

1VDFTV..VDJ200

80D26R

 1
28800-64905

1VDFTV..VDJ200

105D31L,COLD SPEC

 1
28800A - TERMINAL, BATTERY POSITIVE
82675-60020

2UZFE,1VDFTV..UZJ200,VDJ200

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-60200

2UZFE,1VDFTV..UZJ200,VDJ200

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

2UZFE,1VDFTV..UZJ200,VDJ200

 1
28898 - PLATE, BATTERY
28898-46020

1VDFTV..VDJ200

 2
Common parts
94151-80801
Linked diagrams
8202

(0709- )VDJ200

Click highlighted areas on diagram

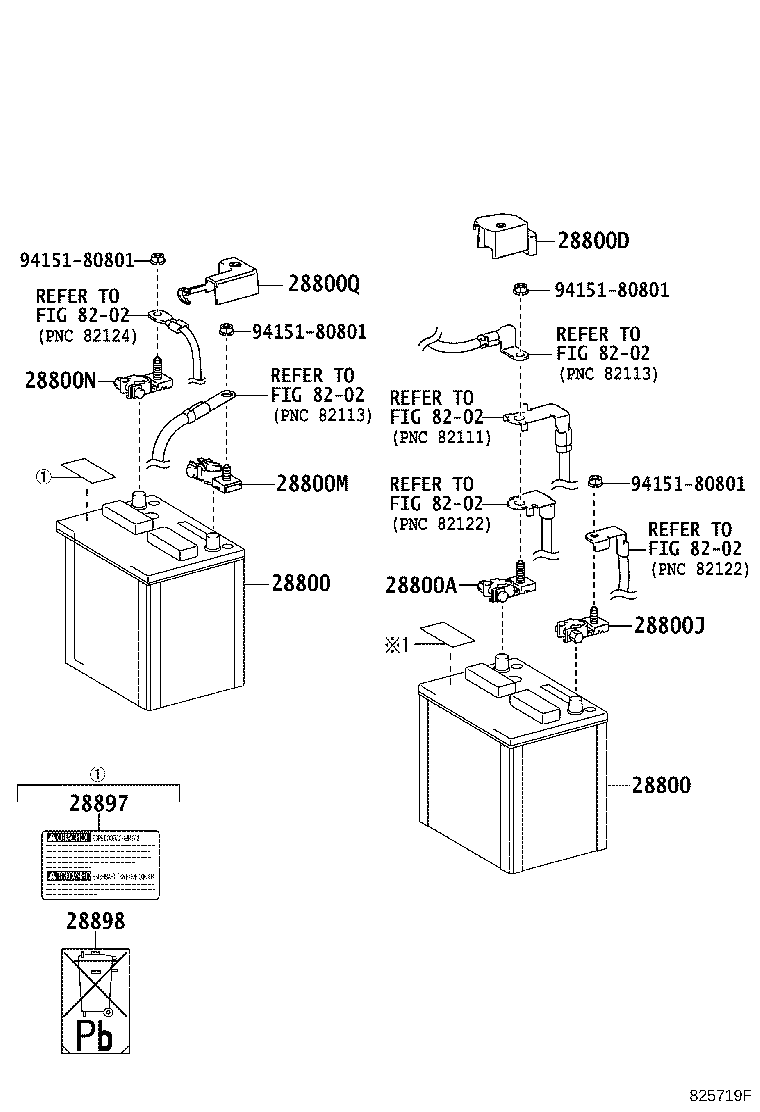

2-BATTERY

diagram 28800 28800 28800A 28800D 28800J 28800M 28800N 28800Q 28897 28898 8202 8202 8202 8202 8202 8202 9415180801 9415180801 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-17131

1VDFTV..VDJ200

105D31R,COLD SPEC

 1
28800-17121

1VDFTV..VDJ200;2UZFE..UZJ200..LHD

80D26L

 1
28800-64251

1VDFTV..VDJ200

105D31L,COLD SPEC

 1
28800-17111

1VDFTV..VDJ200

80D26R

 1
28800-64905

1VDFTV..VDJ200

105D31L,COLD SPEC

 1
28800 - BATTERY
28800-17131

1VDFTV..VDJ200

105D31R,COLD SPEC

 1
28800-17121

1VDFTV..VDJ200;2UZFE..UZJ200..LHD

80D26L

 1
28800-64251

1VDFTV..VDJ200

105D31L,COLD SPEC

 1
28800-17111

1VDFTV..VDJ200

80D26R

 1
28800-64905

1VDFTV..VDJ200

105D31L,COLD SPEC

 1
28800A - TERMINAL, BATTERY POSITIVE
82675-60020

2UZFE,1VDFTV..UZJ200,VDJ200

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-60200

2UZFE,1VDFTV..UZJ200,VDJ200

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

2UZFE,1VDFTV..UZJ200,VDJ200

 1
28800M - TERMINAL, BATTERY POSITIVE
82675-60020

1VDFTV..VDJ200

 1
28800N - TERMINAL, BATTERY NEGATIVE
90982-06070

1VDFTV..VDJ200

 1
28800Q - COVER, CONNECTOR(FOR BATTERY)
82821-60190

1VDFTV..VDJ200

 1
28898 - PLATE, BATTERY
28898-46020

1VDFTV..VDJ200

 2
Common parts
94151-80801
Linked diagrams
8202
