VDJ200L-GMTEZW (2007)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(0709- )VDJ200

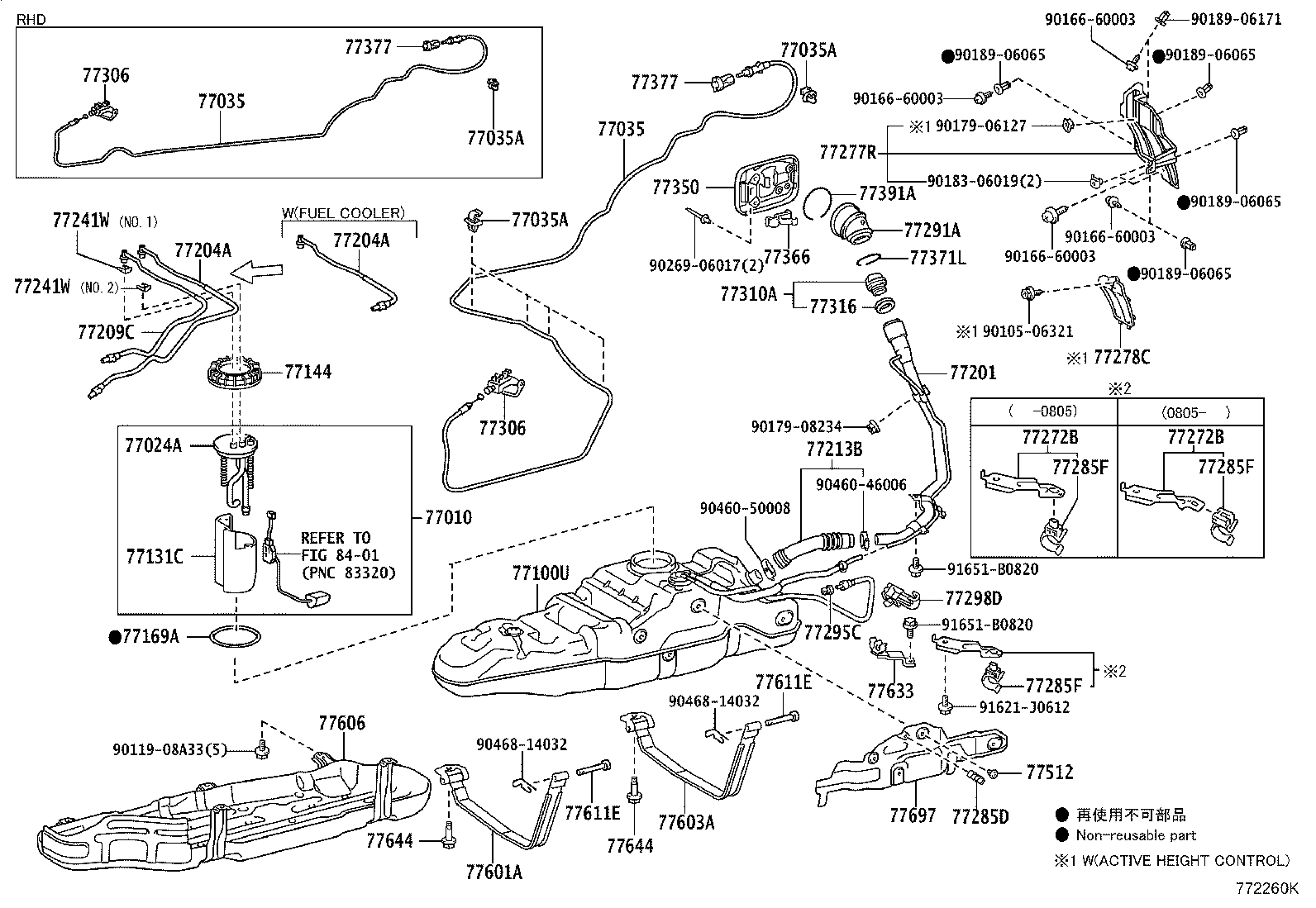

FUEL TANK,W/O(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-60171 |
VDJ200 |
1 | ||
| 77010-60170 |
VDJ200 |
1 | ||
| 77010-60172 |
VDJ200 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-60241 |
VDJ200 |
1 | ||
| 77024-60240 |
VDJ200 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60140 |
UZJ200,VDJ200..LHD |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60140 |
UZJ200,VDJ200..LHD |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
UZJ200,VDJ200..LHD |
5 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
UZJ200,VDJ200..LHD |
5 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
UZJ200,VDJ200..LHD |
5 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-60810 |
VDJ200 |
1 | ||
| 77001-60811 |
VDJ200 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-60130 |
VDJ200 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-47020 |
UZJ200,VDJ200 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-30050 |
VDJ200 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60A90 |
VDJ200 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-60080 |
VDJ200 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-60080 |
VDJ200 |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60480 |
VDJ200 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-60310 |
UZJ200,VDJ200 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
VDJ200 NO.2:REFER ILLUST. |
1 | ||
| 77241-60310 |
VDJ200 NO.1:REFER ILLUST. |
1 | ||
| 77241-33011 |
VDJ200 NO.2:REFER ILLUST. |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
VDJ200 NO.2:REFER ILLUST. |
1 | ||
| 77241-60310 |
VDJ200 NO.1:REFER ILLUST. |
1 | ||
| 77241-33011 |
VDJ200 NO.2:REFER ILLUST. |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77205-60C00 |
UZJ200,VDJ200 |
1 | ||
| 77205-60C01 |
UZJ200,VDJ200 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77205-60C00 |
UZJ200,VDJ200 |
1 | ||
| 77205-60C01 |
UZJ200,VDJ200 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60140 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 77277-60130 |
UZJ200,VDJ200 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60850 |
VDJ200 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77197-60030 |
UZJ200,VDJ200 |
1 | ||
| 77197-60031 |
UZJ200,VDJ200 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77197-60030 |
UZJ200,VDJ200 |
1 | ||
| 77197-60031 |
UZJ200,VDJ200 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77197-60030 |
UZJ200,VDJ200 |
1 | ||
| 77197-60031 |
UZJ200,VDJ200 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-60120 |
UZJ200,VDJ200 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
VDJ200 |
1 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-60110 |
VDJ200 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28060C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 77306-28060E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28060C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 77306-28060E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
UZJ200,VDJ200 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
UZJ200,VDJ200 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-60090 |
UZJ200,VDJ200 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35040 |
UZJ200,VDJ200 |
1 | ||
| 77371L - RING, FUEL TANK FILLER PIPE SHIELD | ||||
| 77371-35010 |
UZJ200,VDJ200 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-35010 |
UZJ200,VDJ200 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-35010 |
UZJ200,VDJ200 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-35020 |
UZJ200,VDJ200 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
UZJ200,VDJ200 |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-60310 |
UZJ200,VDJ200 |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-60110 |
UZJ200,VDJ200 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60170 |
UZJ200,VDJ200 |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
UZJ200,VDJ200 |
2 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
UZJ200,VDJ200 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-60070 |
VDJ200 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
UZJ200,VDJ200 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
UZJ200,VDJ200 |
2 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-60010 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 90105-06321 | ||||
| 90119-08A33 | ||||
| 90166-60003 | ||||
| 90179-06127 | ||||
| 90179-08234 | ||||
| 90183-06019 | ||||
| 90189-06065 | ||||
| 90189-06171 | ||||
| 90269-06017 | ||||
| 90460-46006 | ||||
| 90460-50008 | ||||
| 90468-14032 | ||||
| 91621-J0612 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0709- )VDJ200

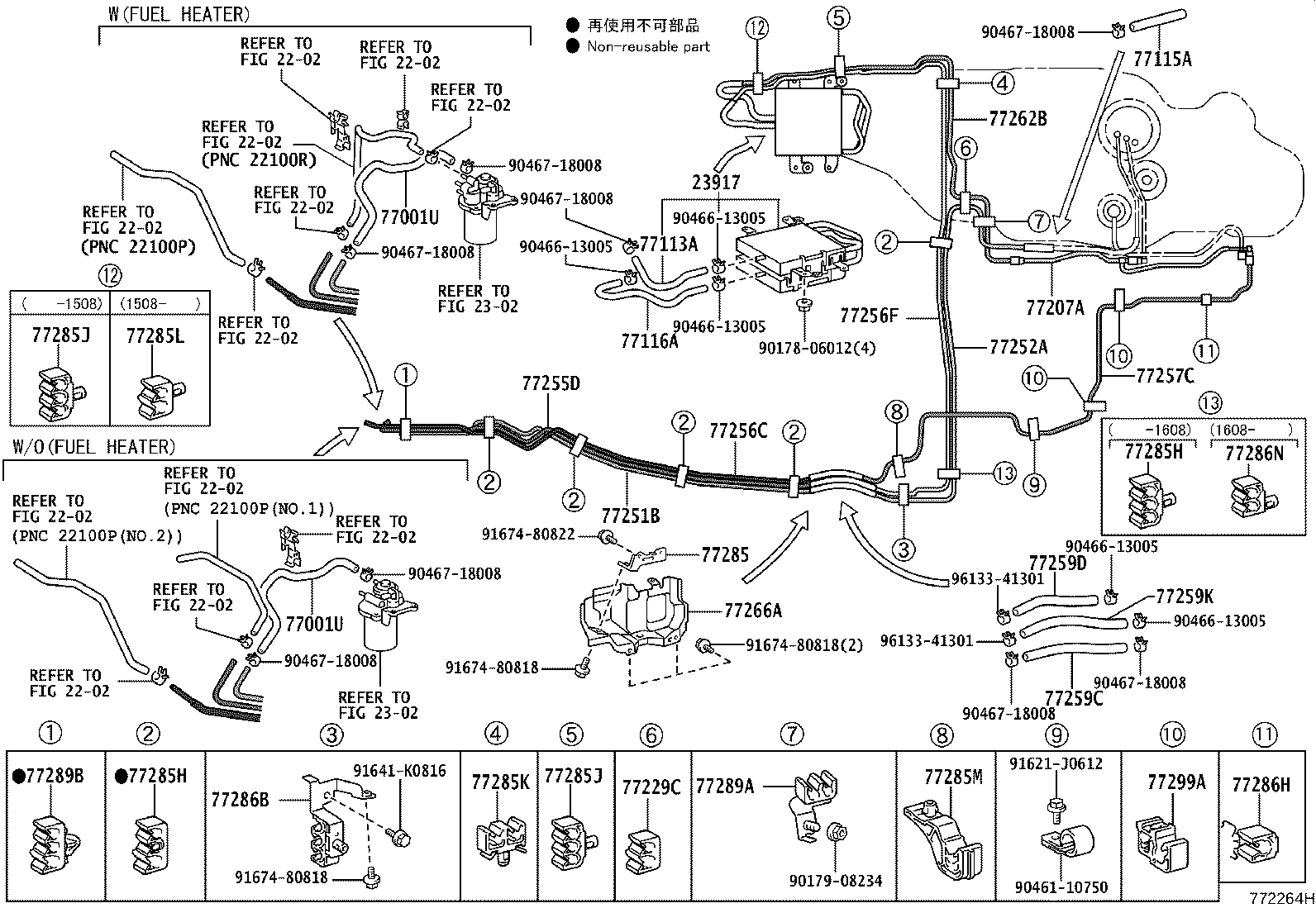

FUEL TUBE,W(FUEL COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23917 - COOLER, FUEL | ||||
| 23920-51030 |
1VDFTV..VDJ200 |
1 | ||
| 77001U - HOSE, FUEL | ||||
| 77259-60851 |
VDJ200 |
1 | ||
| 77259-60850 |
VDJ200 |
1 | ||
| 77001U - HOSE, FUEL | ||||
| 77259-60851 |
VDJ200 |
1 | ||
| 77259-60850 |
VDJ200 |
1 | ||
| 77113A - HOSE, FUEL, NO.2 (FOR COOLER) | ||||
| 23282-51030 |
VDJ200 |
1 | ||
| 77115A - HOSE, FUEL TUBE, NO.3 | ||||
| 77259-60861 |
VDJ200 L=90 |
1 | ||
| 77259-60860 |
VDJ200 L=90 |
1 | ||
| 77116A - HOSE, FUEL TUBE, NO.4 | ||||
| 77259-60870 |
VDJ200 |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-60090 |
VDJ200 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-47060 |
VDJ200 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60B20 |
VDJ200 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-60790 |
VDJ200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60B20 |
VDJ200 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77255-60B30 |
VDJ200 |
1 | ||
| 77256F - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-60780 |
VDJ200 |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-60260 |
VDJ200 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 95338-12019 |
VDJ200 |
1 | ||
| 95332-12019 |
VDJ200 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 95337-08017 |
VDJ200 |
1 | ||
| 95338-08017 |
VDJ200 |
1 | ||
| 77259K - HOSE, FUEL | ||||
| 95337-08020 |
VDJ200 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77256-60790 |
VDJ200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60070 |
UZJ200,VDJ200 |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-60400 |
VDJ200 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34370 |
VDJ200 |
6 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34370 |
VDJ200 |
6 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
VDJ200 |
2 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
VDJ200 |
2 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34031 |
UZJ200,VDJ200 |
1 | ||
| 77285M - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35710 |
VDJ200 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-60A00 |
VDJ200 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-42060 |
VDJ200 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77285-60A10 |
VDJ200 |
1 | ||
| 77285-60A11 |
VDJ200 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26010 |
UZJ200,VDJ200 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
VDJ200 |
2 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90179-08234 | ||||
| 90461-10750 | ||||
| 90466-13005 | ||||
| 90467-18008 | ||||
| 91621-J0612 | ||||
| 91641-K0816 | ||||
| 91674-80818 | ||||
| 91674-80822 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
